instantphoto.eu              ESCURA INSTANT 60s



The ESCURA INSTANT 60s is a simple, but stylish Instant camera for Fuji Instax Mini film. It was a Kickstarter project. Launched end October 2018 it was financed in only 4 days and should have been delivered in Spring 2019. During the campaign they added an extra finder for free and proposed add-ons as a matching flash. Until mid January 2018 all seemed fine.

Production test end February showed that all was fine...except the lens. Sharpness wasn't too good and it had heavy vignetting, so they had to look for a solution which meant a delay. By the month of May update some backers were disappointed, but the makers continued and proposed a 2-element lens instead of the initial single lens with no extra costs, however it would be a major delay. During Summer an additional rollers problem surfaced, but they still continued. By September the first final camera was assembled, the rollers were re-worked another time. Finally in  November shipment started, because of the Hong Kong protests with some more delay. Early december my camera was shipped. French customs kept it for nearly a month. It was delivered early January 2020. Most of the backers were very supportive, the perseverance of the makers and their information policy were adorable. I have known Kickstarter projects that were abandoned, but these people kept their promise.

But in the end I got a faulty camera. They had promised customer service. At first there were some lame excuses and weeks of waiting. Finally they got it going and I was promised a replacement camera. After some more waiting my replacement camera arrived early March. I will have to wait for sunny weather to test it. Let's have a look at the camera.

Technical Specifications:

Film Format: Fujifilm Instax Mini Film
Exposure Area: 62mm x 46mm
Lens Focal Length: 60mm
Aperture: f/12.7 or f/16
Shutter Speed: Bulb Mode, 1/100s
Film Ejection Mechanism: Hand powered
Multiple Exposures: Unlimited
External Flash: 4 (m)
Tripod Mount: Yes
Film Counter: mechanical indication, counting down
Size: 12 x 16 x 10 cm including finder
Weight: 285 gr.

Accessories:
Flash, colour filters for flash.

Some pictures of the camera:

../jpgother/escura_instant_60s_IMG_3444.JPG

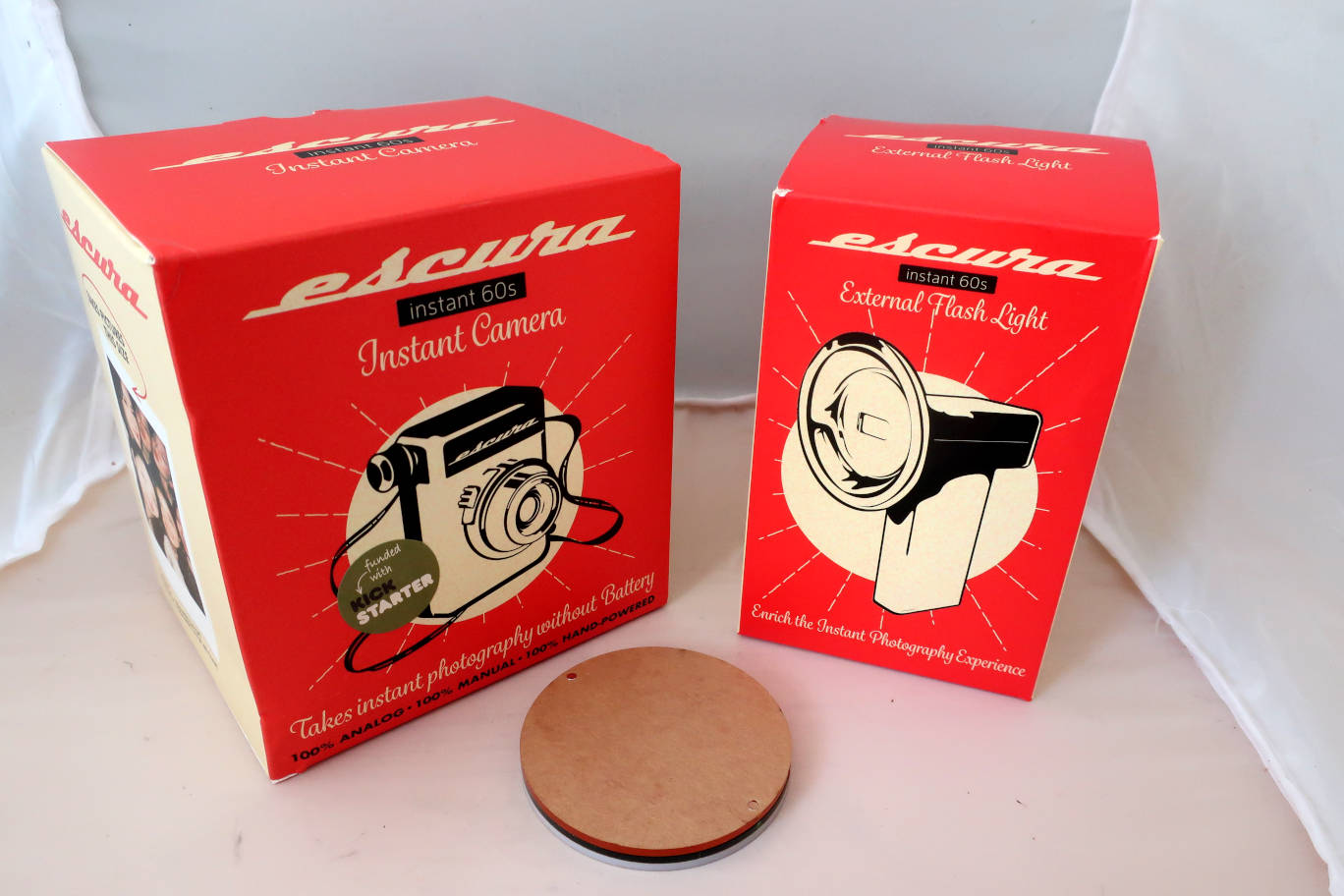

The pledge from Kickstarter in nice stylish boxes, the camera, the flash and color filters for the flash.

../jpgother/escura_instant_60s_IMG_4080.JPG
Obviously they changed the design of the boxes, once the Kickstarter pledges were delivered. This is the box of my replacement camera.

../jpgother/escura_instant_60s_IMG_4081.JPG
New box seen from the other side.

../jpgother/escura_instant_60s_IMG_3445.JPG
What's in the box. The camera, the flash and instructions.

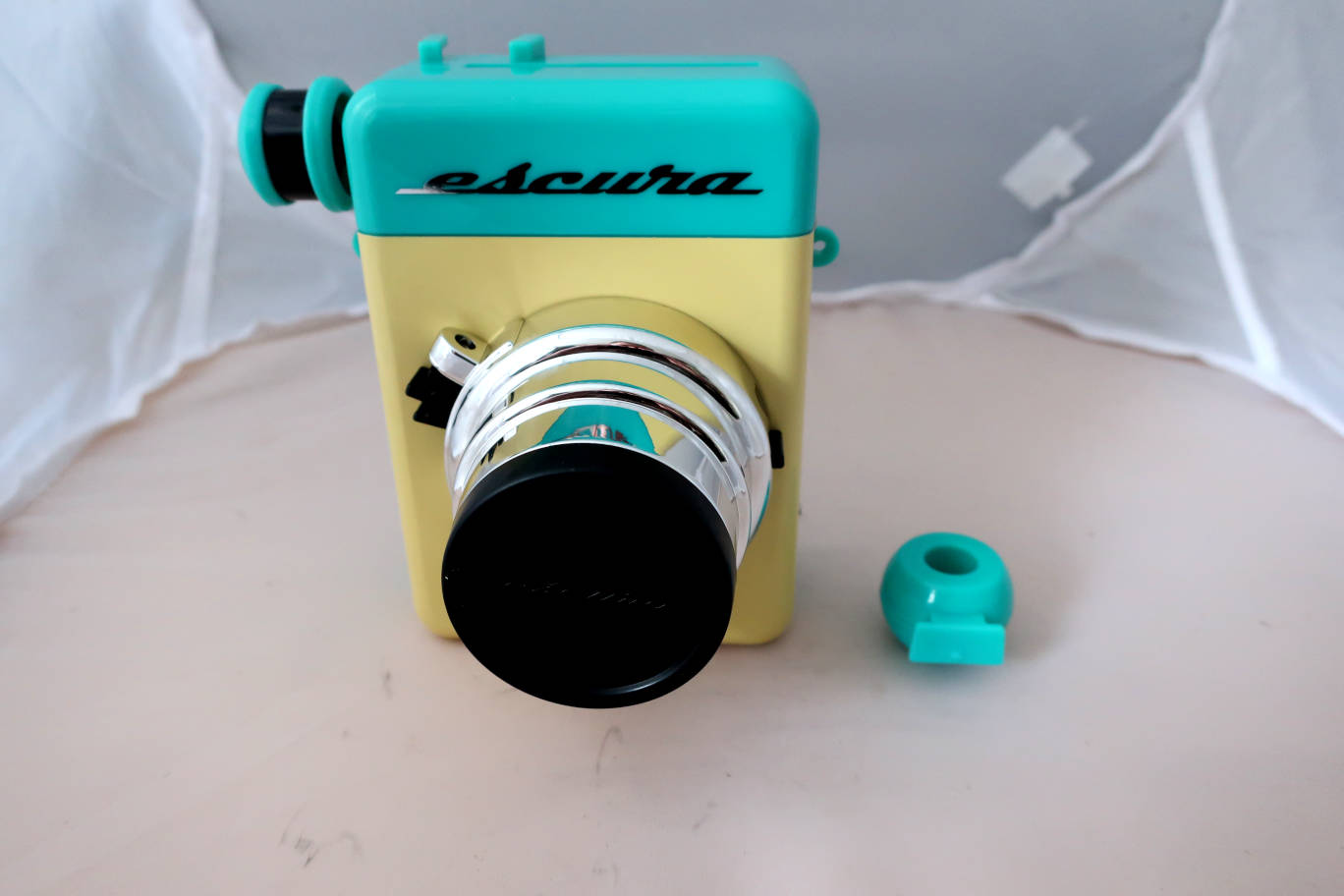

../jpgother/escura_instant_60s_IMG_3446.JPG
Camera with cap and extra finder. Initially there was no finder planned. The finder is not even a frame, it's only an aiming help.

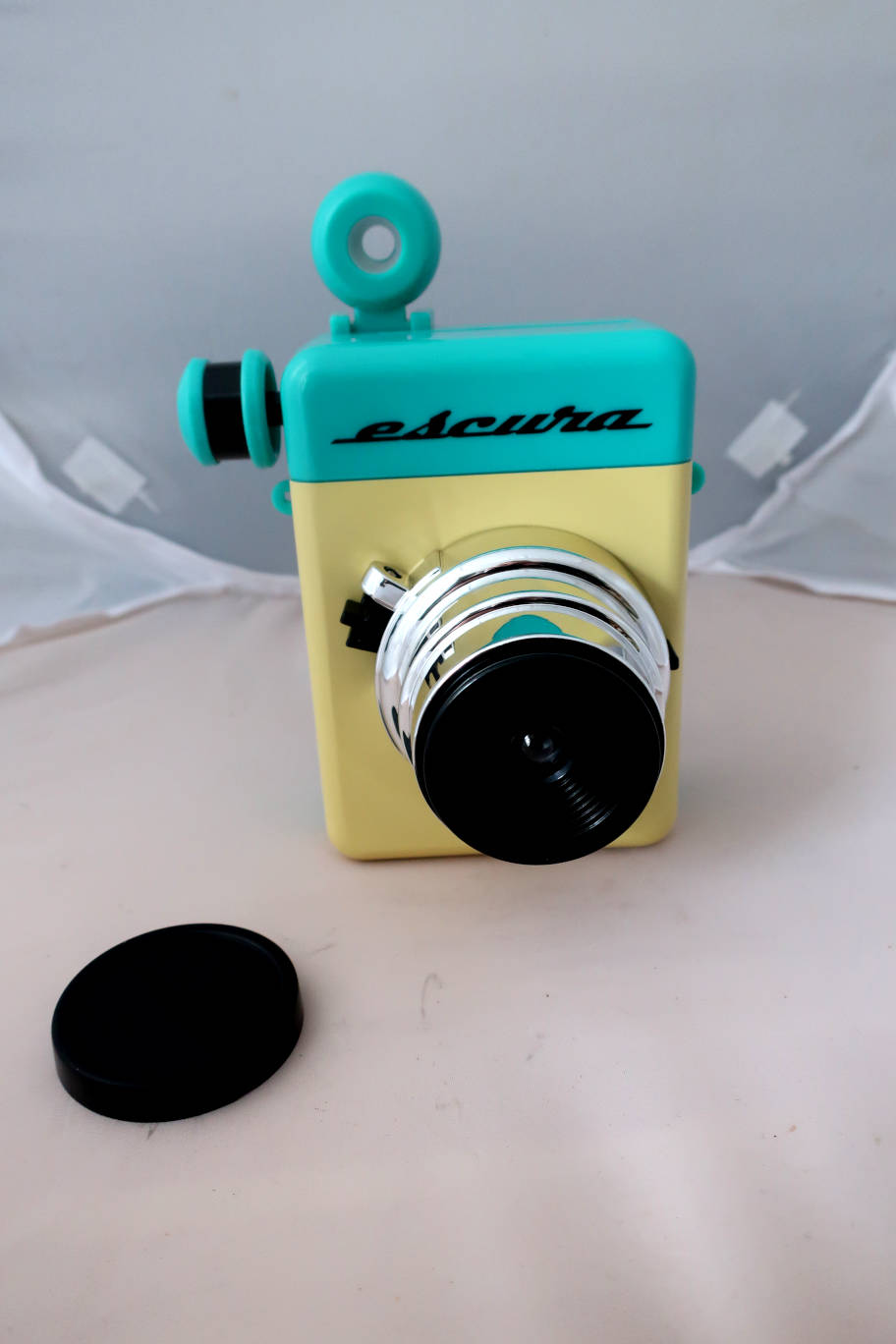

../jpgother/escura_instant_60s_IMG_3447.JPG
The camera front.

../jpgother/escura_instant_60s_IMG_3453.JPG

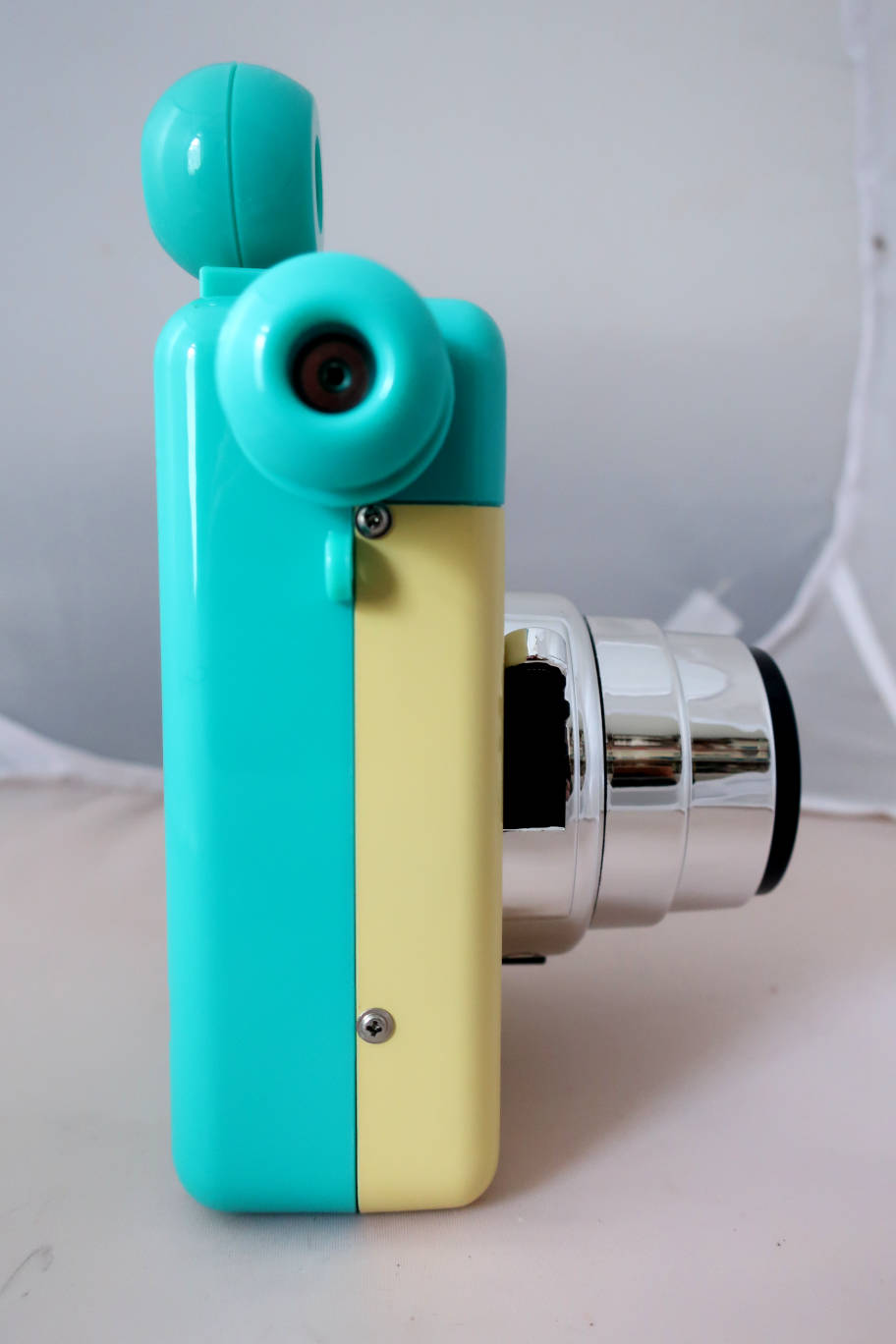

Left side with shutter lever on the lens barrel. Ejection wind knob.

../jpgother/escura_instant_60s_IMG_3452.JPG

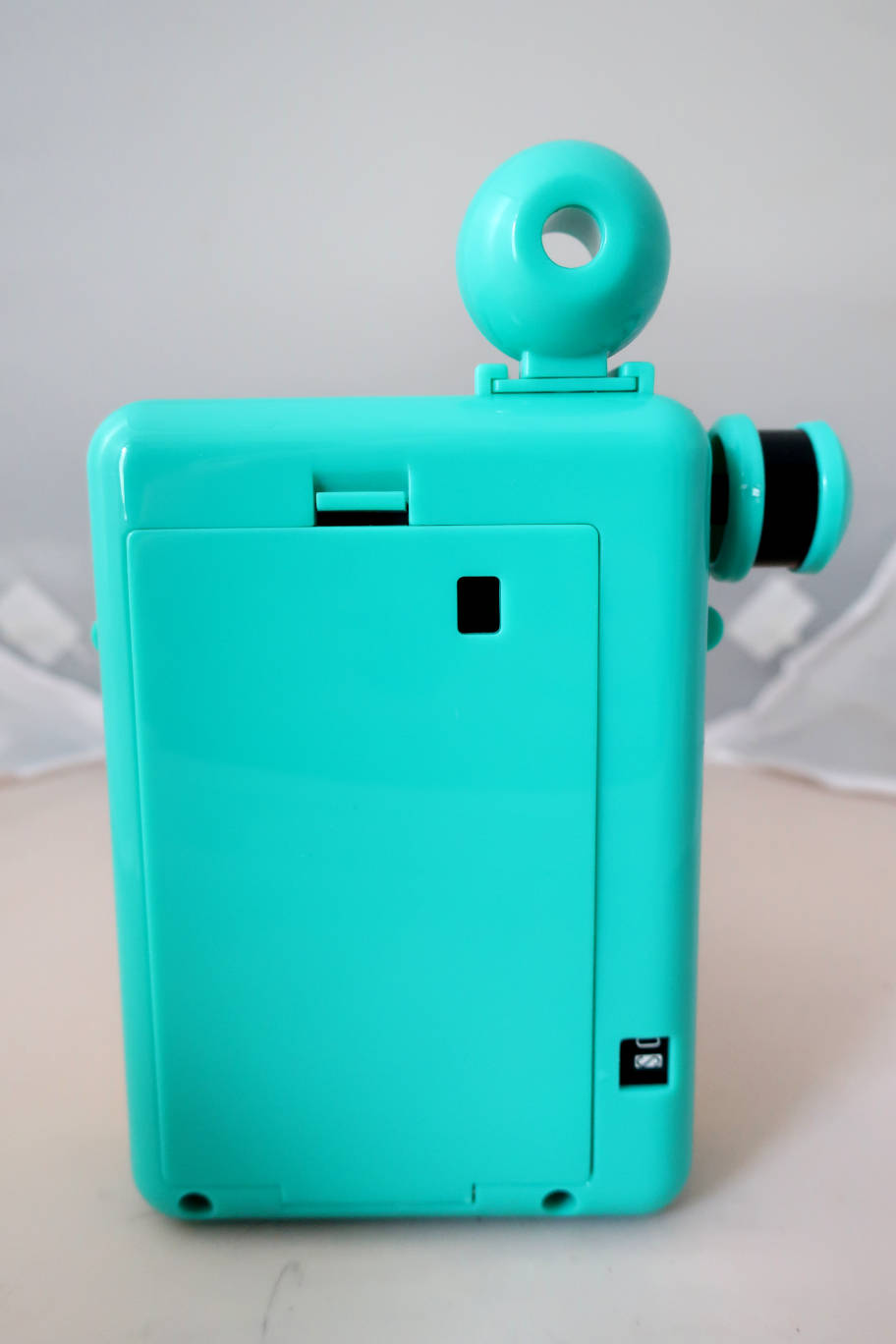

Back side with frame counter.

../jpgother/escura_instant_60s_IMG_3454.JPG

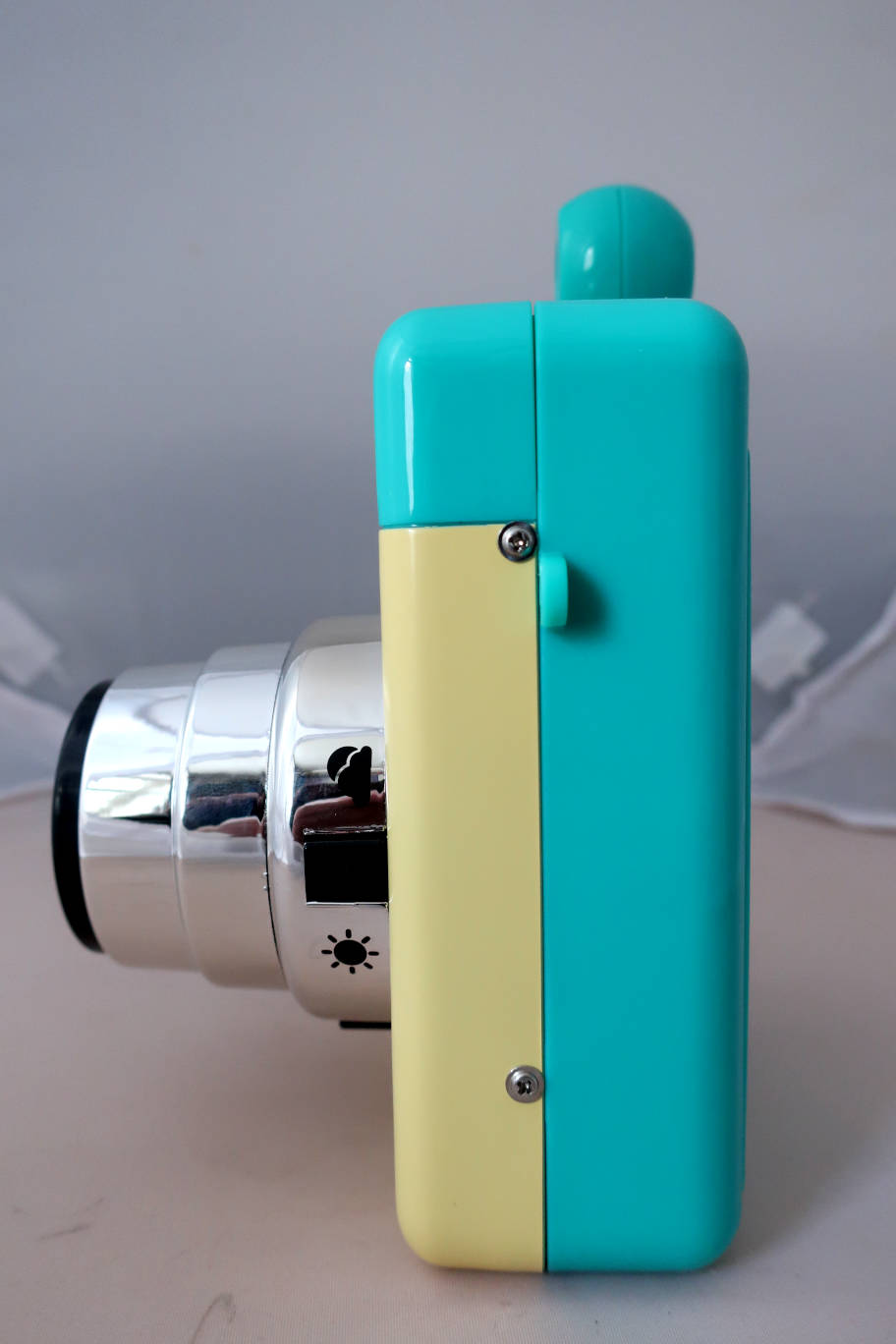

Right side, sunny/cloudy setting on the lens barrel.

../jpgother/escura_instant_60s_IMG_3455.JPG

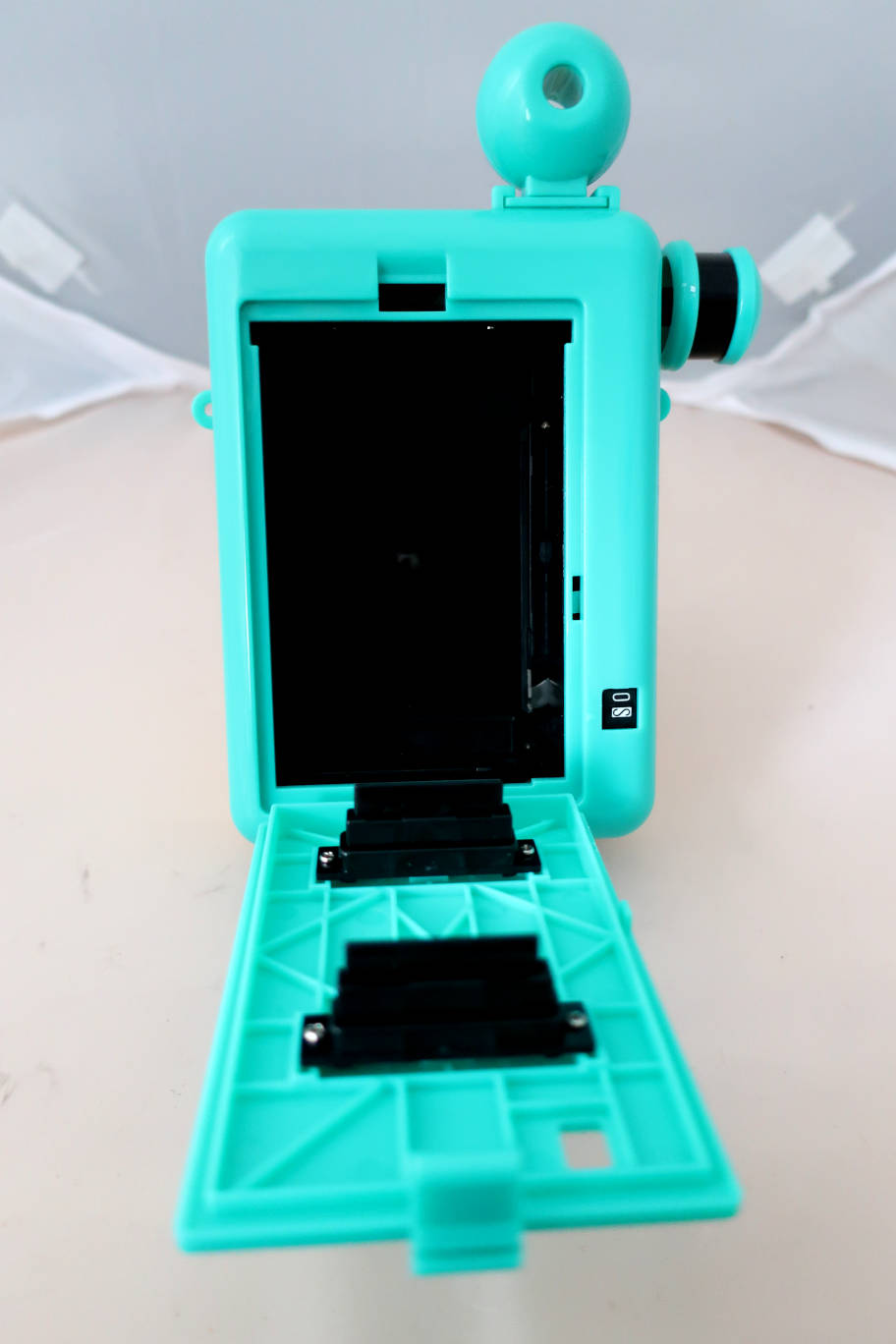

Back open.

../jpgother/escura_instant_60s_IMG_3467.JPG

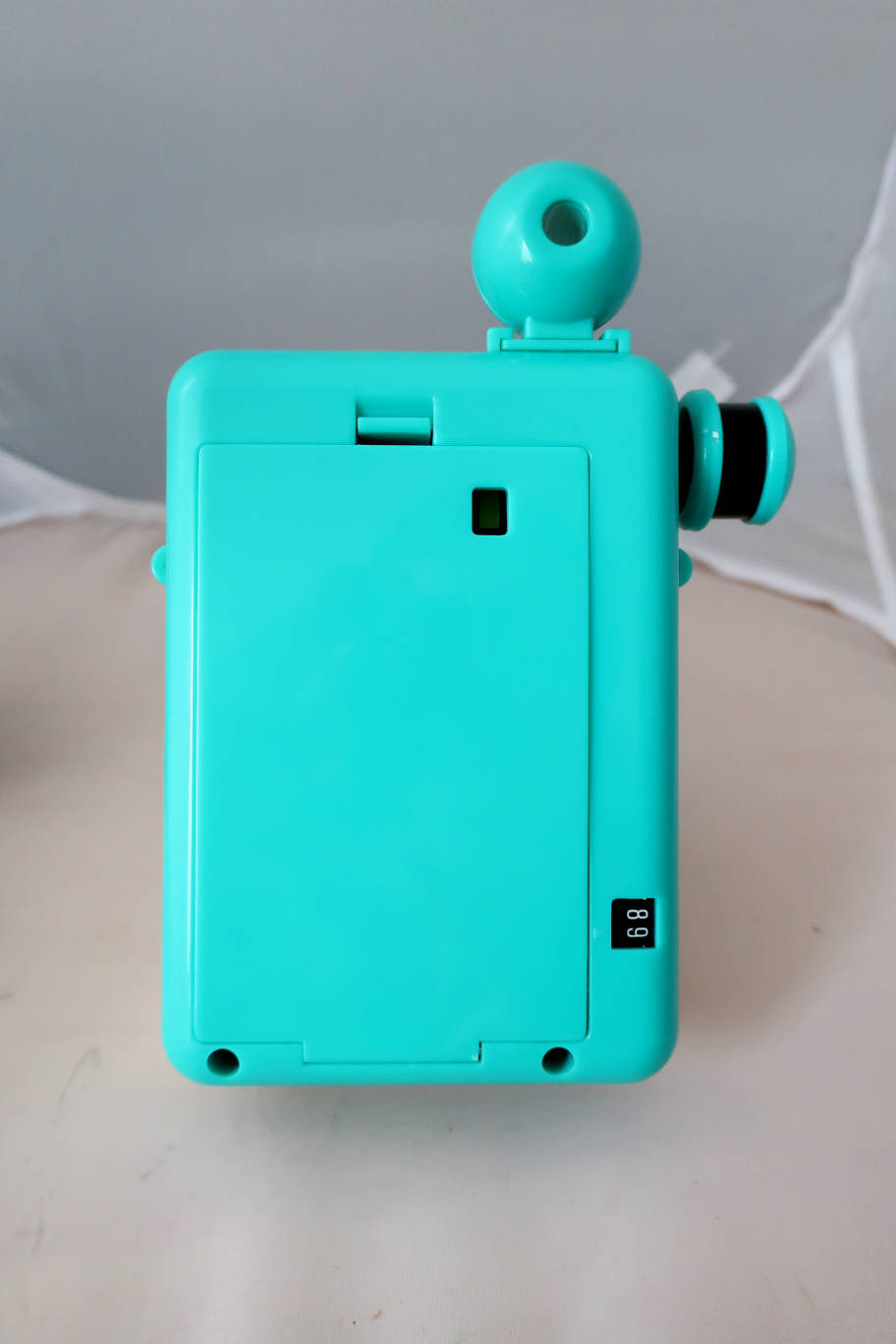

When the cartridge is installed, the counter moves with every ejection.
The counter didn't work properly on mine, it moved to 9 and then back to 10. It works on my replacement camera. The back flap has uneven gaps, this causes light leaks in the sun on mine.

../jpgother/escura_instant_60s_IMG_3457.JPG

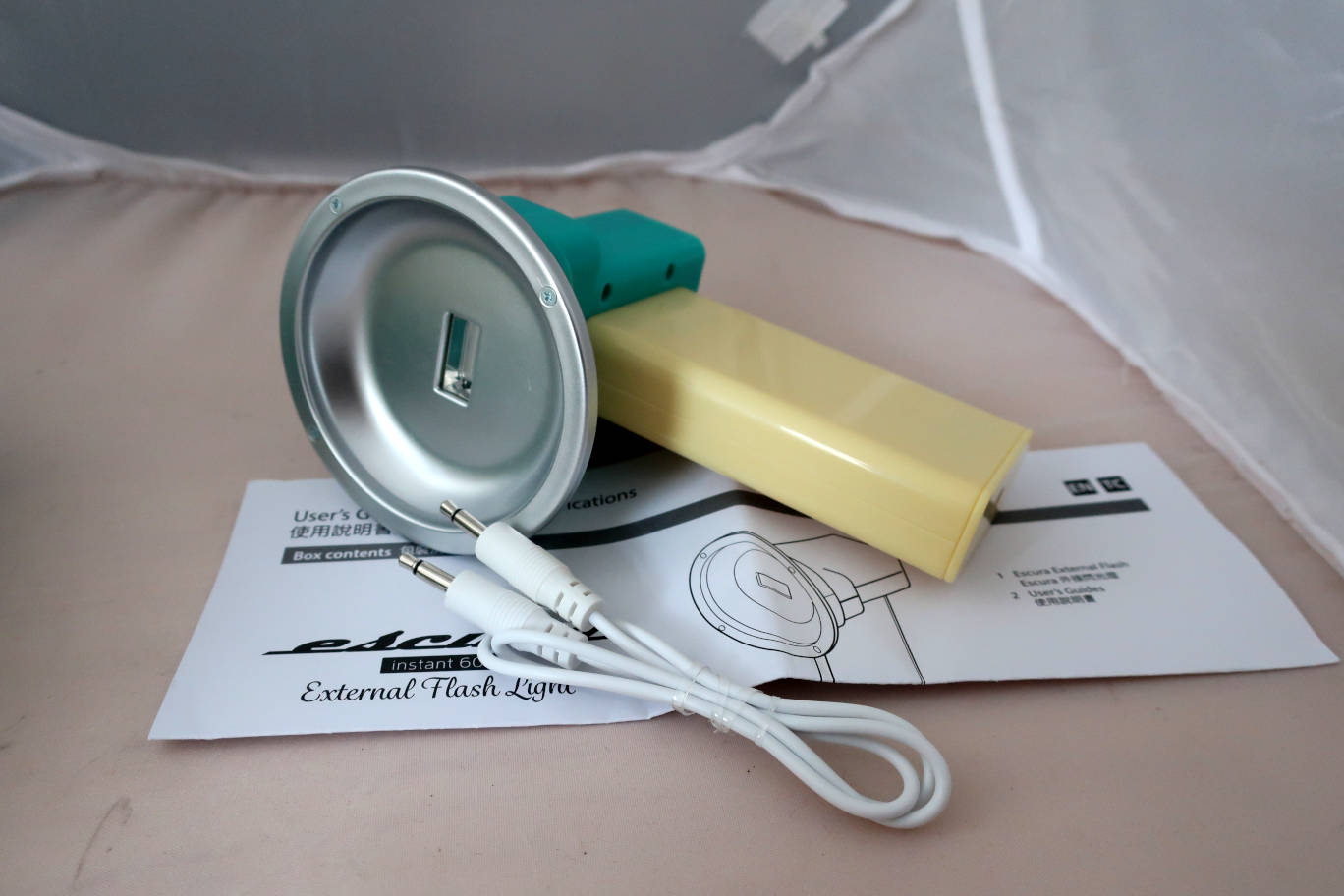

The flash, instructions and cable.

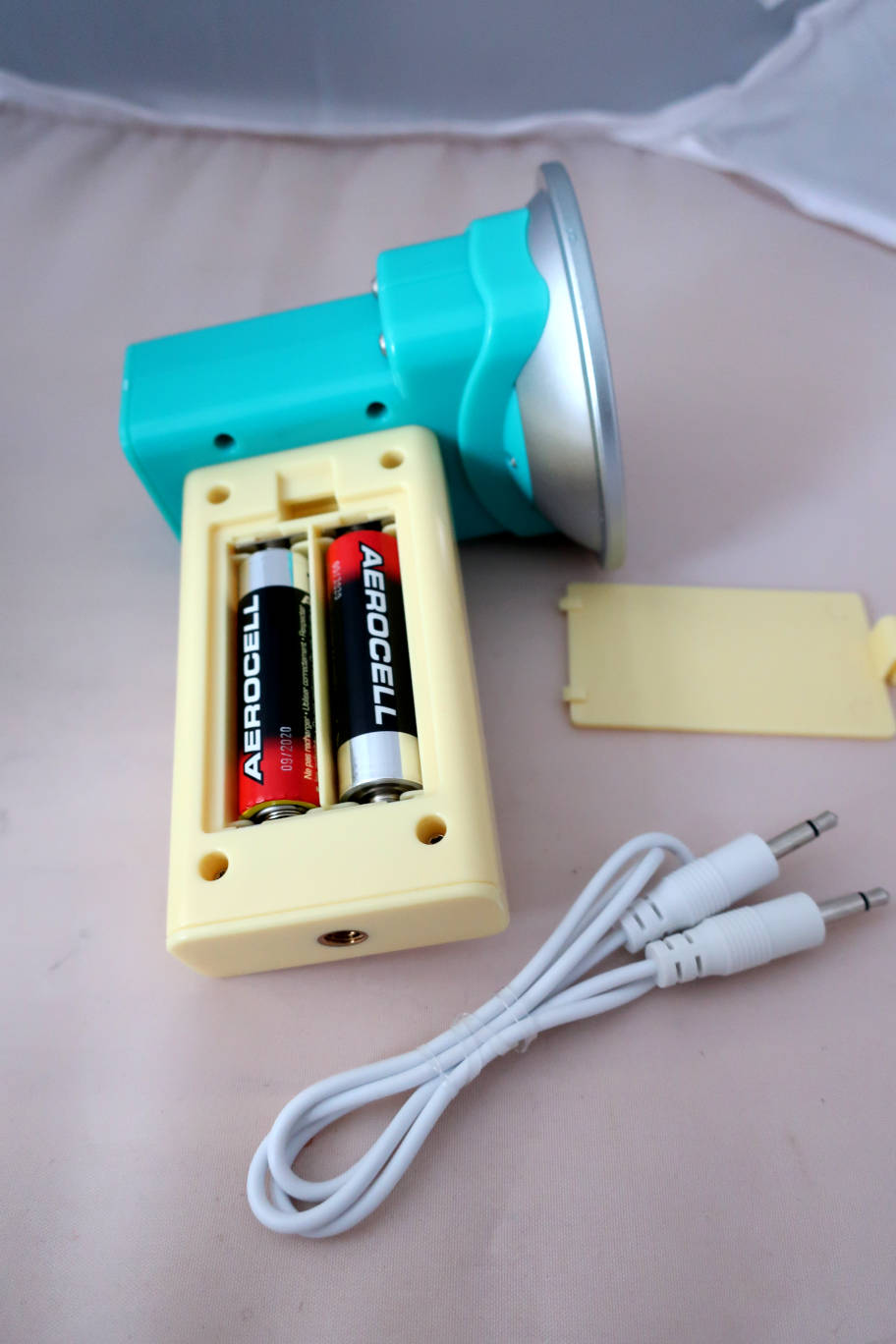

../jpgother/escura_instant_60s_IMG_3460.JPG
Takes 2 simple AA batteries.

../jpgother/escura_instant_60s_IMG_3461.JPG
Flash control panel.

../jpgother/escura_instant_60s_IMG_3462.JPG

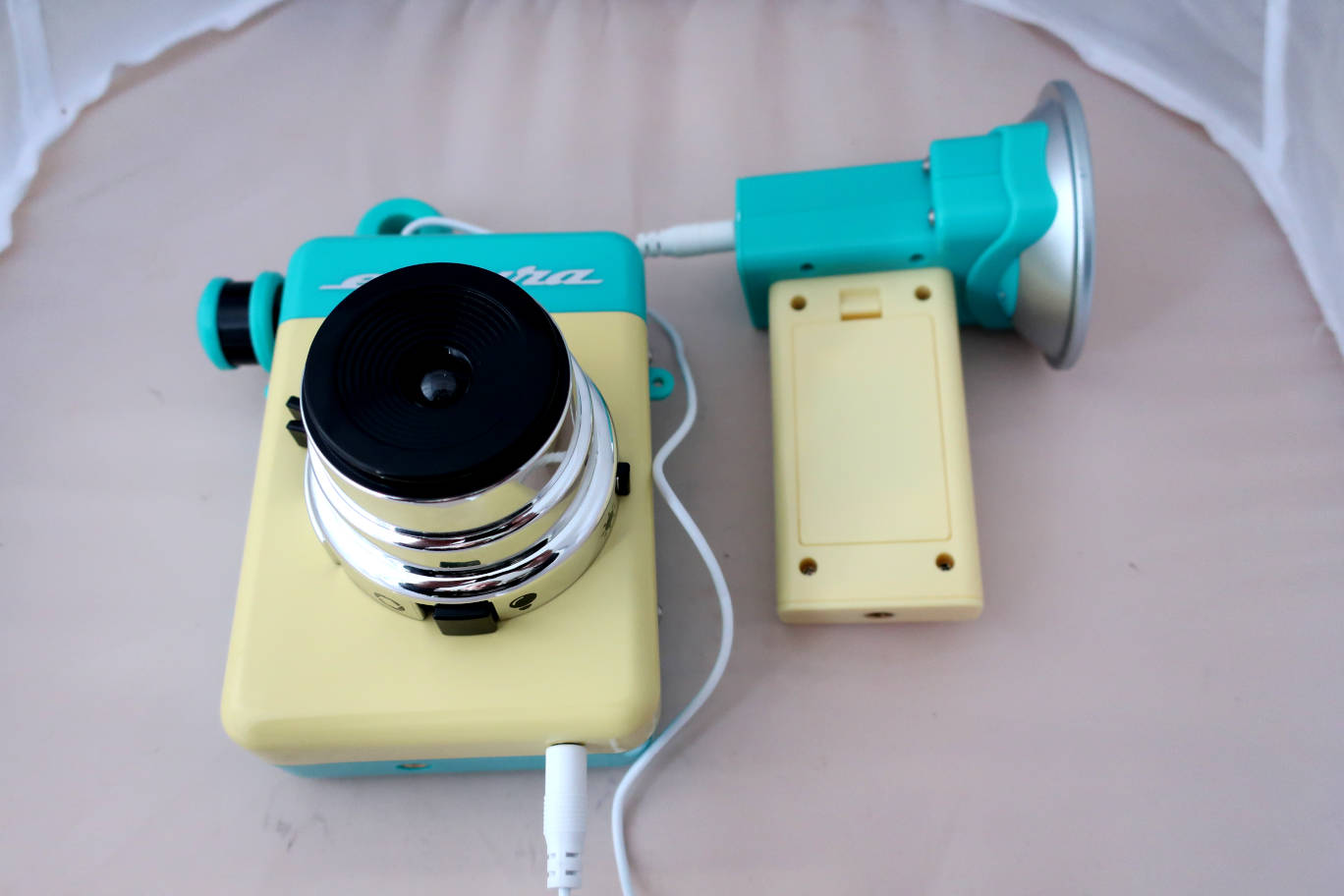

Camera and flash connected. Both have tripod mounts and can be fixed to a rail. On the lens barrel: shutter setting 1/100s or bulb.


../jpgother/escura_instant_60s_IMG_3463.JPG

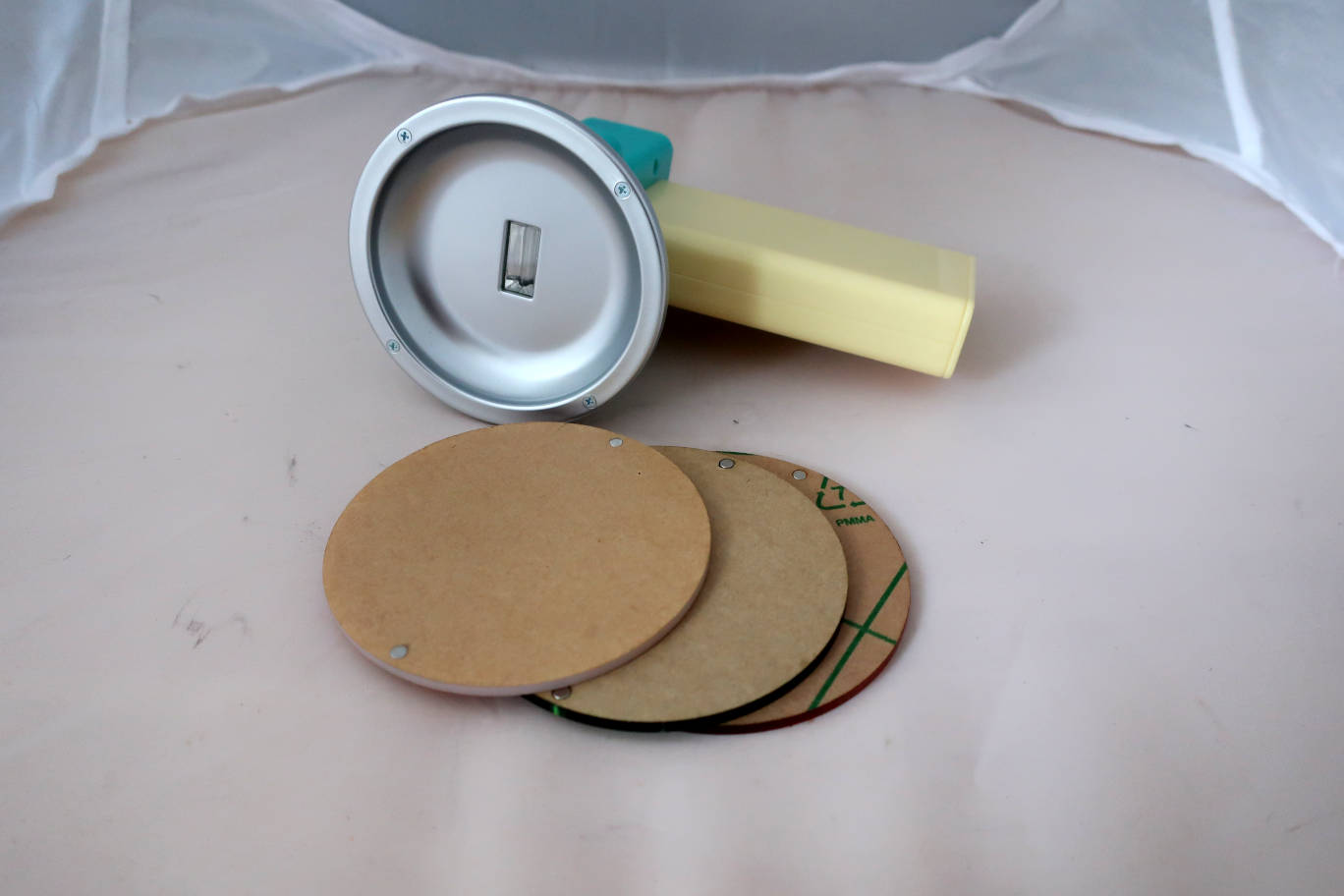

The colour filters for the flash are heavily protected.

../jpgother/escura_instant_60s_IMG_3465.JPG
Protections peeled off. The neodyne magnets keep them fixed if you put them on the screws of the flash reflector.

Just to give you an idea, some photos, taken with this camera:

../jpgother/escura_instant_60s_IMG_3468.JPG

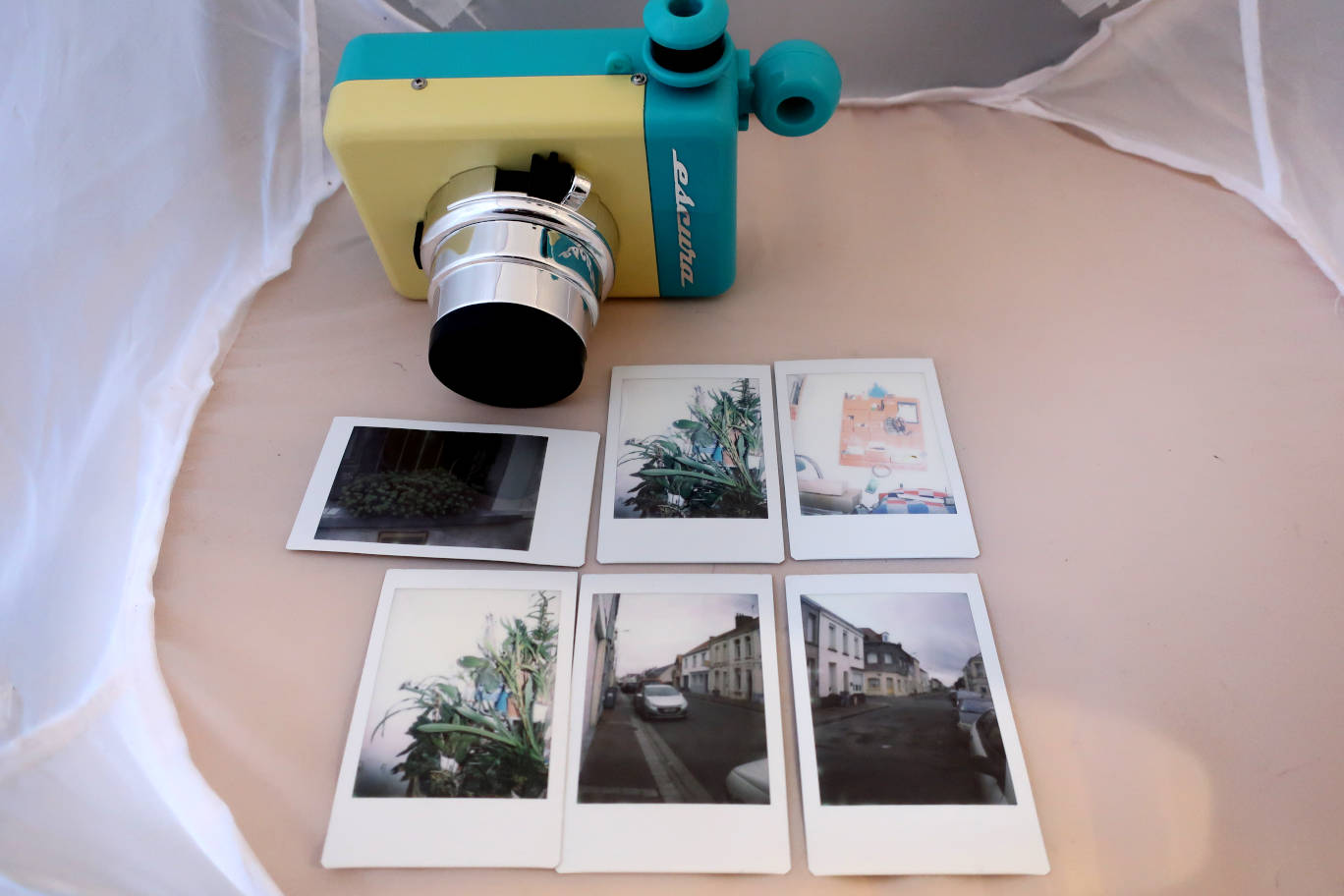

First shots on a dull day.

../jpgother/escura_instant_60s_IMG_3472.JPG
The results are better than expected. I have scanned some of the photos below.
Lower row from left: 1. ~2m, flash, cloudy setting. 2.+ 3. outside in dull weather, cloudy setting.
Upper row from left: 1. ~1.2m, outside in the shade, cloudy setting. 2.
~2m, flash, sunny setting. 3. ~1.5m, flash, sunny setting.

Some scans:

../jpgother/fim_escura_IMG_20200106_0002.jpg
Outside in dull weather, cloudy setting. Not exactly sharp, but o.k.

../jpgother/fim_escura_IMG_20200106_0003.jpg
Outside in dull weather, cloudy setting. Same as above.

../jpgother/fim_escura_IMG_20200106_0005.jpg
~2m, flash, sunny setting.

../jpgother/fim_escura_IMG_20200106_0007.jpg
1.5m, flash, sunny setting
with shaded flash by the white opaque filter.

So far the pictures are fine for a cheap camera. But when I took the camera out into the sun the next day, there were heavy light leaks.

../jpgother/fim_escura_IMG_20200106_0009.jpg
Outside in the sun, sunny setting, heavy light leaks.

../jpgother/fim_escura_IMG_20200106_0008.jpg
Outside in the sun, sunny setting, heavy light leaks.

If you tape the back flap, you get rid of the leaks. But this is a bit of work every time and ruins the design.

The Escura Instant 60s is a Lomo style lightweight camera, easy to handle. It has a stylish design, build quality seems very good, the plastic seems to be solid. The flash styling matches the camera.

The finder is only an aiming device with no frame, but it helps well. The picture results were better than expected in dull weather. The lens is o.k and has no vignetting and little distorsion. The flash works well. Multiple exposure is easy. The manual ejection is easy and reliable, I can't see any flaws. I had a faulty back flap, so there were light leaks in the sun. The counter on my first camera didn't work. I will test the replacement camera early April.

If the other cameras have no leaks, this is a well conceived fun camera which could certainly find its public. As they provide customer service now, you may need some patience. But obviously the are willing to sort the problems out.
