This is a page about accessories and about (extending) the limits of this camera. It's a personal advice, no warranty, just take it or leave it...


../jpgother/mint_instakon_rf70_IMG_0187.JPG

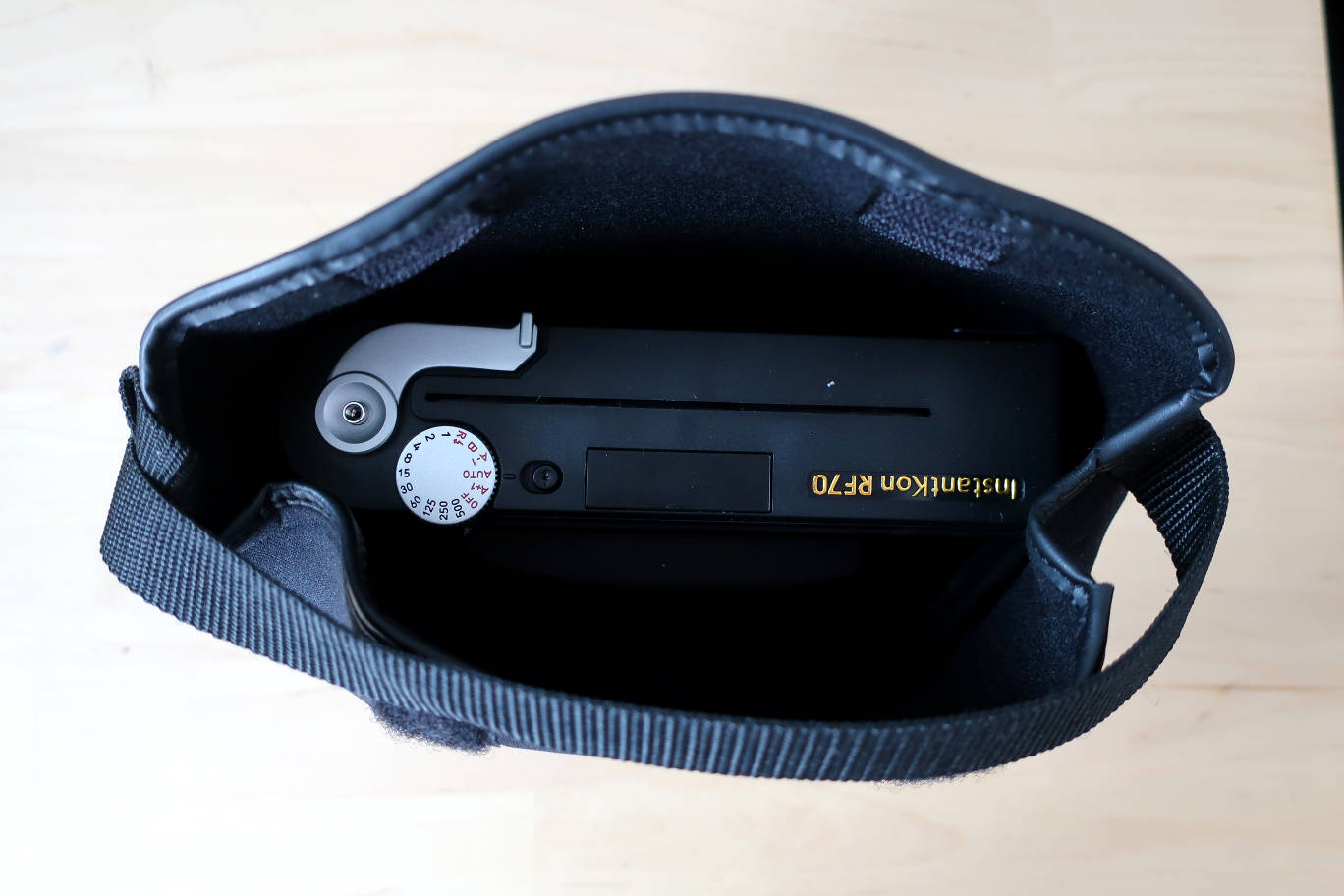

The camera fits into the bag of a Fuji 500AF.

This is a very handy bag, the camera just fits into it, no room for extras. But it's the smallest bag I have found. Be careful not to open the back of the camera when you get it out of the bag. It protects the camera well and it's easy to carry around.

DIY accessory holder

../jpgother/mint_instakon_rf70_IMG_0965.JPG

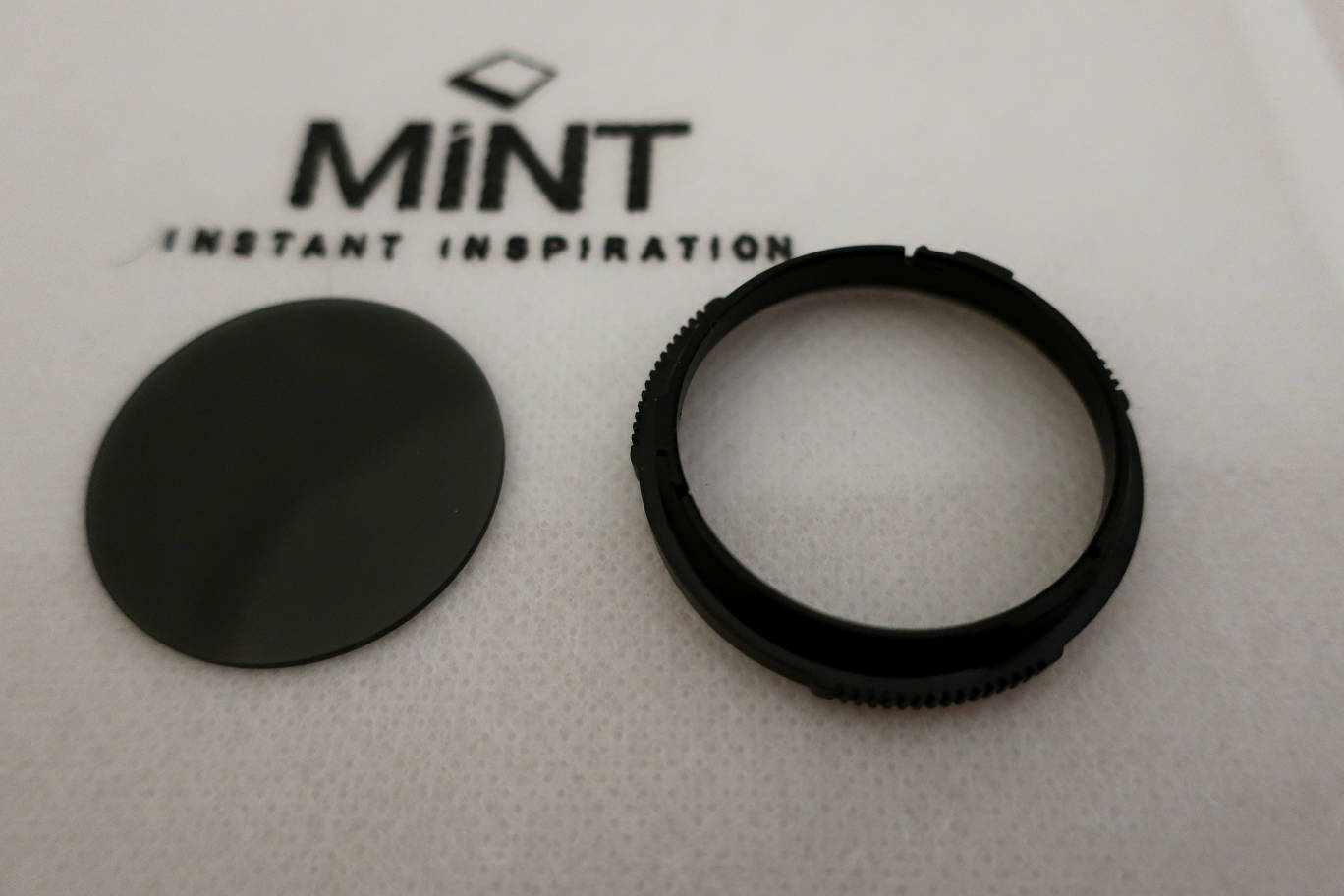

A filter holder next to the ND8 filter glass.

The filter holder seems to be a custom bayonet. It's near to the Fuji GA series kind of holders, but it's not the same. If you want to attach other accessories than the ND filters, you have to get one of these custom filter holders or destroy one of your ND filters that came with the camera. As the result of the DIY will be a standard filter holder, you can use standard ND filters later.

The diameter of the front of this custom filter holder is just a bit too small to attach a 40.5mm standard filter thread. Just a little bit of Dremel milling or carving and you are there.

../jpgother/mint_instakon_rf70_diy_IMG_0170.JPG

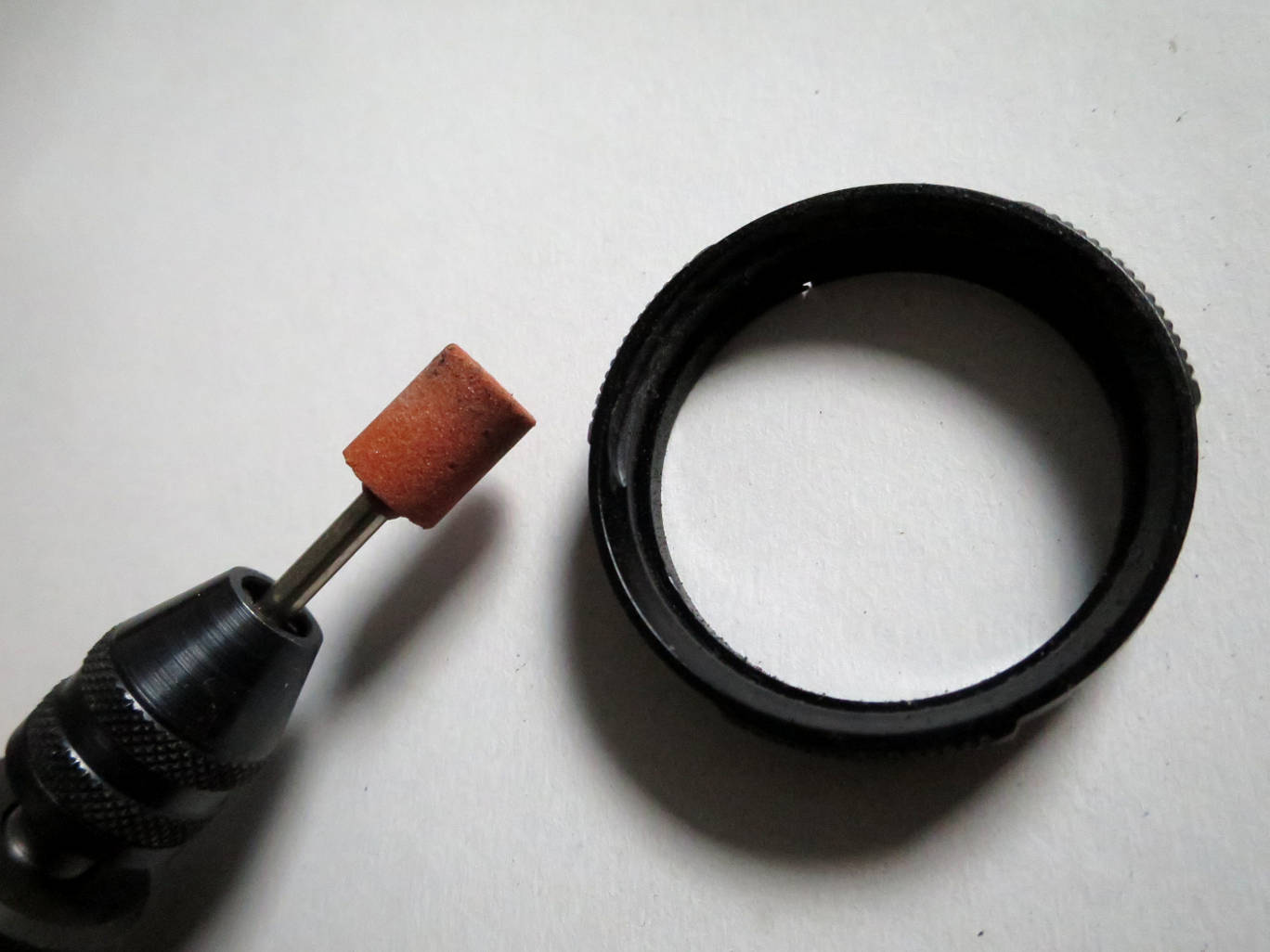

This is the part that has to be milled out.

../jpgother/mint_instakon_rf70_diy_IMG_0988.JPG

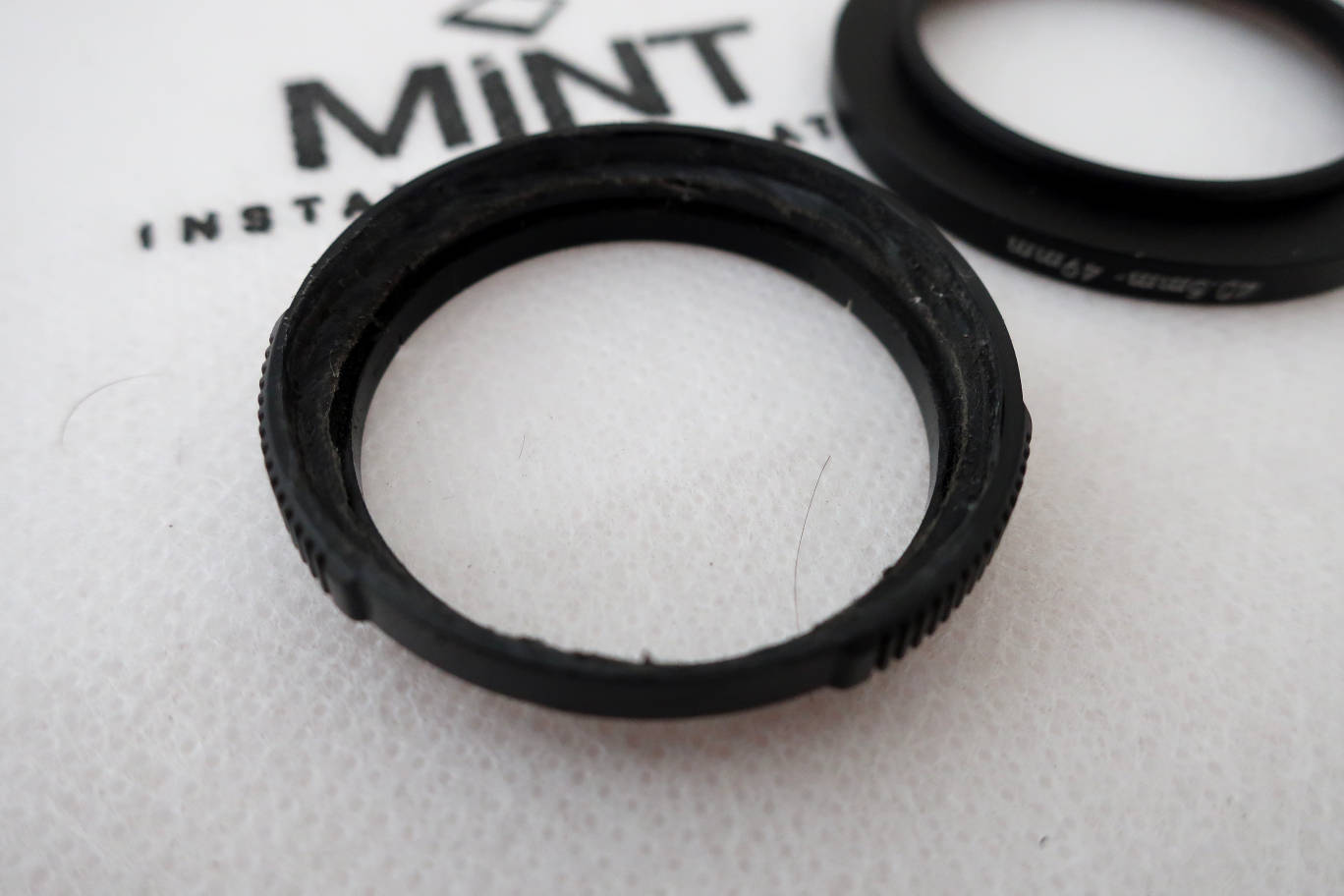

Milling done. Next to it a 40.5 to 49mm step up ring, a common size. A bit of Araldite 2-component glue and the assembly is done.

../jpgother/mint_instakon_rf70_diy_IMG_0985.JPG

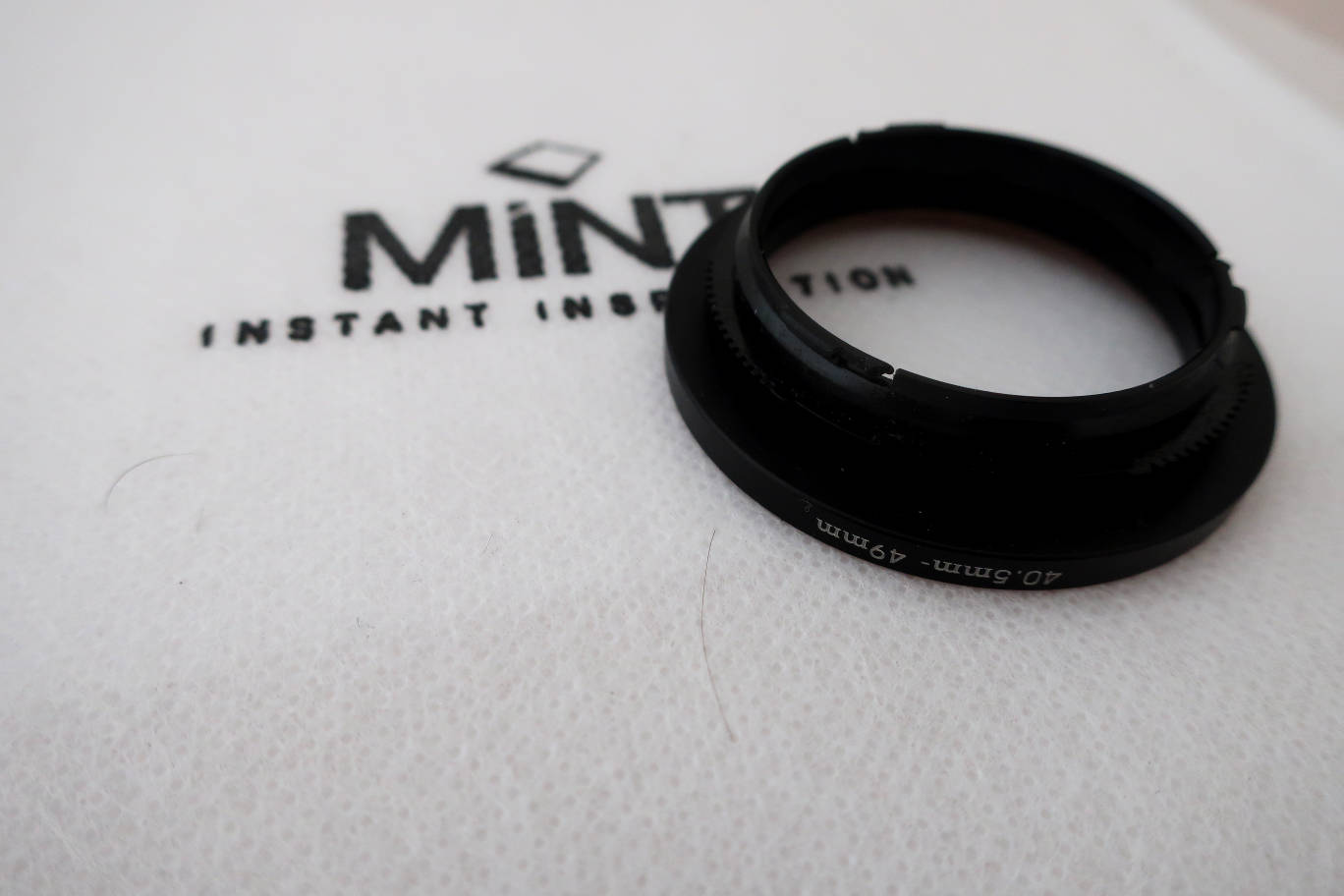

A 49mm standard accesory holder home made.
As most of my accessories are 52mm, I ordered a 40.5 to 52mm step up ring. You can use other diameters of course.

../jpgother/mint_instakon_rf70_diy_IMG_0984.JPG

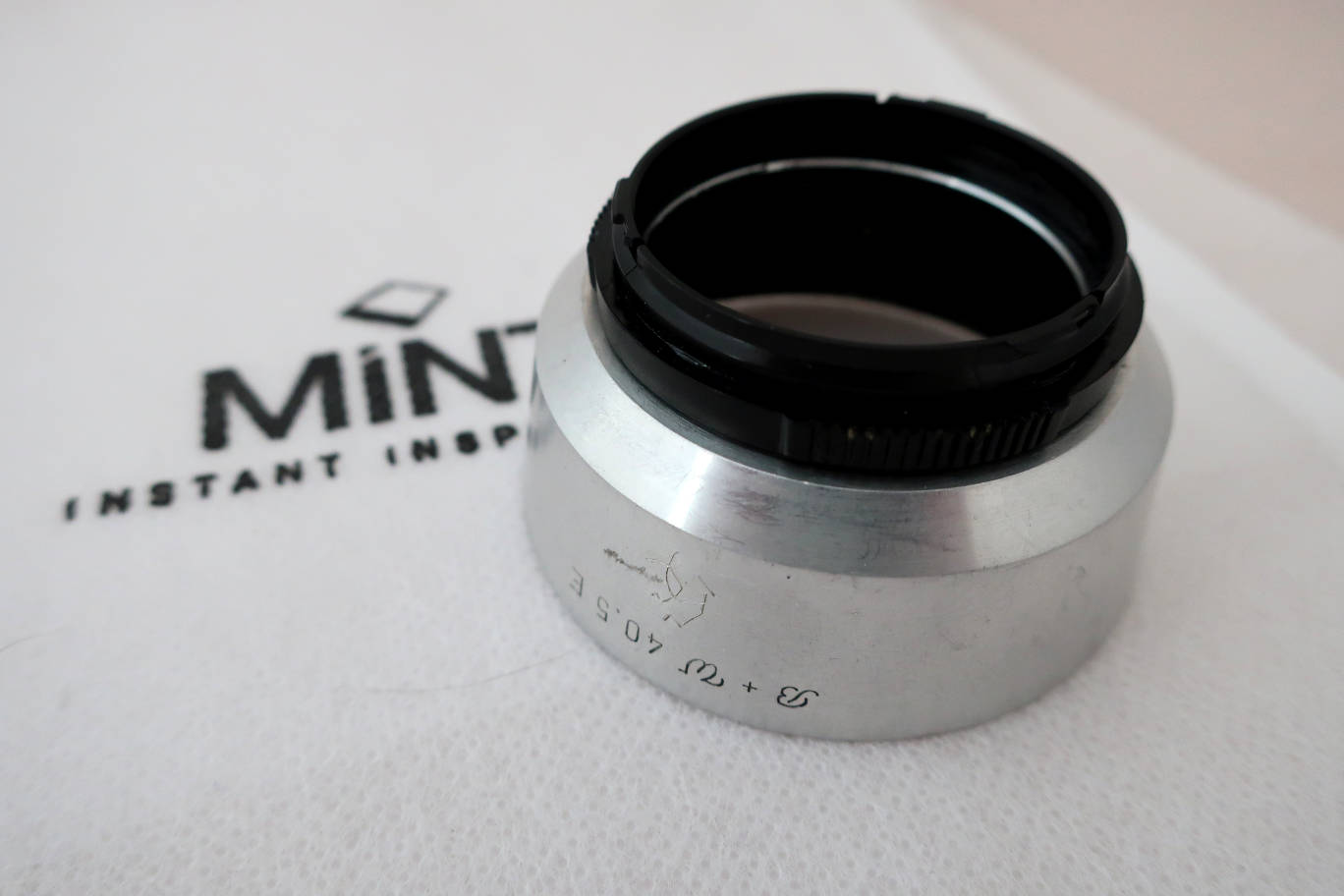

An old 40.5mm shade with the Mint InstantKon RF70 custom filter holder attached.

../jpgother/mint_instakon_rf70_IMG_0968.JPG

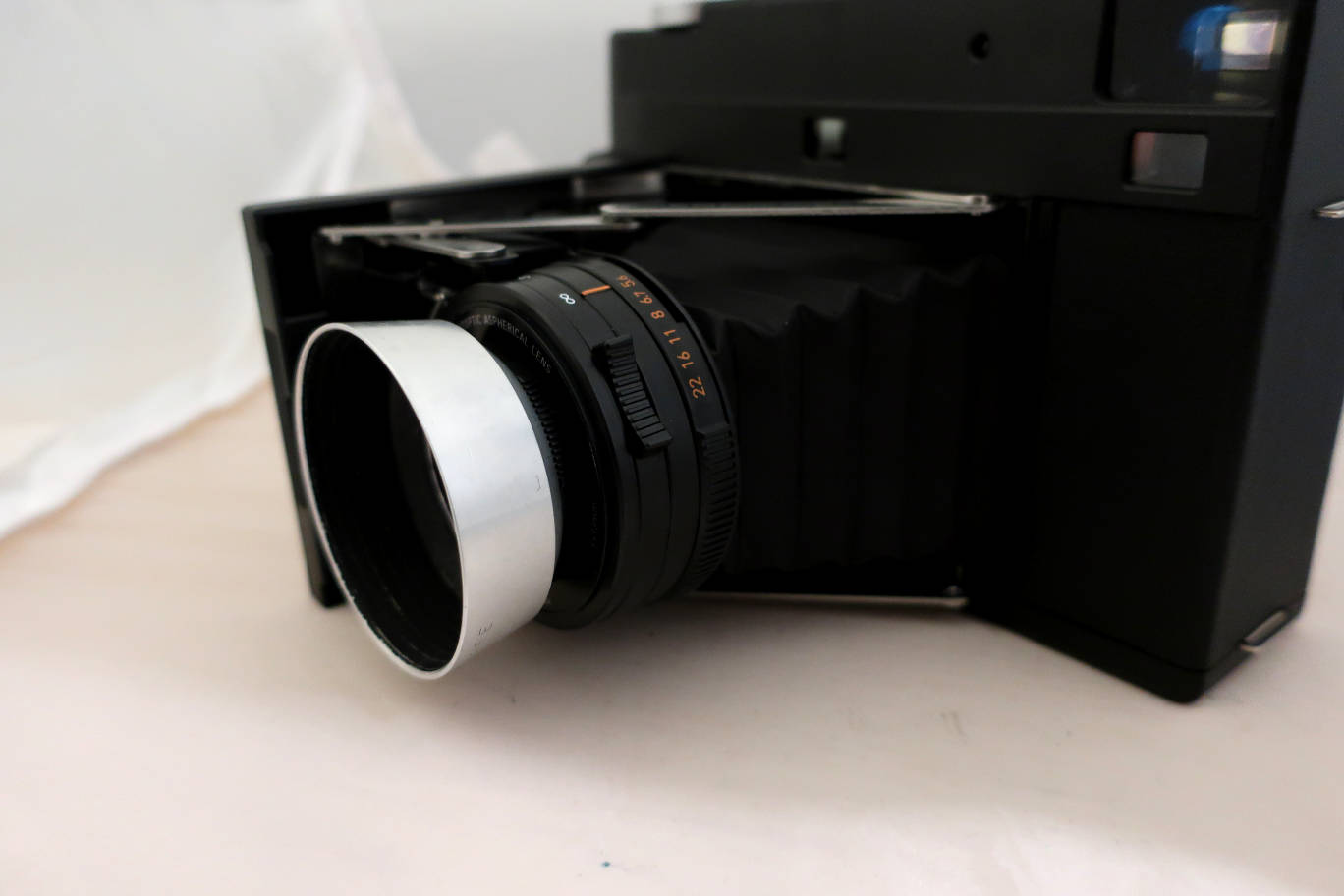

Shade attached to the Camera.

The camera is prone to flare if strong light hits the lens from any side. A lens shade will certainly prevent this.

../jpgother/fiw_mint_rf70_IMG_20180922_0003.jpg
A, F 16, 6m. Lens shade needed.

52mm acessory holder:

../jpgother/mint_instakon_rf70_IMG_1075.JPG

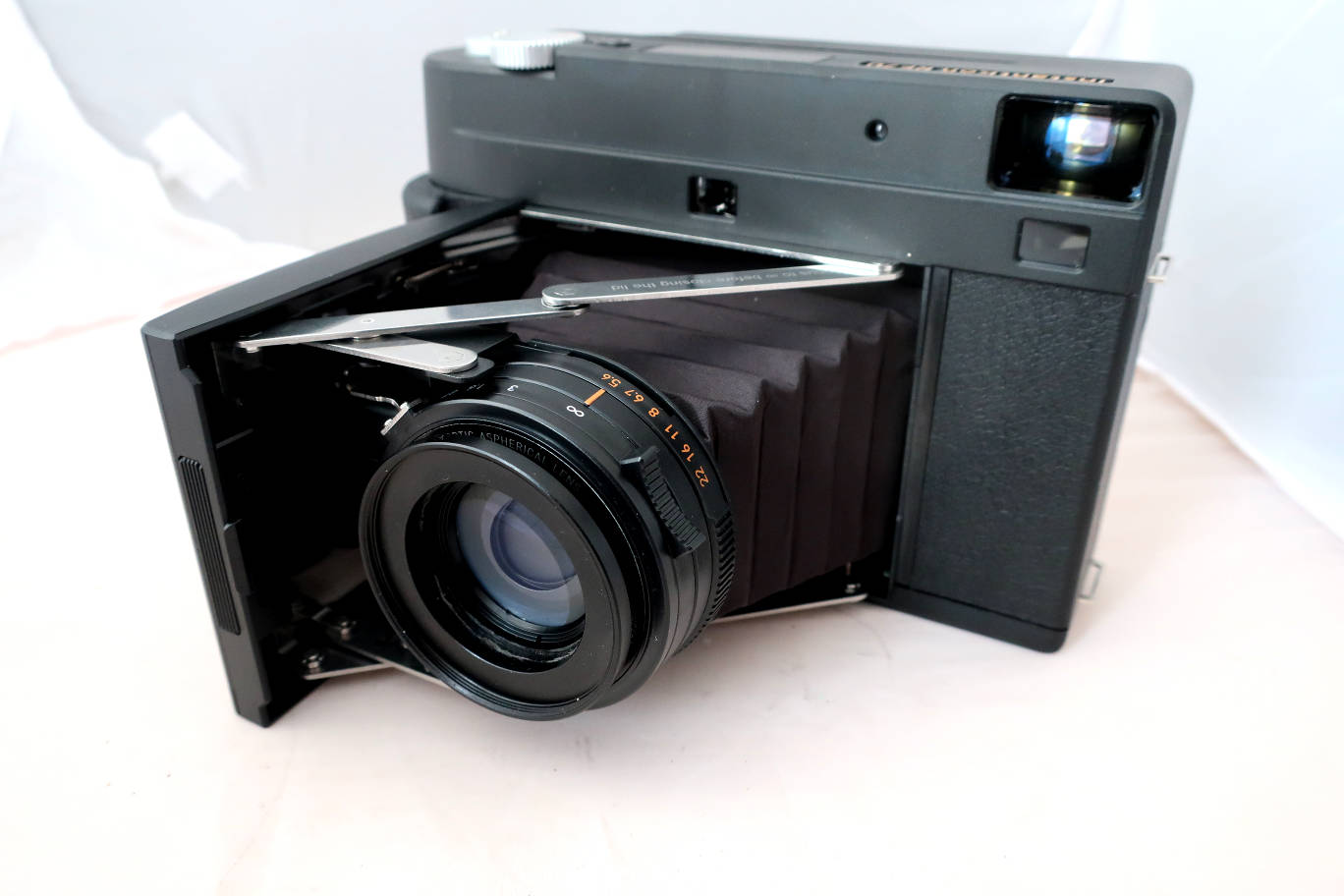

Home made 52mm accessory holder installed.

../jpgother/mint_instakon_rf70_IMG_1076.JPG

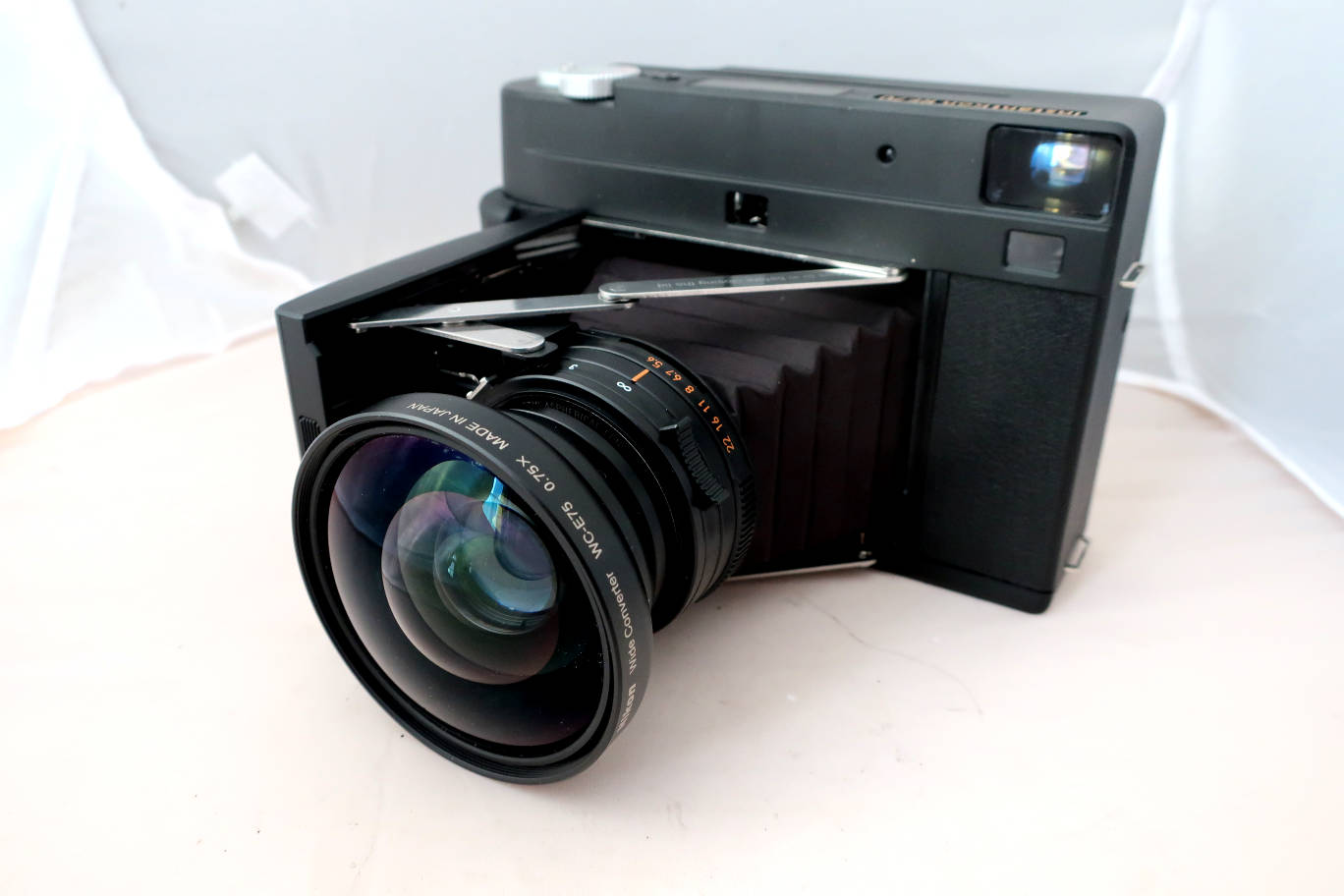

Holder with the famous Nikon WC-E75 converter lens. This makes it a 70mm wide angle focal length.

../jpgother/fiw_mint_rf70_IMG_20181125_0001.jpg
Standard 93mm view, veranda, dull day.

../jpgother/fiw_mint_rf70_IMG_20181125_0002.jpg
70mm, I switched from A to A+ as it was a dull day, and then a bit of sun suddenly showed. Impressing difference.

I also bought a Raynox HD-6600Pro, which is even wider, a .66 factor which makes it a 61mm ultra wide angle. They advertize fantastic results, but I don't know how they made them. Here are mine:

../jpgother/fiw_mint_rf70_wa66_IMG_20190213_0003.jpg
Veranda, dull day. It's fine in the center, but the edges are too soft.

../jpgother/fiw_mint_rf70_wa66_IMG_20190213_0005.jpg
Calais, quartie Mollien. Soft edges as well.

../jpgother/fiw_mint_rf70_wa75_IMG_20190213_0008.jpg
Comparison with the Nikon .75 lens. No soft edges, but a bit soft overall.

../jpgother/fiw_mint_rf70_IMG_20190213_0009.jpg
And the standard view.

../jpgother/fiw_mint_rf70_wa66_IMG_20190214_0007.jpg
The Raynox again on a very bright day. The center is fine, the borders are unacceptable. And you reach the limits of the camera: for correct exposure you would need a ND filter. This is not the fault of the lens. Just to show you, what a real wide wide angle would do:

../jpgother/fiw_superwidestax_IMG_20190214_0002.jpg
Same photo made with my SuperwideStax, 65mm.

../jpgother/fiw_mint_rf70_wa66_IMG_20190214_0009.jpg
Photo with the Raynox in the shade. Again fine in the center, ways too soft at the borders.

../jpgother/fiw_superwidestax_IMG_20190207_0009.jpg
Again the real wide angle SuperwideStax

../jpgother/fiw_mint_rf70_wa66_IMG_20190214_0001.jpg
Th Raynox wide open, as someone told me that the results would be better wide open, F 5.6, focus on infinity. All soft.

../jpgother/fiw_mint_rf70_wa66_IMG_20190214_0010.jpg
A last comparison, Mint camera with Raynox
HD-6600Pro. Really nice in the center, but to the left and right side of the photo there is distorsion or extreme softness.

../jpgother/fiw_superwidestax_IMG_20190214_0003.jpg
Same photo with the SuperwideStax again.

So I don't know how Raynox made these astonishing photos in their ads, on the Mint camera it doesn't work. Maybe I will try it on other cameras and report back.

Limits of the camera:

At short distance my first camera had a problem compensating the different aperture settings, this is not the case with longer distances. Mint says that this was a fault of my camera. They sent me a replacement camera after all commands had been served. Good service. I chose A+ as the main item was in the shade against a bright background. This is what it looks like:

../jpgother/fiw_mint_rf70_IMG_20180919_0006.jpg
A+, F 5.6, 1.5 m. A Czech designer vase from the 60s on the stone rim of an ancient well. A bit too light for my taste. Beautiful bokeh at this stop.

../jpgother/fiw_mint_rf70_IMG_20180919_0007.jpg
A+, F8, 1,5m. This is the photo I wanted.

../jpgother/fiw_mint_rf70_IMG_20180919_0008.jpg
A+, F22, 1.5m. Picture is too dark.

The strange thing is that I got similar results hand metered, i.e. the F 5.6 photo was too light and the F 22 photo too dark. Very strange indeed. The replacement camera does not show this. The hand metered results are fine. Only the F22 setting is a tad too dark. So I think that at F22 the aperture is a little bit too small which can easily be taken into account.

To make it clear once again: There is no perfect camera. This one is fine as it is. I just received an adapter for the uncommon 2.5mm flash jack. So there will be external flash pictures soon.
