instantphoto.eu              Polaroid SLR 680

The first SLR 680 model model was introduced in 1982. It uses 600 integral film, has a sonar and an intergated electronic flash. The top of the line so-to-say. The original retail price was $265, only slightly more the the SX Sonar from 1978. There was a second version (SE) with minor changings to the trim. In 1996 an new version was released, the SLR 690. In this model analog metering/timing circuitry had been replaced by a 4-bit microcontroller. It was very expensive in the beginning (just under $ 400). Prices dropped as it became quite popular. By 2000 it disappeared from the markets except Japan.

As it's the top of the line camera and a real SLR, prices are still very high. The Sonar and the flash might be handy, but add to the size of the camera. In my opinion the 680/690 cameras are more fragile than the ordinary SX cameras. 3 of the 4 I bought were defective and had to be sent back to the seller. As they were reknown sellers, this wasn't a problem, but be cautious before you invest quite a sum. I prefer the so-called SX 670, a SX70 modified to use 600 film.

Features of the SLR 680 model:

    4-element 116mm f/8 glass lens
    Minimum focus: 10.4 inches
    Autofocus; uses Polaroid Sonar AF system.
    AF "preview" available before exposure is made.
    Full manual focus is also possible.
    Low-light warning in viewfinder.
    Electronic shutter
    Programmed automatic exposure, shutter speeds from >10 sec to 1/175; aperture range f/8- f/22.
    Socket for an electrically-actuated remote shutter release.
    SLR (Single-Lens Reflex) viewing.
    Uses 600 film.
    Has built-in automatic electronic flash.
    Flash reflector automatically tilts depending on focus distance
    Black plastic body with faux leather covering.

Some photos:

../jpgpola/pola_680slr1_02.JPG

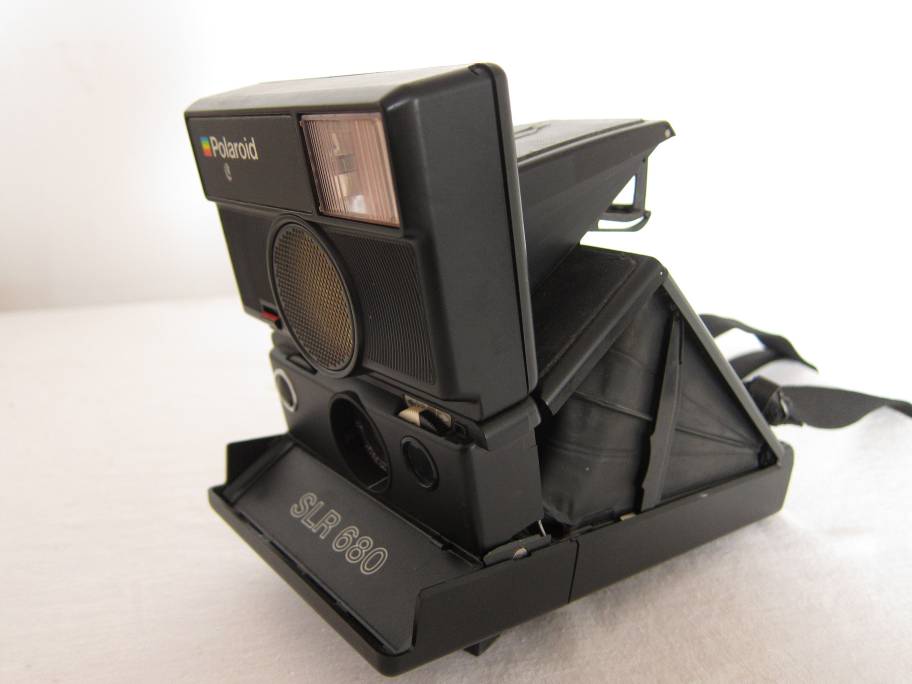

The Polaroid SLR 680.

../jpgpola/pola_680slr1_01.JPG

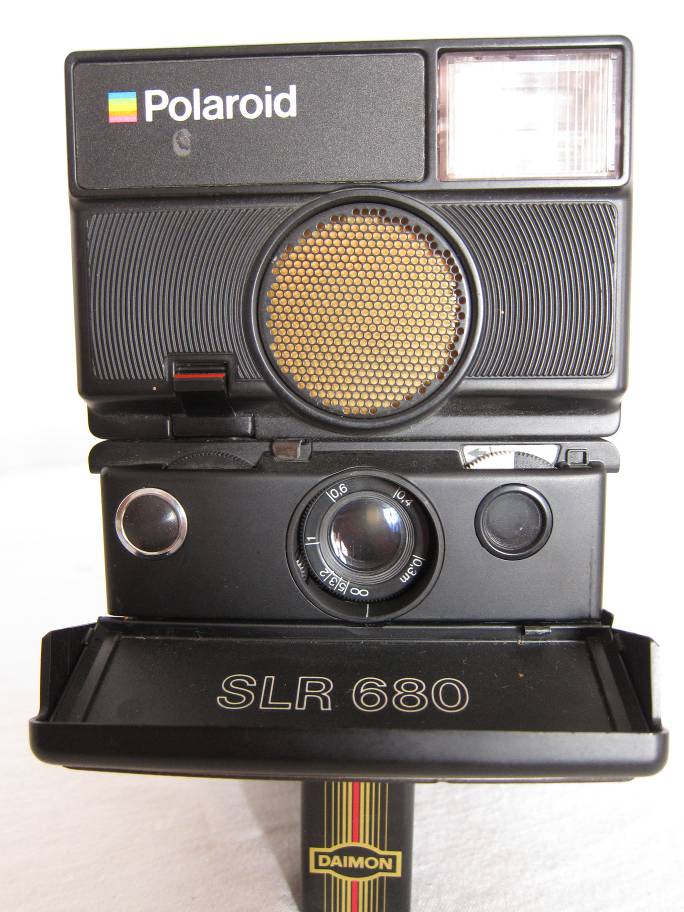

Camera front with its Sonar and its built-in electronic flash. The little switch next to the sonar disconnects the Sonar system.

../jpgpola/pola_680slr1_03.JPG

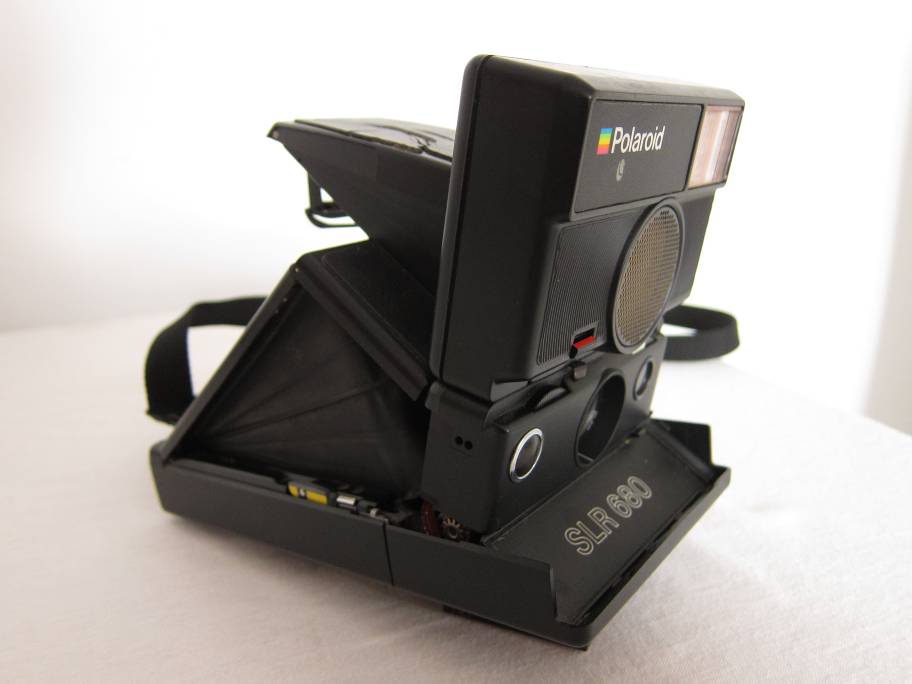

Camera unfolded.

../jpgpola/pola_680slr1_04.JPG

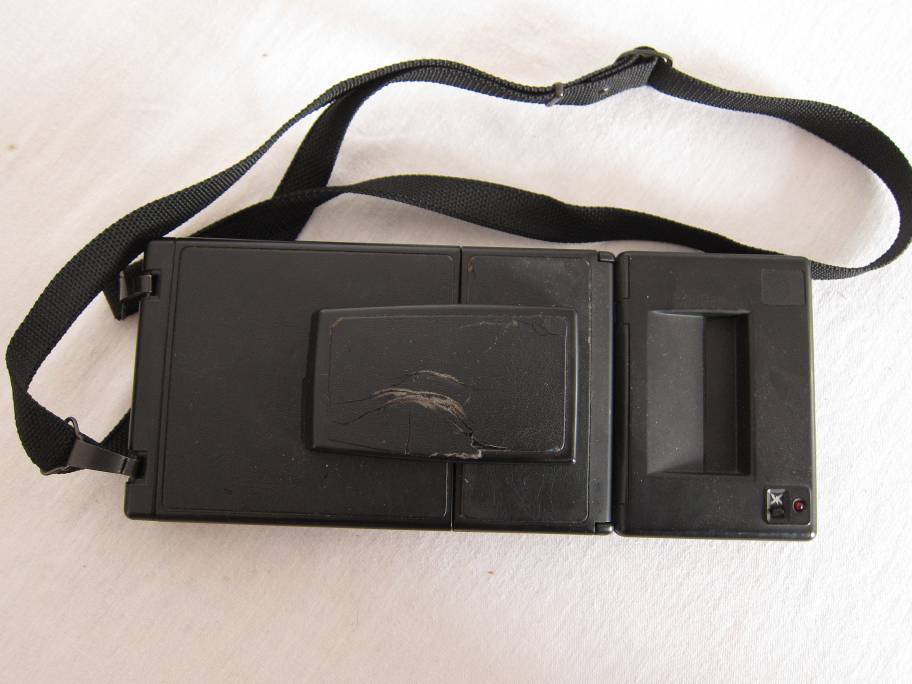

Camera folded. Flash off switch and flash control lamp. As usual, the Porvair covering begins to deteriorate.

../jpgpola/pola_680slr1_05.JPG
Closed, seen from below. Tripod socket.
