Longtime we were hoping for the return of either 4x5 Polaroid or Fuji FP Instant film. This seems to be over. The biggest Instant film availabe is Fuji Instax Wide. So there were many DIY solutions for Instax Wide backs and some professionals found good solutions as well. The Lomo Belair Manual Instax back was a good basis, but is no longer made. So we all waited for a Standard Graflok Instax Back, motorized if possible. Finally Lomography launched a Kickstarter campaign for such a back and a year later the first backs were delivered. To have room for a darkslide, the back was raised. The inconvenience of raising it is that you need a raised calibration mask to put under your ground glass for focussing. So the back has a corresponding mask.

Some photos:

../jpgother/lomo_graflok_back_IMG_8088.JPG
The box.

../jpgother/lomo_graflok_back_IMG_8089.JPG
The mask.

../jpgother/lomo_graflok_back_IMG_8090.JPG
The back.

../jpgother/lomo_graflok_back_IMG_8091.JPG

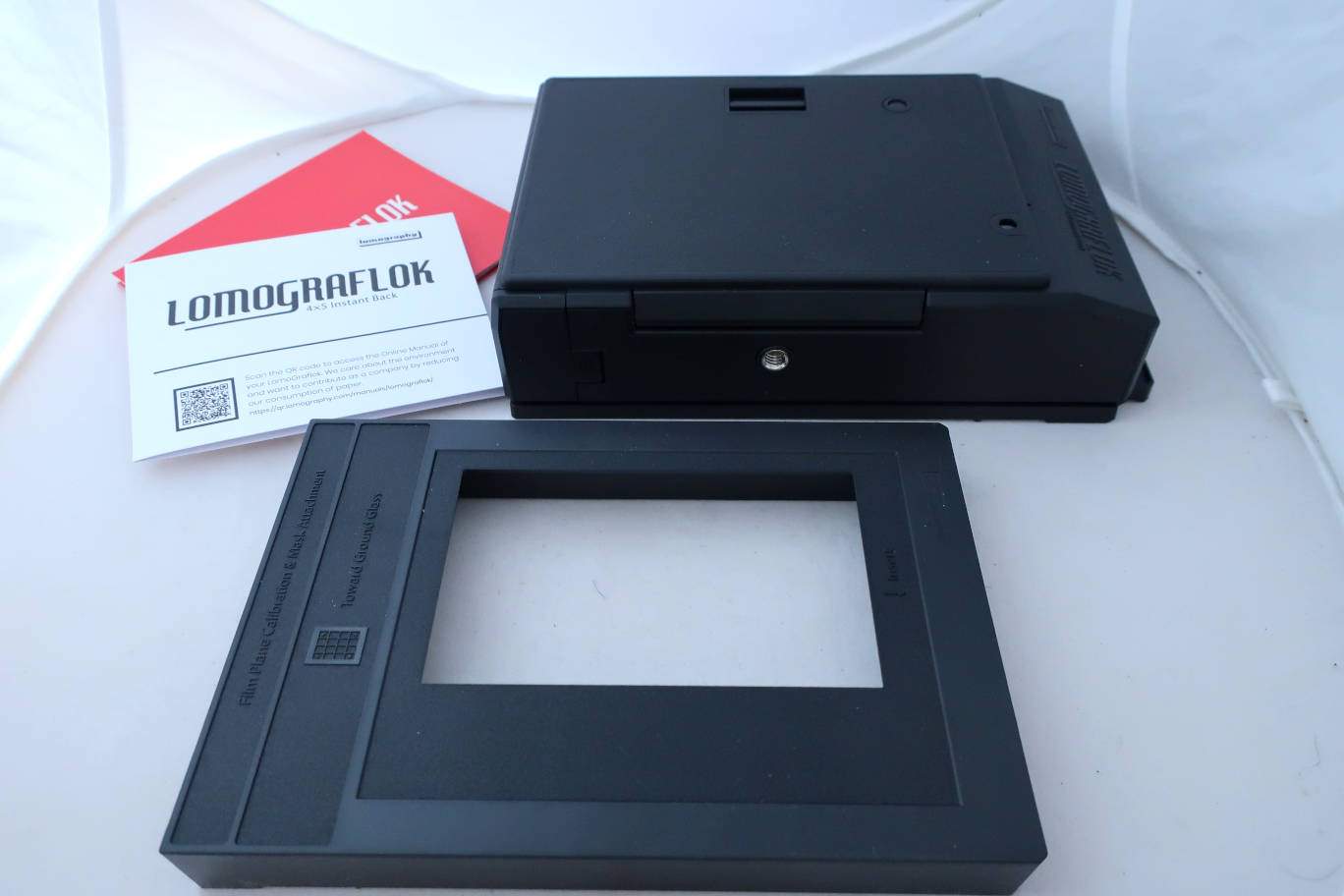

Mask, back and a bit of information. No manual. You have to download the manual from their site.

../jpgother/lomo_graflok_back_IMG_8092.JPG
The raised focussing mask to put under your ground glass.


../jpgother/lomo_graflok_back_IMG_8094.JPGThe back. To be attached via graflok sliders or to be put under your ground glass if you can raise the glass for more than 5cm.

../jpgother/lomo_graflok_back_IMG_8095.JPG

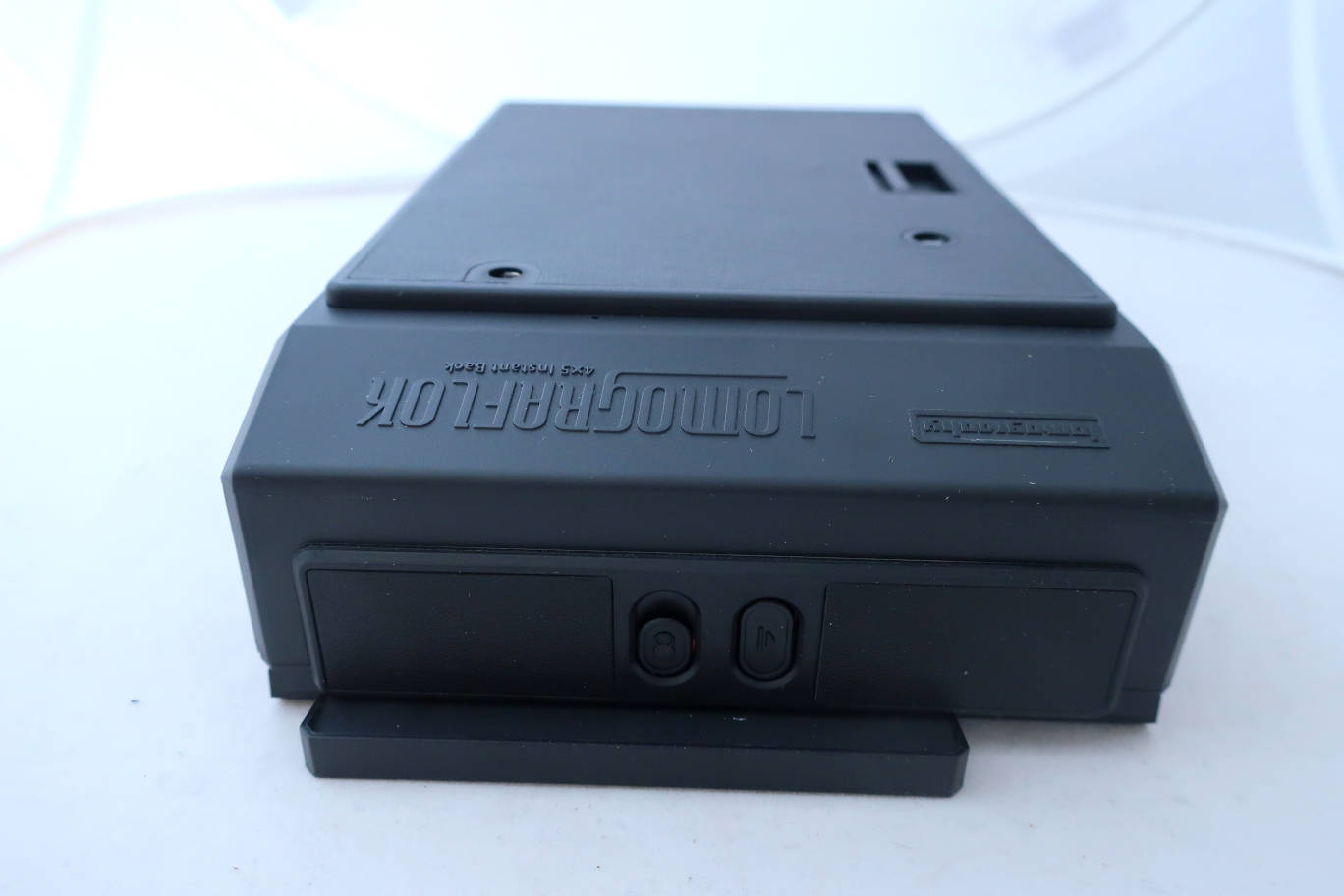

Darkslide lock which switches the back ON when unlocked. Ejection button, one push starts a whole ejection cycle.

../jpgother/lomo_graflok_back_IMG_8096.JPG

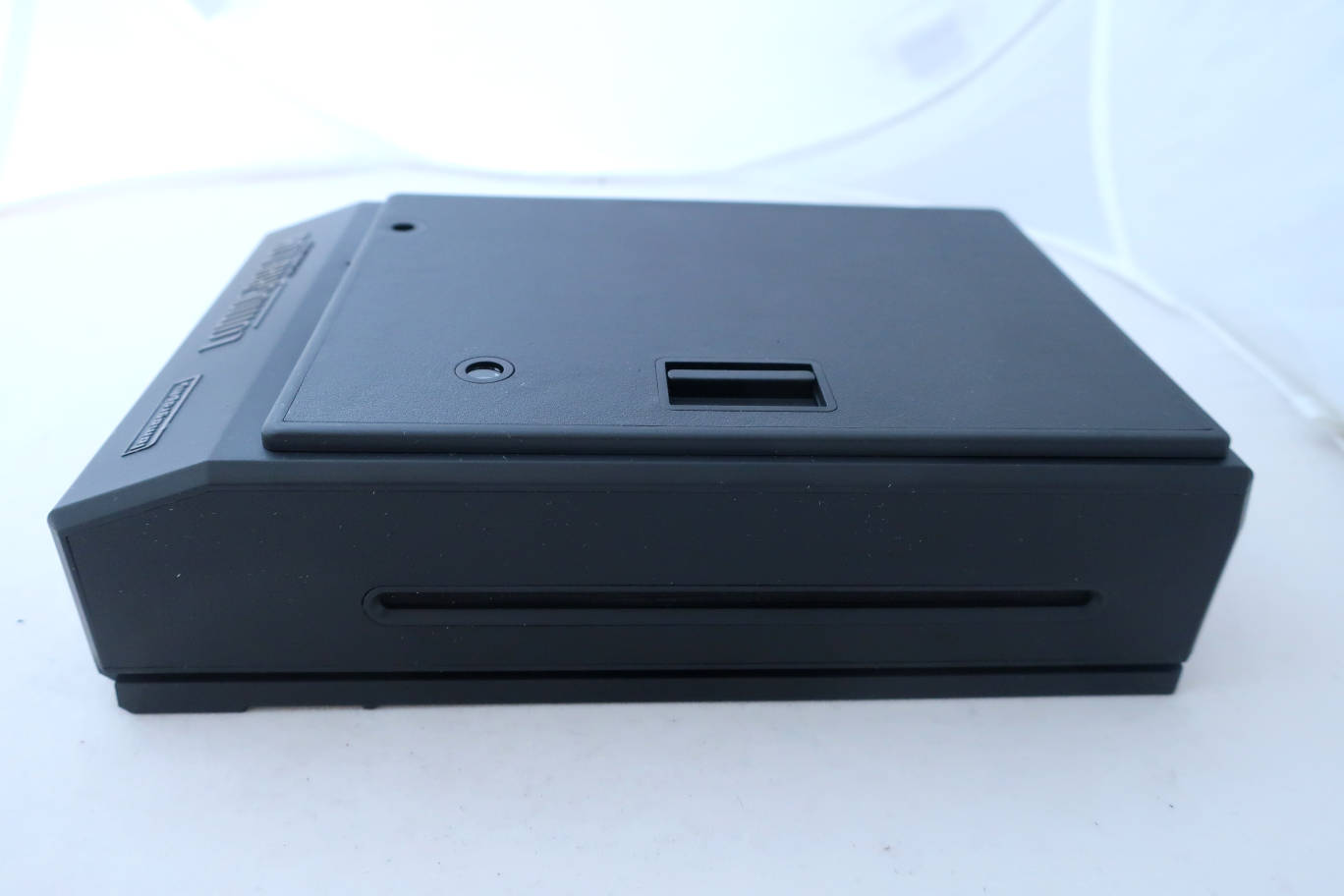

Ejection slot.

../jpgother/lomo_graflok_back_IMG_8097.JPG

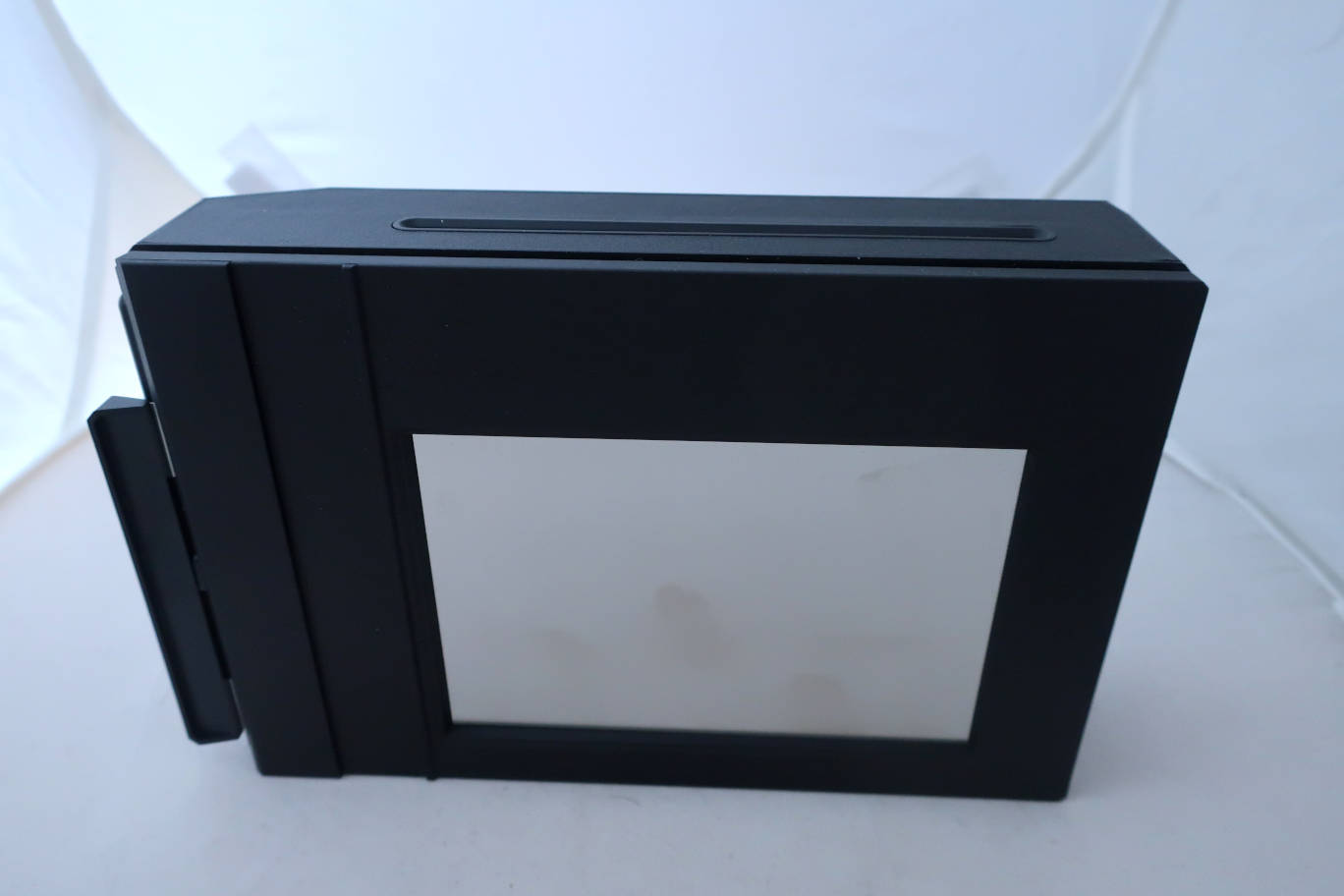

Camera side.

../jpgother/lomo_graflok_back_IMG_8098.JPG

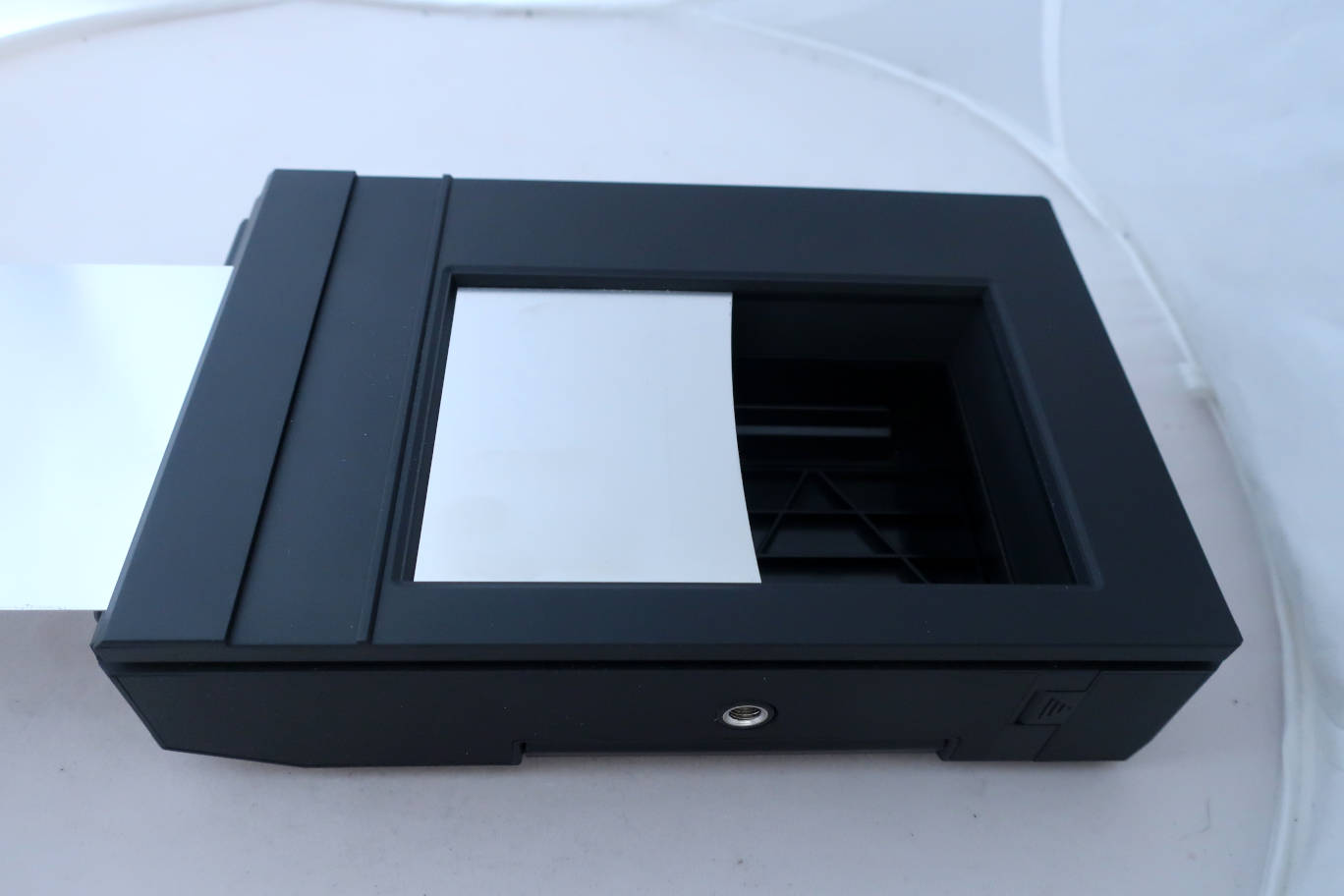

Darkslide pulled half way.

../jpgother/lomo_graflok_back_IMG_8099.JPG

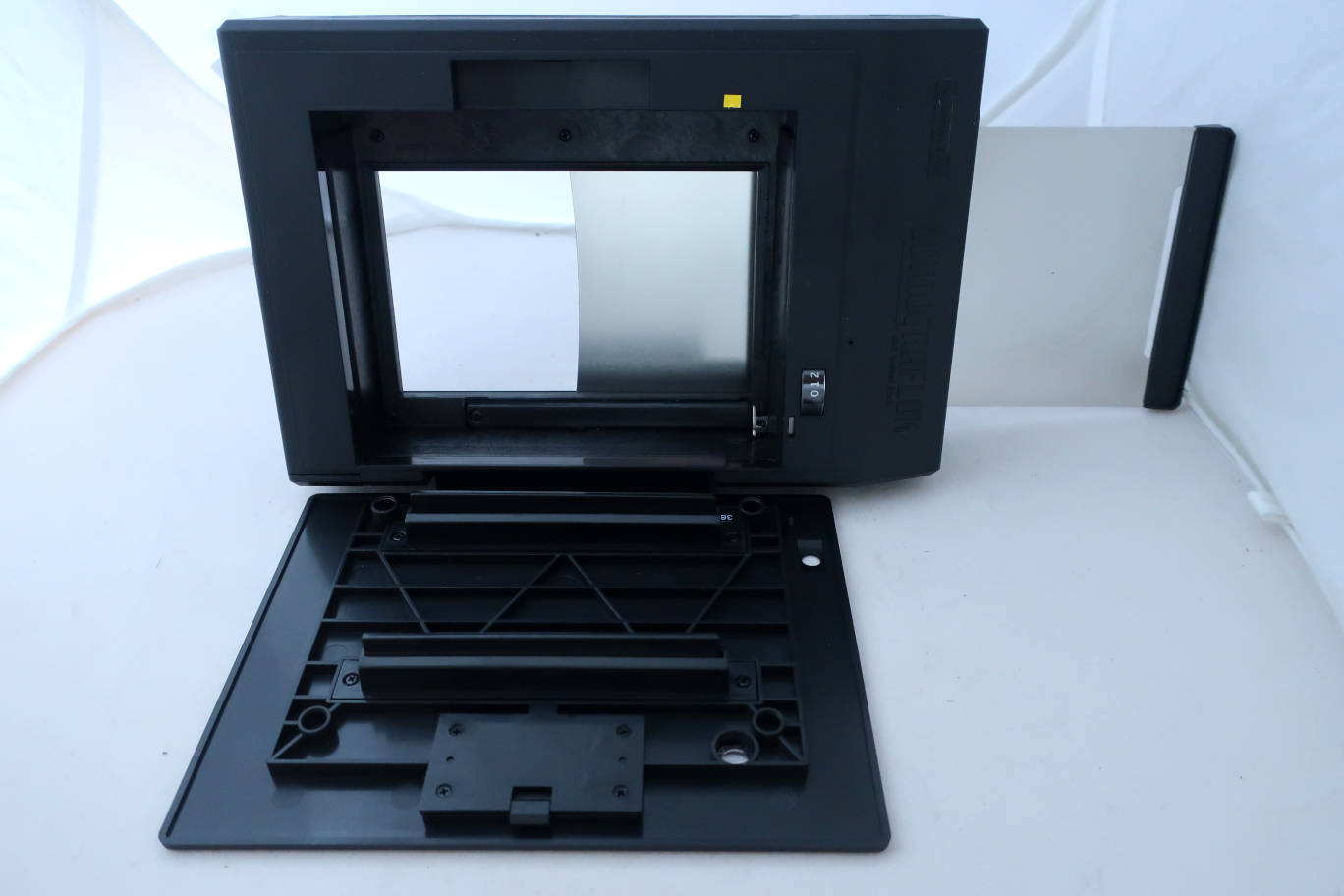

Back open.

../jpgother/lomo_graflok_back_IMG_8100.JPG

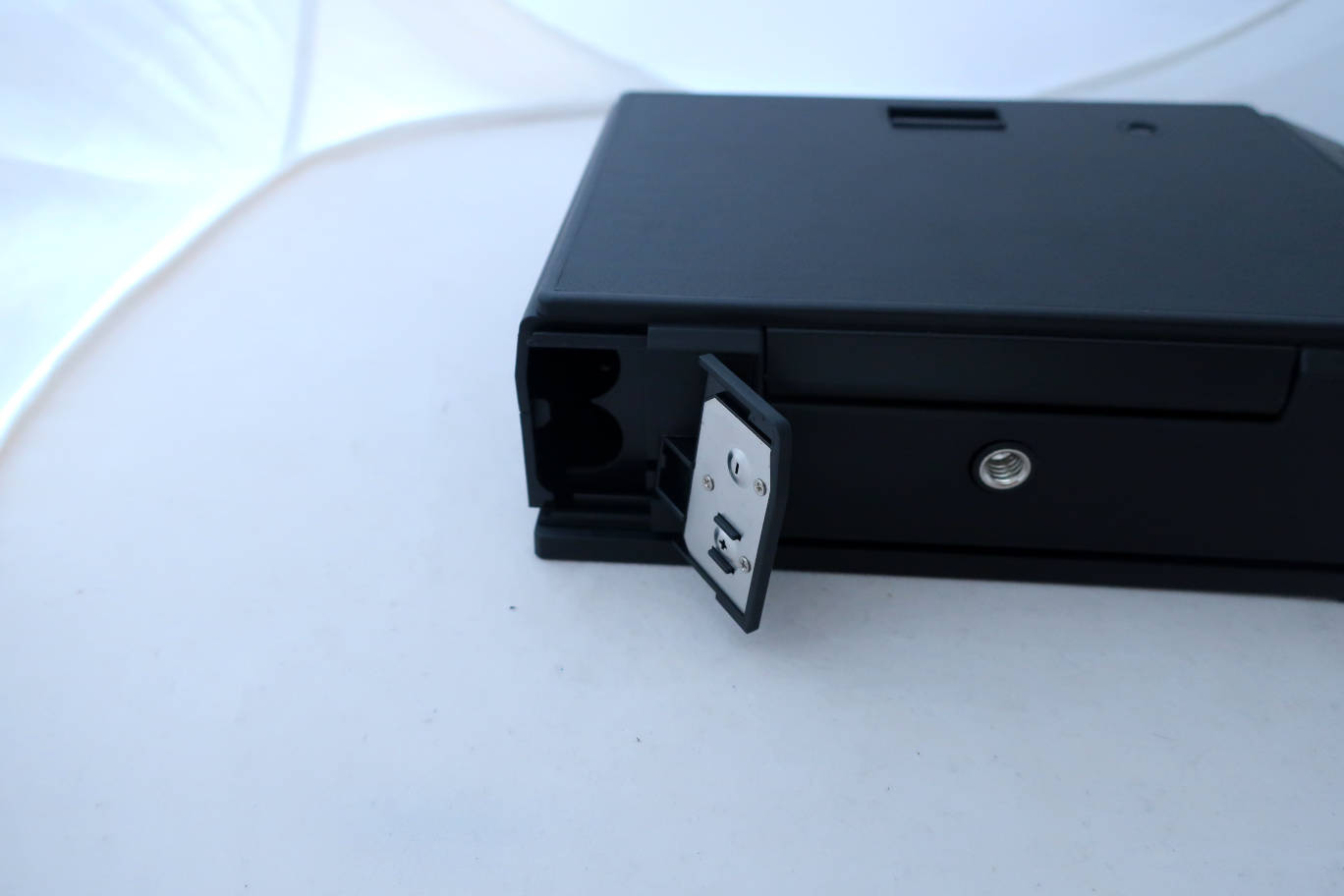

Battery compartment, takes 4 AA batteries.


../jpgother/lomo_graflok_back_IMG_8113.JPG
The back seems to be built with parts from the Lomo Wide camera.

../jpgother/lomo_graflok_back_IMG_8105.JPG

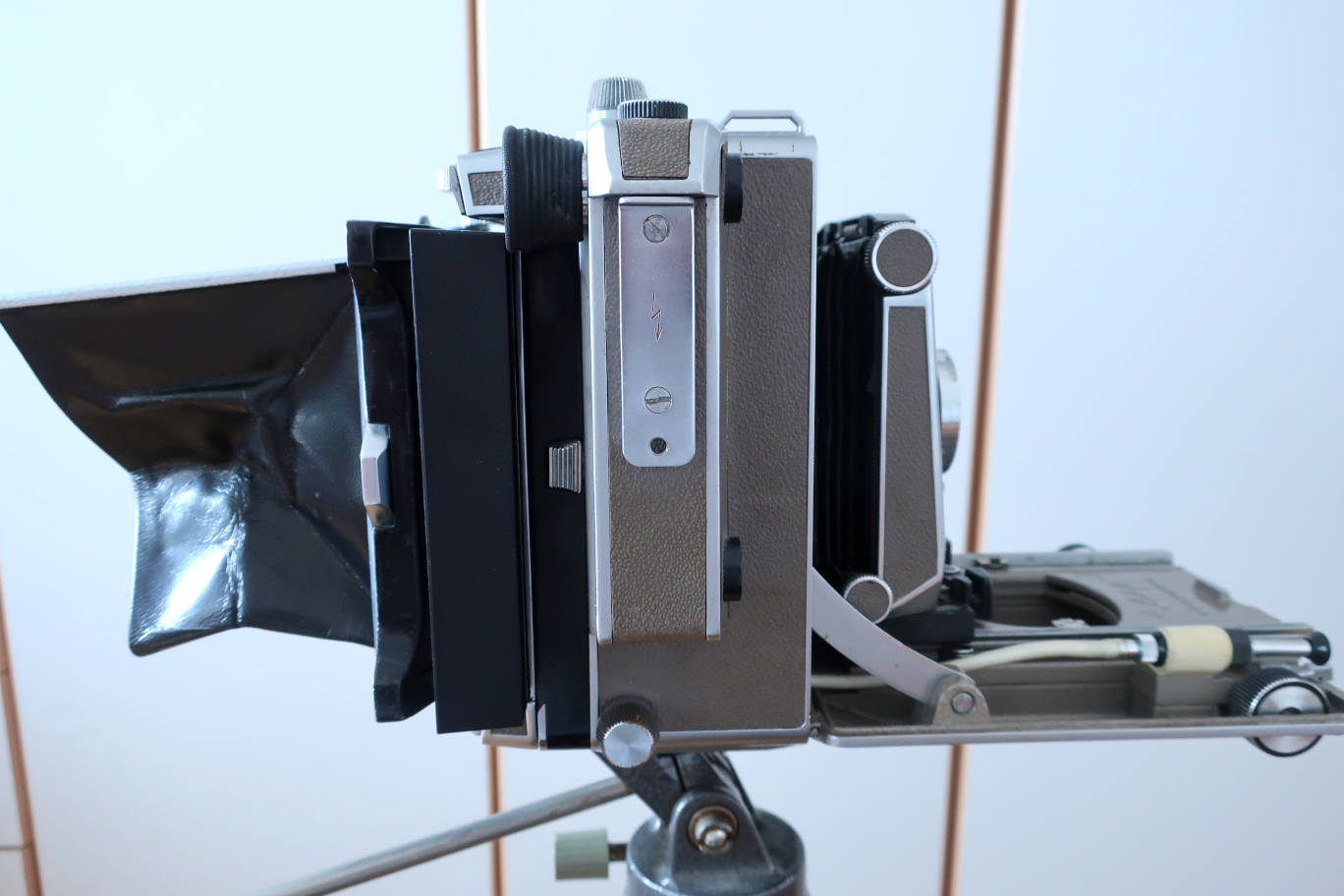

Raised mask under the ground glass of a Super Technika.

../jpgother/lomo_graflok_back_IMG_8103.JPG

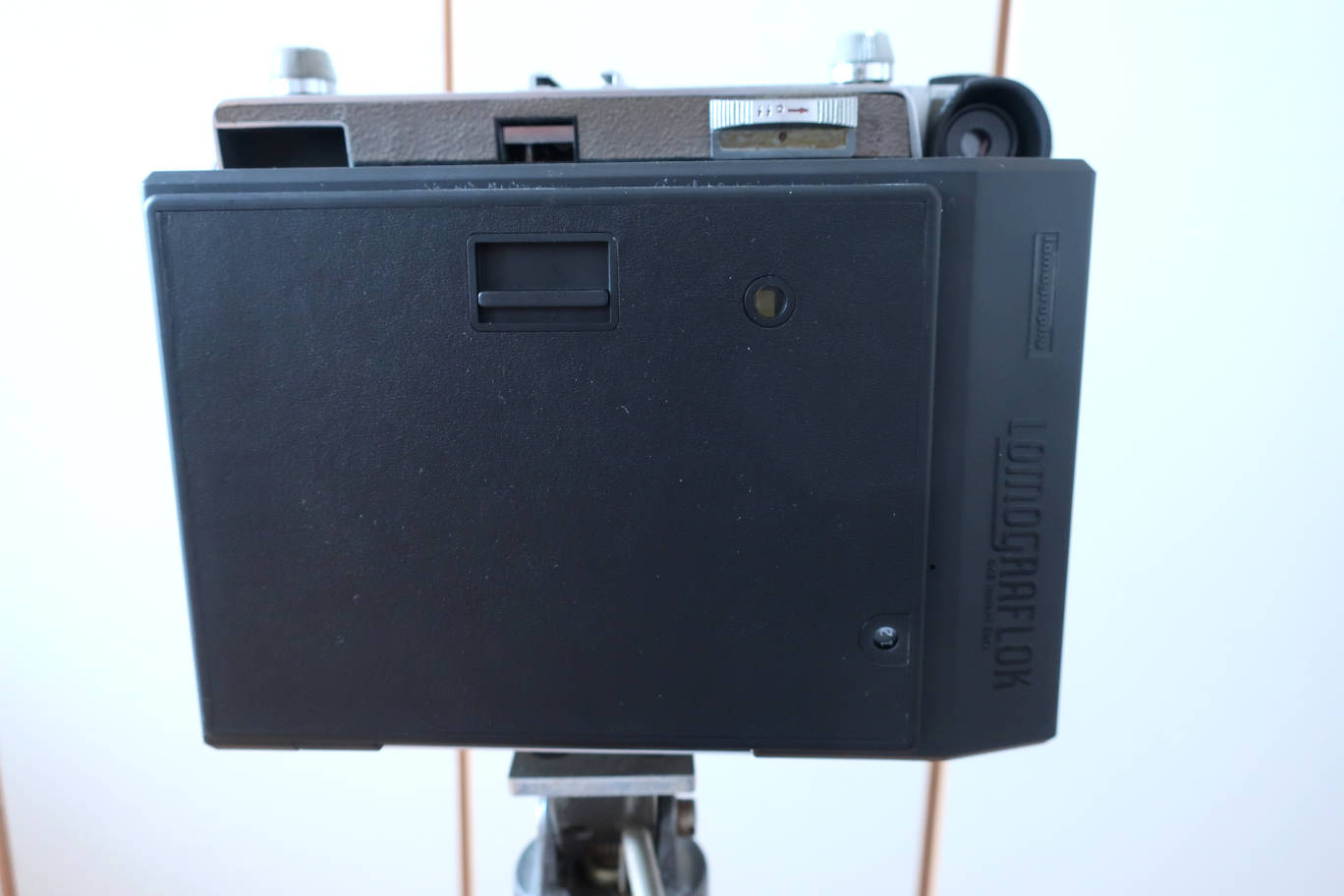

Back attached to a Super Technika. Not enough room to slide it under the ground glass.

../jpgother/lomo_graflok_back_IMG_8104.JPG

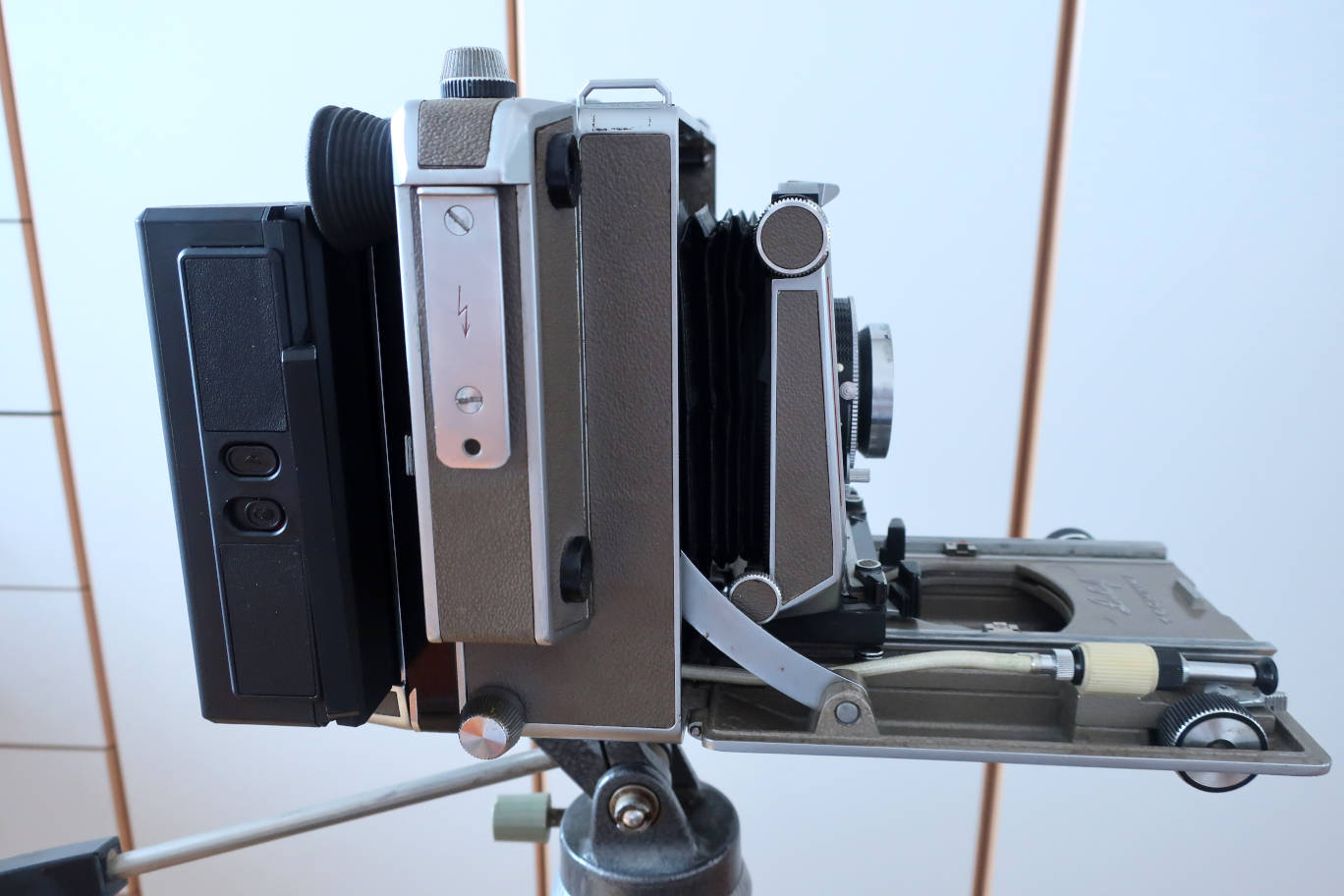

Seen from the left side.

../jpgother/lomo_graflok_back_IMG_8112.JPG
First photo, not scanned yet, so there are reflections. View from my Cologne bedroom over the roofs of the city. The tips of of the towers of our cathedral are just visible to the right. F32, 1/125s.

../jpgother/lomo_graflok_back_IMG_8110.JPG
Interior photo, taken in my living room. F8, 1/10s

The back is easy to use, it fits well to a standard Graflok back. Build quality is fine. The darklide lock is a good idea. On a Technika the tabs for the Graflok sliders may hit the ejecting photo. So it's better to take the back off for ejection. This is the finally a motorized Graflok Instant back. I'm pleased as punch...
