instantphoto.eu              Rolleiflex Instant



The Rolleiflex Instant is the third version of the Mint TL70 camera. The TL70 was launched in spring 2015. It is widely inspired by the Rolleiflex, even the dimensions are similar, but it has a plastic housing and a very inferior lens. It is real Twin Reflex Lens camera. The ground glass of the first version was quite dim. A year later, in 2016, a 2.0 version was introduced with a much brighter screen. To achieve this, Mint sought and got the help of the Rollei engineers. Obviously they kept contact with the Rollei firm and Rollei granted the permission to launch a third version under the Rolleiflex name.

So in april 2018 a Kickstarter campain was started. They got more than 10 times their goal and by the end of the year the cameras were shipped. It is said that the screen is still brighter and there were other minor impovements. The camera is badged "Rolleiflex" and the German address of Rollei is on the packages. I do not know whether Rollei will grant service for these cameras. Besides the brighter screen there is now a tripod mount.

Technical Specifications (with info from the Mint website):

Film Format: Fujifilm Instax Mini Film
Exposure Area: 62mm x 46mm

Aperture: f/5.6, f/8, f/16, f/22, Bokeh
Lens: Aspherical lens with 3 elements, f=61mm
Focal Range: 48cm ~ infinity
Shutter Speed: 1/500 - 1 second (Mode A) | max. 10 seconds (Mode B = slow shutter)
Viewfinder: Twin lens reflex viewfinder with an eyepiece magnifier to lift up
Exposure Control: EV+/-1
Flash: Integrated, electronic flash with automatic light emission control
Power Supply: 3AA Batteries (1.5V)
Film: Instant film magazine 54 x 86 mm (w x h)
Dimensions: 141 x 102 x 80mm
Weight: 525g
Box set includes: Rolleiflex™ Instant Kamera, user manual, warranty guide, and 3 AA batteries


Some pictures of the camera:

../jpgother/rolleiflex_instant_IMG_20211231_144733.jpg

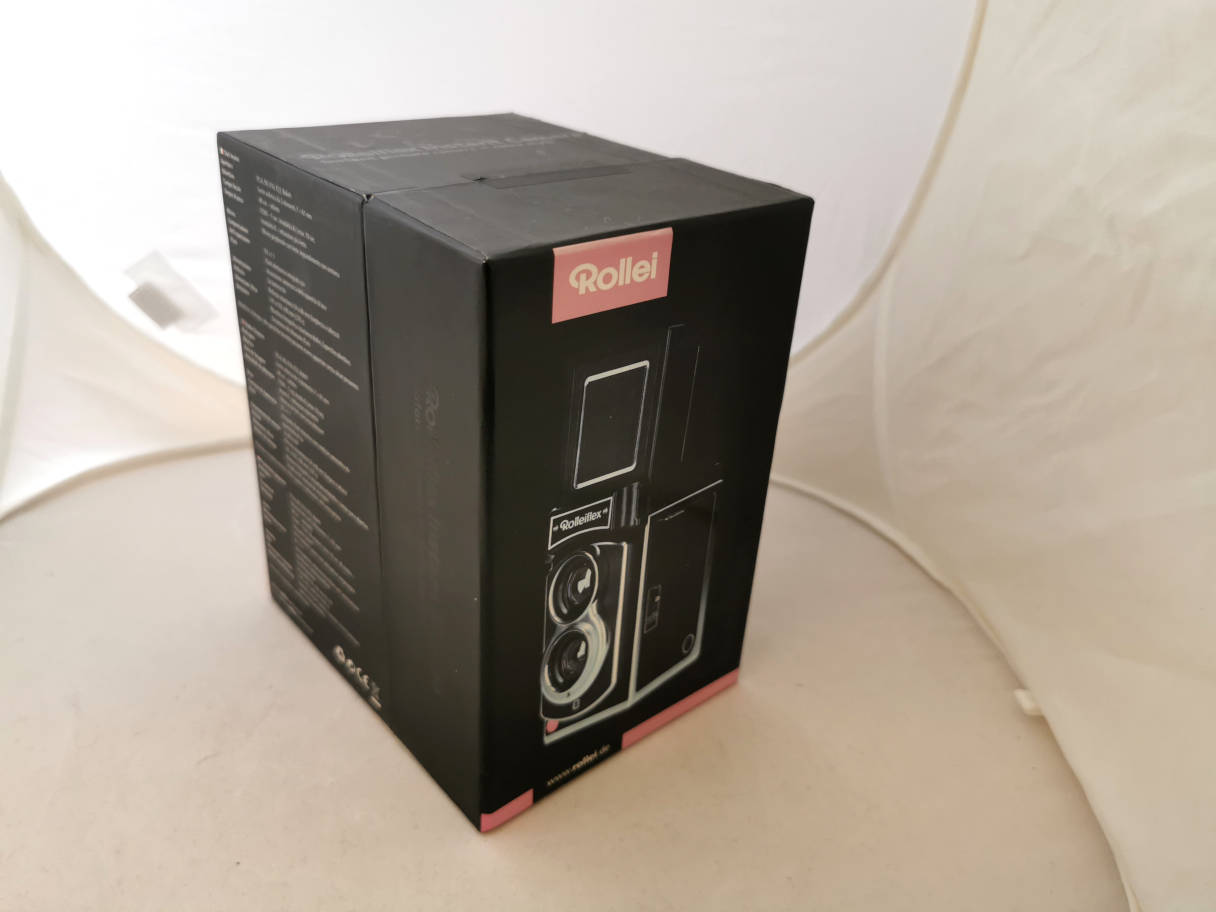

The box.

../jpgother/rolleiflex_instant_IMG_20211231_144939.jpg

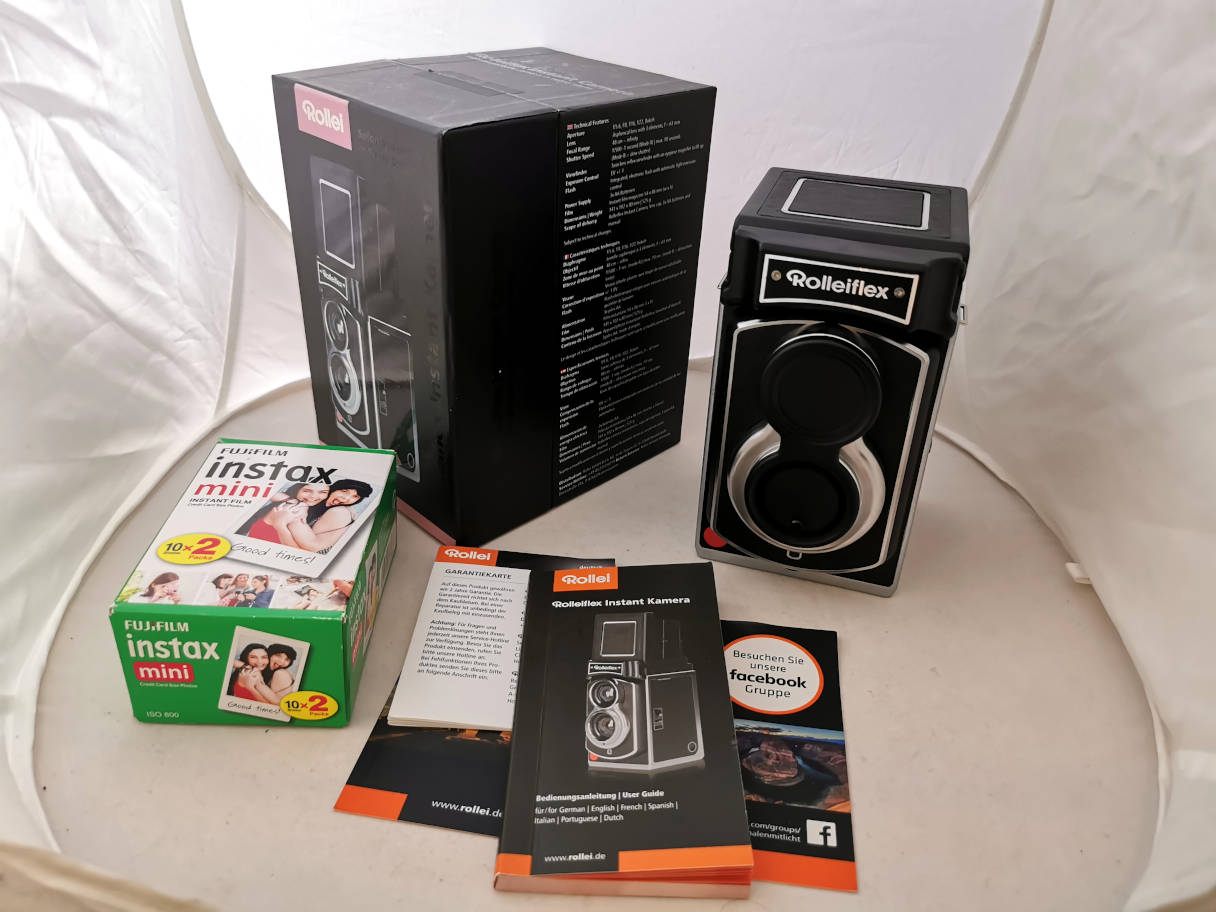

What's in the box. The camera with cap and instructions + warranty papers.

../jpgother/rolleiflex_instant_IMG_20211231_145113.jpg

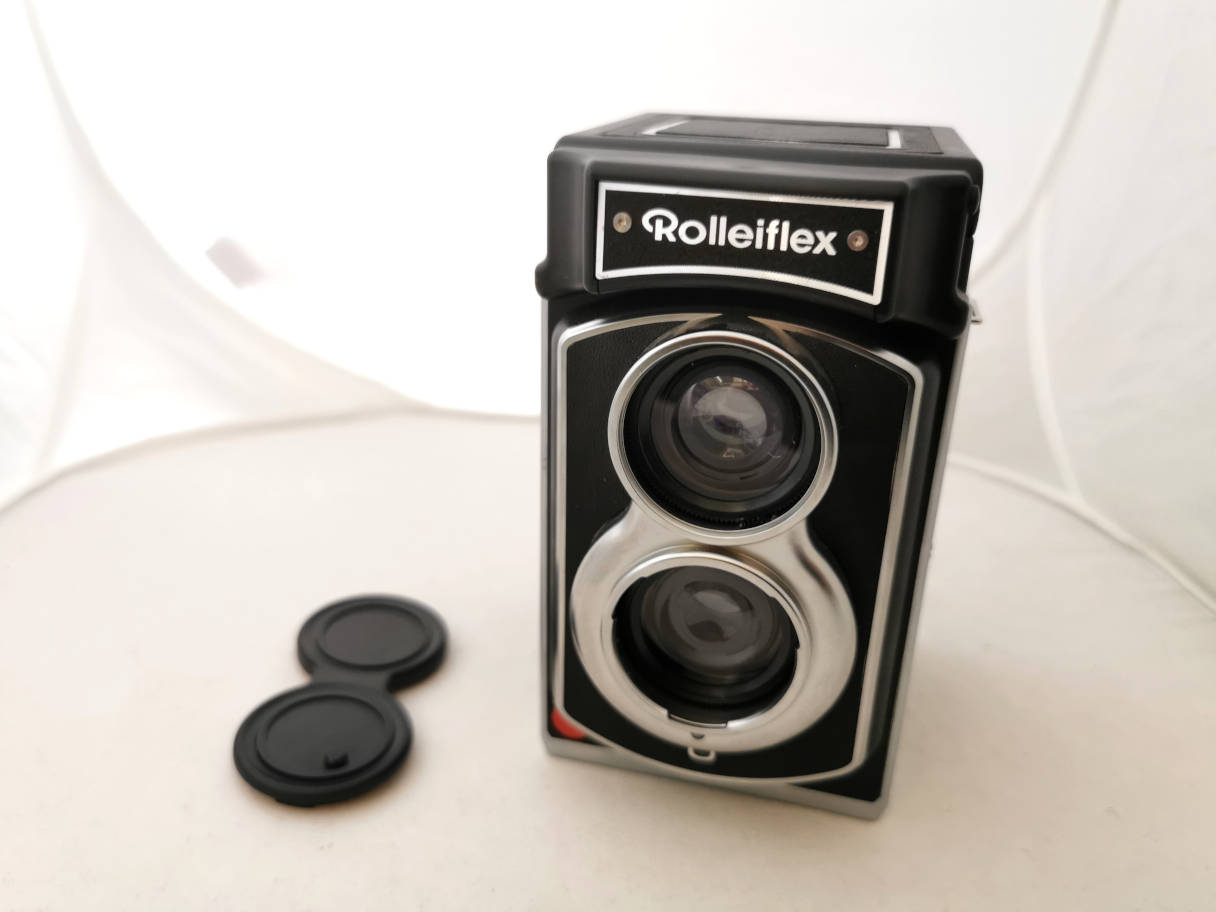

Camera with cap taken off. Under the lens is a little window that shows the aperture chosen. Shutter button on the left lower edge.

../jpgother/rolleiflex_instant_IMG_20211231_145136.jpg
Left side. Tiny frame counter window.

../jpgother/rolleiflex_instant_IMG_20211231_145128.jpg

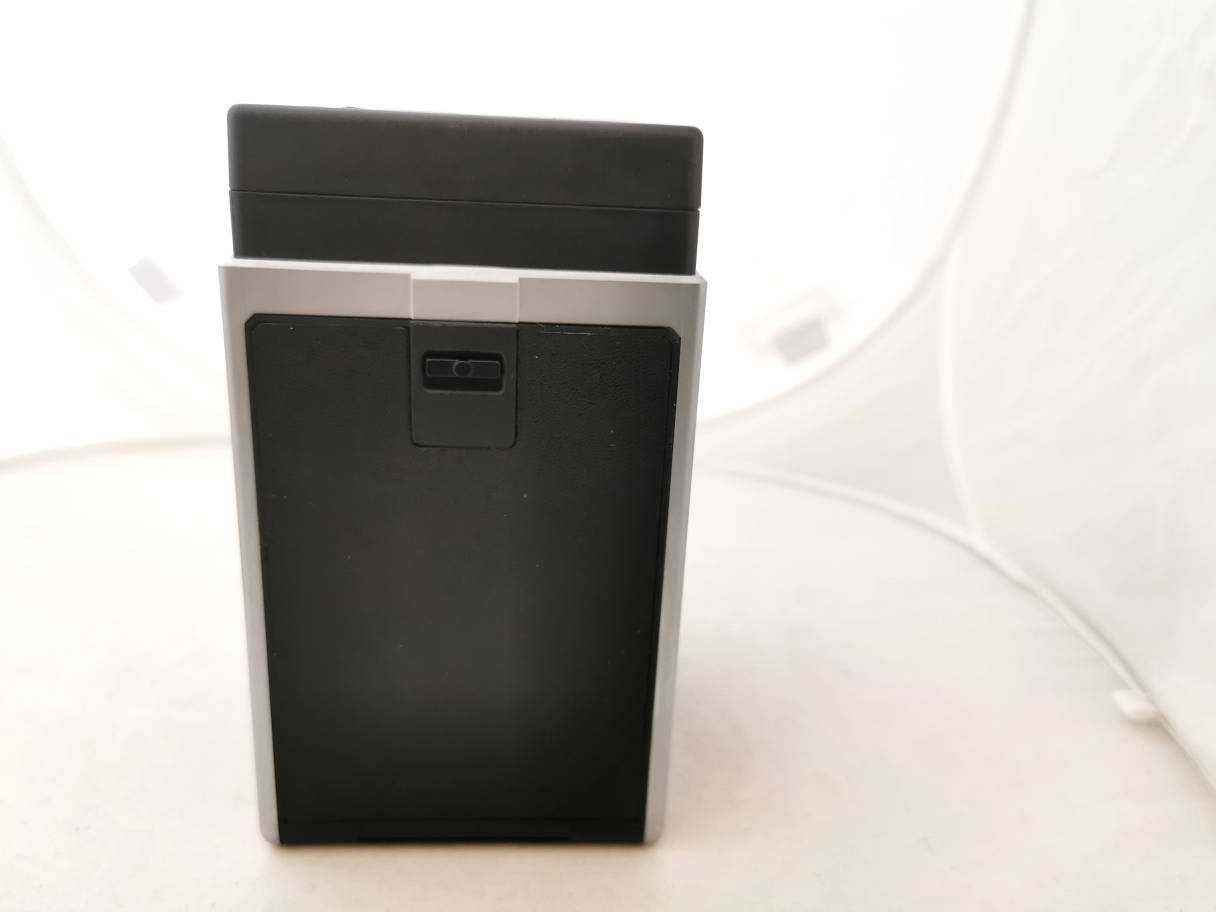

Back side with back opening button.

../jpgother/rolleiflex_instant_IMG_20211231_145122.jpg
Right side. Tiny flash button on the flash housing. Automatic/B switch on the viewer base. Focussing wheel and EV +- switch. Ejection button.

../jpgother/rolleiflex_instant_IMG_20211231_145816.jpg

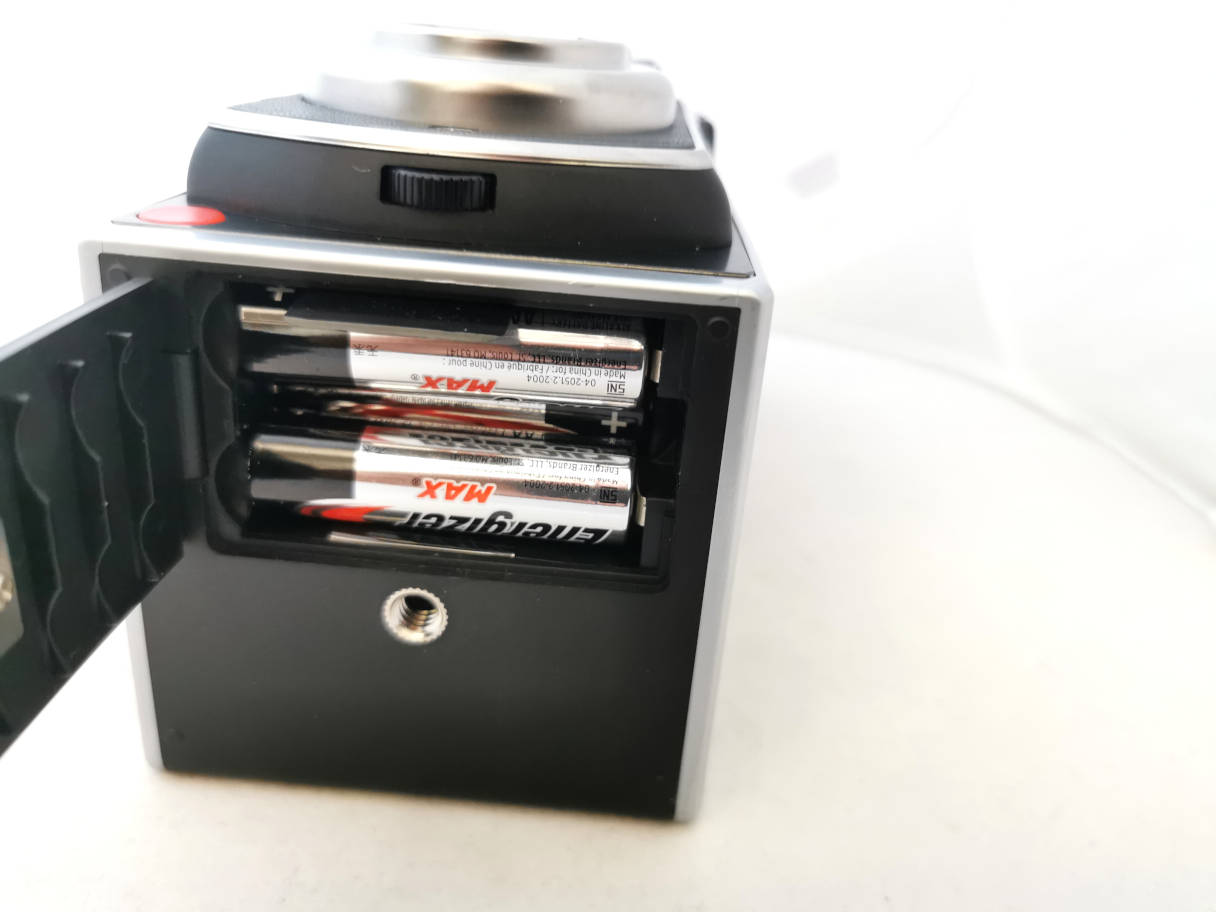

Bottom.
Battery compartment, takes 3 simple AA batteries. Tripod mount. Under the lens: aperture selection.

../jpgother/rolleiflex_instant_IMG_20211231_145905.jpg

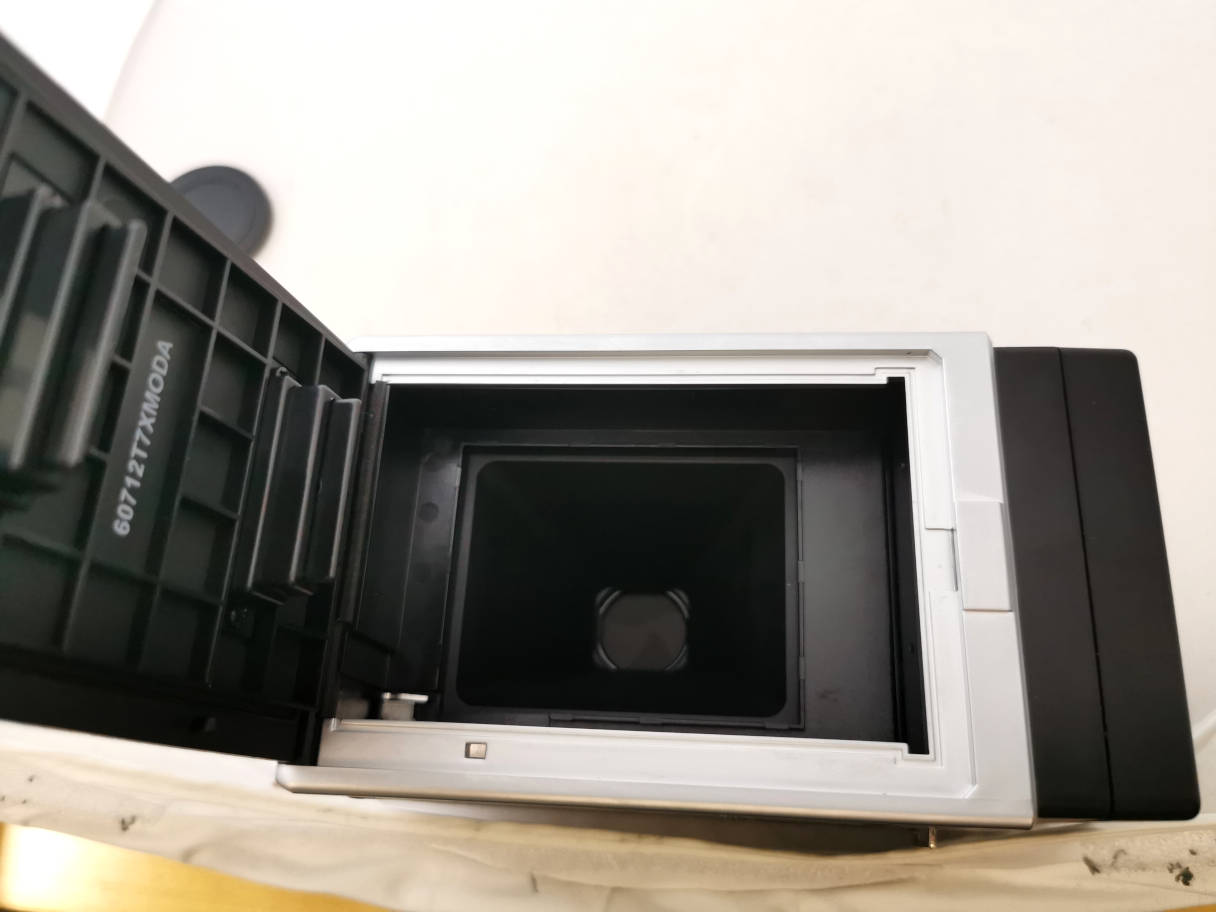

Back open.

../jpgother/rolleiflex_instant_IMG_20220102_144247.jpg

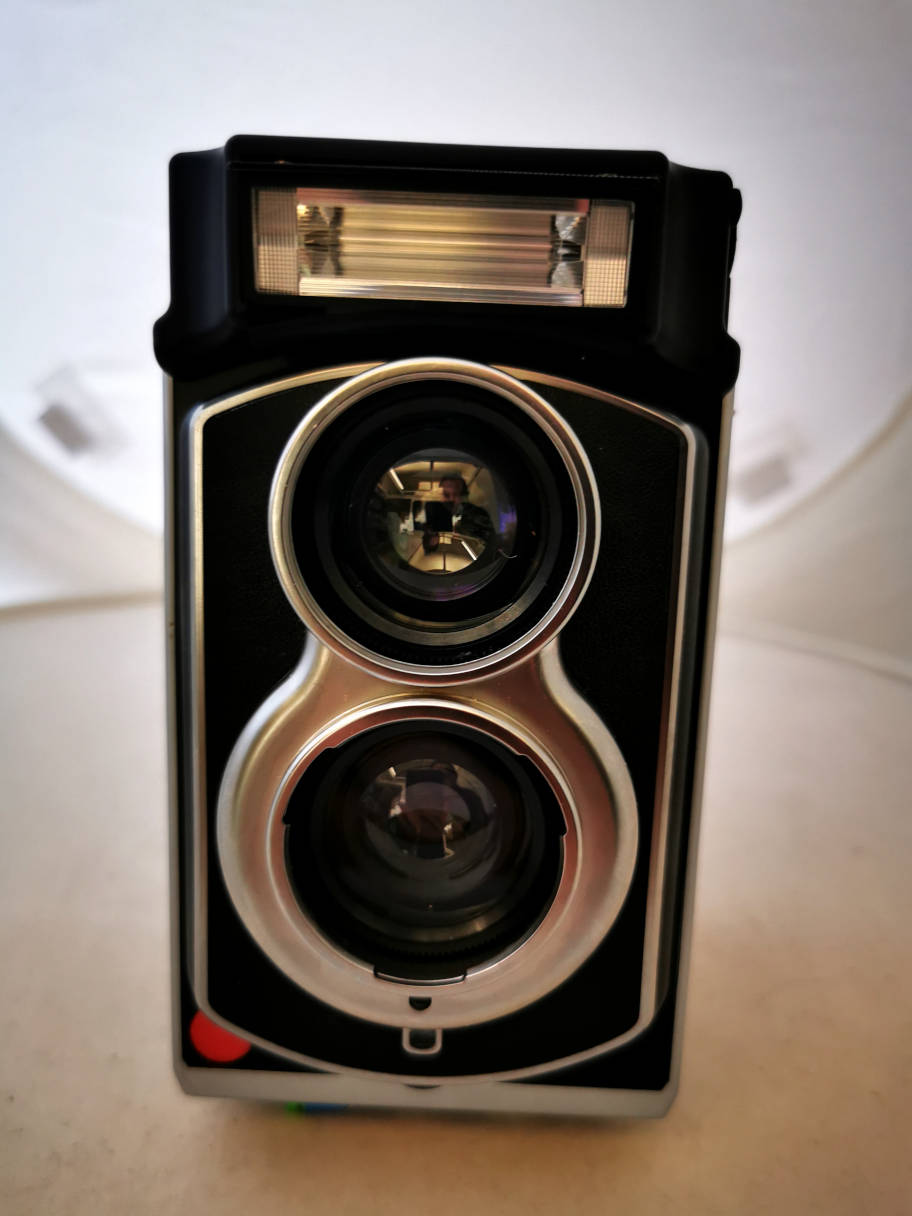

The flash unfolded. Press the flash button and it jumps open and loads. To switch it off you have to push it back into its housing.

../jpgother/rolleiflex_instant_IMG_20211231_145210.jpg

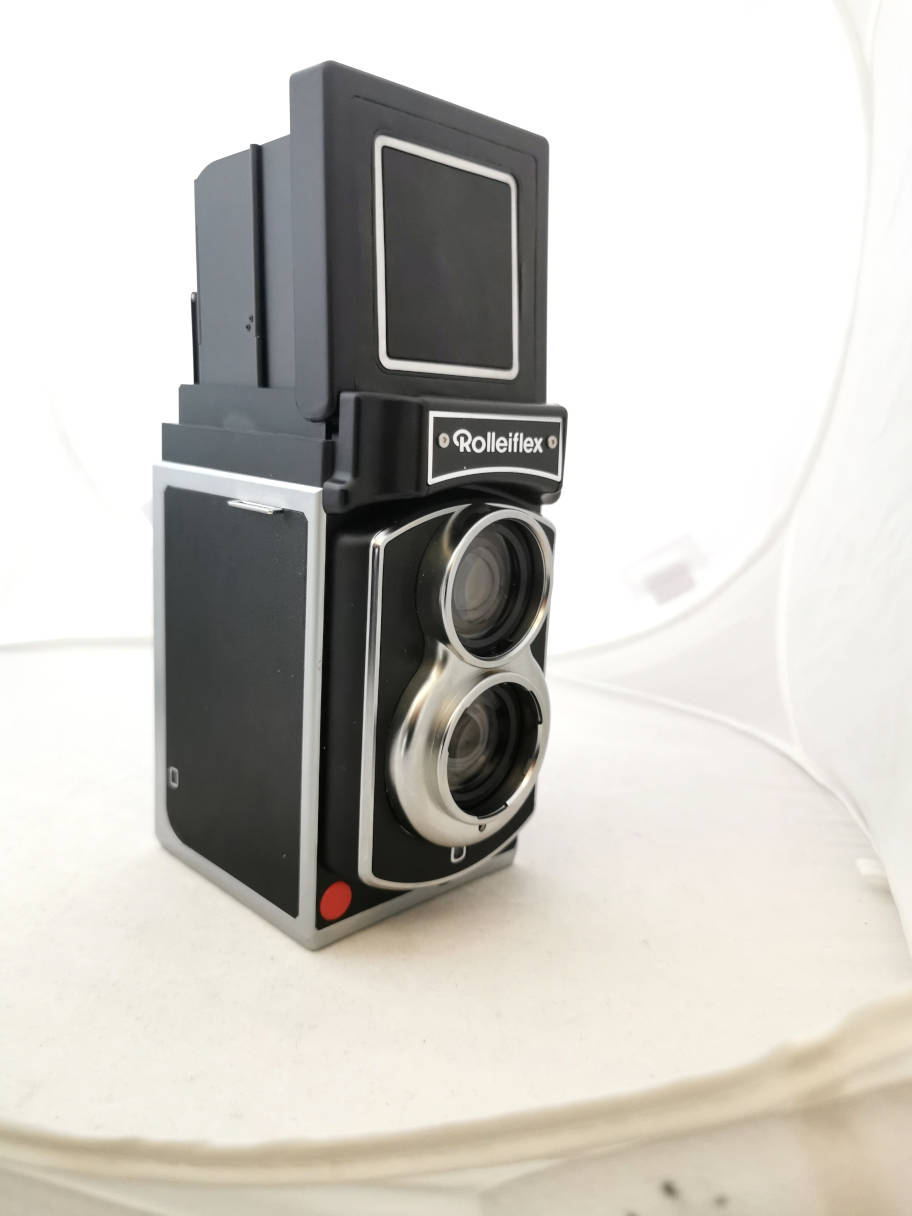

Viewer unfolded. There is no on/off switch, unfolding the viewer switches the systen on.

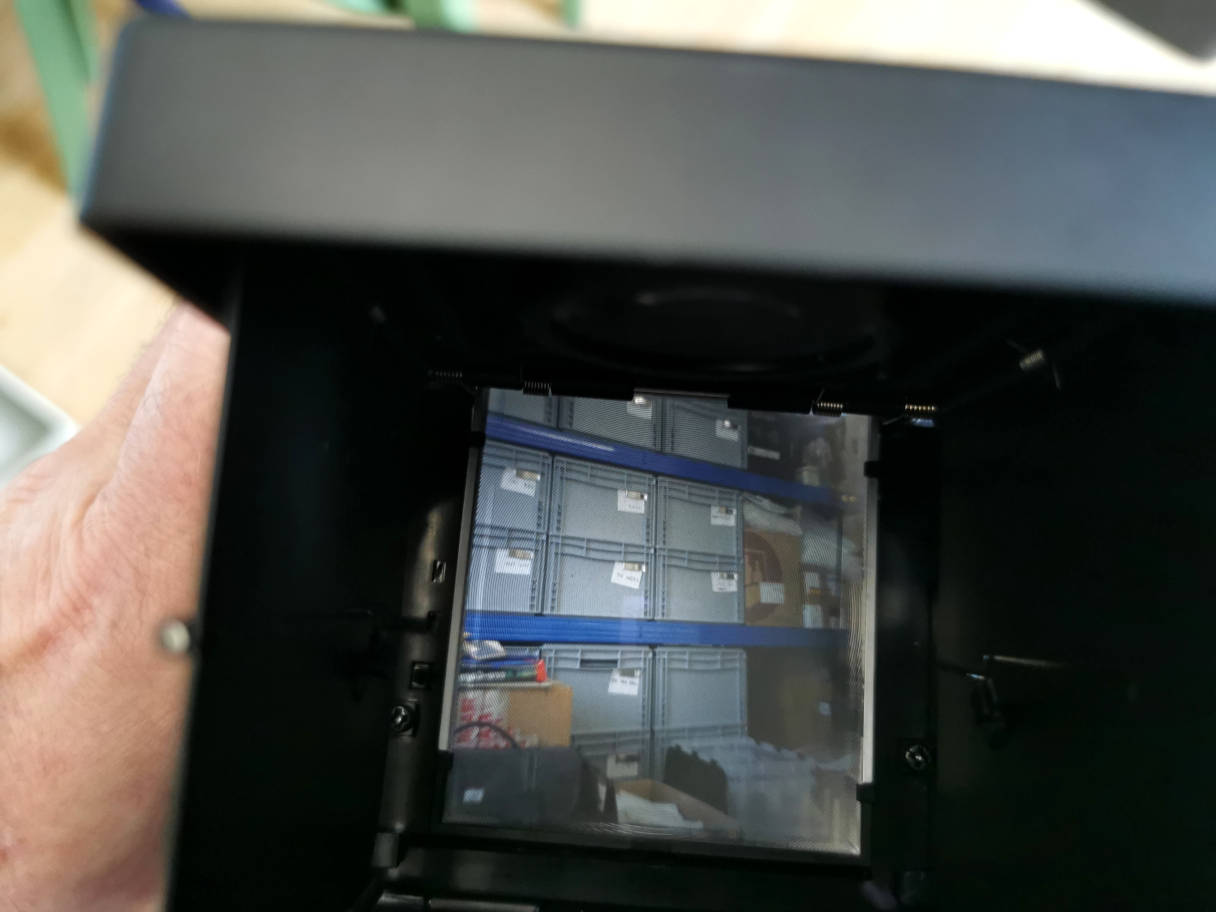

../jpgother/rolleiflex_instant_IMG_20211231_145332.jpg
The viewer is bright indeed. You can swing out a magnifier out for precise focussing, but it's fiddly to grab it and not leave your fingerprints.

Just to give you an idea, some photos, taken with this camera, aperture noted on the rim:

../jpgother/fim_rollei_1-2.jpg
My Cologne atelier. There was a nearly black first photo without flash although the room was well lit. So I tried the flash for this one. The flash doesn't cover the scene entirely.

../jpgother/fim_rollei_1-3.jpg
Outside photo, heavily underexposed.

../jpgother/fim_rollei_1-8.jpg
After 4 black or nearly black photos in a well lit room, I tried EV+ which seems to be OK.

../jpgother/fim_rollei_1-9.jpg
Flash again, even at this distance the flash does not cover the whole photo.


../jpgother/fim_rollei_2-1.jpg
My Cologne house, bright day. Totally overexposed.

../jpgother/fim_rollei_3-1.jpg
Same photo, EV-. What a difference!

../jpgother/fim_rollei_2-4.jpg
At F22 there is heavy vignetting.

../jpgother/fim_rollei_2-6.jpg
At F16 still quite some vignetting.

../jpgother/fim_rollei_2-7.jpg
Same photo at F5.6. OK but still a hint of dark corners to the right.


../jpgother/fim_rollei_2-8.jpg
As close as 1m. Focus on the big box. Sharpness isn't impressing.

../jpgother/fim_rollei_2-9.jpg
An evenly lit scene with no bigger light or dark surfaces at F8 gives the best results.

../jpgother/fim_rollei_2-10.jpg
The camera can't cope with the dark leaves. Should have been EV+.

These are the first picture tests. As I have a Mint RF70 which is a superb camera, I thought it would be easy. But no, on the first pack 9 out of 10 photos failed more or less. You have to choose the diaphragm between 5.6 and 22, the shutter is automatic between 1/500 and 1 sec. There is a red and a green light, that's all. If it's green, everything should be fine. But no, it isn't. It overexposes, it underexposes. The flash doesn't help either.

So I looked at the TL70 tests on the web, there are only 2 or 3, the rest is copy and paste from Mint material. And there you are, it's delicate, unreliable and not easy at all. If you look at the pictures in the Mint ads closely, they chose the subjects well so that you can't see the vignetting and the print size remains small, so you can't judge the sharpness. To be fair: the scans are more than life size, so if you look at the photo in your hand, it's sharper. I then took two more packs to see.

Basically: you need a bright day. If the subject is dark, you have to set EV+, otherwise the picture is underexposed, if there is some bright sky in the picture, you have to set EV-, otherwise the picture is overexposed. Only with a large aperture there is no vignetting. At F16 and F22 it vignettes badly. Contrasts are not great, sharpness is not terrible either despite the reflex viewfinder. Moreover, the viewfinder image is square, it does not show the bottom and the top of the picture!

The flash, which is confirmed by the manual, has a range of only 2 m (!) and is badly oriented, the flash is horizontal, the image is vertical, the top and bottom are badly illuminated. Indoor shots without flash will be difficult. Despite ISO 800 and exposure times of up to 1 second, it seems to expose for a long time, but still underexposes, as if the lens would be far from the f5.6 chosen. And yes, a tripod is absolutely necessary.

General handling: it's a good idea to couple the unfolding of the viewfinder with switching on the camera. The finder is really bright, but it doesn't show the whole picture (see above). Swinging the magnifier in is fiddly, you have to pry it out and you will certainly touch the glass and leave your fingerprints. All of my medium format TLR and SLR cameras, even the oldest ones, have a better solution. Ejection is fine and strong. The camera doesn't eject automatically, not even the dark slide, but on the other hand double exposure is easy. Exposure is automatic, there is no manual mode, which is a pity. Automatic exposure is very unreliable. You will waste at least half of your photos. The flash is really bad, it does not even cover the picture at 1.5 metres. Its switch is too tiny and black on black. Same for the automatic/B switch, it's black on black, hardly visible. The counter is tiny too, you need good light to see it. Same for the aperture window. Sharpness and contrast are not better than a simple and cheap Fuji Instant Mini. The vignetting at F16 and F22 is simply unacceptable.

To make it clear: I am an artist photographer and I still own more than 40 Instant cameras + more than 100 others. I know what i'm talking about, look at my websites. I will try again later. For the moment I think it's a shame that the camera is allowed to bear this famous name...
