instantphoto.eu              Polaroid 8 x 10 Instant Film Processor


This is  special gear, the Polaroid 8 x 10 Instant Film Processor. 8x10 film is still made from time to time. It is quite expensive, but it has never been cheap. Polaroid mainly made cameras and film for the pack 100 format and the bigger 4x5 inch Film for professionals. For the 4x5 format they made 2 types of film, 550 type pack film, similar to the 100 film, just bigger, and type 50 single sheet film, which was sold in packs of 20. For the latter a single sheet 4x5 back that fitted all 4x5 Graflok cameras was available. Processing was still made in the holder, but a bit more complicated than just pulling the strap out of the back. Polaroid also made some portrait cameras for either size.

For professional artistic use they made even bigger film, 8x10 inch size (20x25cm). They relied on the artist's existing 8x10 cameras and just made the backs for this film and a motorized processor. Polaroid film needs precise rollers to crack a pod of developing chemicals, then distribute the chemicals evenly between the negative and the receiving sheet for the positive by laminating these 2 sheets. Once the chemicals have done their work, negative and positive are separated. For the 8x10 size they built massive rollers and motorized them for an even speed and force.

Negative and positive sheet are separate for this film. The negative sits in a light-tight pouch to enable daylight loading. They made backs that fit standard 8x10 cameras. You put the negative and its pouch into the holder, hook a strip attached to the negative to the holder, close it and then cautiosly retract the pouch. There are videos howto on Youtube and other platforms.

There are 2 types of holders. The older 81-05 holder does not need a loading tray. You can insert the receiving positive sheet directly into the holder before processing, there is a slit to insert it in front of the dark slide. It needs a bit of patience, but works well. The leader of the positive has to be well attached to the leader of the negative. You have to insert the holder face down into the processor (take care to eventually straighten the leaders), push the button and the rollers will grab the leaders and then laminate negative and positive. The 81-06 holder has no room for the positive sheet. You have to attach the loading tray to the processor. The positive sheet is inserted into the bottom of the tray and the negative holder above it. If you push the button, both are grabbed and laminated.


Some pictures:

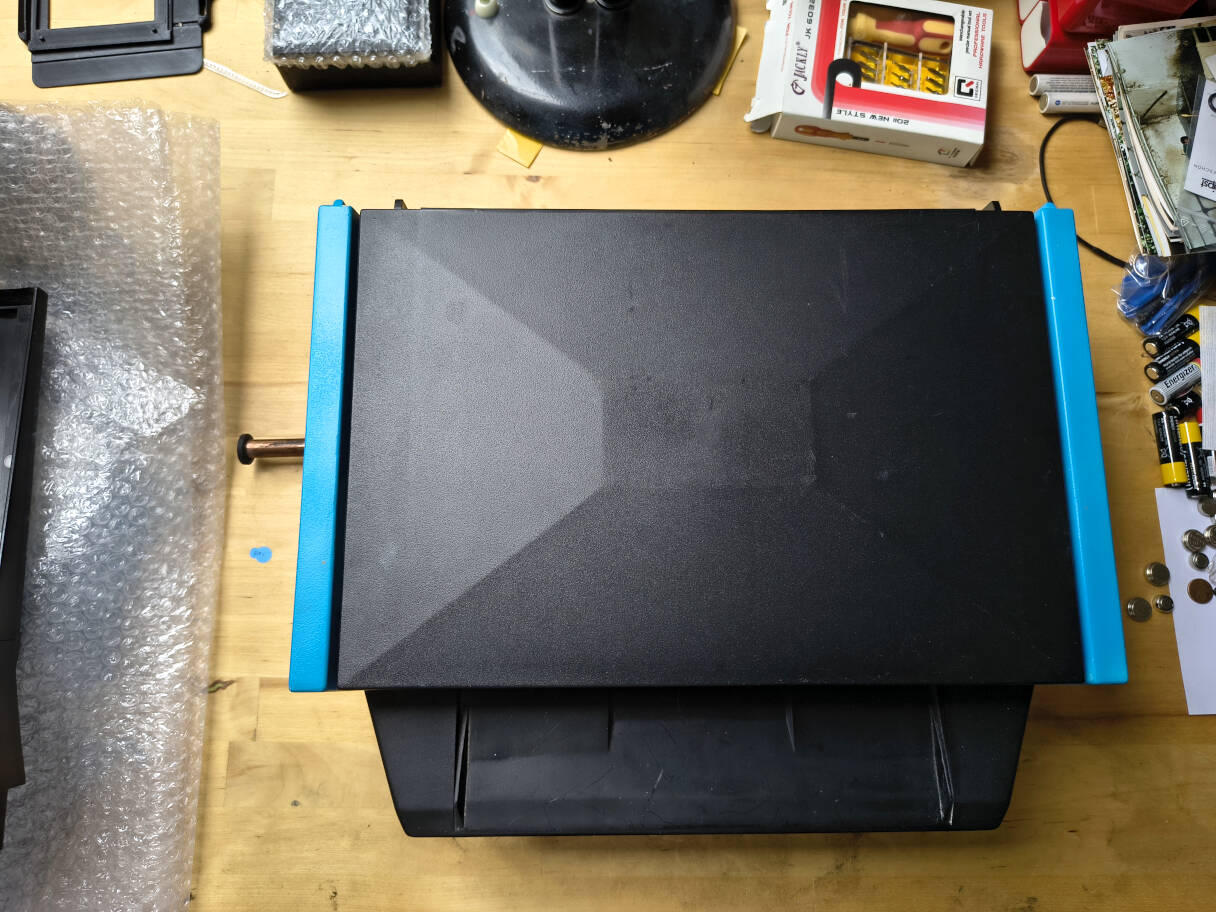

../jpgpola/polaroid_8x10_IMG_20250721_101547185.jpg
An older American 120v unit, closed. It has a DIY metal handle sticking out to the left to operate it manually. Some units were dilivered with a plastic handle, seen the forces necessary to operate it,  the handle can break. This one is solid. But most units were not delivered with the manual possibility.

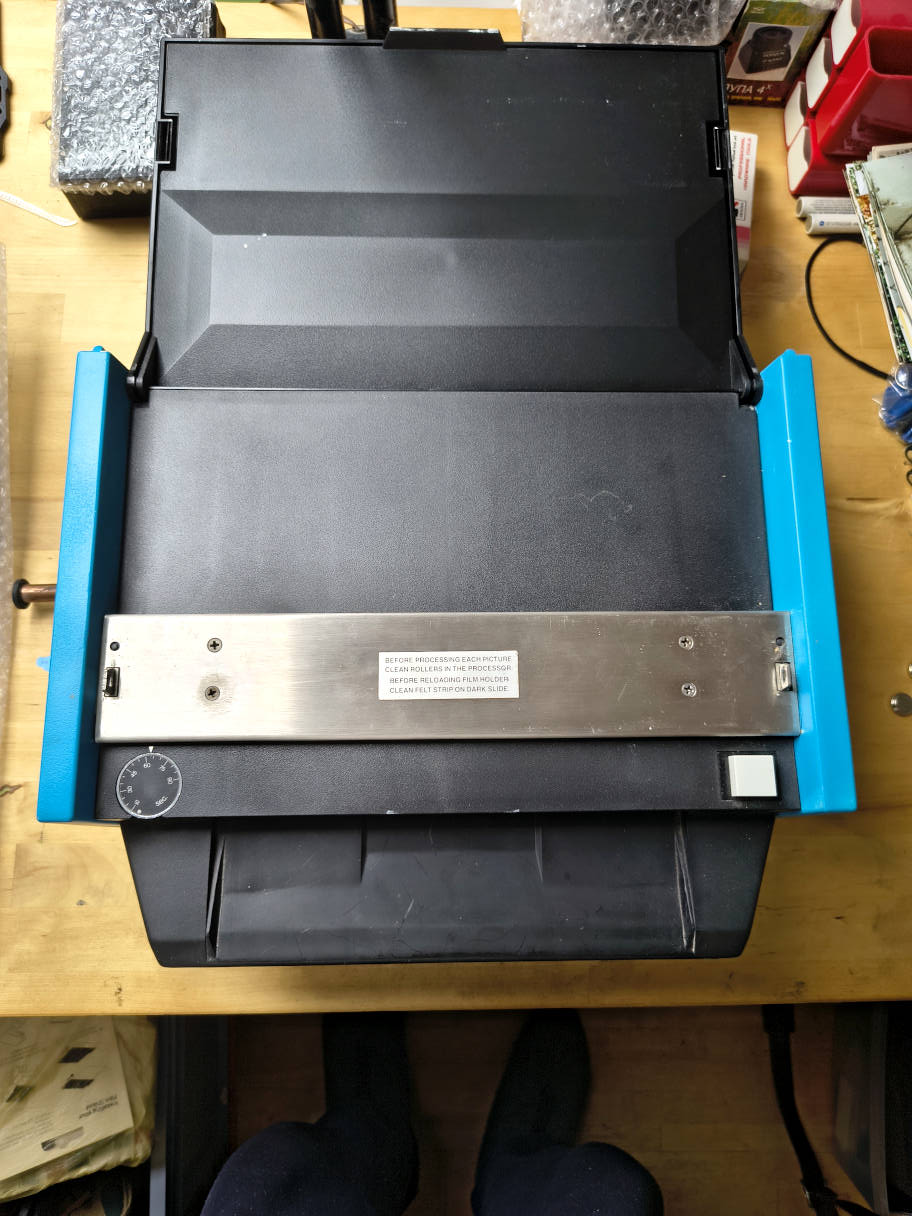

../jpgpola/polaroid_8x10_IMG_20250721_101606145.jpg
Unit open.

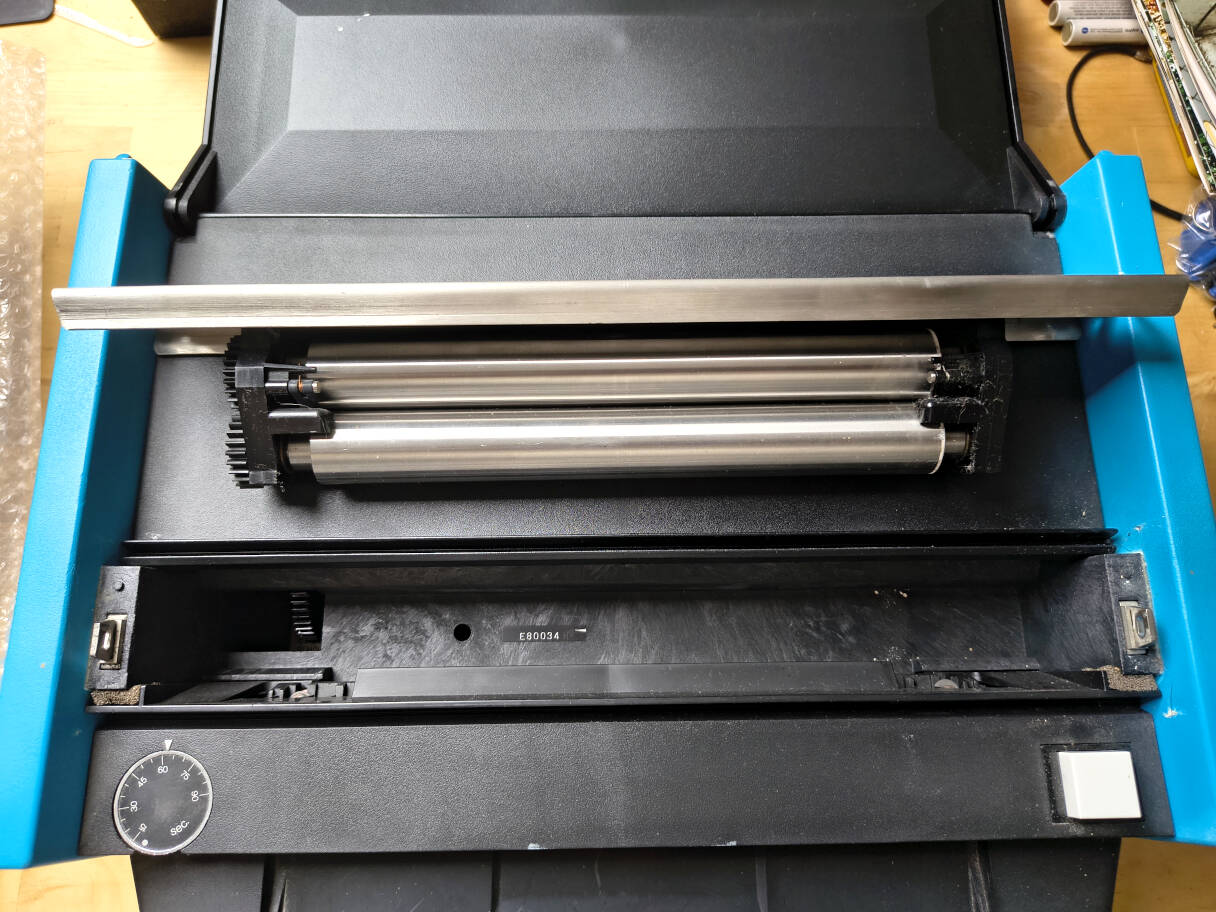

../jpgpola/polaroid_8x10_IMG_20250721_101625392.jpg
The massive rollers can easily be taken out for cleaning. Timer and operating button towards the front.

../jpgpola/polaroid_8x10_IMG_20250721_101701952.jpg

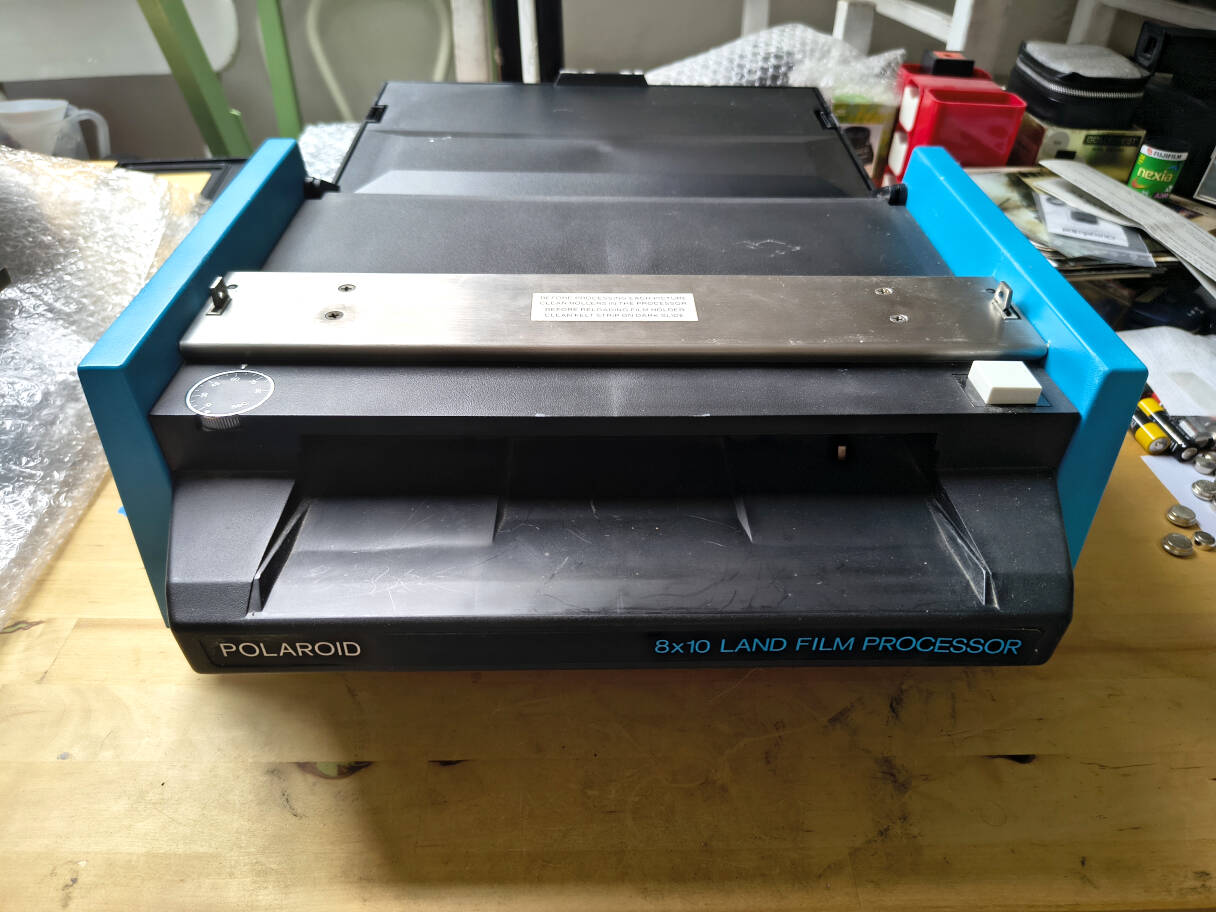

Ready to receive a holder.

../jpgpola/polaroid_8x10_IMG_20250721_151635955.jpg

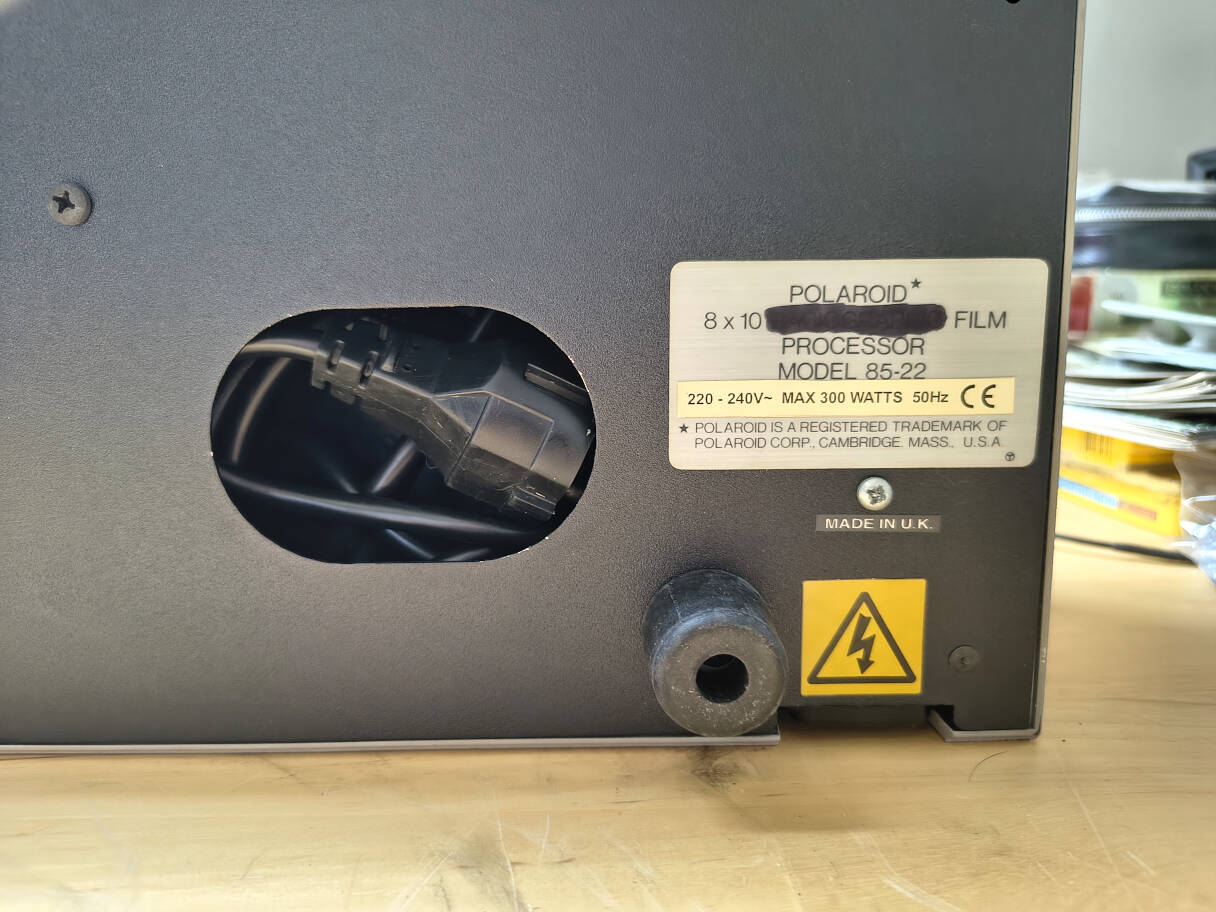

A 220v European model. You can store the cable at the bottom.

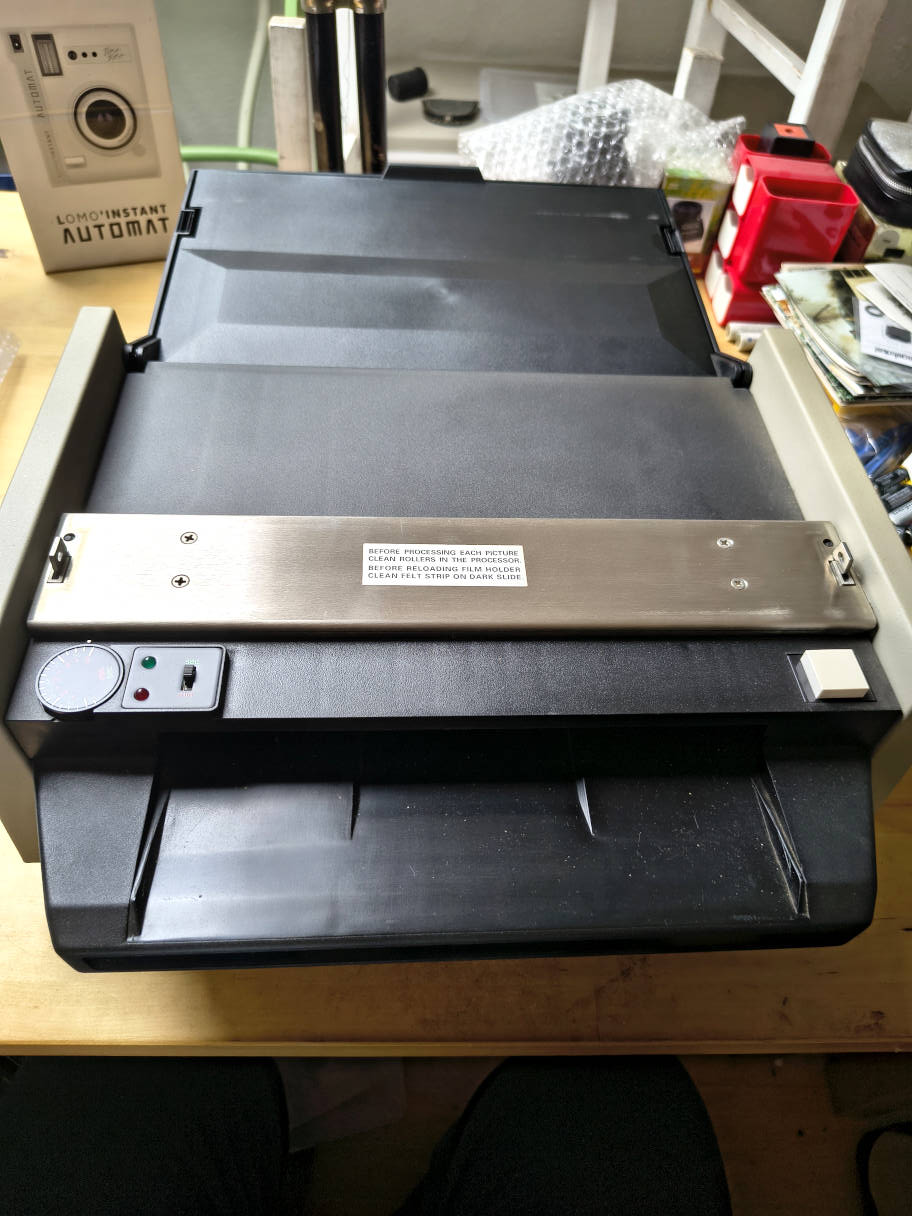

../jpgpola/polaroid_8x10_IMG_20250721_151738563.jpg
Processor open.

../jpgpola/polaroid_8x10_IMG_20250721_151745300.jpg

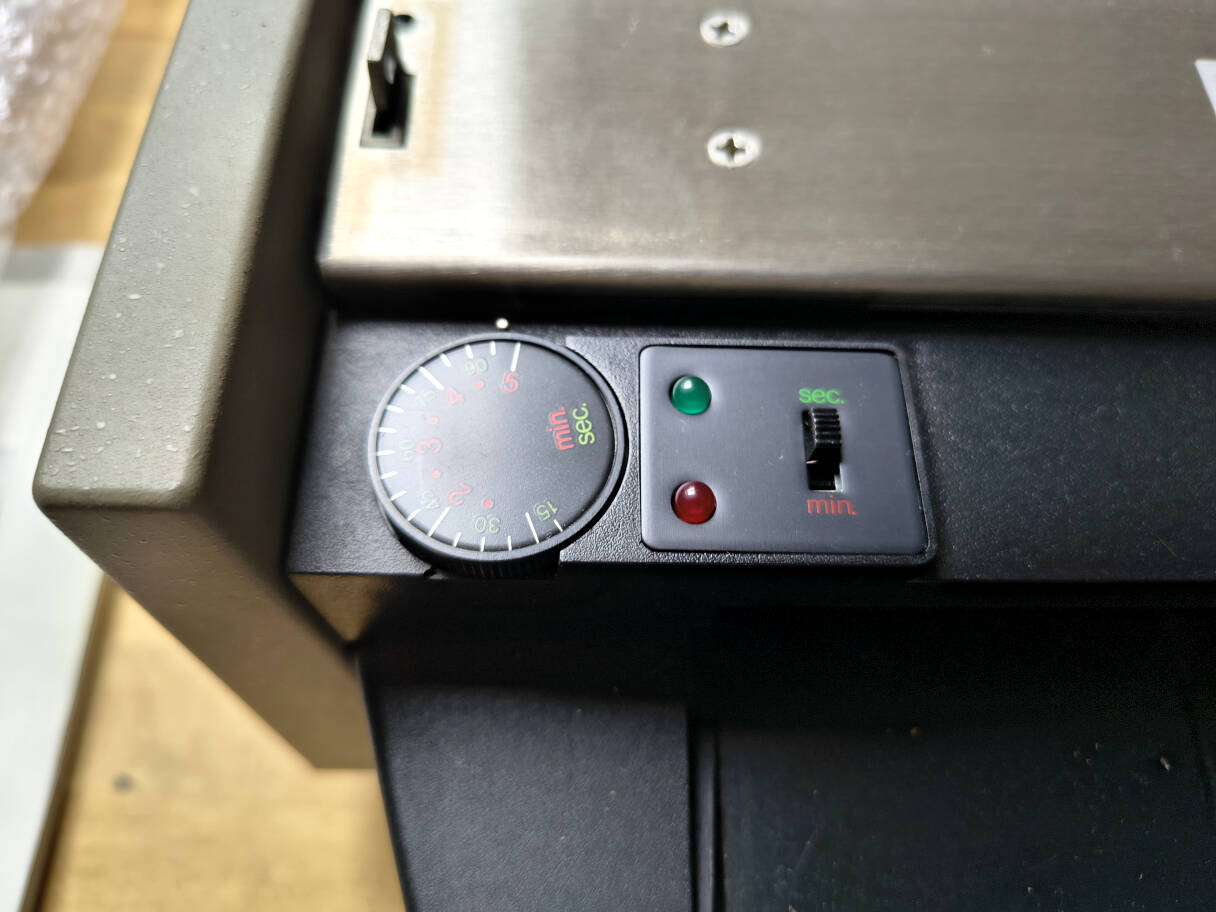

Timer with second and minute choice, it's either or. There were x-ray holders, maybe these need more time

../jpgpola/polaroid_8x10_IMG_20250721_151832985.jpg

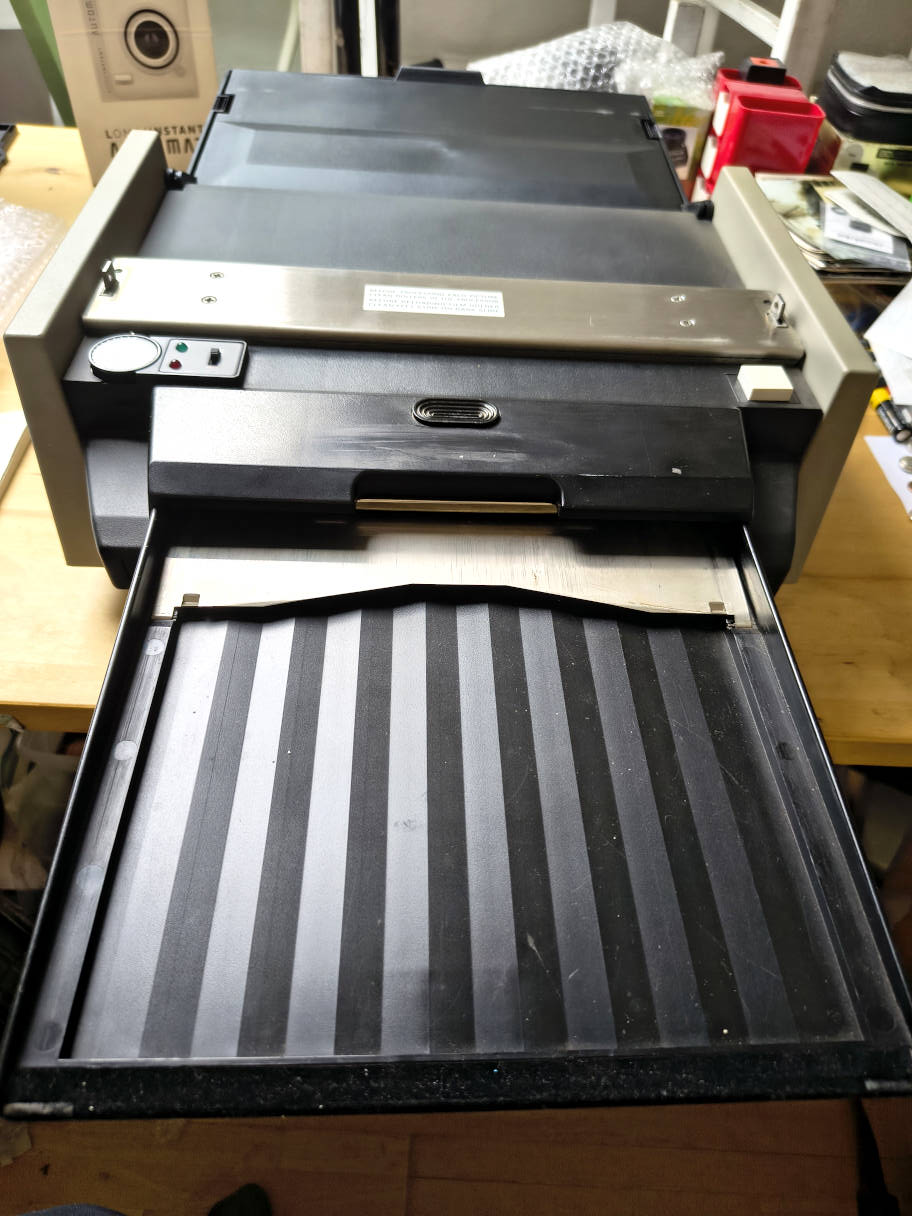

Loading tray attached.

../jpgpola/polaroid_8x10_IMG_20250721_153128996.jpg

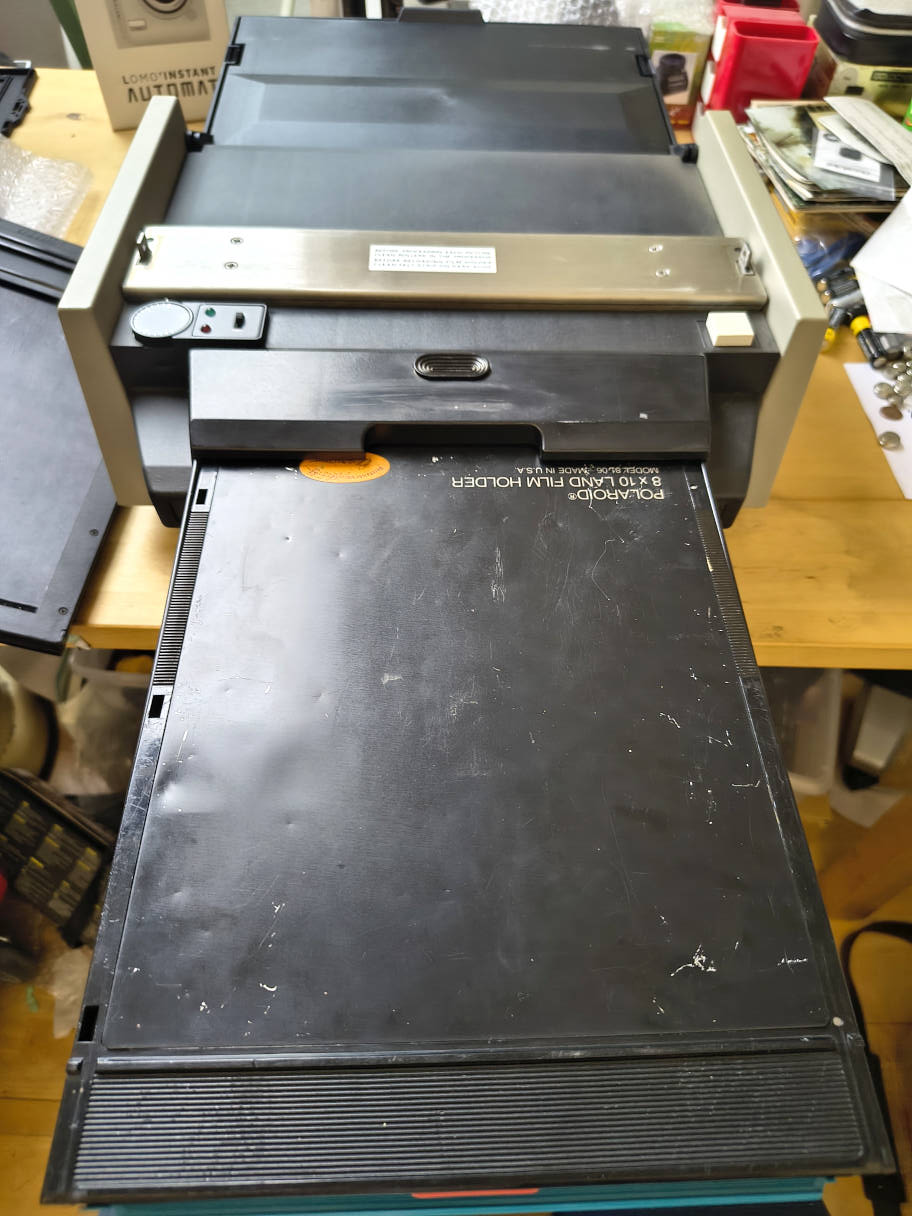

81-06 holder inserted.

../jpgpola/polaroid_8x10_IMG_20250721_154131071.jpg

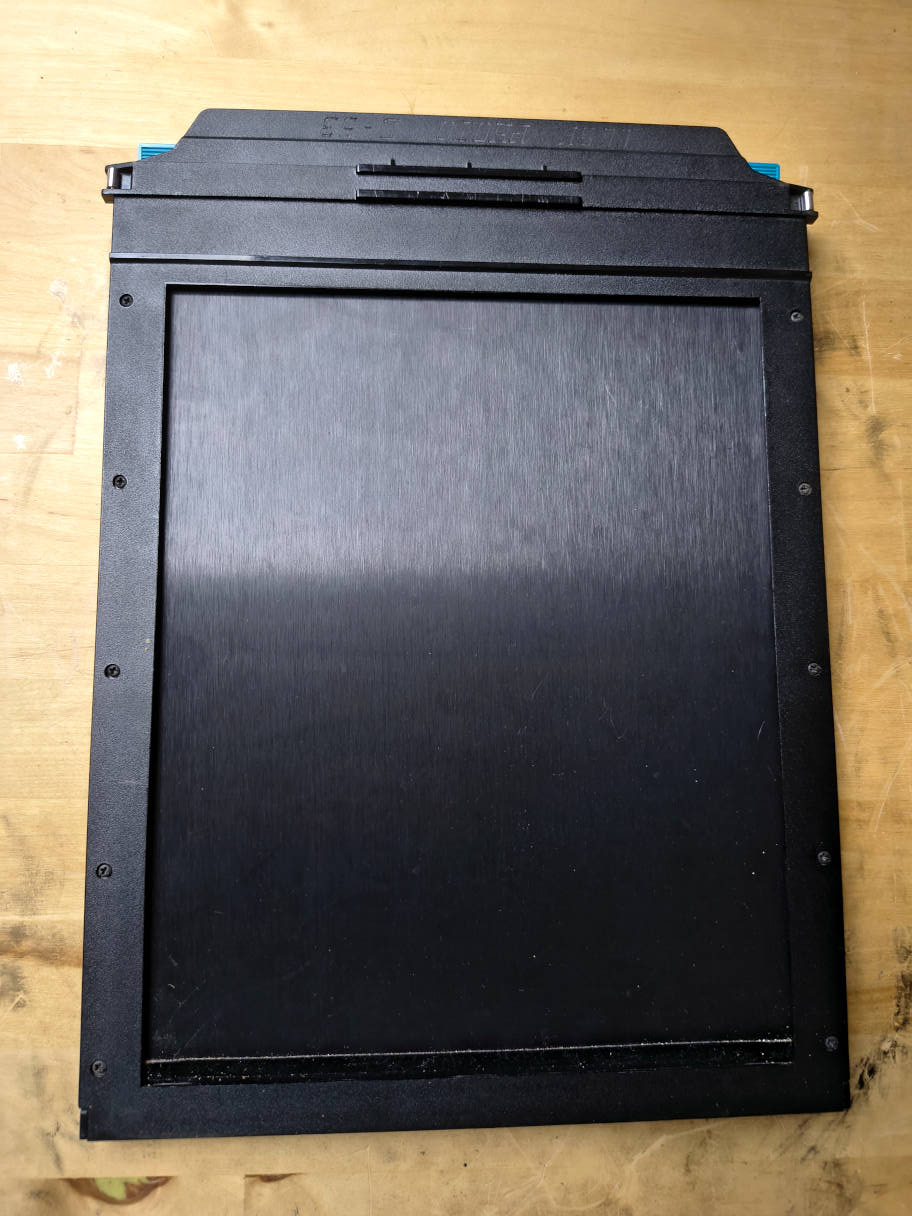

An 81-05 holder. If you look very closely, you see that there is room to insert the positive sheet in front of the slide. Insertion from the top, in front of the blue tabs.

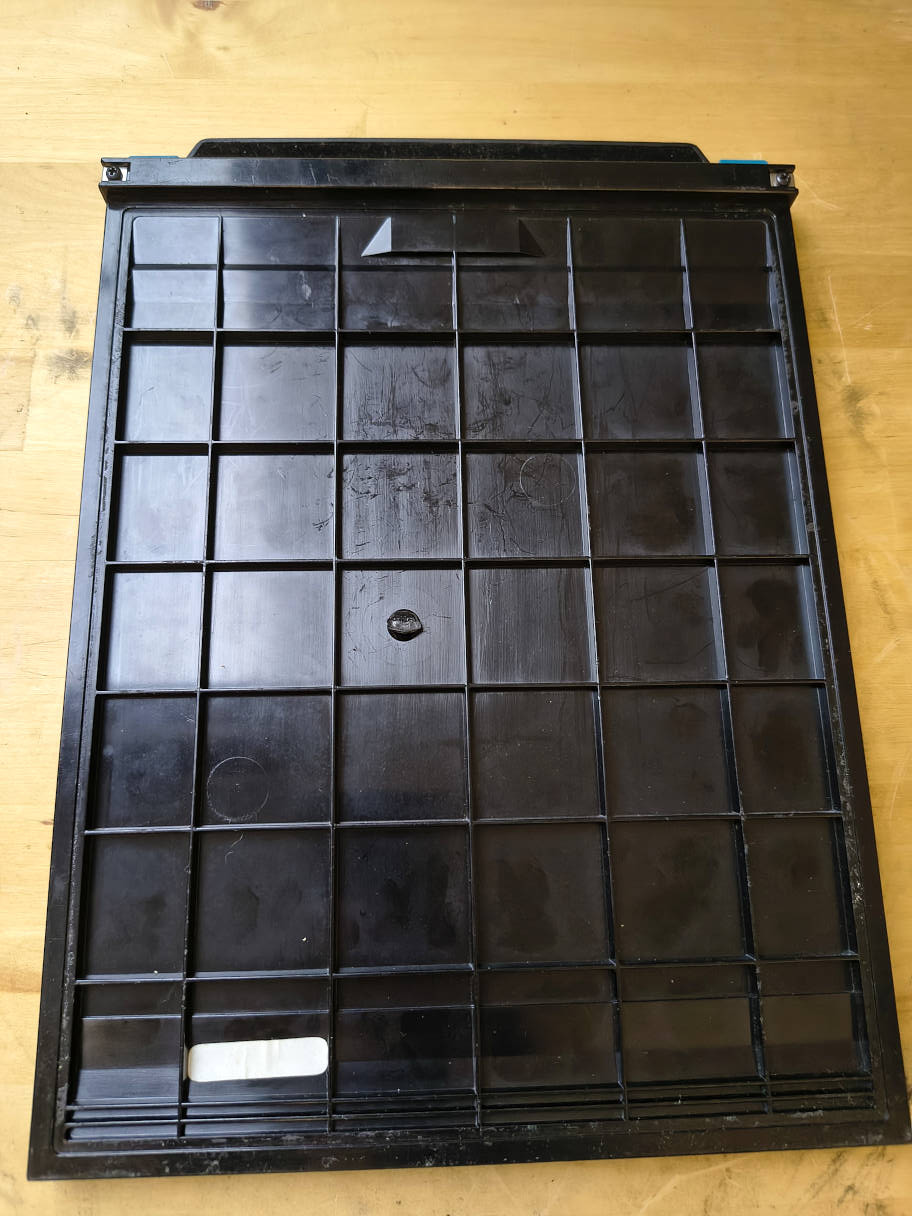

../jpgpola/polaroid_8x10_IMG_20250721_160804167.jpg
Seen from the other side, no number indicated. Later versions have a flat surface like the 81-06 holders.

../jpgpola/polaroid_8x10_IMG_20250721_154400896.jpg

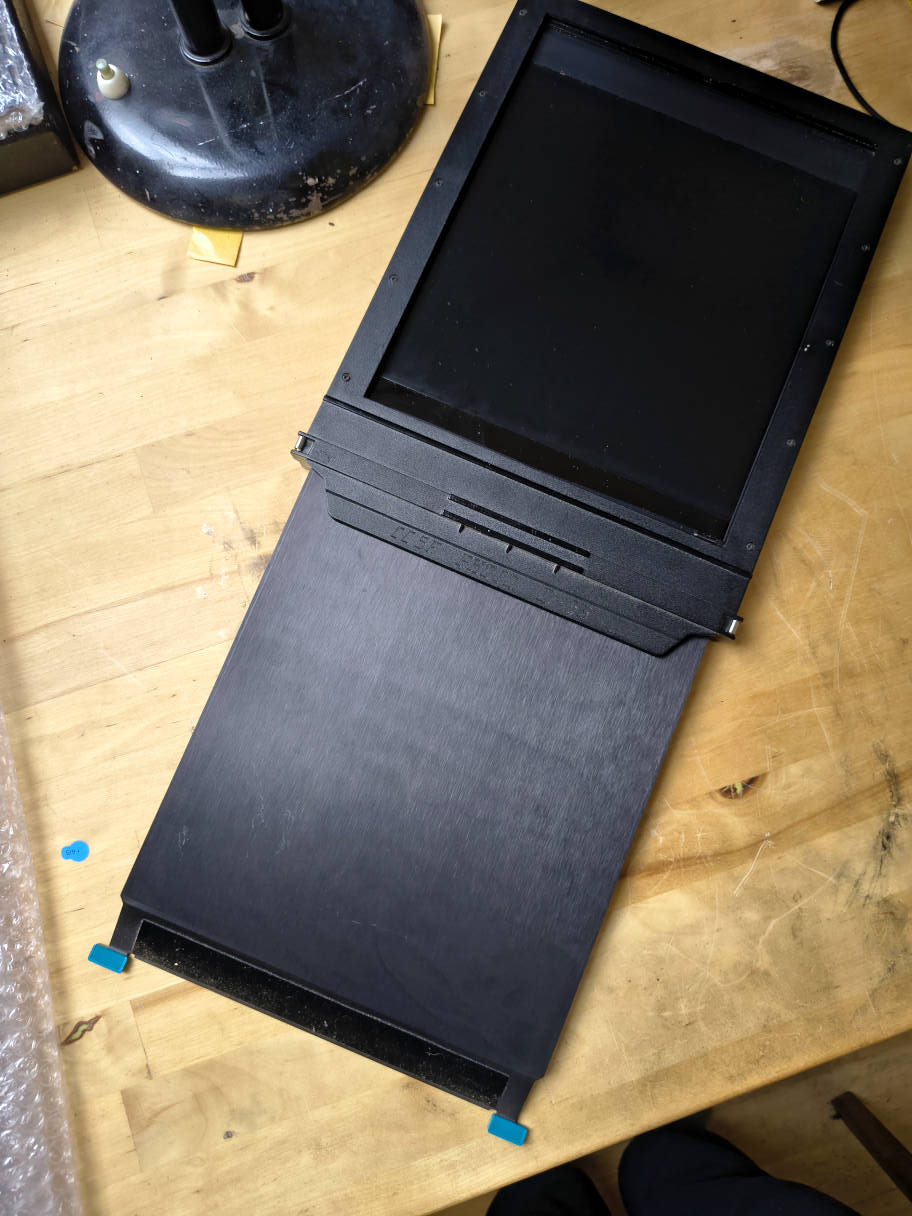

Darh slide drawn, it stops automatically.

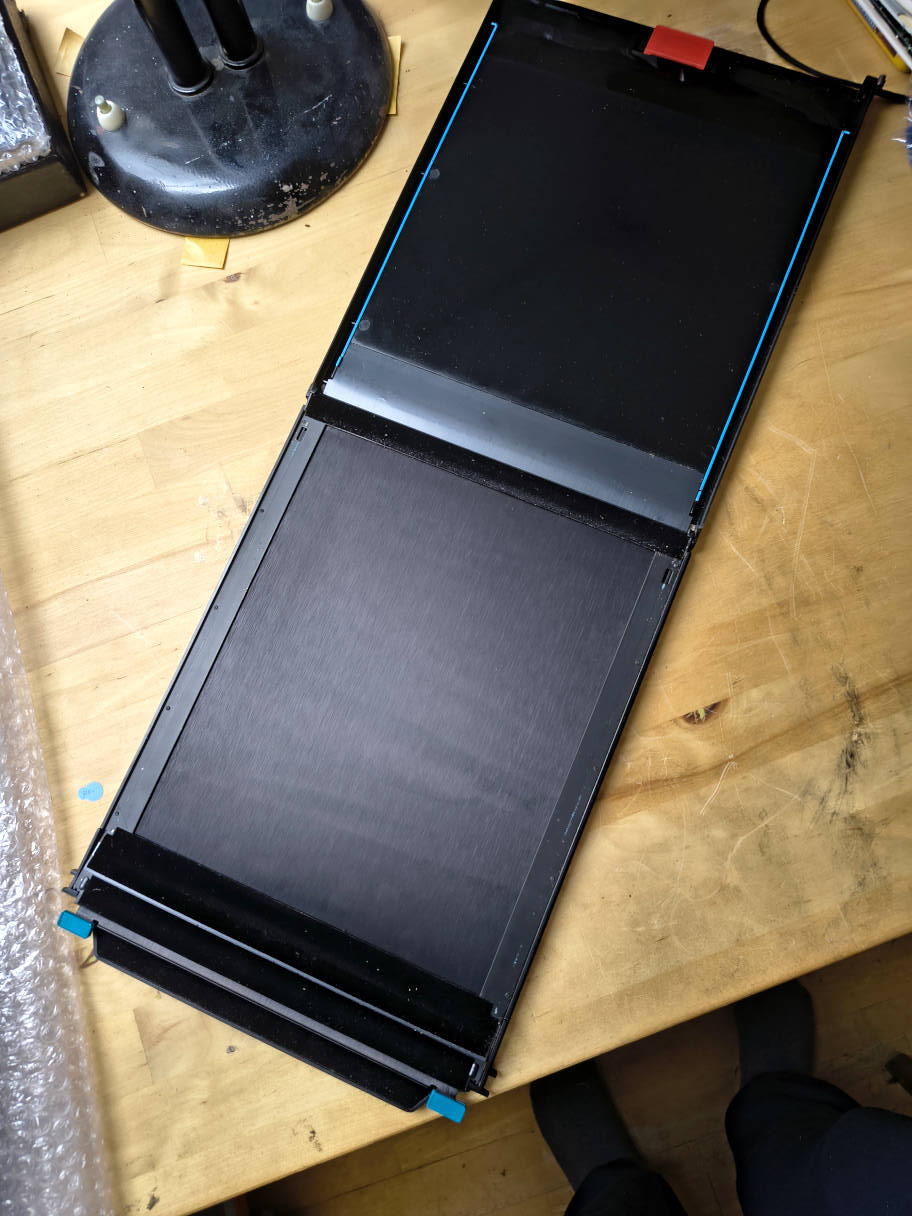

../jpgpola/polaroid_8x10_IMG_20250721_154207935.jpg
Holder open, it opens from the top. Slide the pouch with the negative between the blue lines and hook the top part of the pouch to the orangy flap and close the holder. The pouch is only drawn just before you insert the holder into your camera.

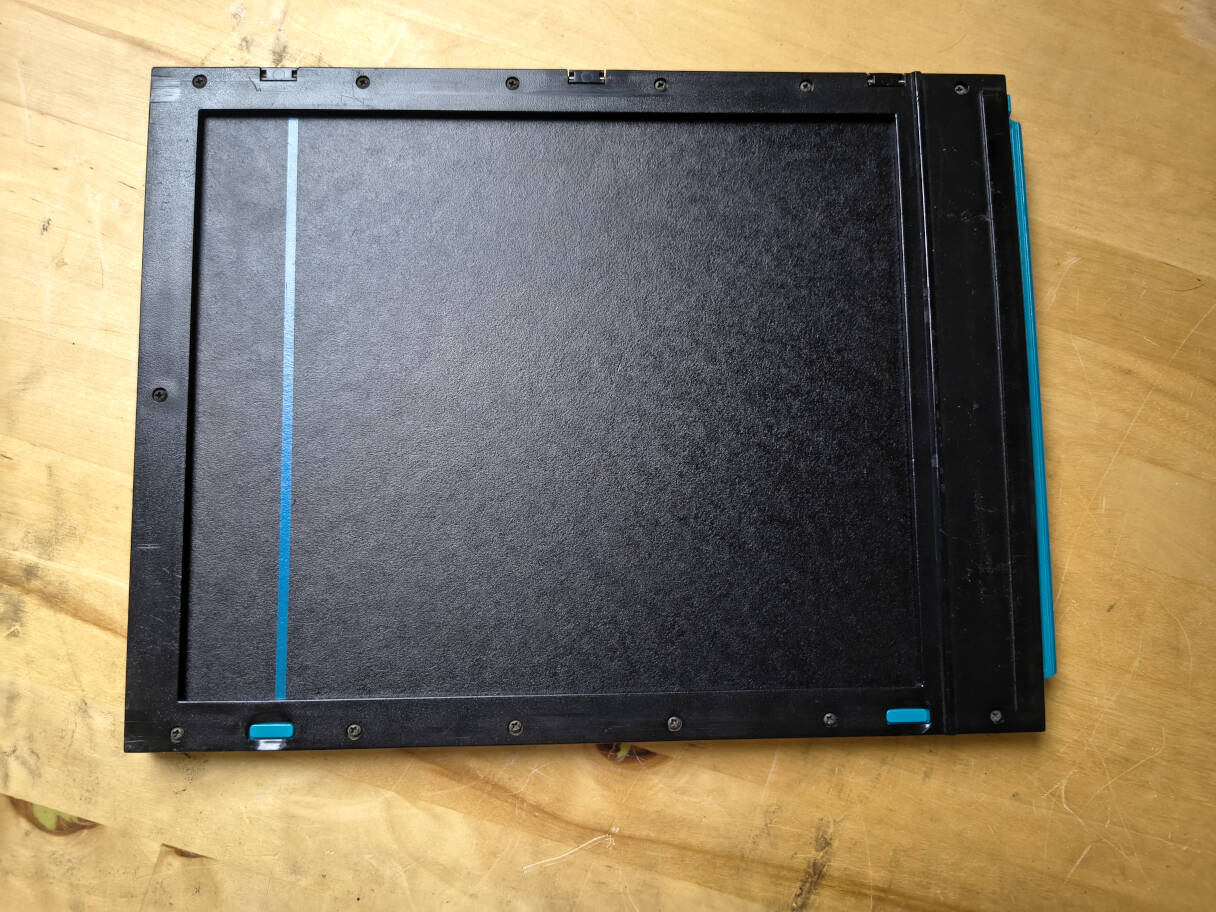

../jpgpola/polaroid_8x10_IMG_20250721_154430007.jpg
An 81-06 holder. It opens sideways. If you press the blue buttons, it springs open.

../jpgpola/polaroid_8x10_IMG_20250721_154439170.jpg

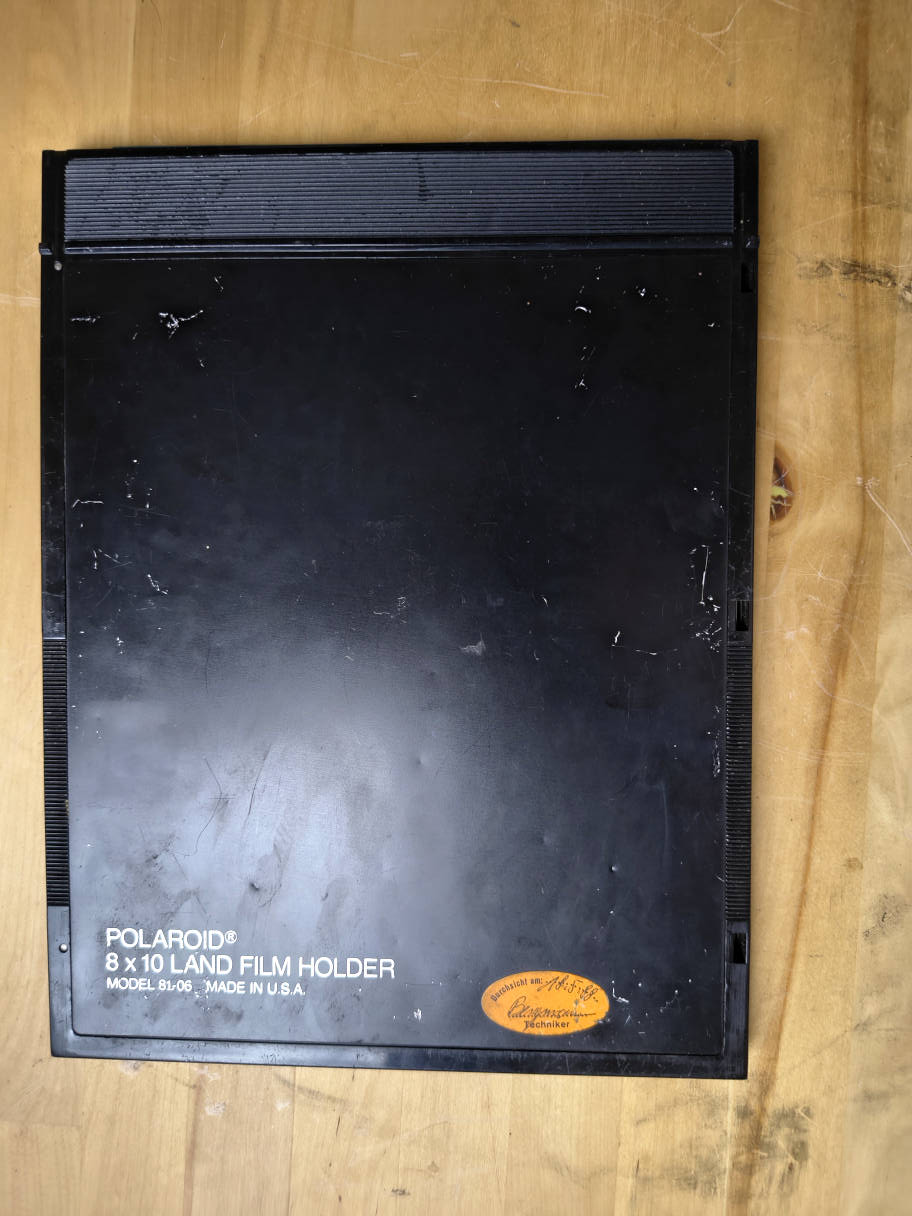

Seen from the other side.

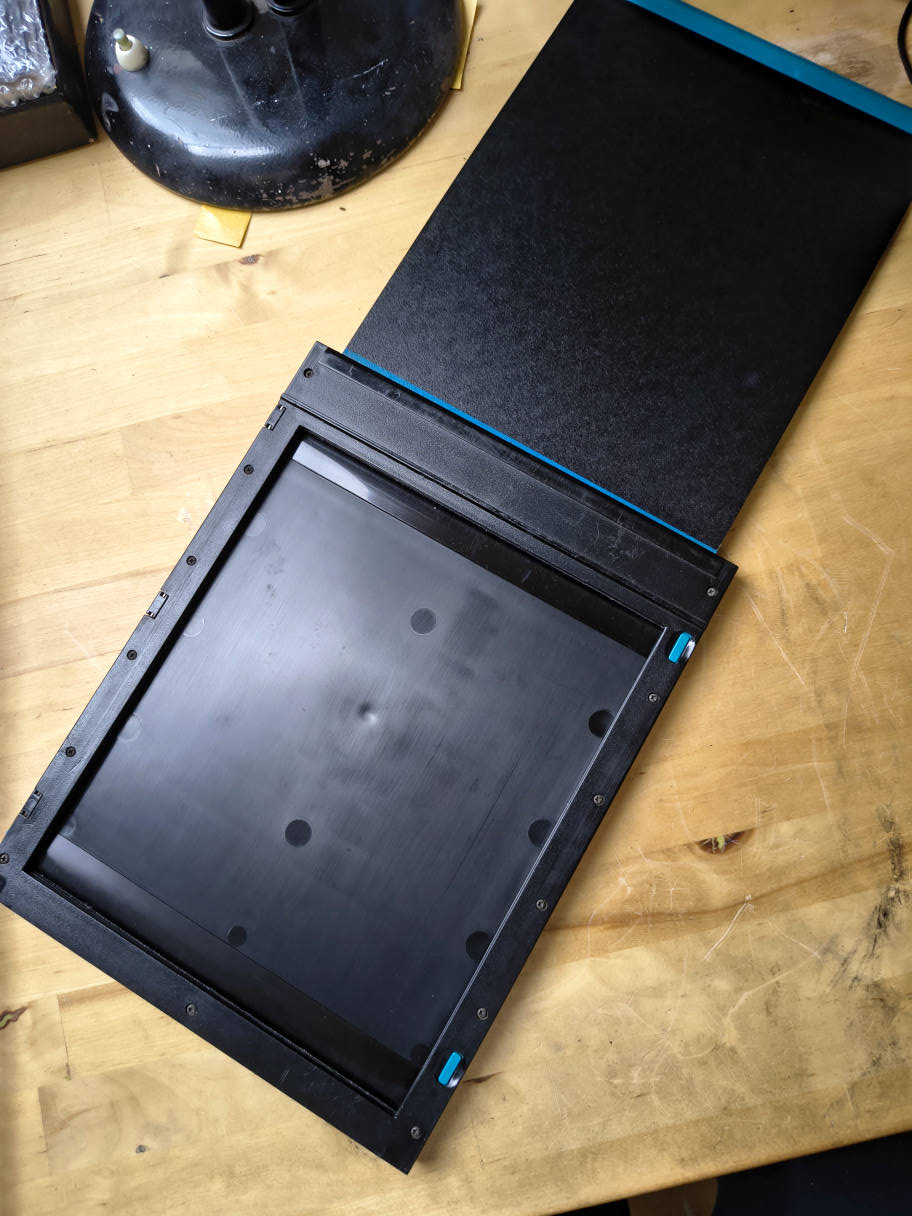

../jpgpola/polaroid_8x10_IMG_20250721_154504744.jpg
Dark slde drawn. It doesn't stop, if you see the blue line, it's fine.

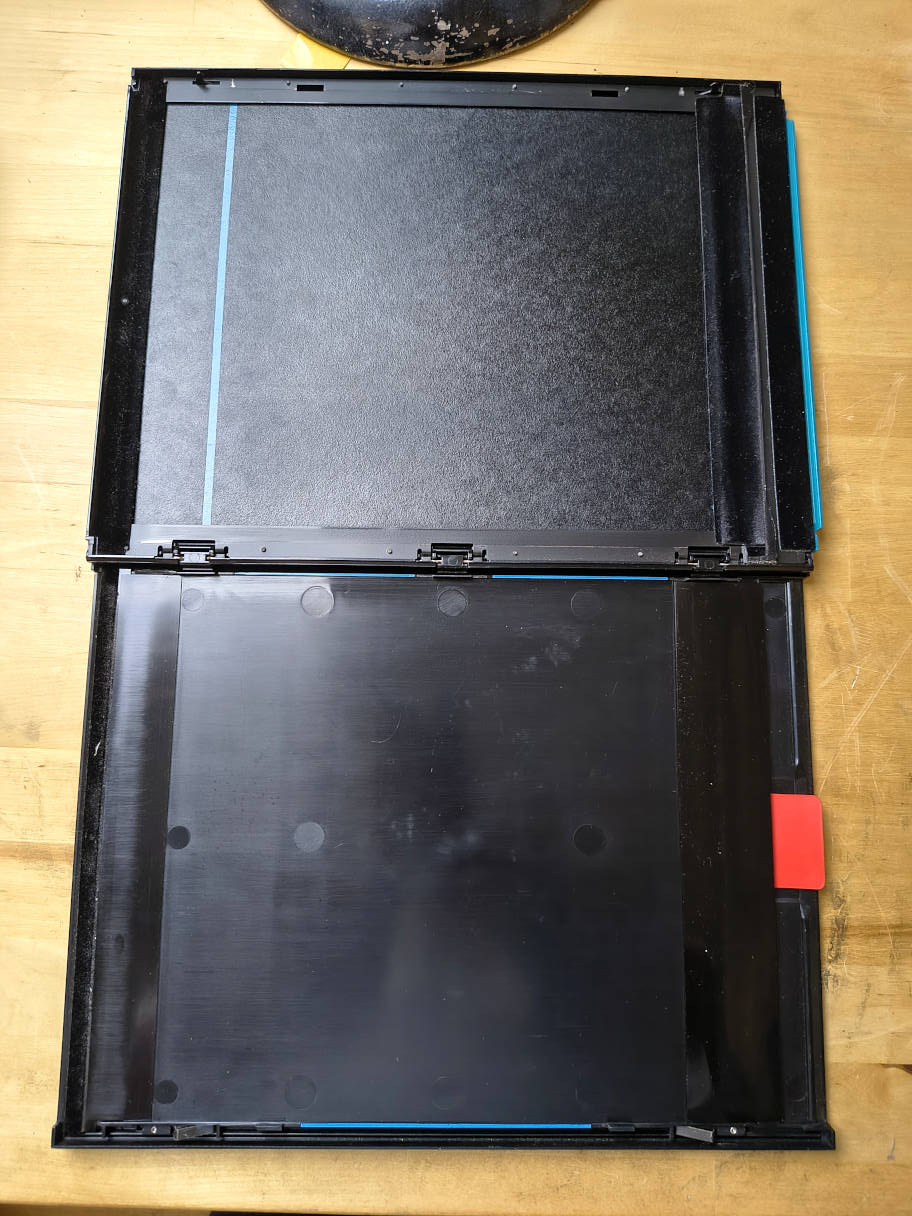

../jpgpola/polaroid_8x10_IMG_20250721_154527907.jpg
Holder open. Slide the pouch with the negative between the blue lines and hook the top part of the pouch to the orangy flap and close the holder. The pouch is only drawn just before you insert the holder into your camera.

This is a highly sophisticated system to produce perfect results. You have to shoot your photos and bring them home to see these results. Calumet made a manual field processor, which is sought after at an astronomic price. In my opinion its rollers are not the quality of the Polaroid rollers. So in case of I would bring a Polaroid pocessor with a handle. It weighs more, but seen an 8x10 equipment it does not make a major difference.
