instantphoto.eu              Polaroid CU-5 Instant Camera System


This special gear, the Polaroid CU-5 Instant Camera System. It is a modular large format system mainly for Close-Up with a 5 inch or a 3 inch lens.

The camera can also be mounted onto a tripod and be used as a studio portrait or enlargement camera. As the 4x5 unit accepts ordinary 4x5 Graflok film holders, it can still be used today.

It allows to make easy close-ups of objects
on Pack 100 and 4x5 Polaroid film. Both films are no longer made. The 4x5 unit accepts other than Polaroid 4x5 film holders. The pack 100 unit could certainly be adapted to Instax wide film, but I have not seen such an adaption yet. Its main purpose was to make high quality pictures from small objects for documentation. It was also widely used in museums and universities. Another field was its use as a dental camera. It has a built-in ring flash to facilitate even lighting of the small objects. The lenses are fixed focus, so there is a wide range of accessories to indicate the appropriate distance.

Some pictures:

../jpgpola/polaroid_cu5_IMG_20250716_111222672.jpg

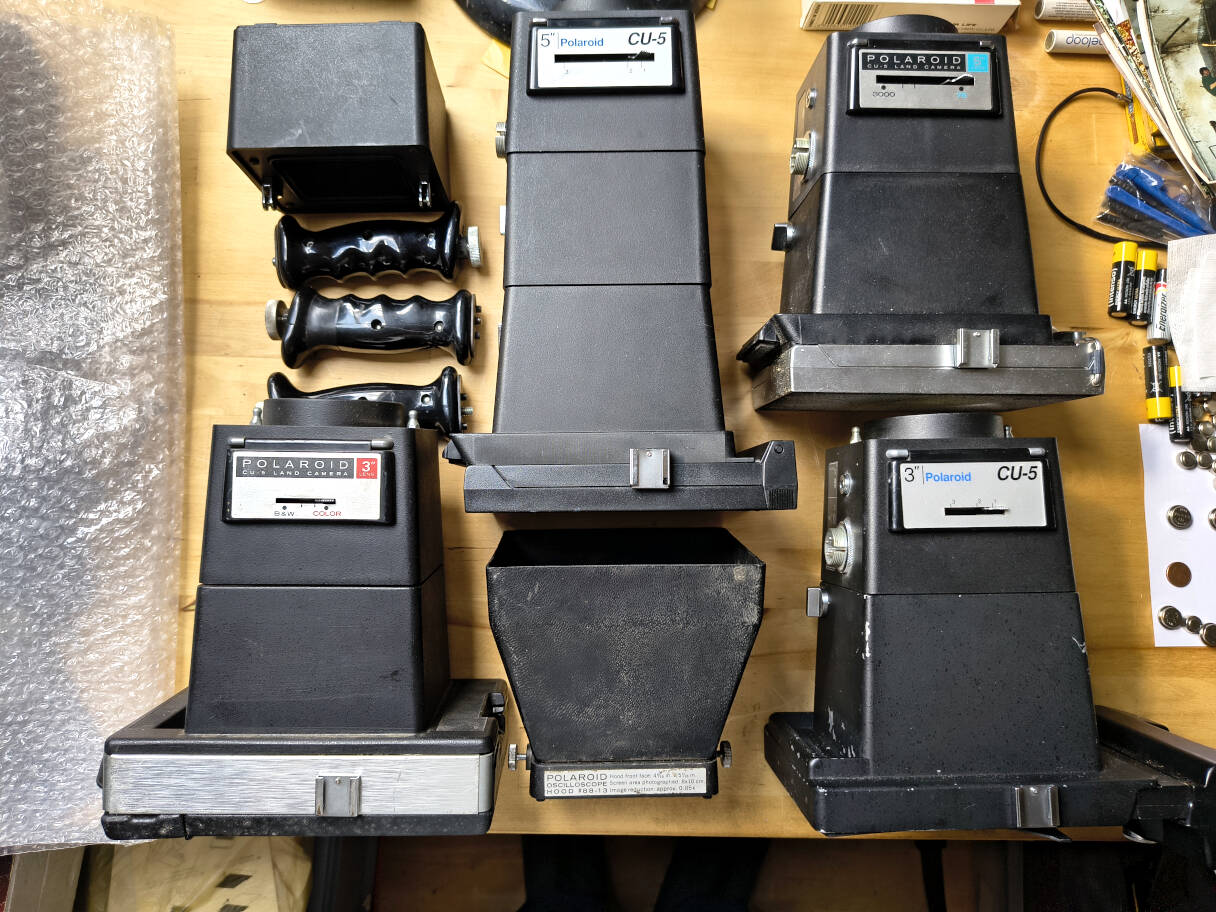

Some camera bodies, lens units, grips and extenders...

../jpgpola/polaroid_cu5_IMG_20250716_114202032.jpg
...more accessories...

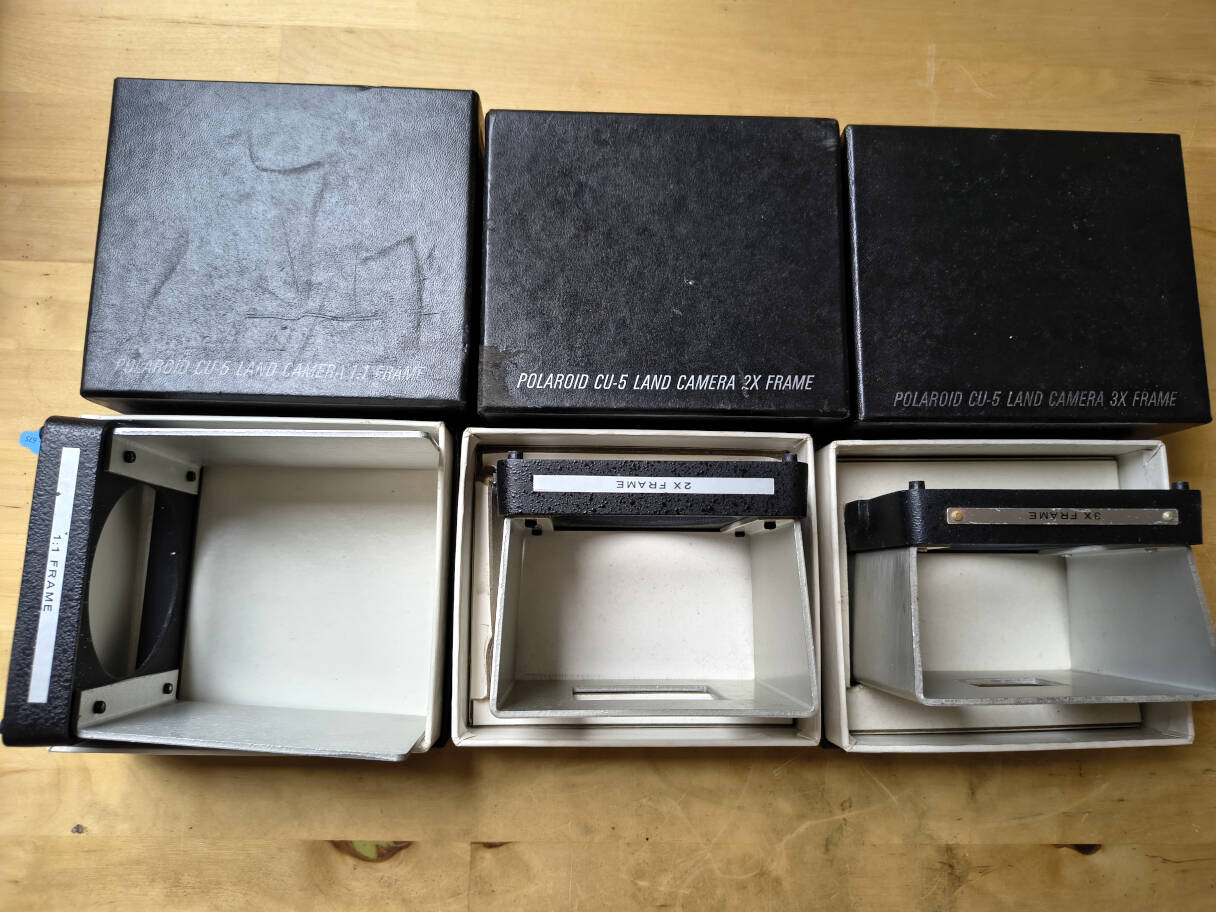

../jpgpola/polaroid_cu5_IMG_20250716_145321685.jpg
...and fixed magnification indicators.

../jpgpola/polaroid_cu5_IMG_20250716_111912802.jpg

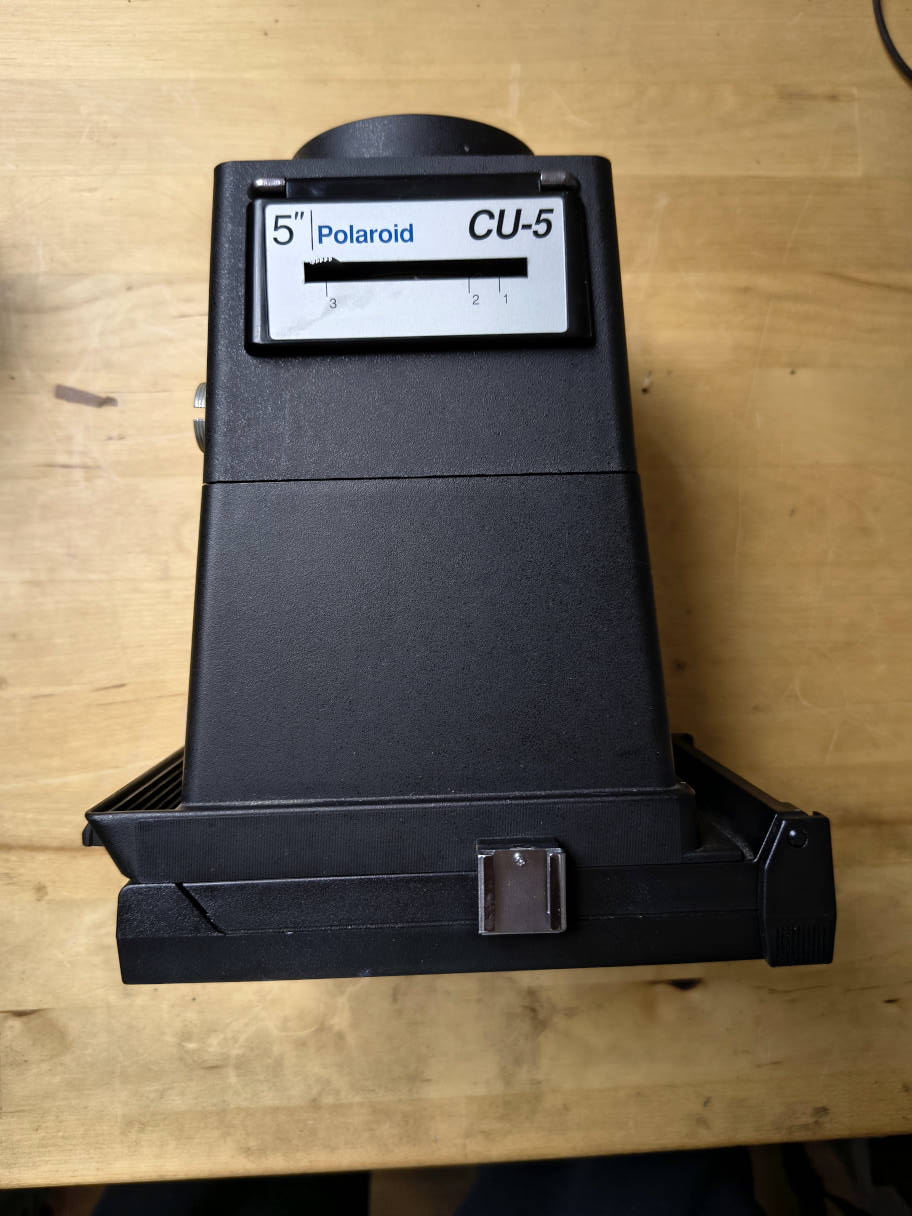

A standard camera consists of a body with its back and a lens unit, a 5 inch unit in this case.

../jpgpola/polaroid_cu5_IMG_20250716_112049499.jpg

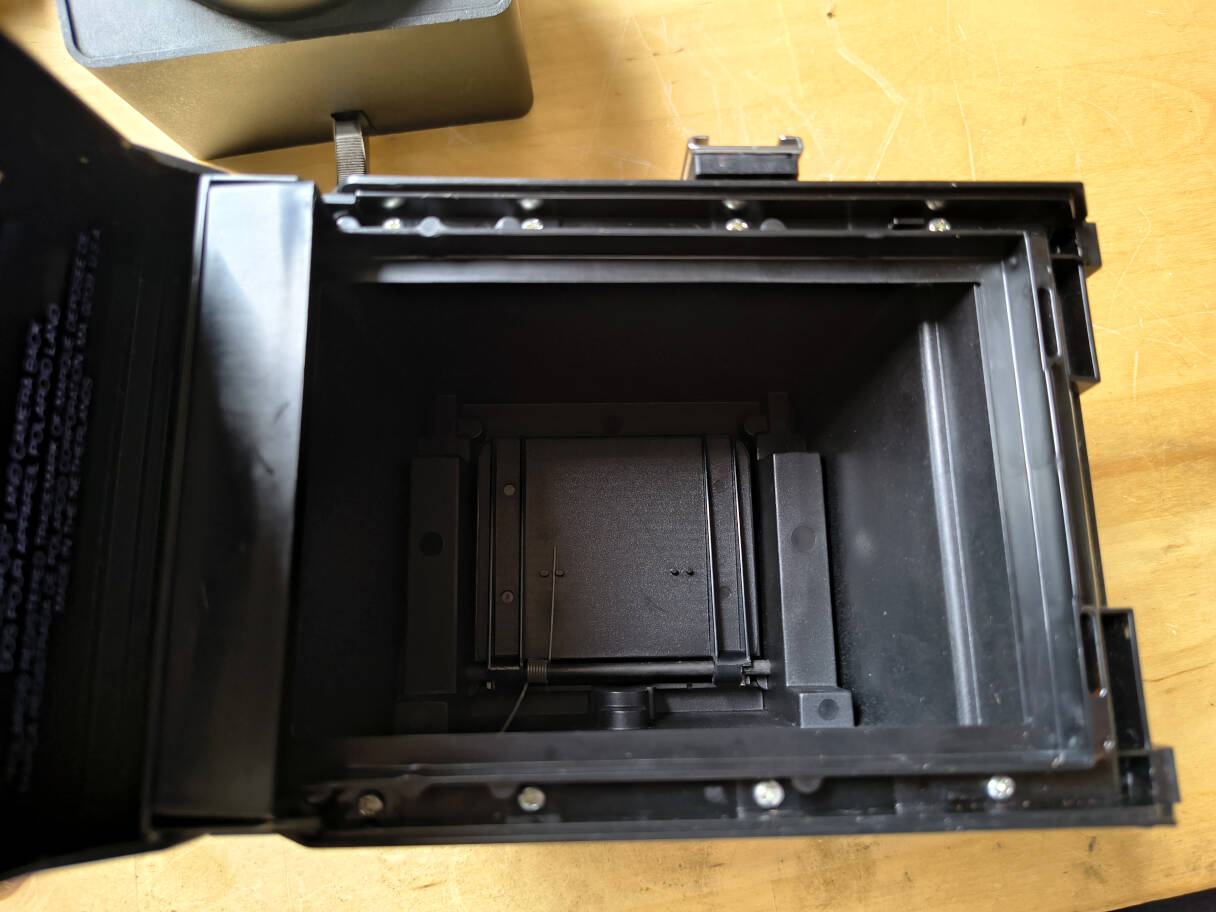

Back open.

../jpgpola/polaroid_cu5_IMG_20250716_112019127.jpg

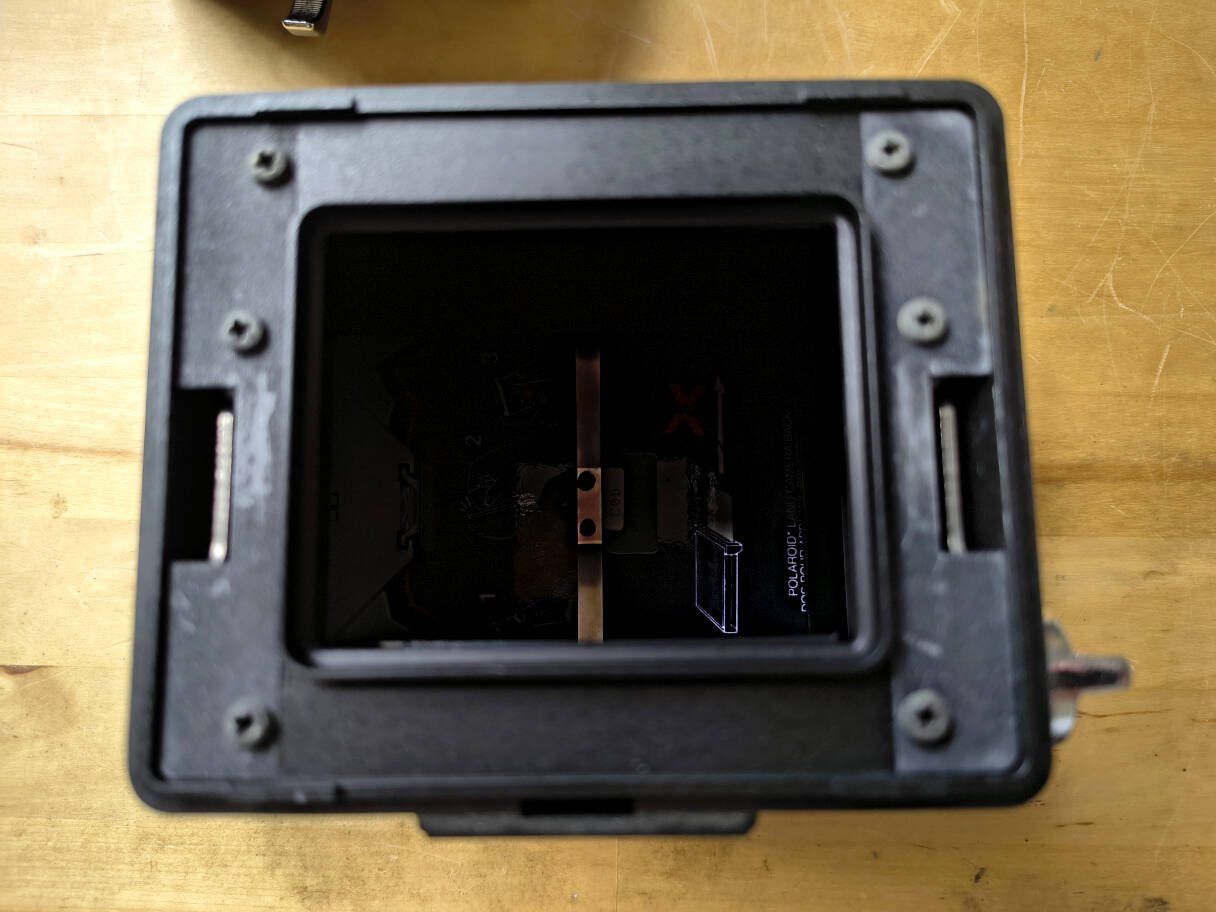

Seen from the front.

../jpgpola/polaroid_cu5_IMG_20250716_112008911.jpg

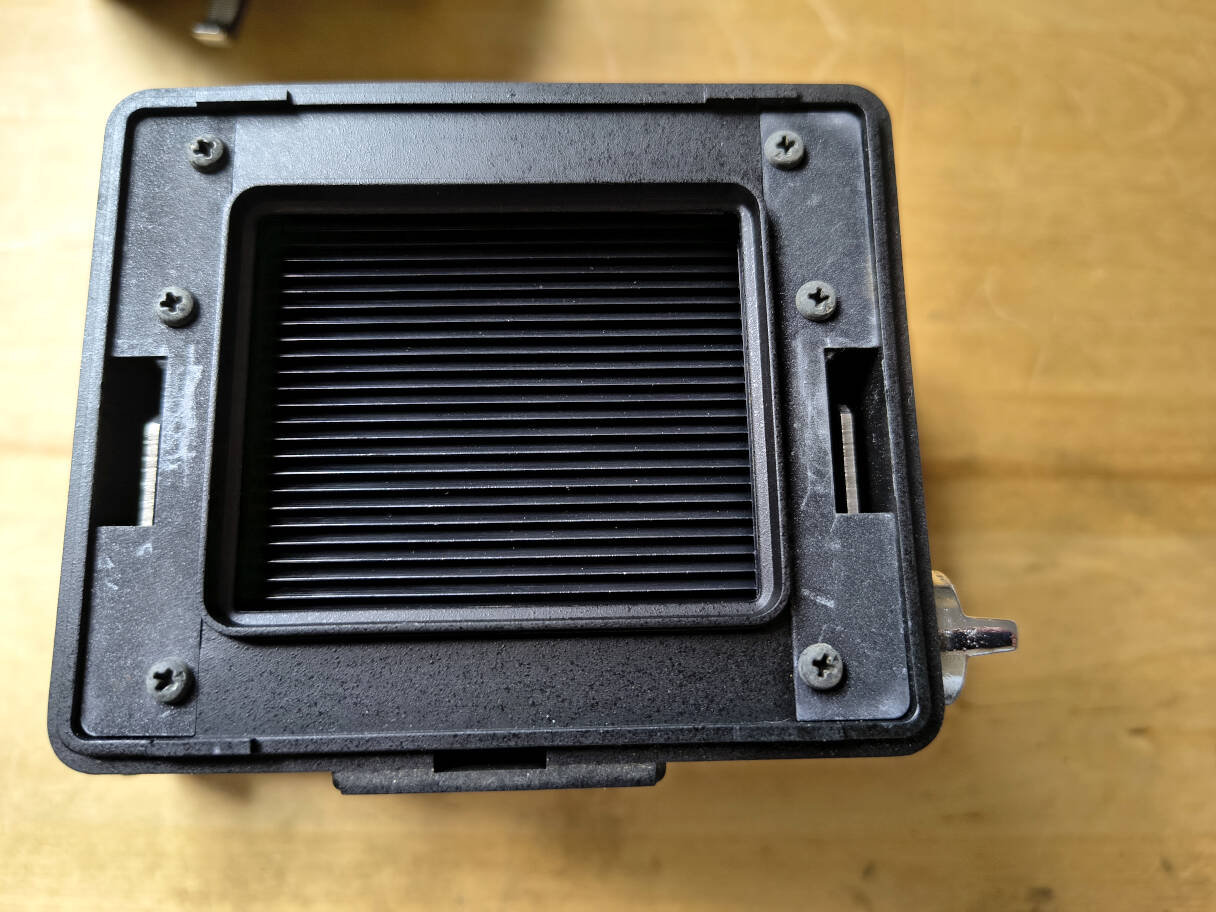

If you open the connection between the modules of the system, a flap rises automatically to protect the film from being exposed.

../jpgpola/polaroid_cu5_IMG_20250716_112139057.jpg

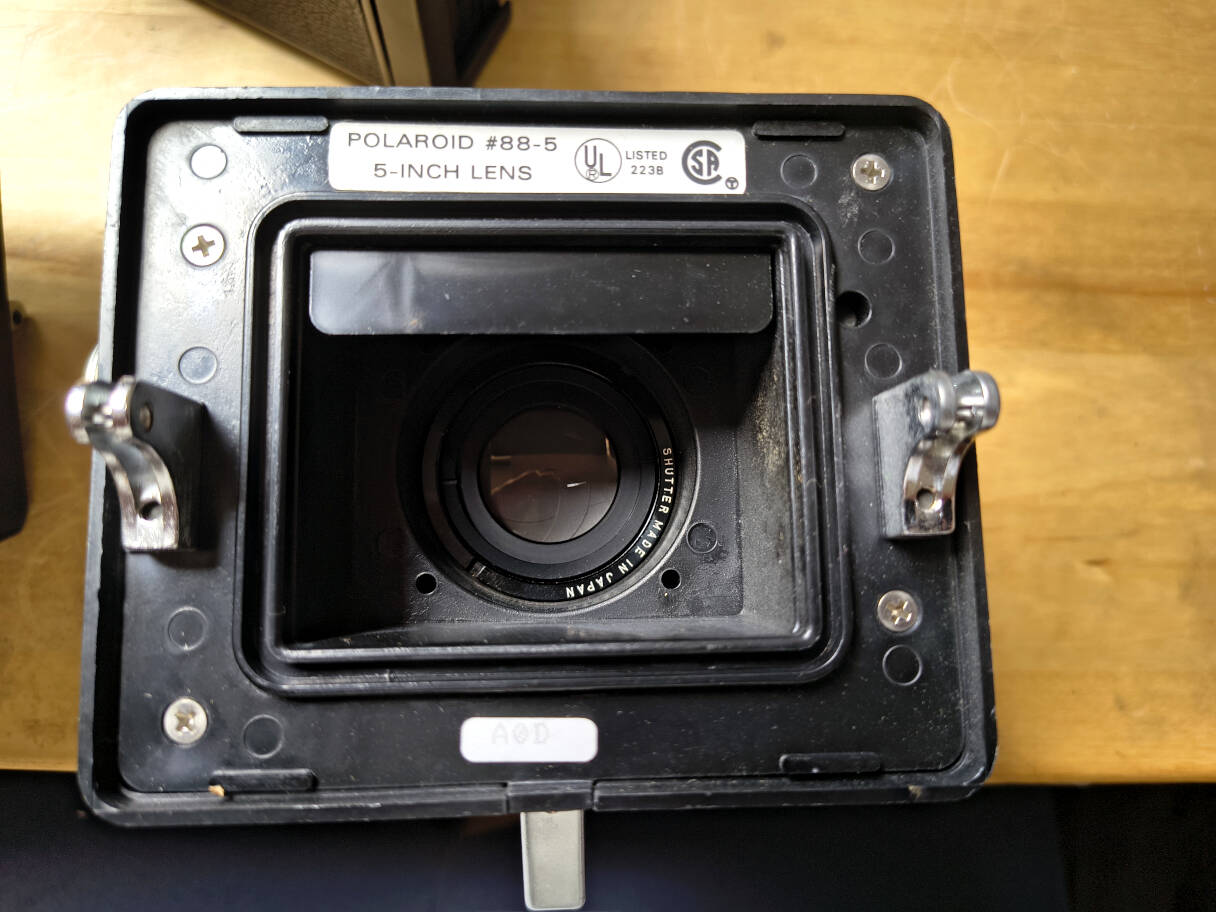

A 5 inch lens module seen from back.

../jpgpola/polaroid_cu5_IMG_20250716_111942420.jpg

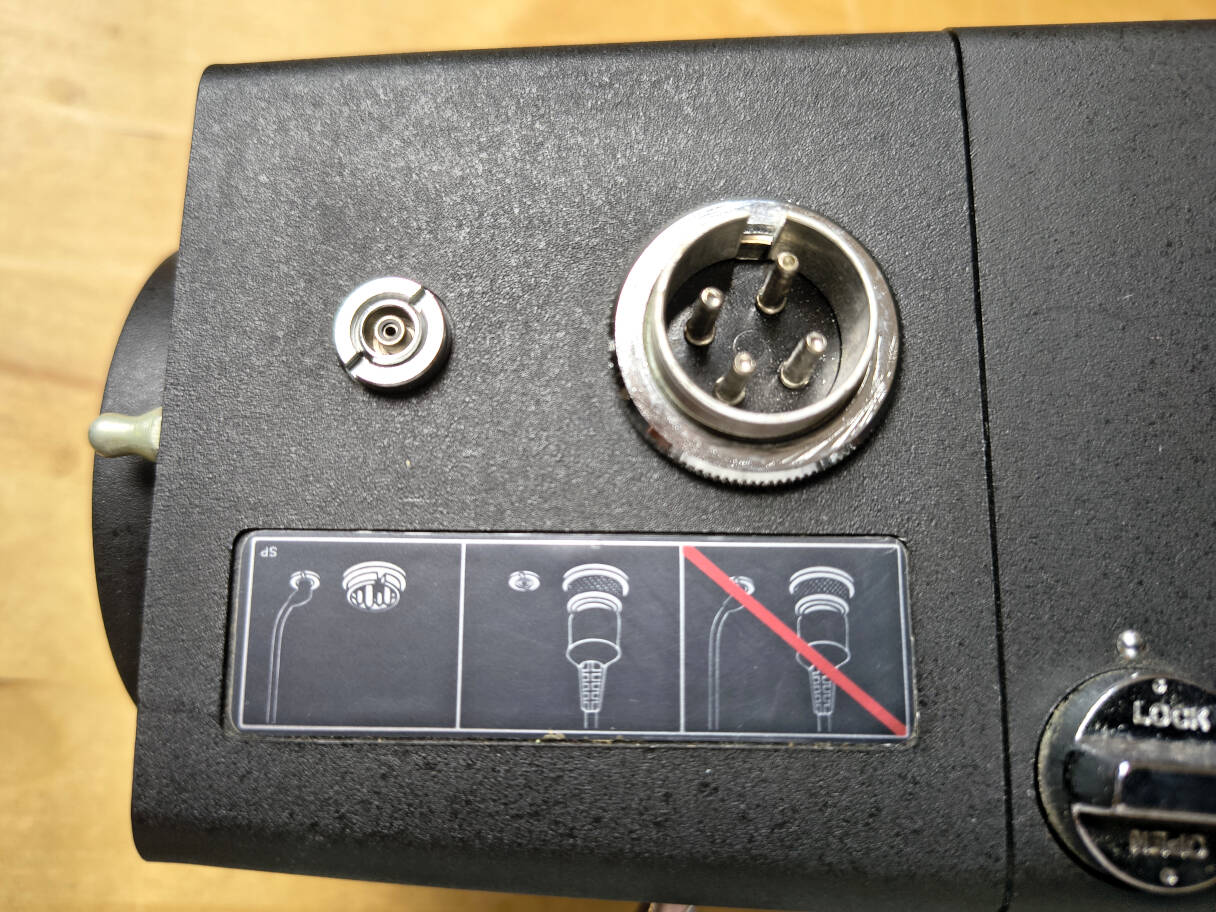

The  lens unit has a ring flash supply connection and a PC flash socket for an external flash. As indicated, it's either or.

../jpgpola/polaroid_cu5_IMG_20250716_111750478.jpg

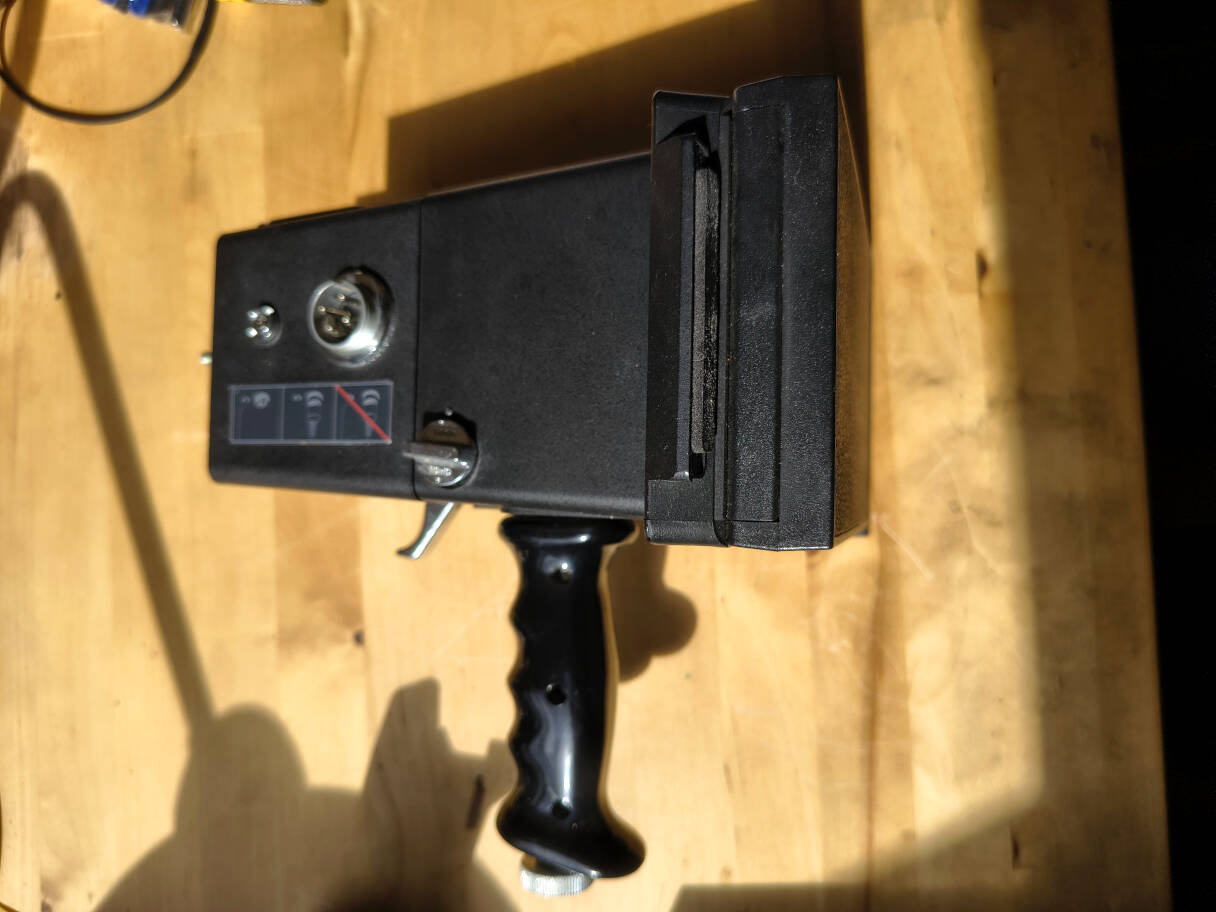

You cam add a grip.

../jpgpola/polaroid_cu5_IMG_20250716_111759627.jpg

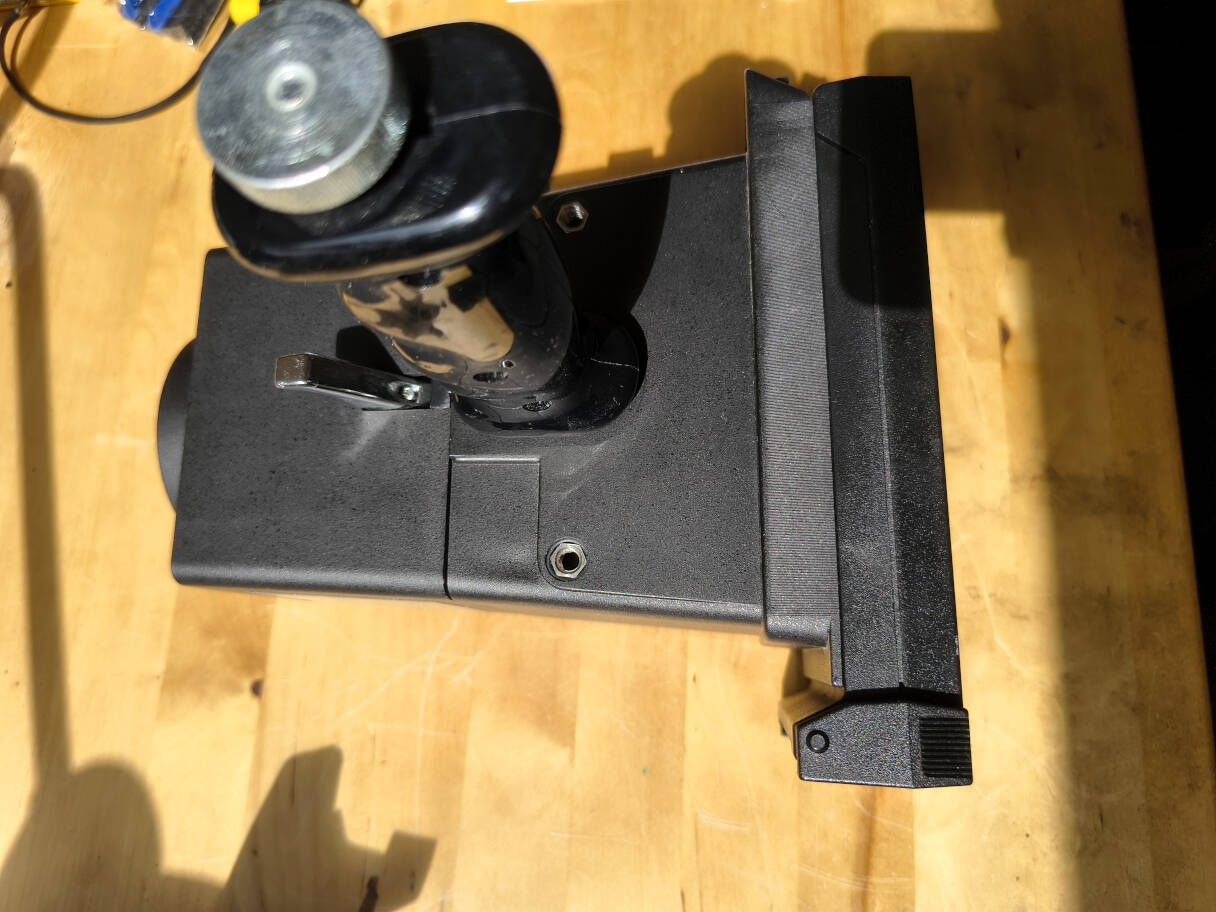

The grip is screws to the bottom.

../jpgpola/polaroid_cu5_IMG_20250716_111811501.jpg

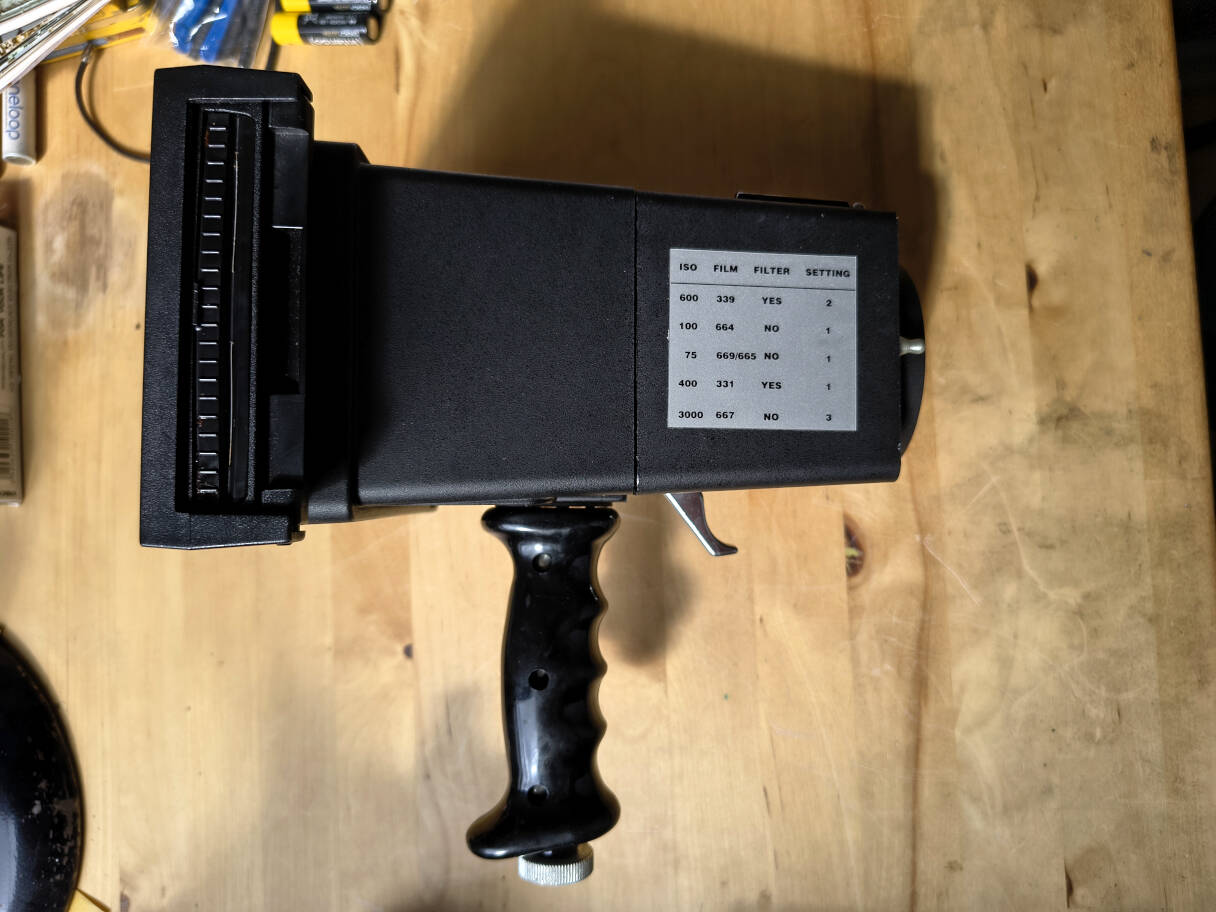

The grip and the shutter trigger work like a pistol. The trigger actions an ever-ready shutter.

../jpgpola/polaroid_cu5_IMG_20250716_111824194.jpg

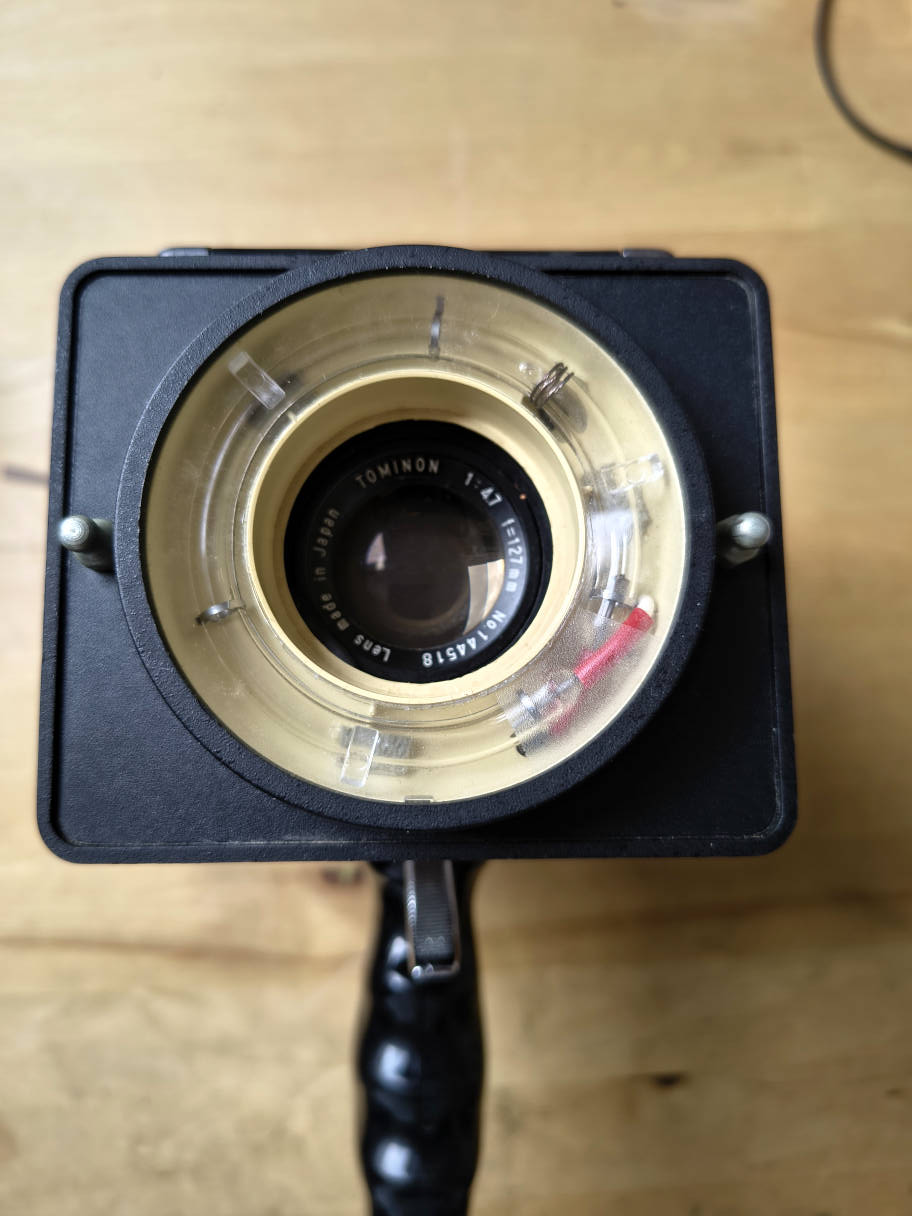

Lens front and its ring flash.

../jpgpola/polaroid_cu5_IMG_20250716_112310961.jpg

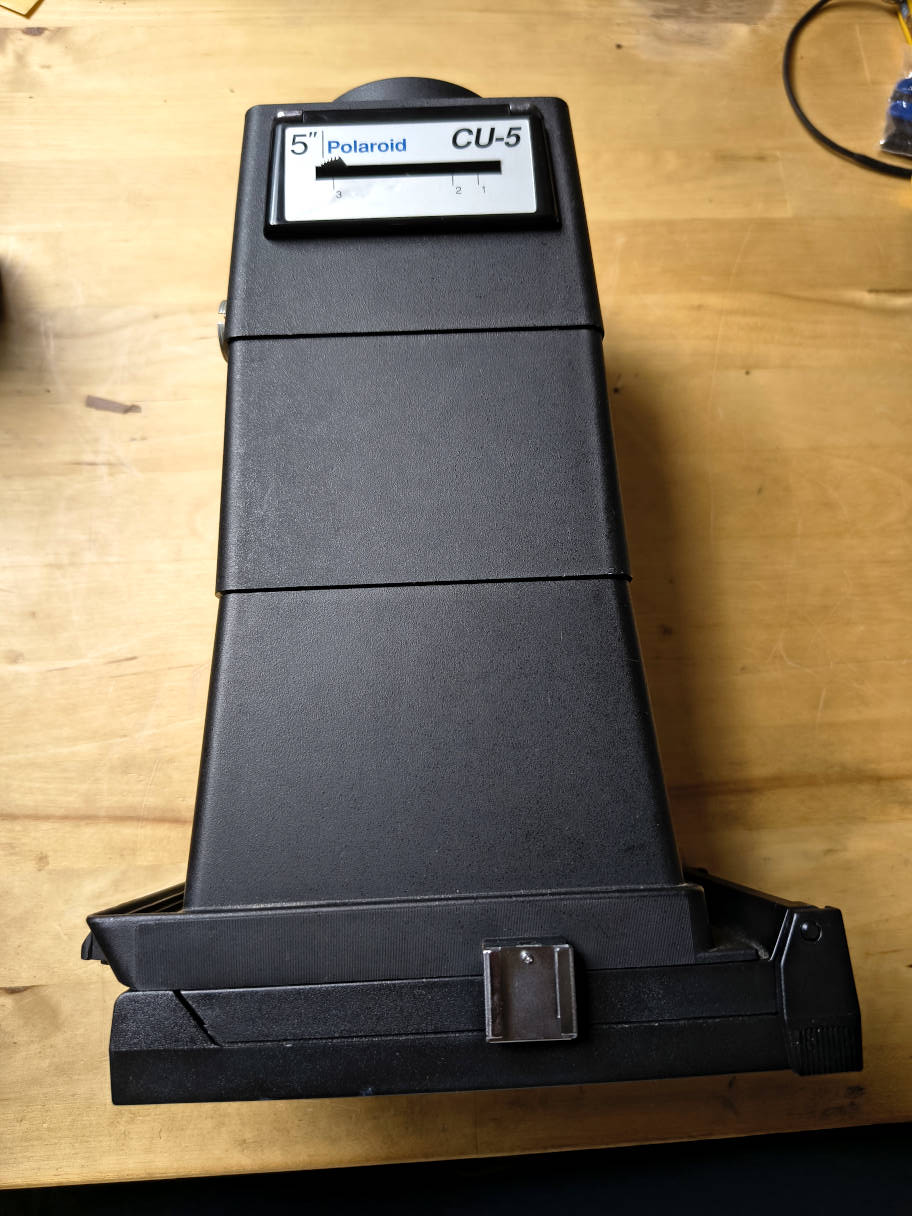

You can add an extension unit or two. The lens unit has a lever on its top to adapt to the different film types.

../jpgpola/polaroid_cu5_IMG_20250717_092741093.jpg

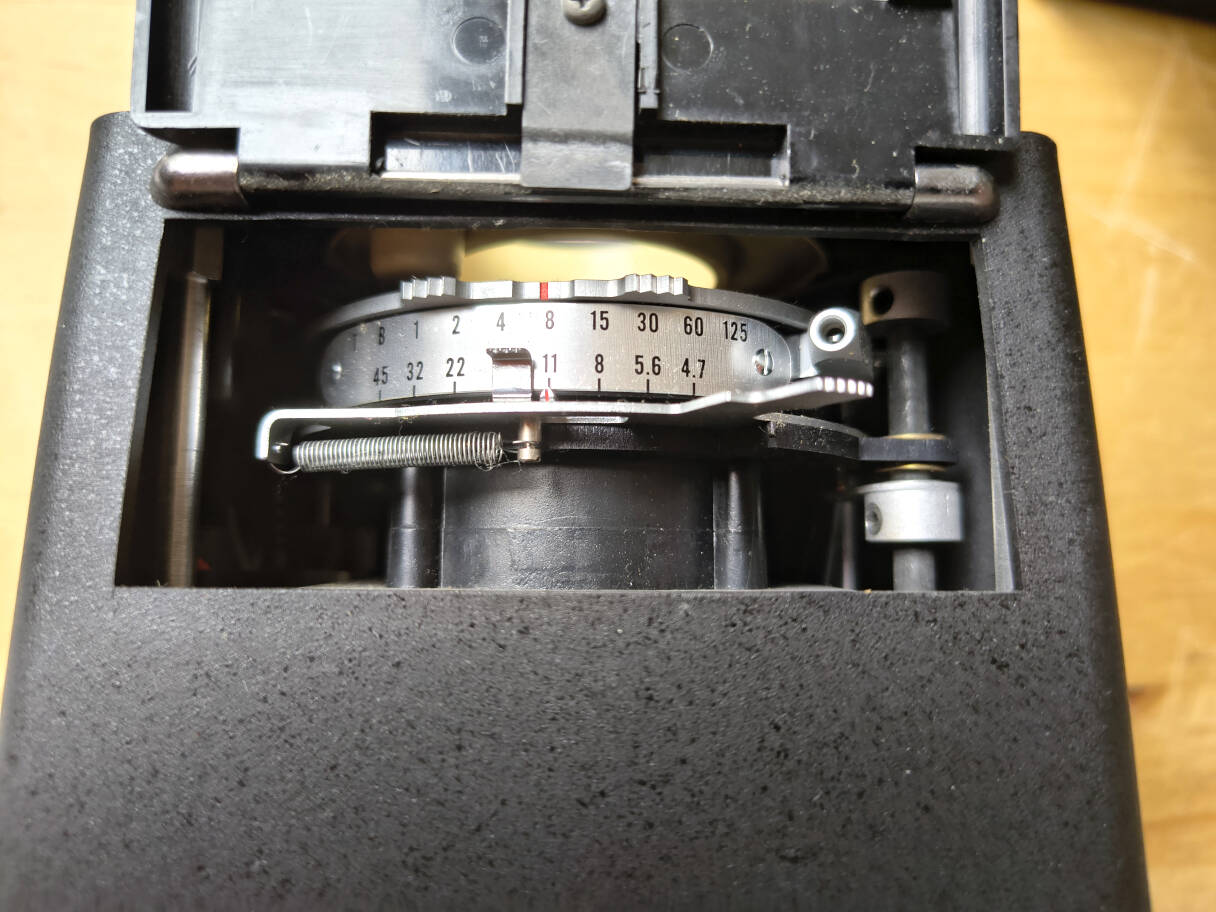

The setting device is a flap that hides further settings. Under the flap there is a good large format shutter with T, B and speed settings from 1s to 1/125s. The no. 1 setting is a bit more than F 11.

../jpgpola/polaroid_cu5_IMG_20250717_092959209.jpg

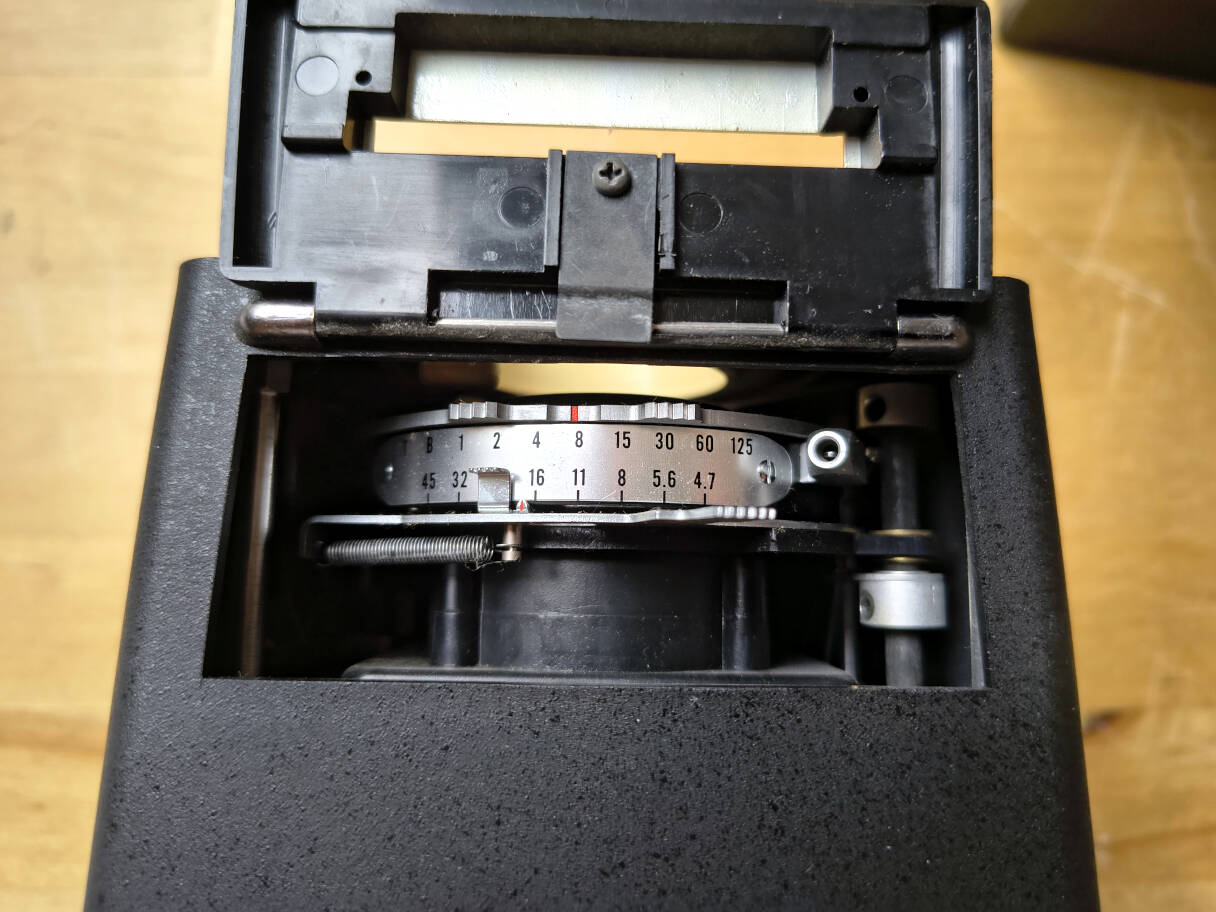

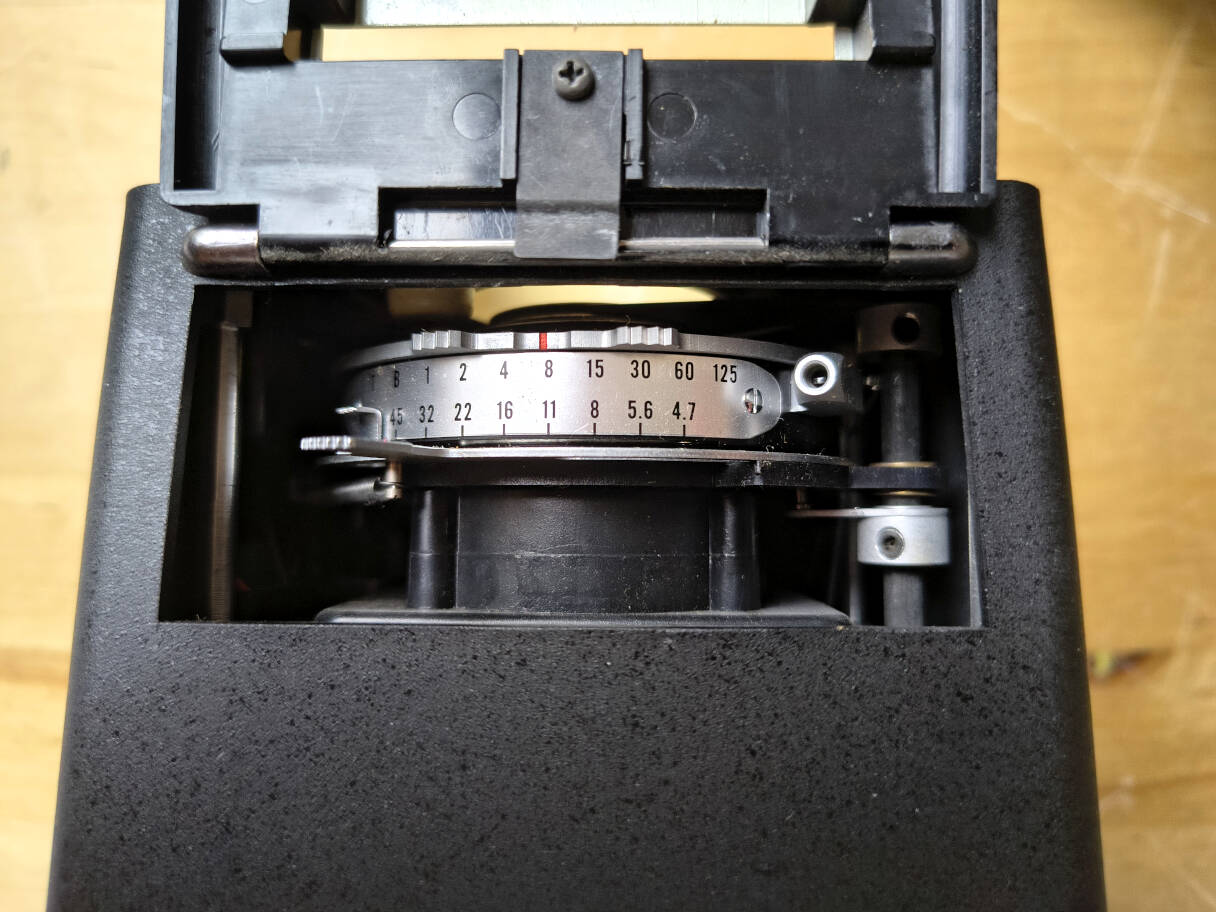

The no. 2 setting is a bit mor than F 16.

../jpgpola/polaroid_cu5_IMG_20250717_093011047.jpg
The no. 3 settting is F 45...

../jpgpola/polaroid_cu5_IMG_20250716_111836793.jpg

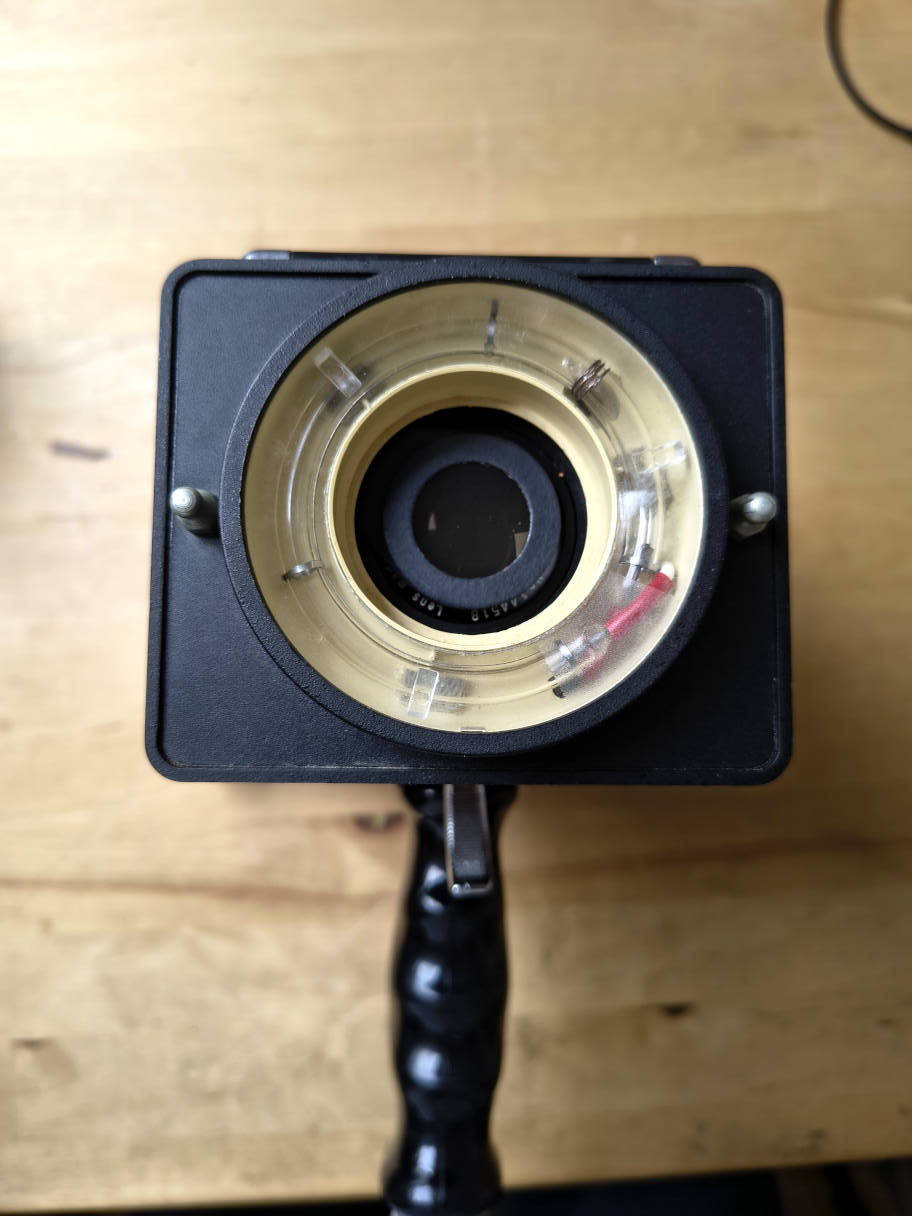

... + a ND filter switched into place to adapt to the ISO 3000 of the B&W Polaroid film.

../jpgpola/polaroid_cu5_IMG_20250716_112859873.jpg

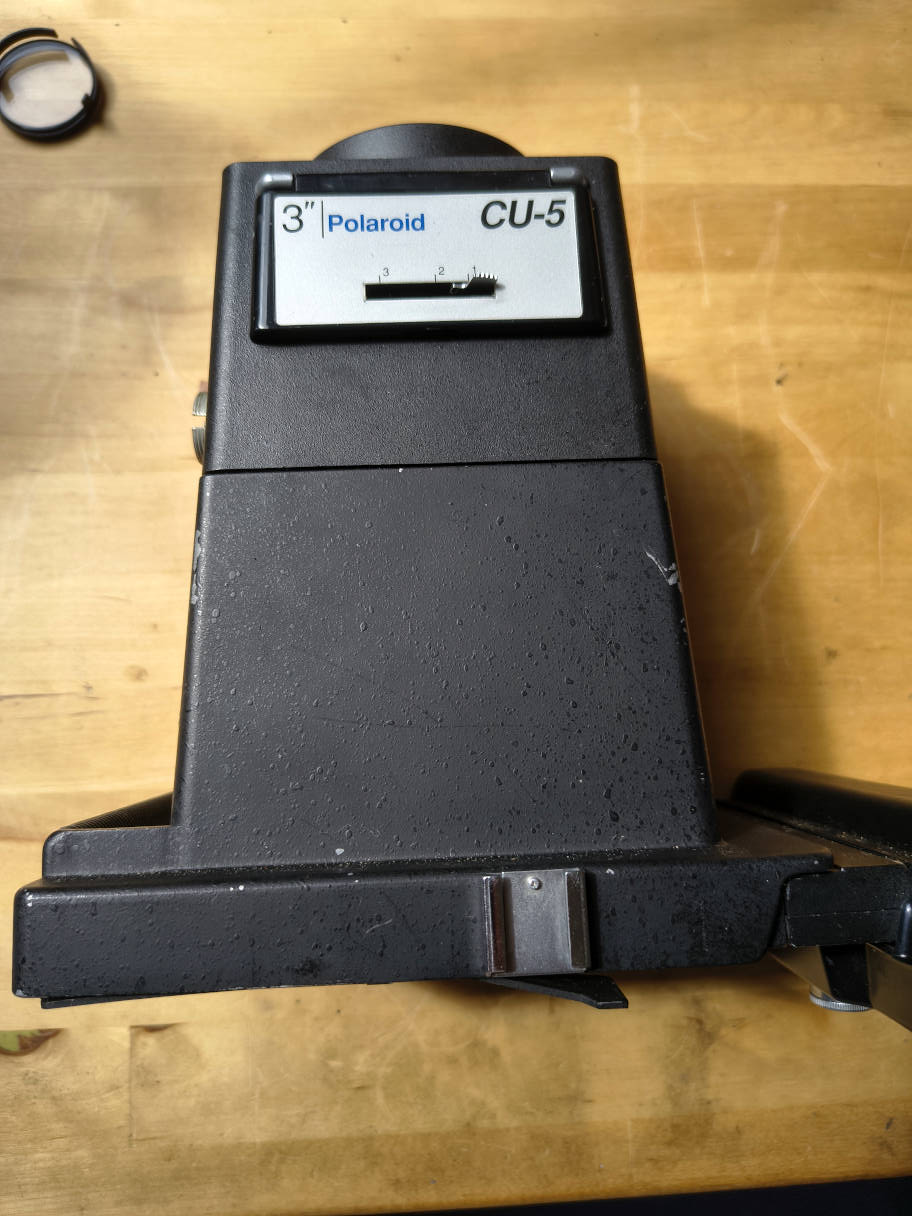

A 3 inch unit.

../jpgpola/polaroid_cu5_IMG_20250717_091524728.jpg

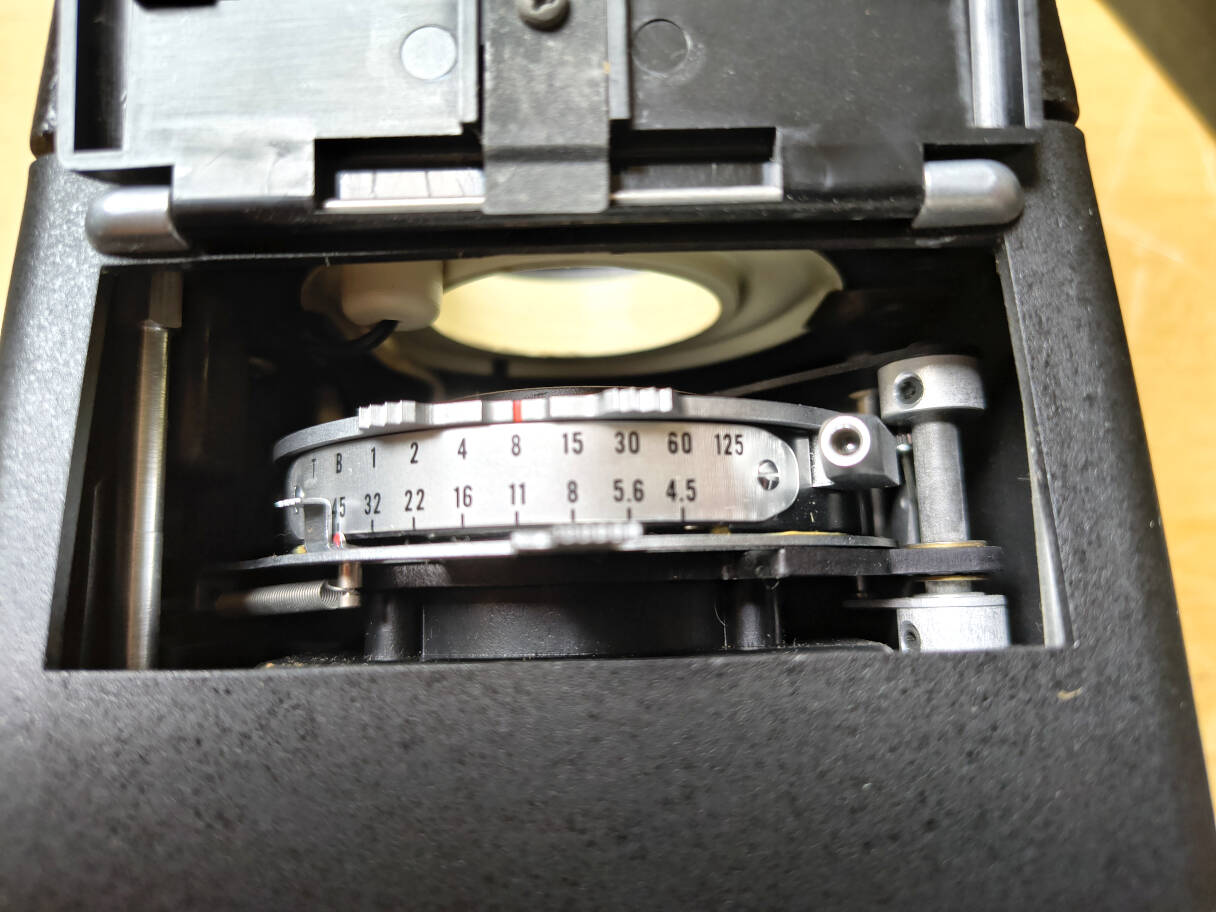

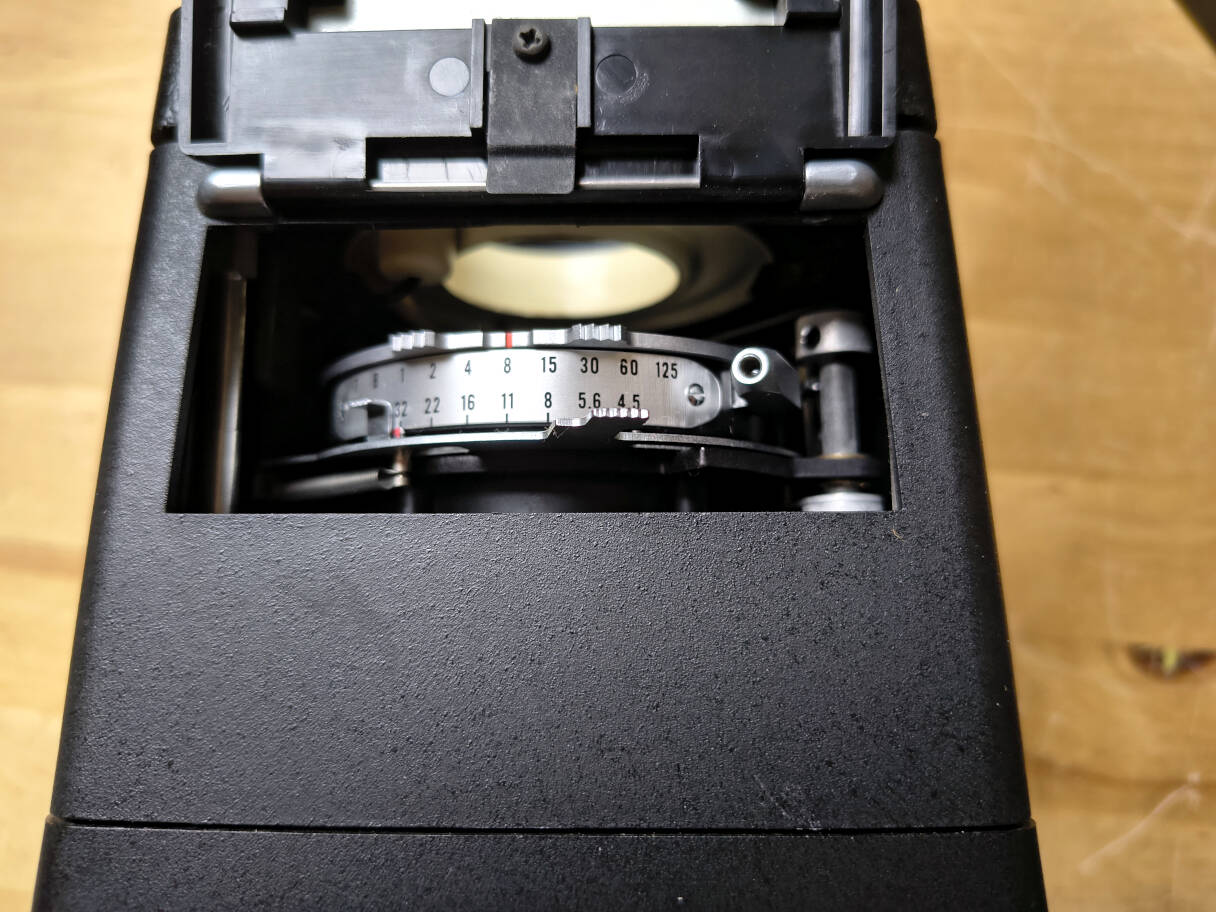

Under the flap it's F32 at no. 2....

../jpgpola/polaroid_cu5_IMG_20250717_091630645.jpg
...and F45 + ND filter at no. 3.

../jpgpola/polaroid_cu5_IMG_20250716_145402454.jpg
There a 3 fixed ratio attachments for the 3 inch lens.

../jpgpola/polaroid_cu5_IMG_20250717_092601811.jpg

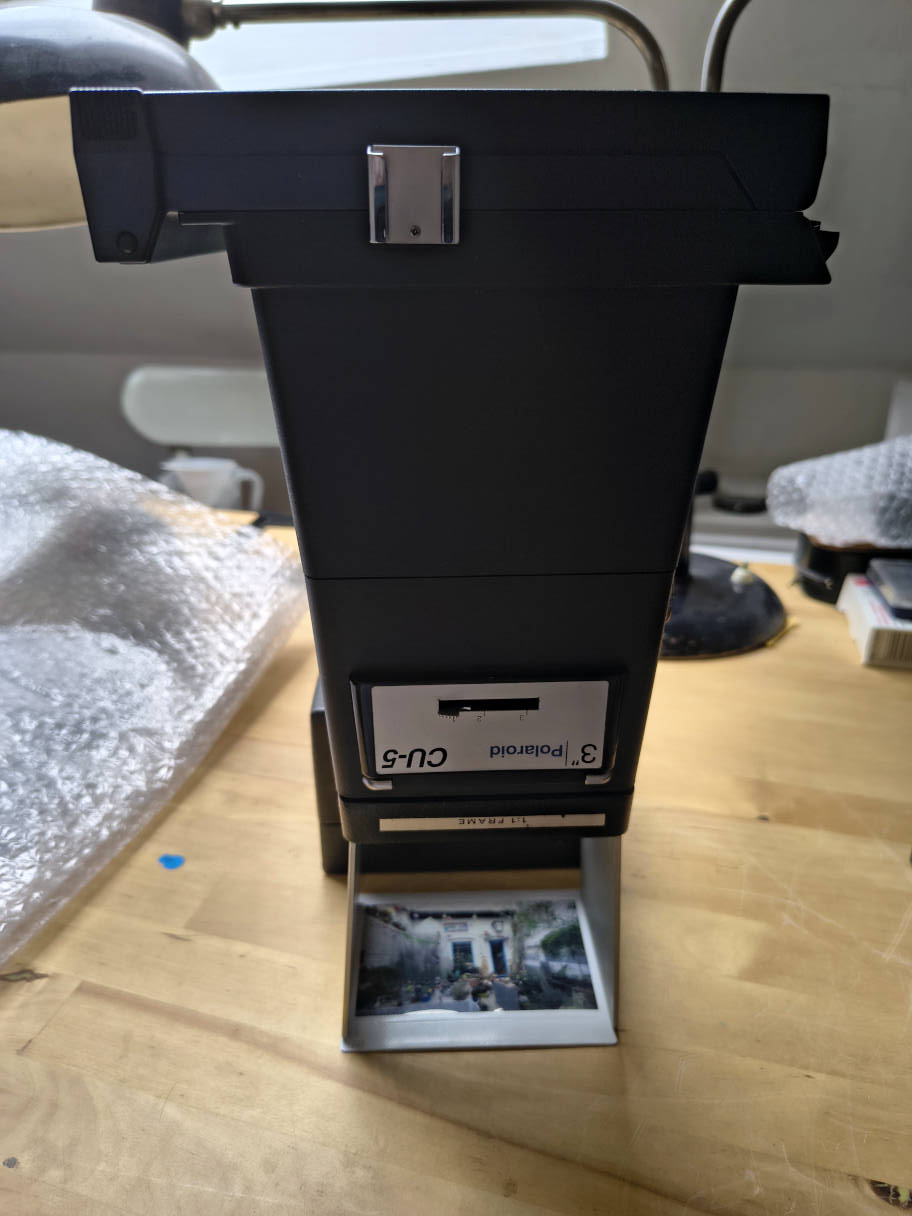

It's a 1:1 ratio with a basic module. Size of an Instax photo or an old pack 100 photo.

../jpgpola/polaroid_cu5_IMG_20250717_092317049.jpg

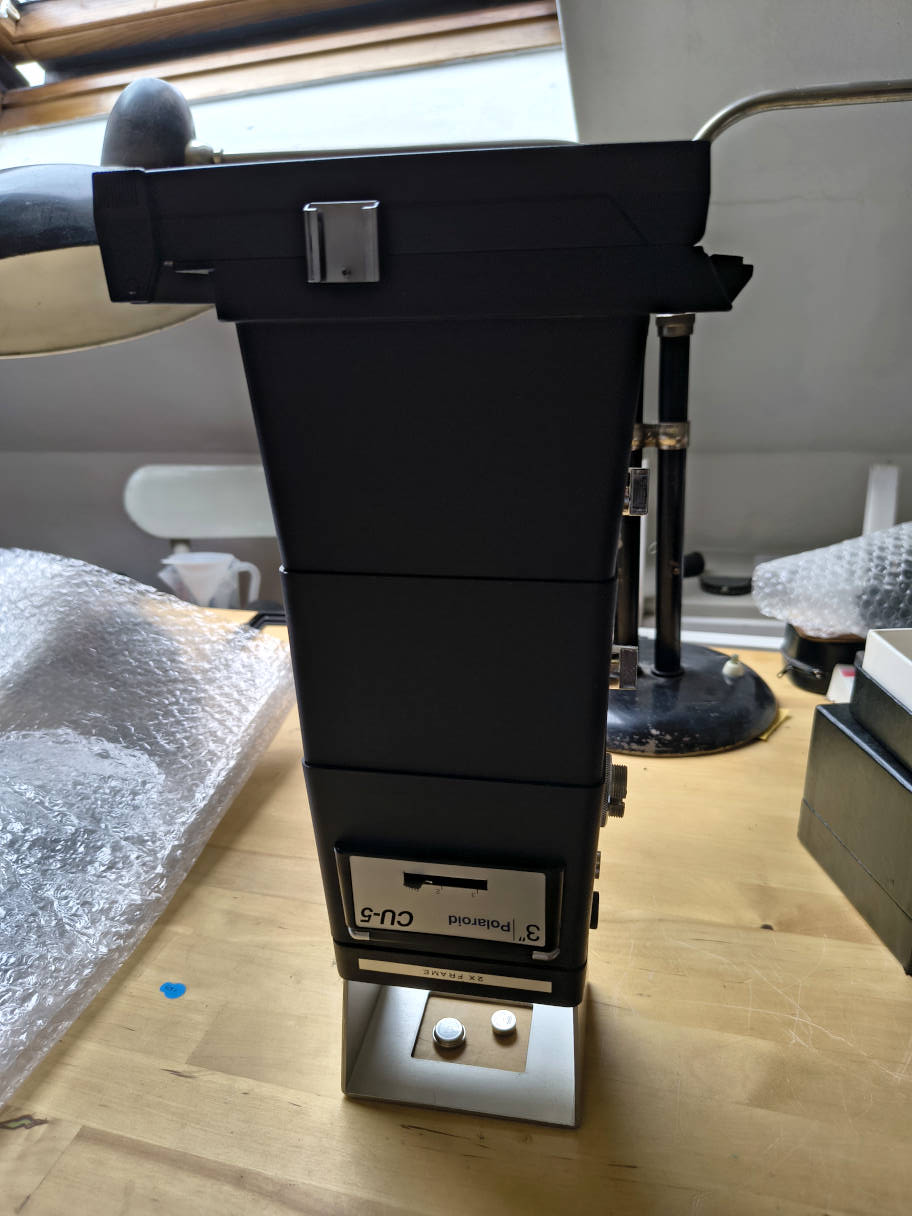

If you add an extension, it's 1:2 magnification. If you add another extension, it would be 1:3.

../jpgpola/polaroid_cu5_IMG_20250716_113828510.jpg

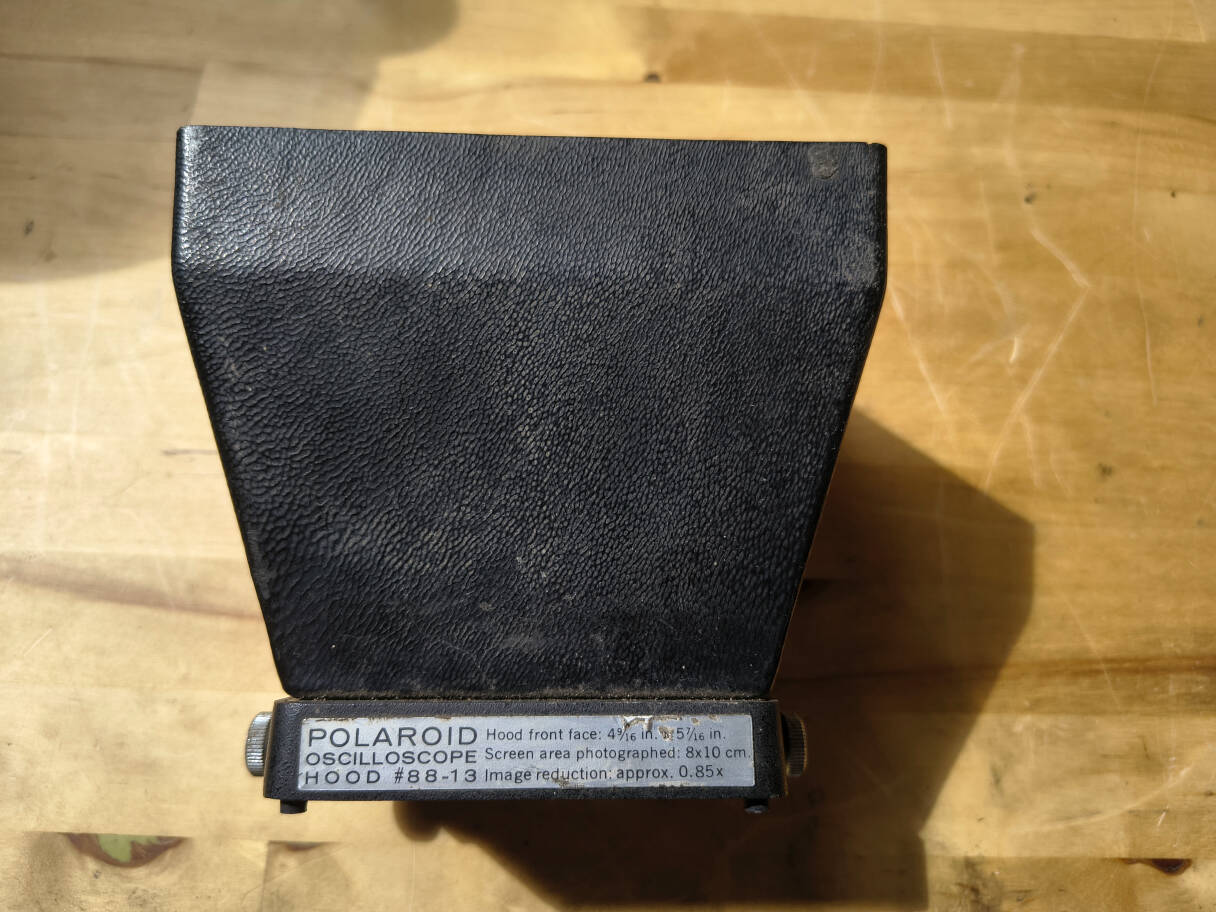

An oscilloscope attachment with size indications.

../jpgpola/polaroid_cu5_IMG_20250716_113835141.jpg

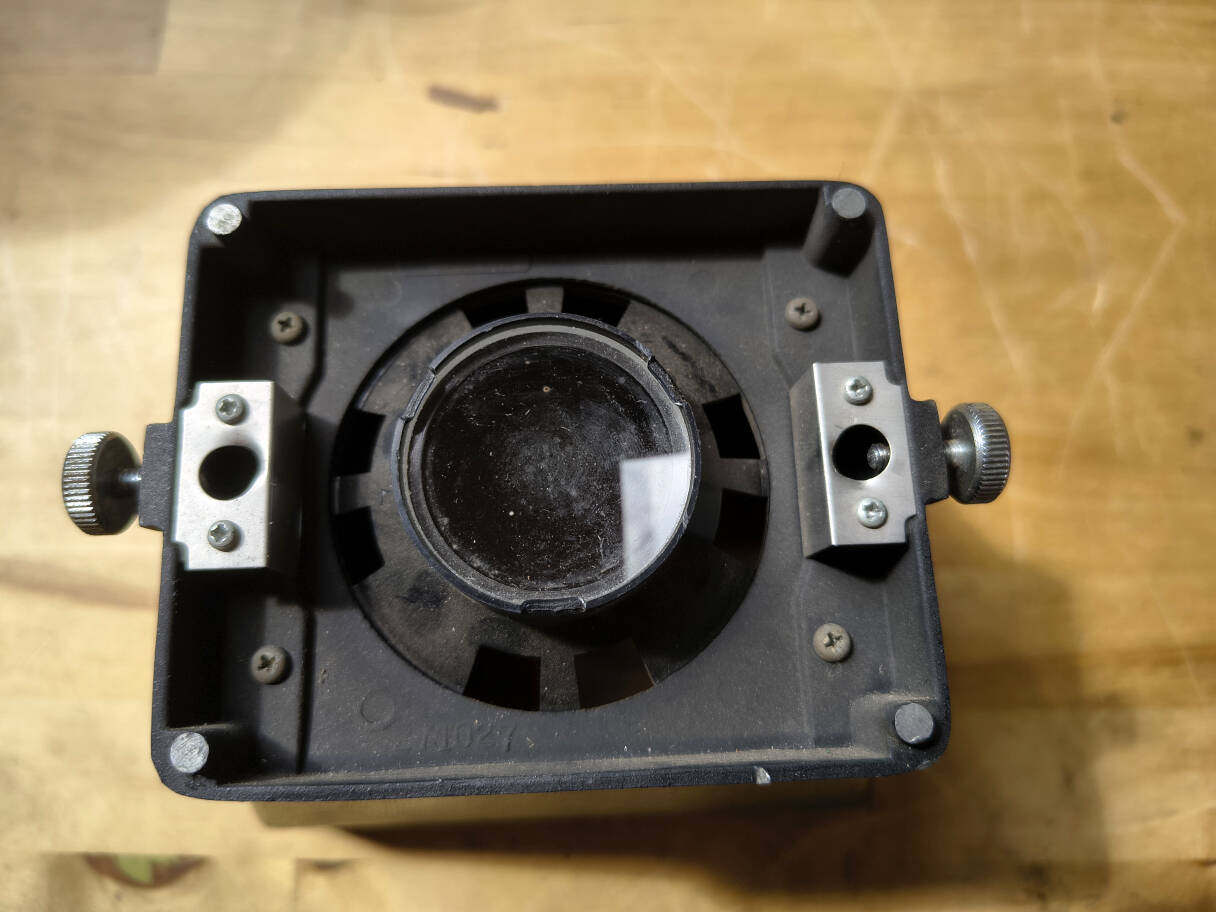

It has a correction lens...

../jpgpola/polaroid_cu5_IMG_20250716_113842917.jpg

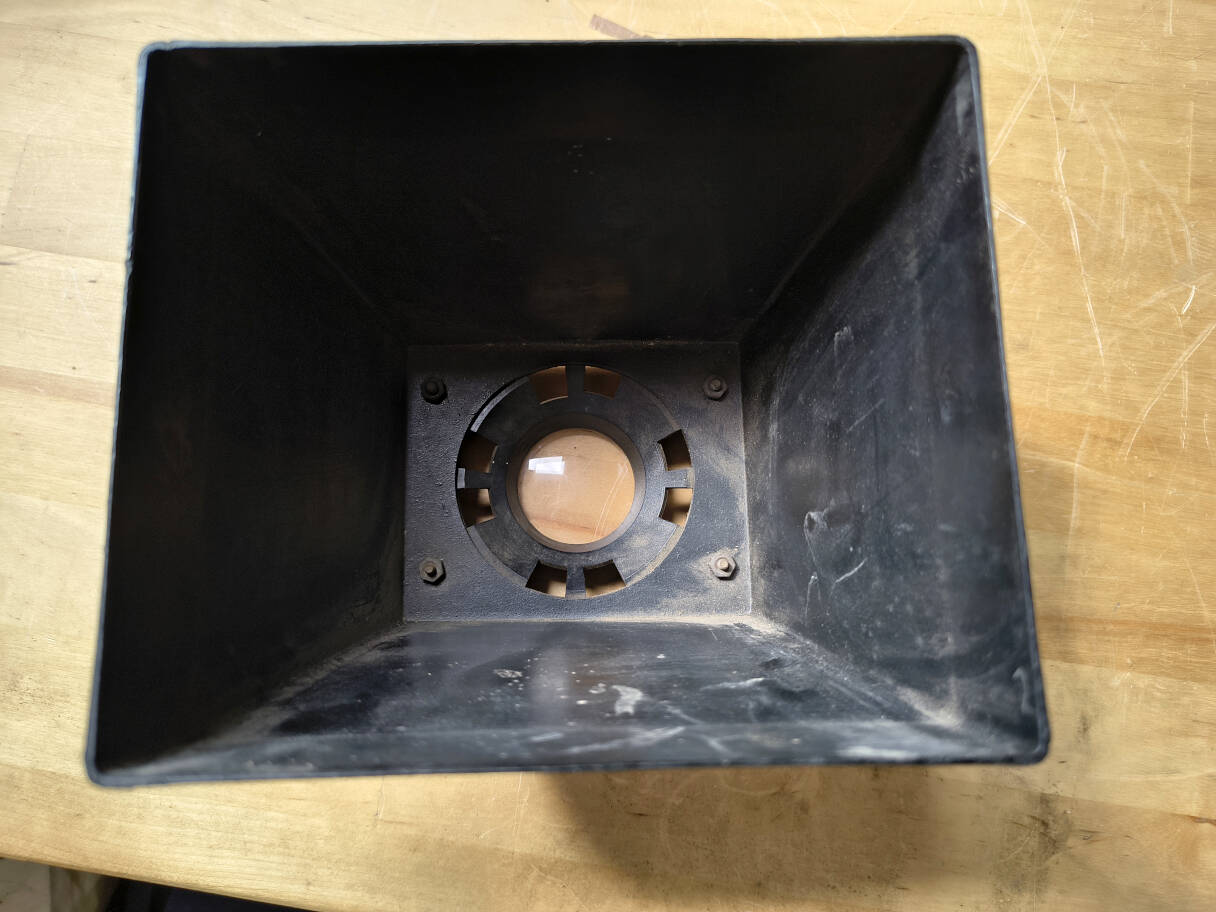

.. and yes, it's dirty.

So let us have a look at the ring flash power supply which is important to the system.

../jpgpola/polaroid_cu5_IMG_20250716_150357809.jpg

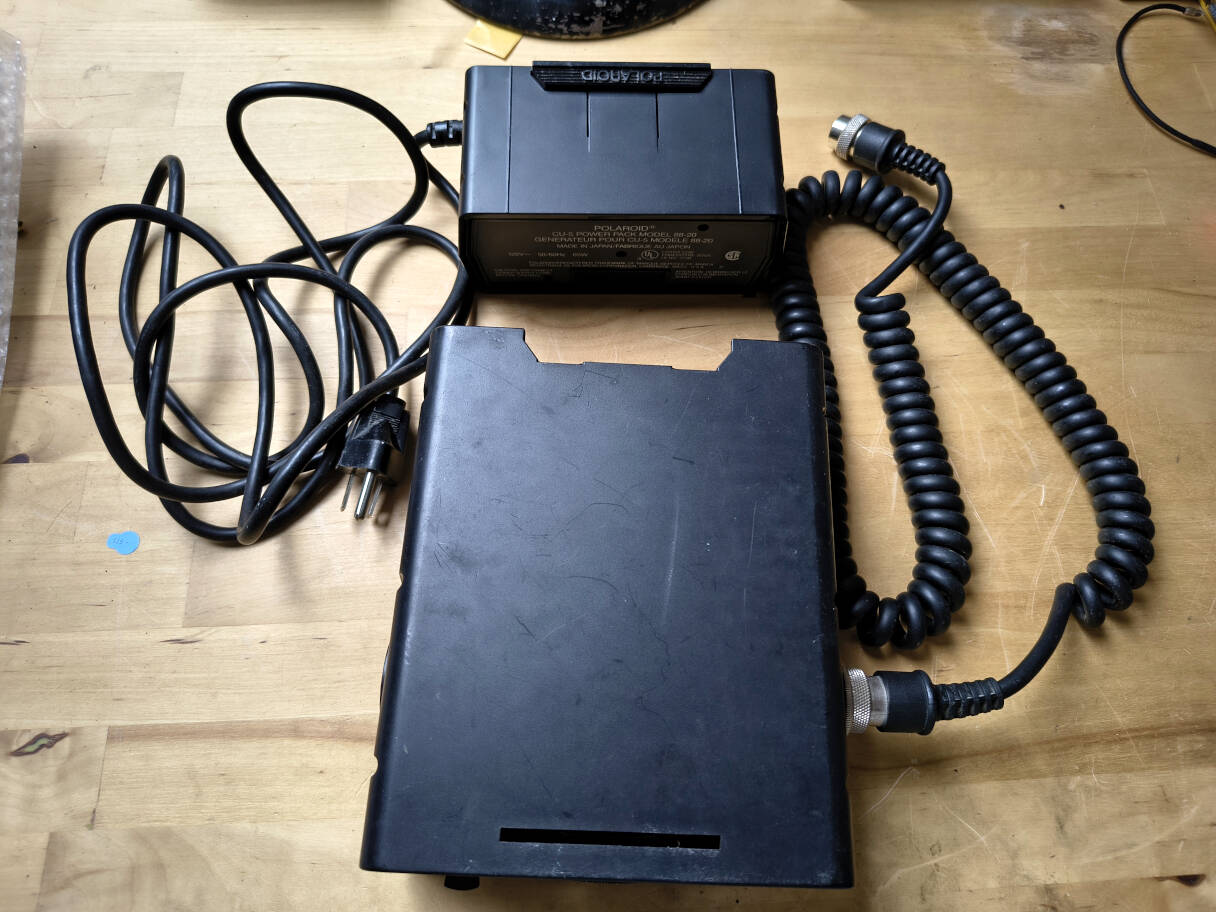

This is a standard flash power supply. There is the main unit and the power insert.

../jpgpola/polaroid_cu5_IMG_20250716_150410036.jpg

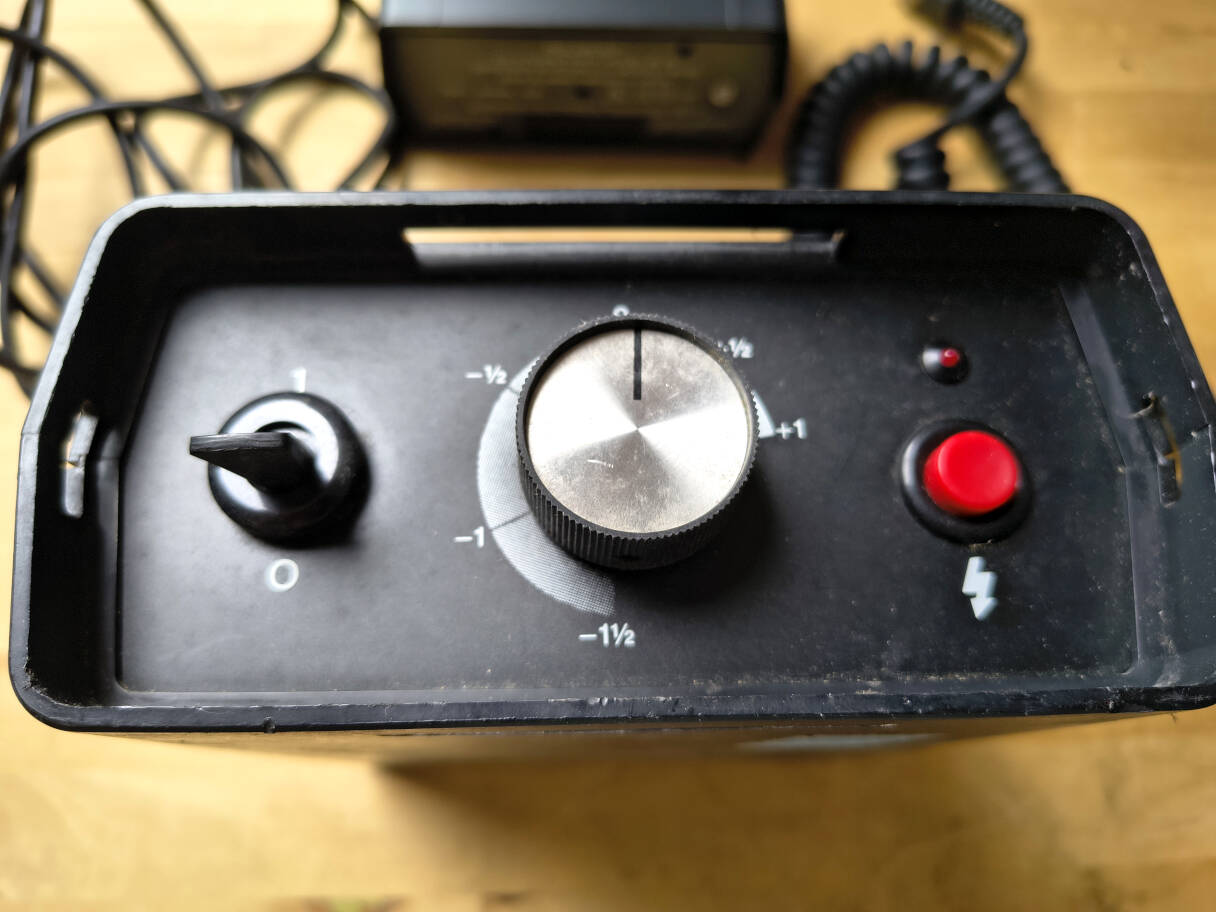

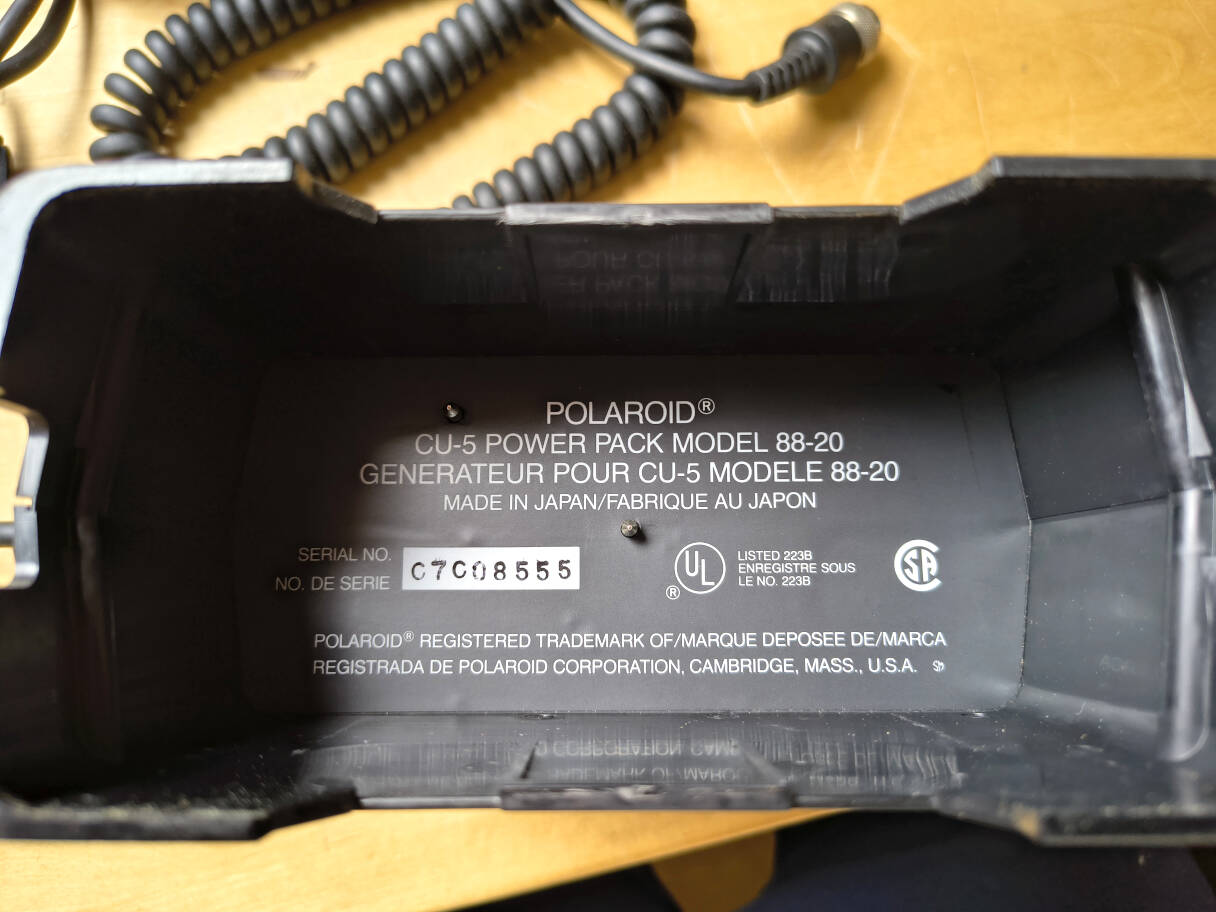

Unit front. On/off switch, flash power adaption knob and test button.

../jpgpola/polaroid_cu5_IMG_20250716_150426922.jpg
Back of the unit.

../jpgpola/polaroid_cu5_IMG_20250716_150441895.jpg

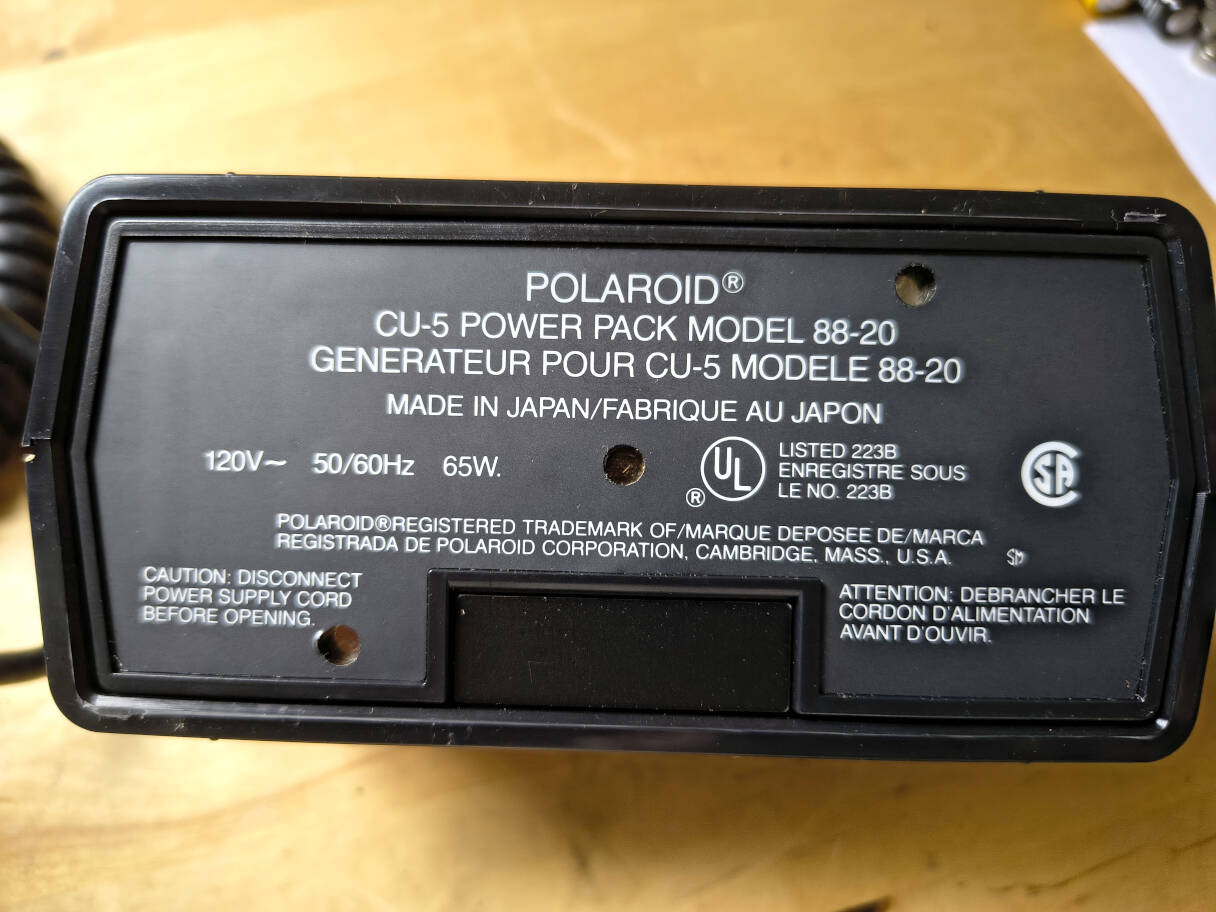

Front of the power insert. A standard American 120V supply.

../jpgpola/polaroid_cu5_IMG_20250716_150540529.jpg

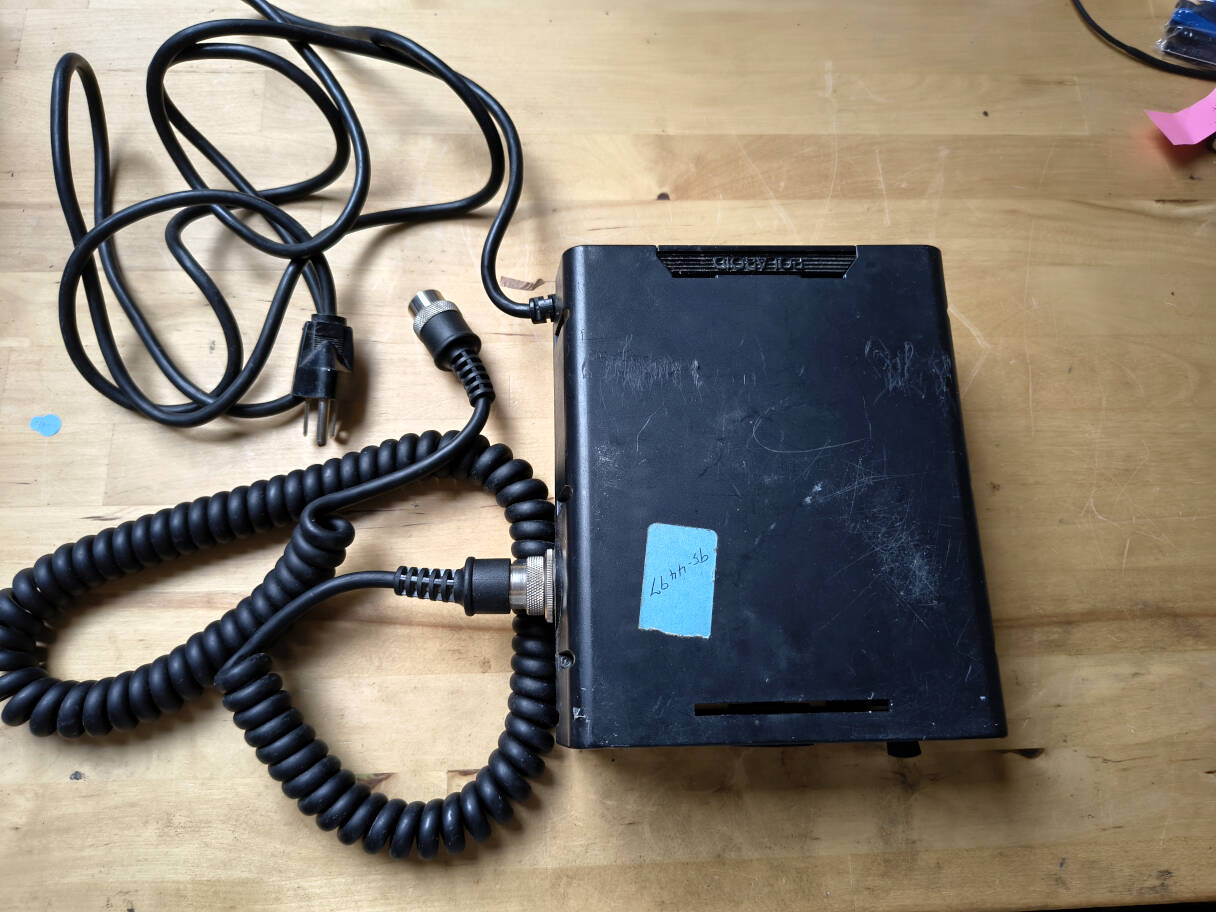

Unit and power supply pushed in.

../jpgpola/polaroid_cu5_IMG_20250716_150733699.jpg

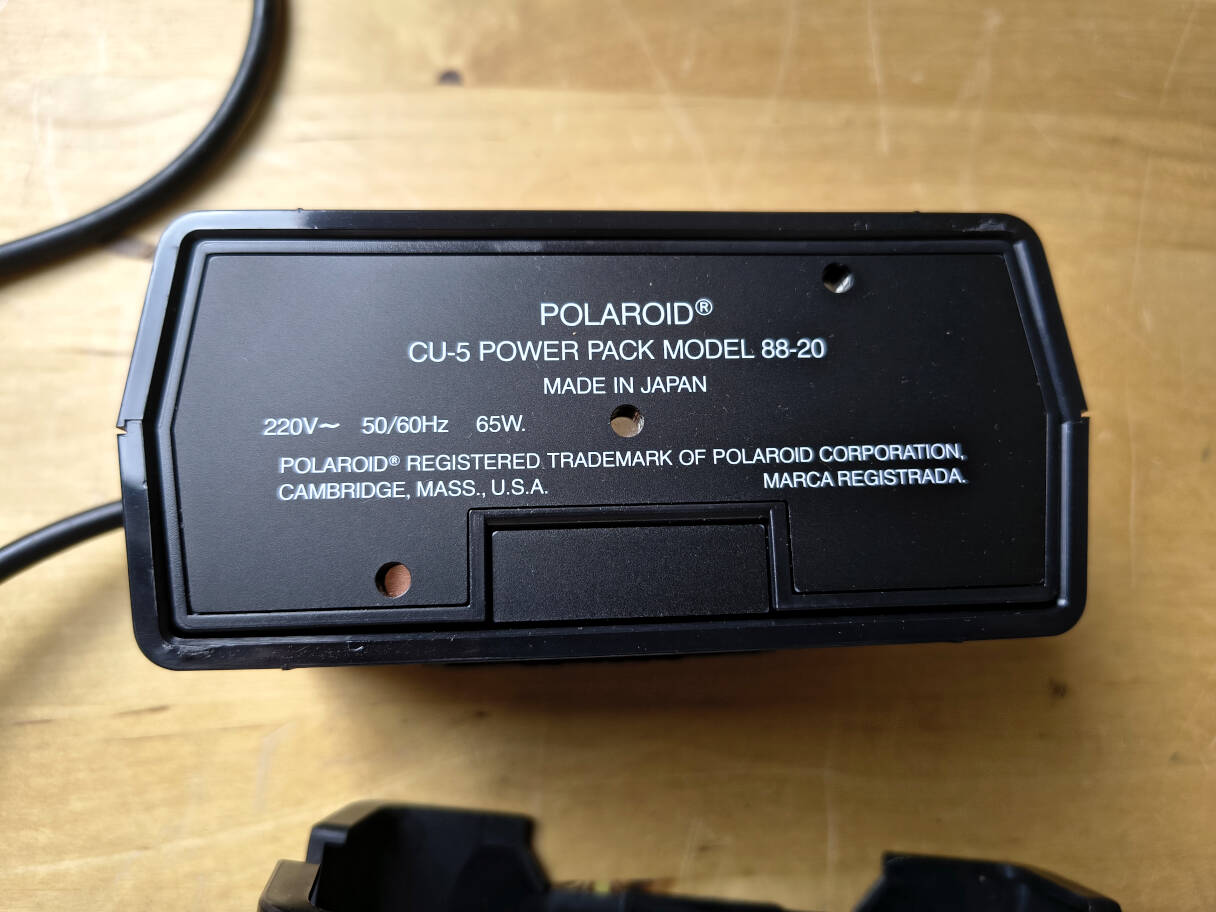

A 220V power supply.

../jpgpola/polaroid_cu5_IMG_20250716_150815696.jpg

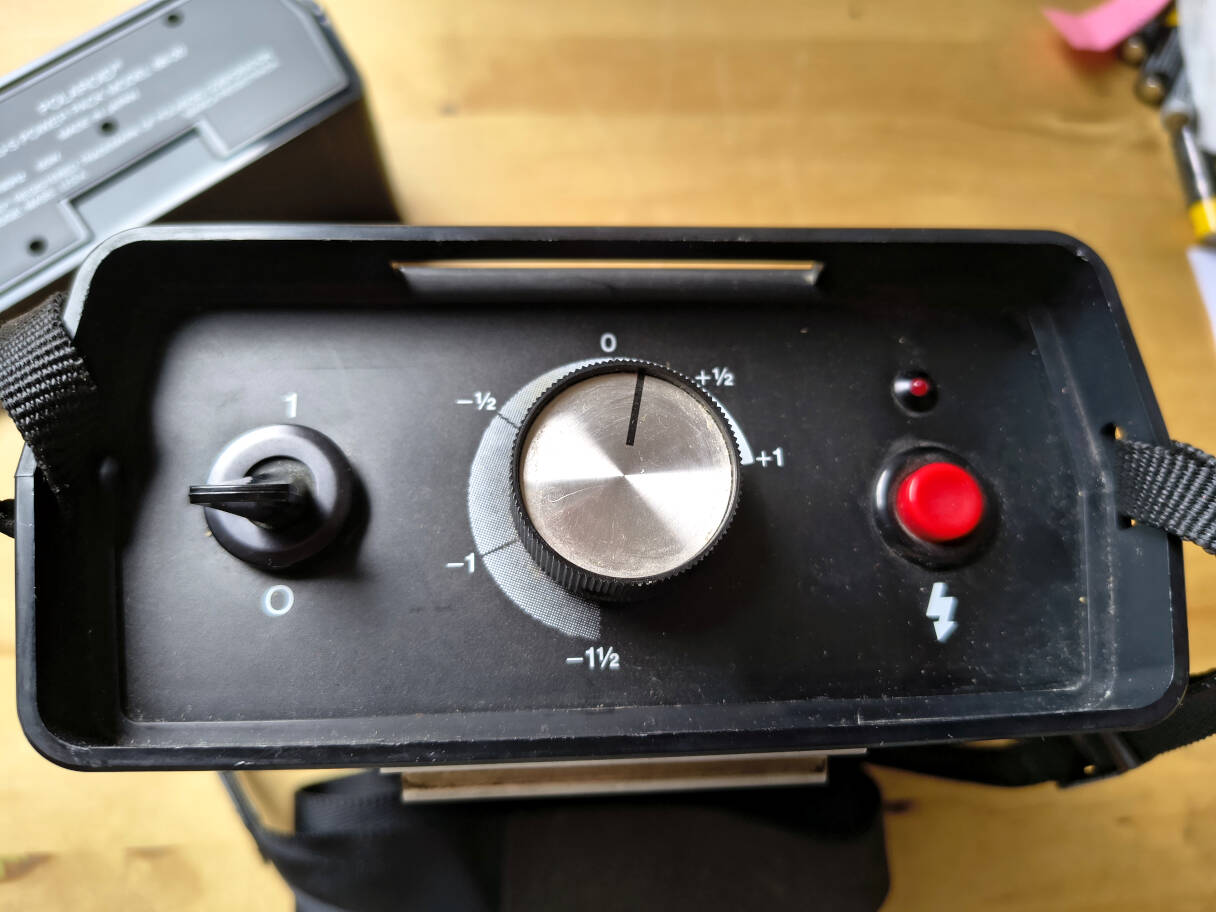

Front of the 220 unit.

../jpgpola/polaroid_cu5_IMG_20250716_151027013.jpg

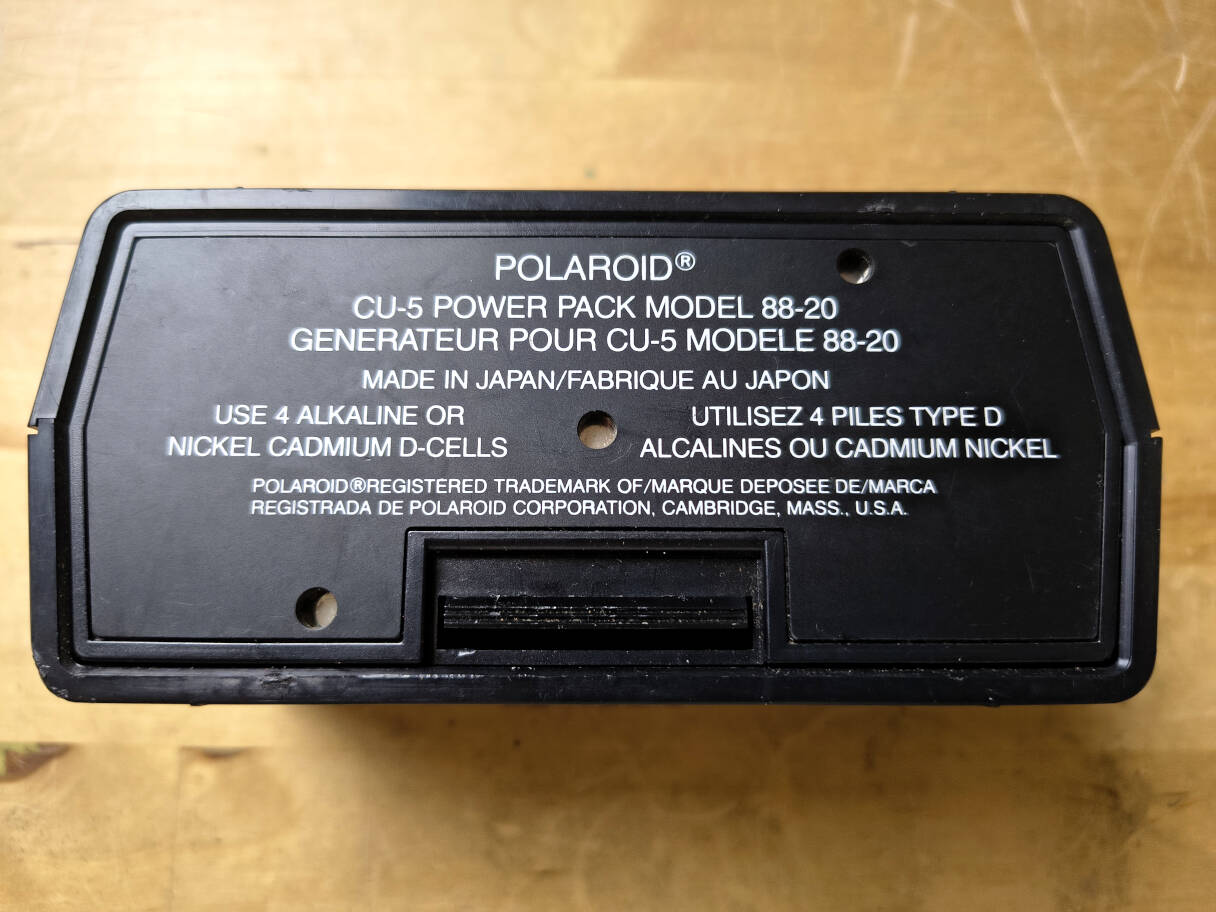

A battery or rechargeable cell power supply, fits into the main unit instead of the line power supply, It makes the unit portable.

../jpgpola/polaroid_cu5_IMG_20250716_151145047.jpg

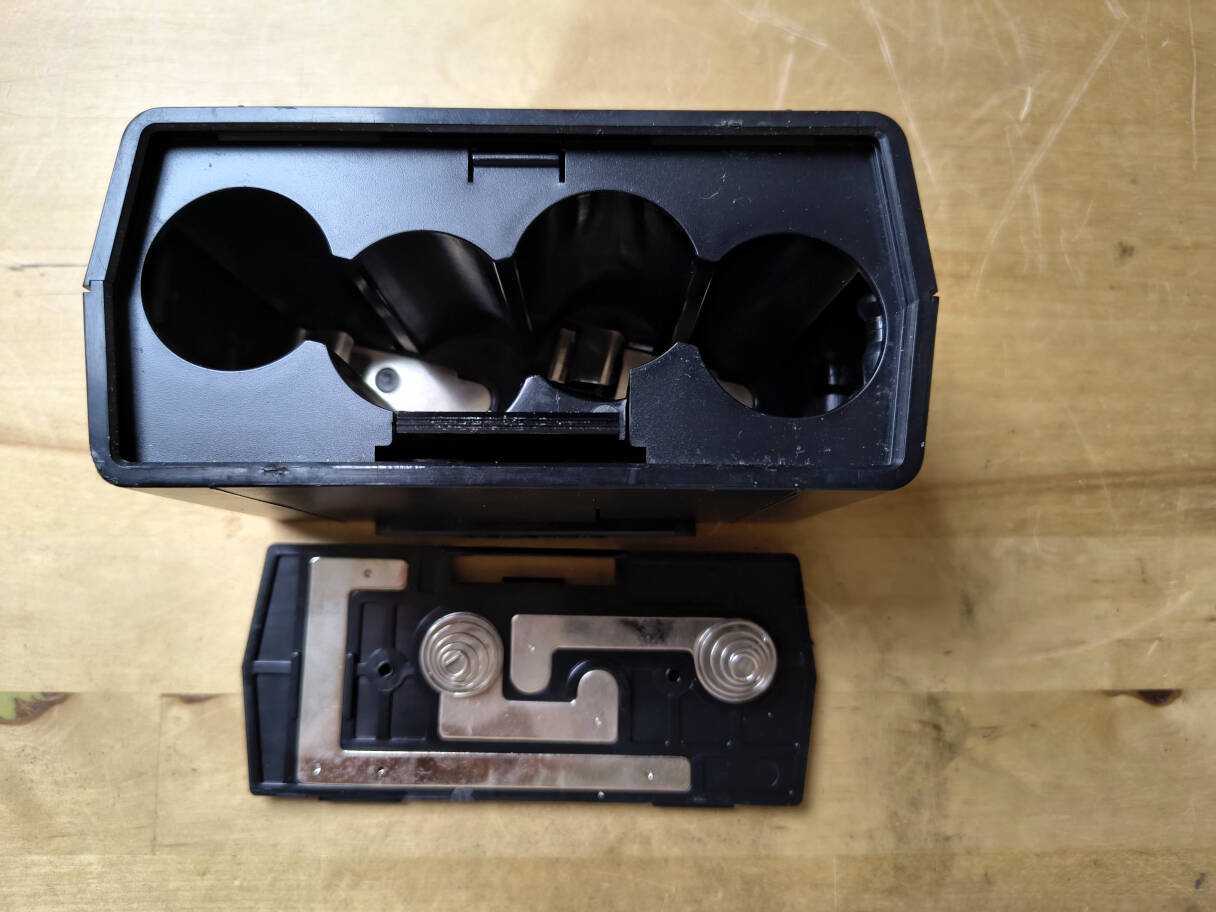

It takes 4 big D cells or batteries.

../jpgpola/polaroid_cu5_IMG_20250716_151406328.jpg

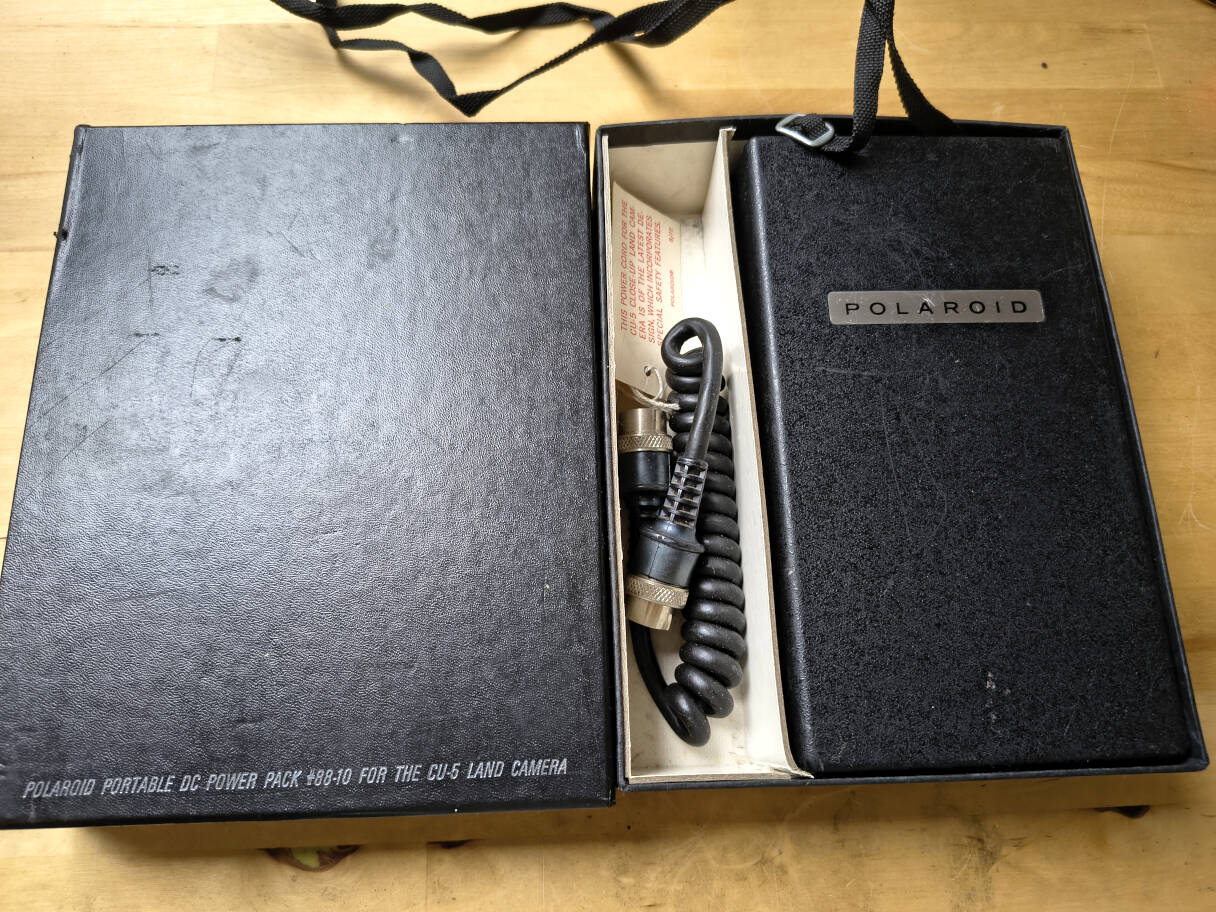

Another portable flash supply, not common-

../jpgpola/polaroid_cu5_IMG_20250716_151457104.jpg

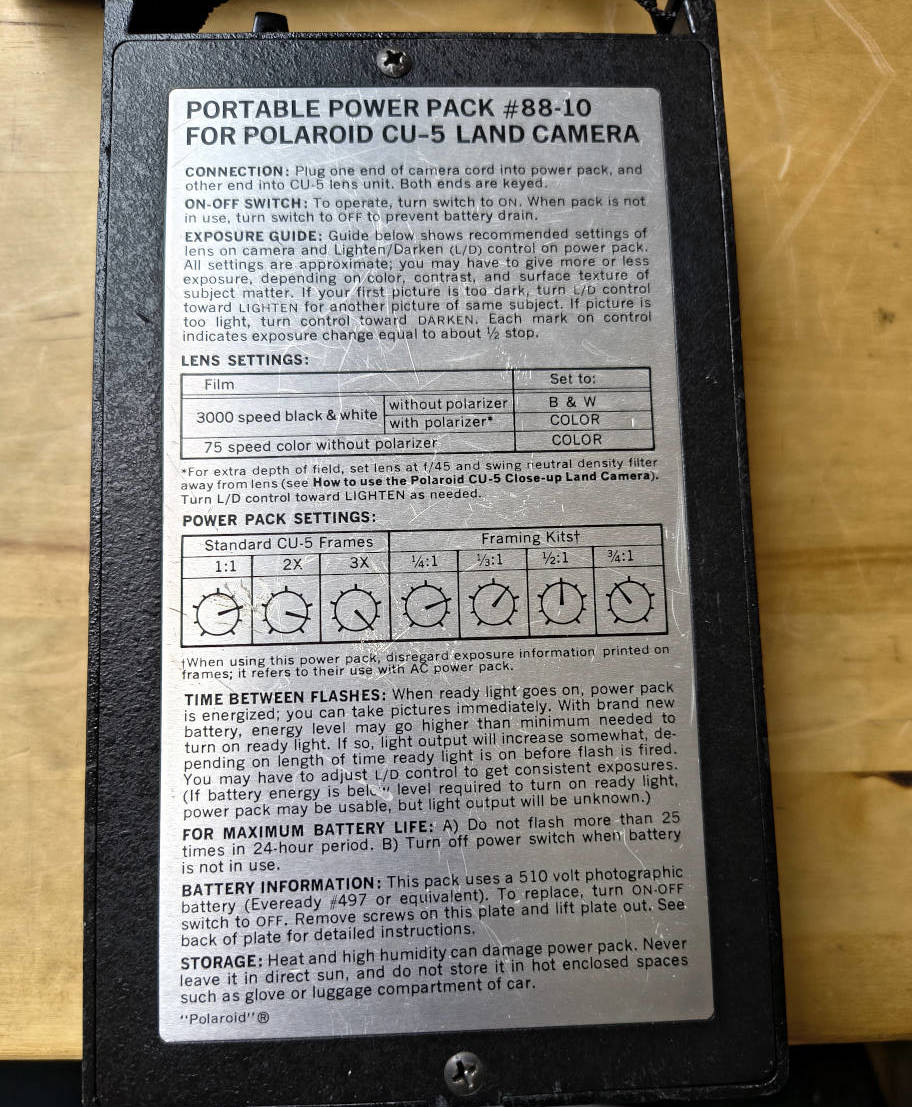

Instructions on the unit.

../jpgpola/polaroid_cu5_IMG_20250716_151755970.jpg

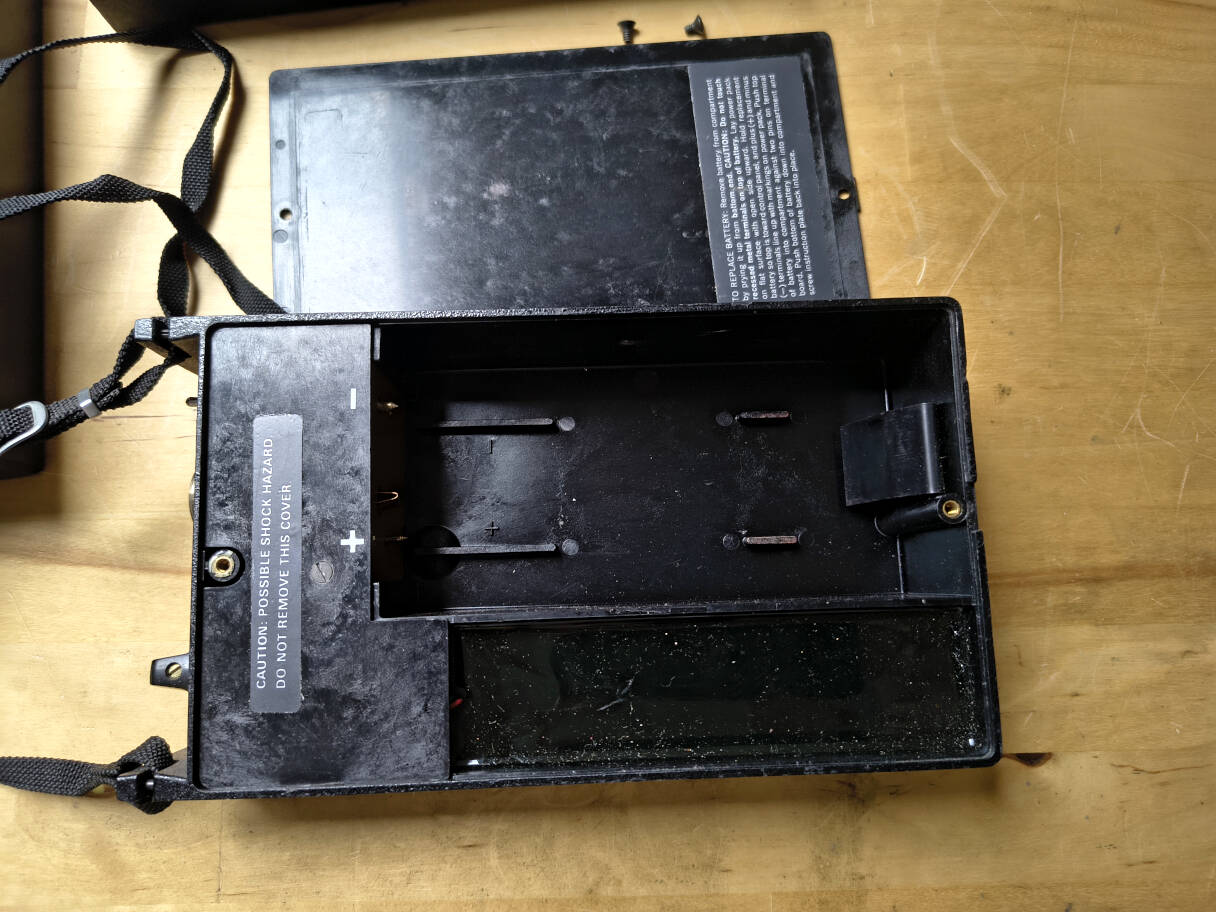

It takes a #497 510 V Eveready battery, no longer made.

../jpgpola/polaroid_cu5_IMG_20250716_151513884.jpg

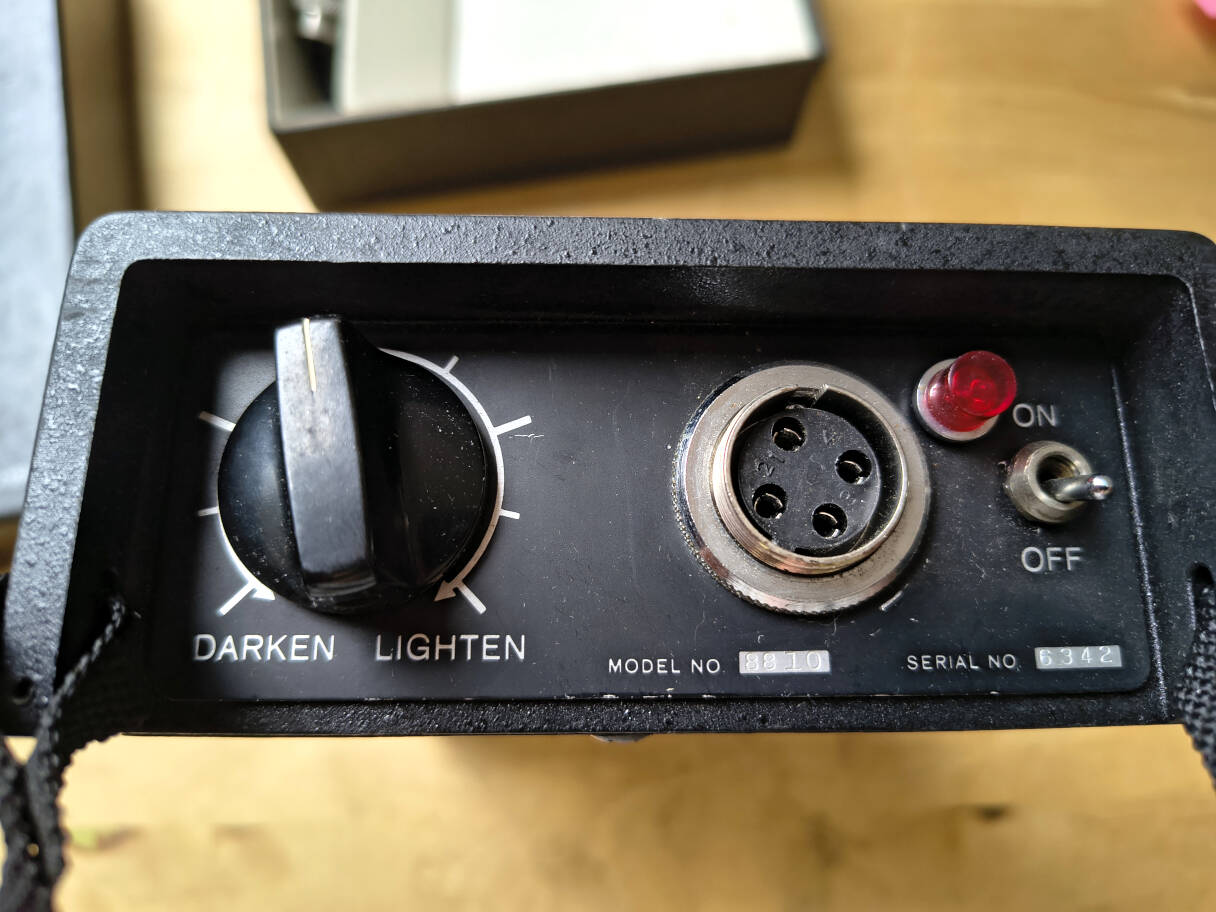

Front of the unit.

The 4x5 inch camera unit. This can be used as portrait camera.

../jpgpola/polaroid_cu5_IMG_20250716_112939502.jpg

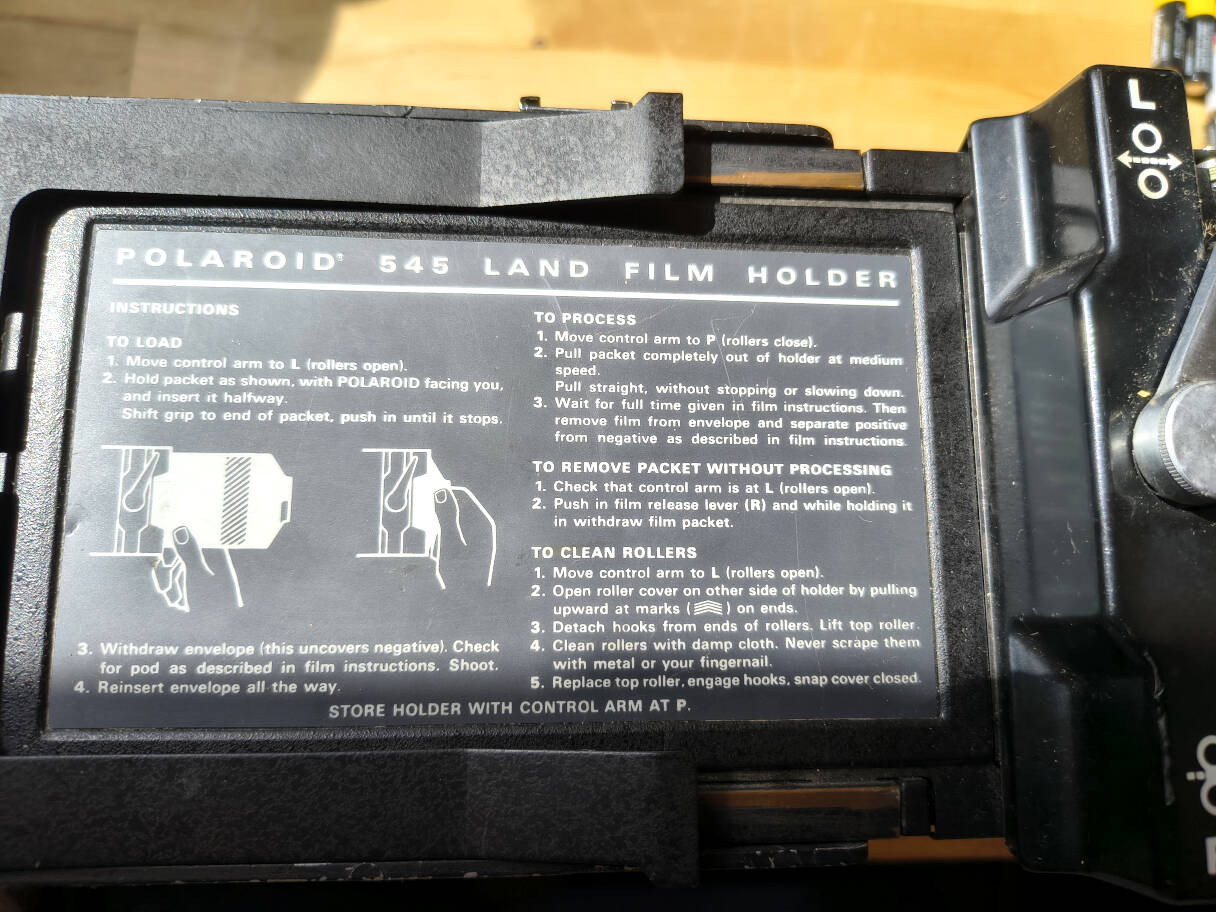

A unit with a 4x5 inch Polaroid back.

../jpgpola/polaroid_cu5_IMG_20250716_113013672.jpg

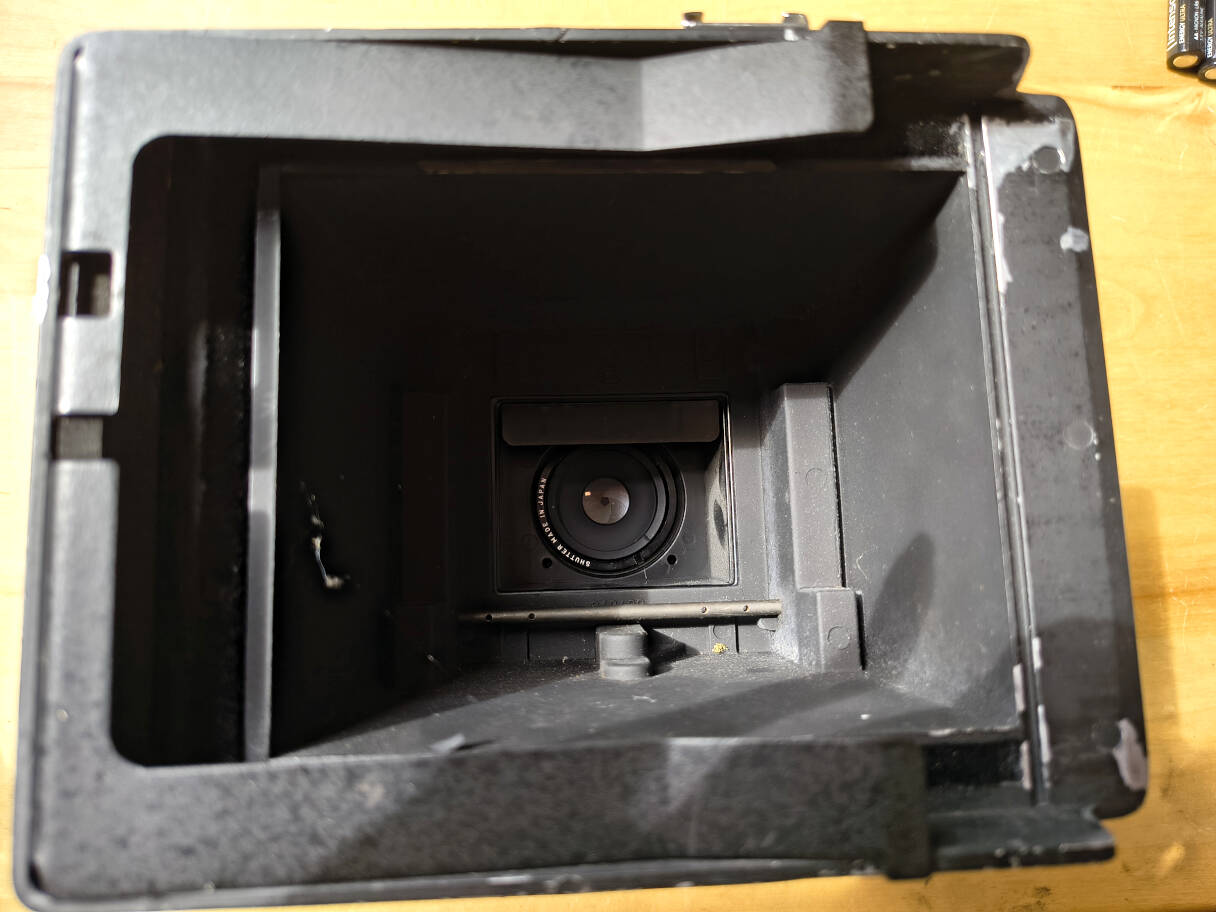

The back is standard 4x5 Graflok, so you can use any standard Graflok film holder as long as it's not too thick.

../jpgpola/polaroid_cu5_IMG_20250717_094202781.jpg

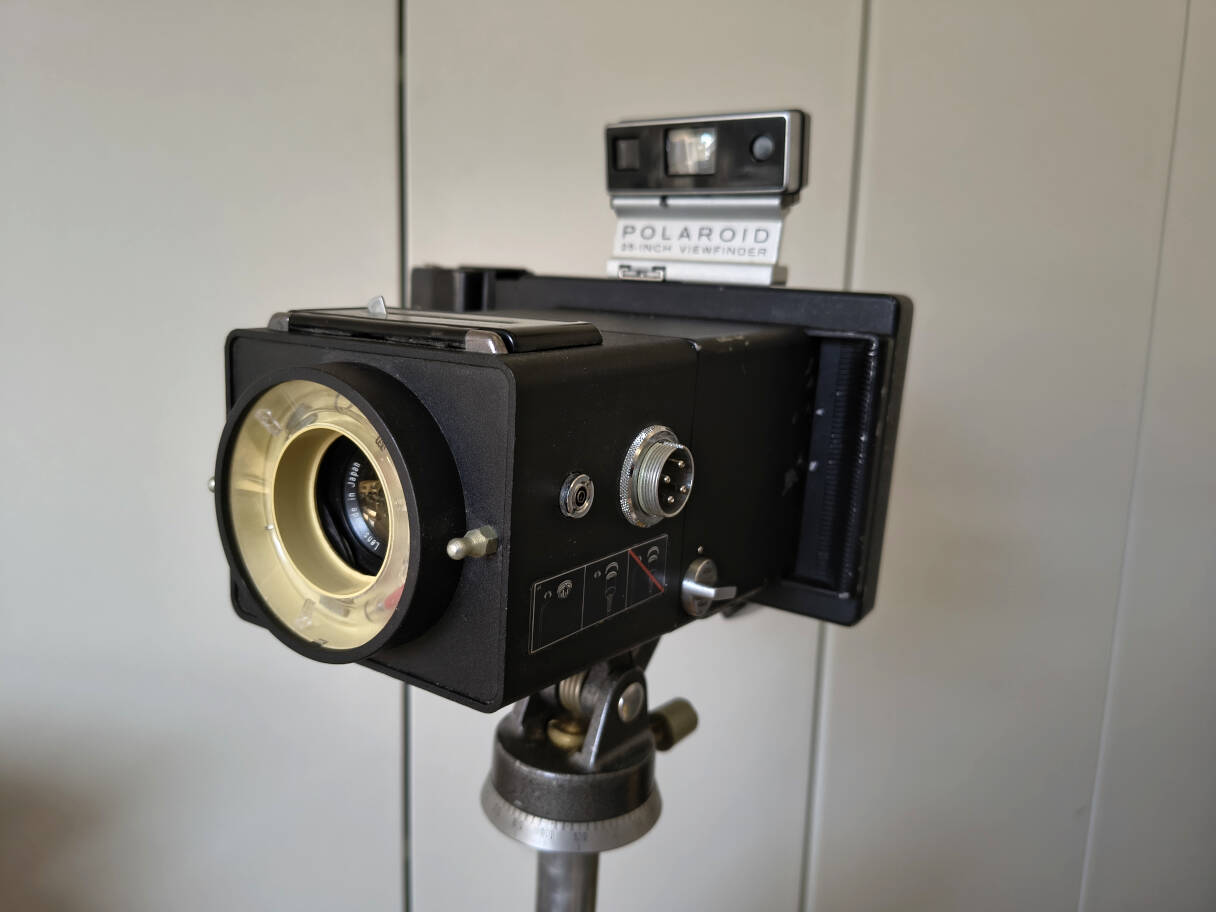

The camera mounted to a tripod. There is a 25 inch (75cm) fixed focus rangefinder. So you have to move the camera until your person or object is in focus (focus shuffle).

../jpgpola/polaroid_cu5_IMG_20250717_094212032.jpg

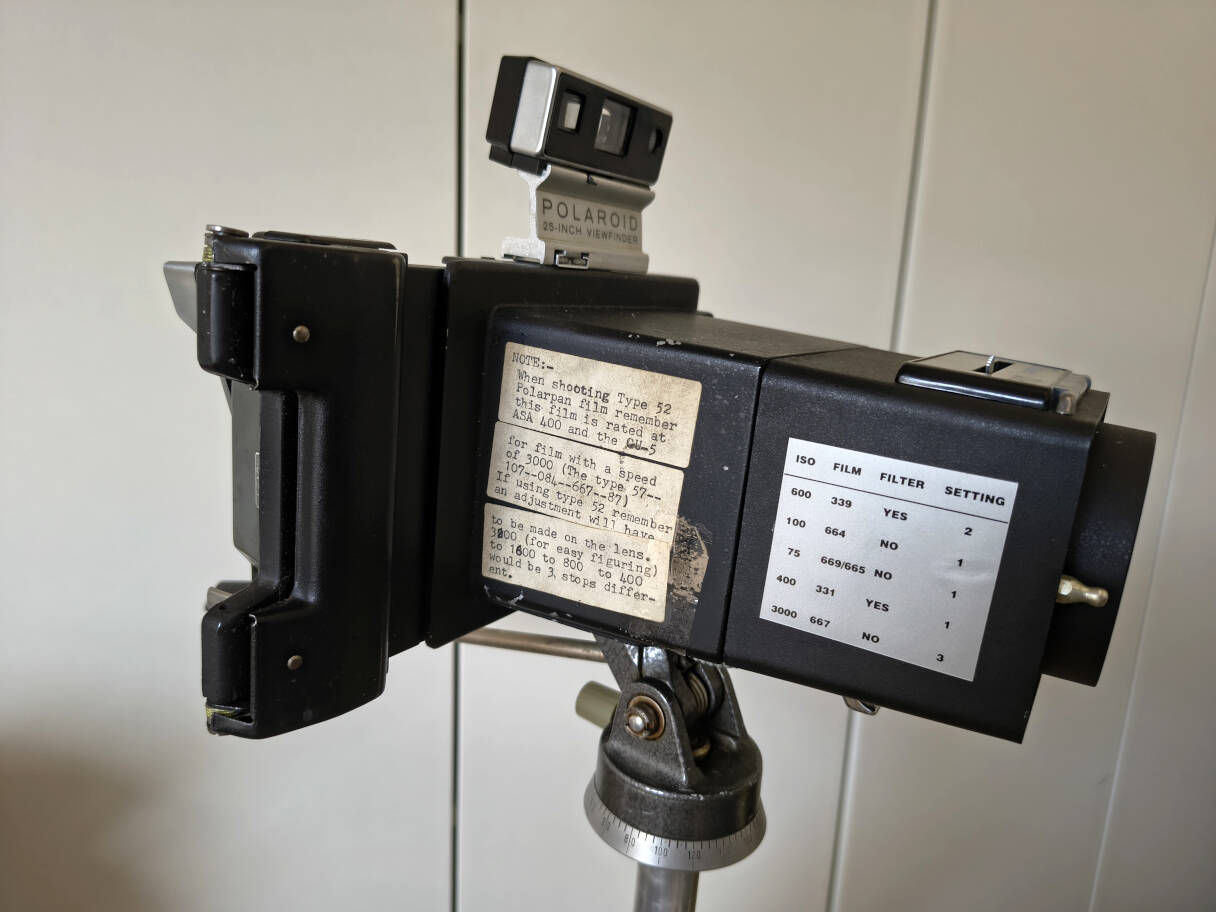

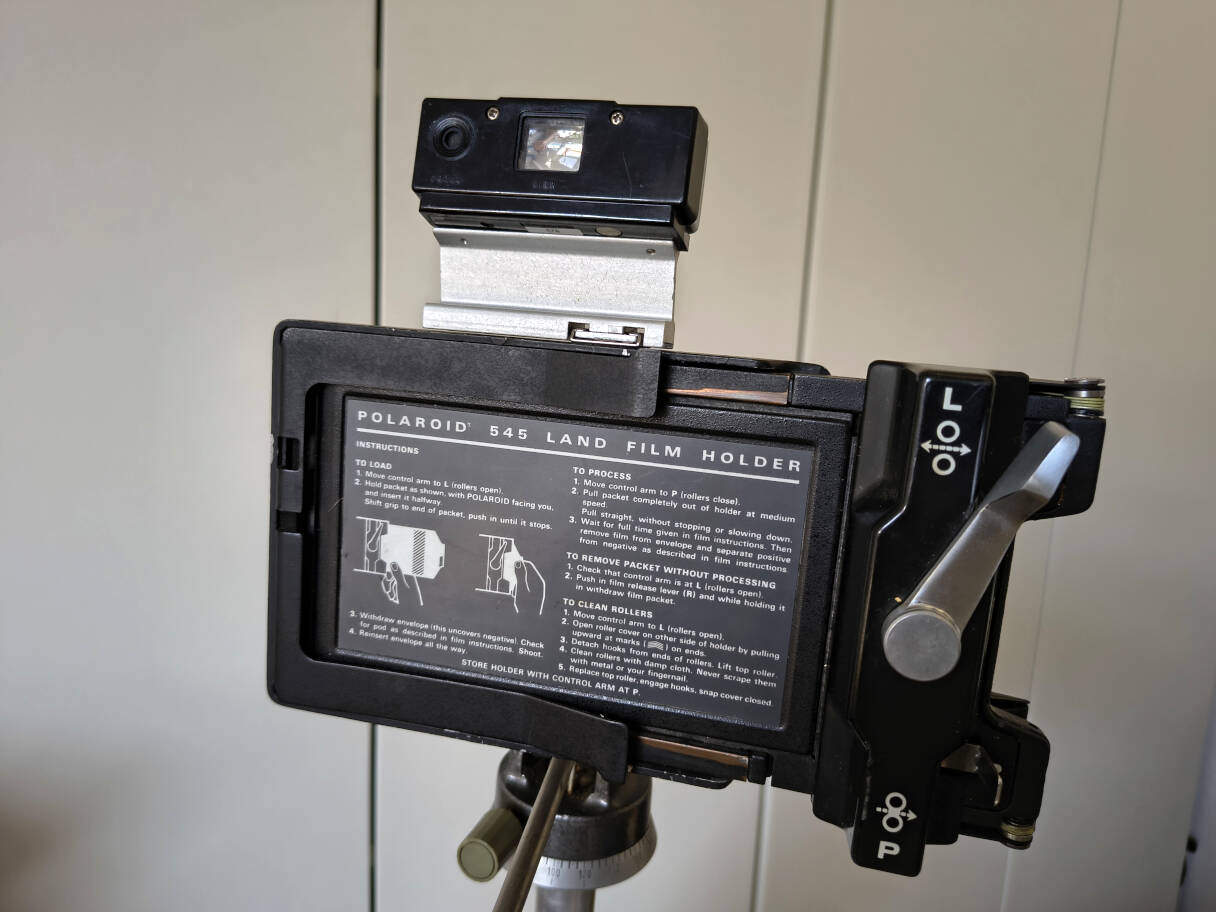

Seen from the back.

../jpgpola/polaroid_cu5_IMG_20250717_094221137.jpg
The finder is parallax corrected.

../jpgpola/polaroid_cu5_IMG_20250717_094305926.jpg

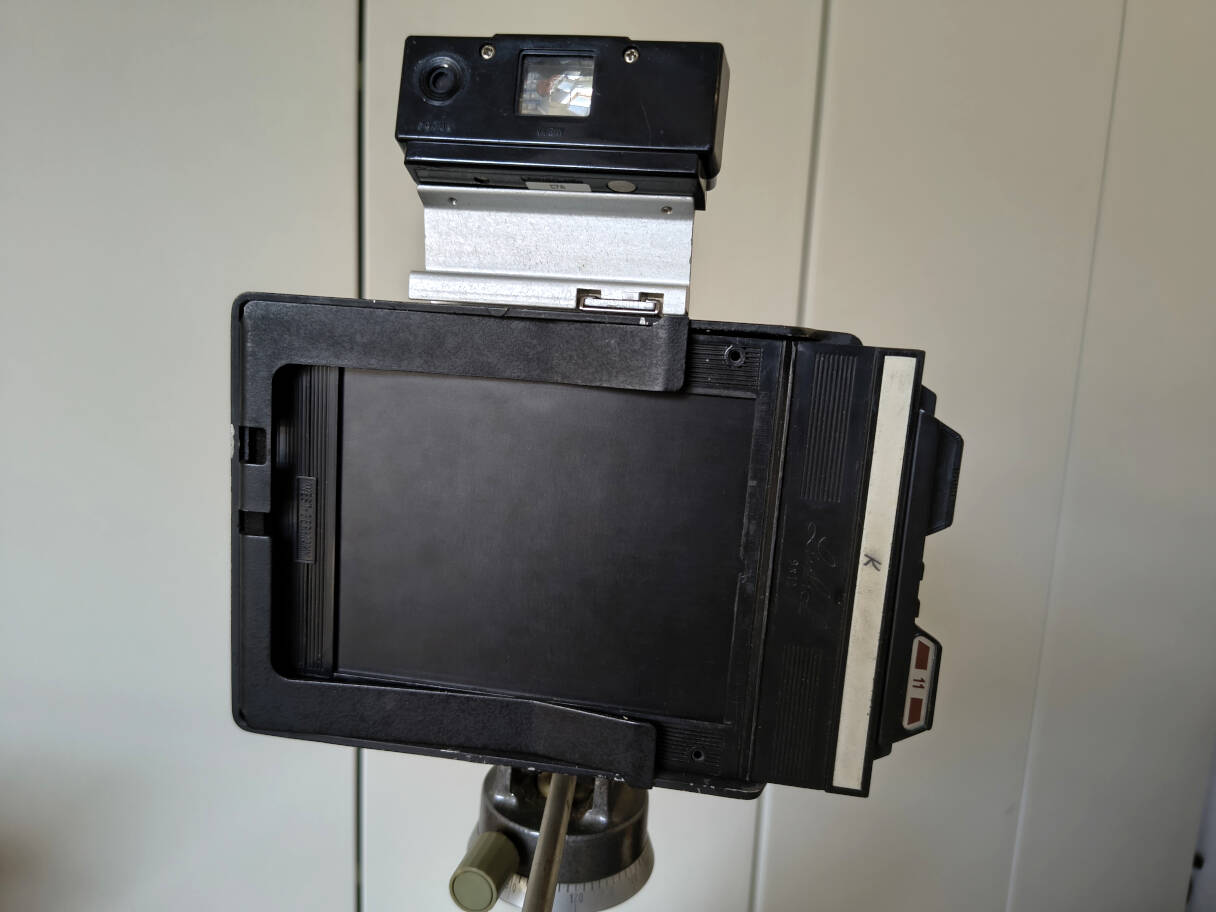

Camera with a sheet film holder.

../jpgpola/polaroid_cu5_IMG_20250717_094320286.jpg

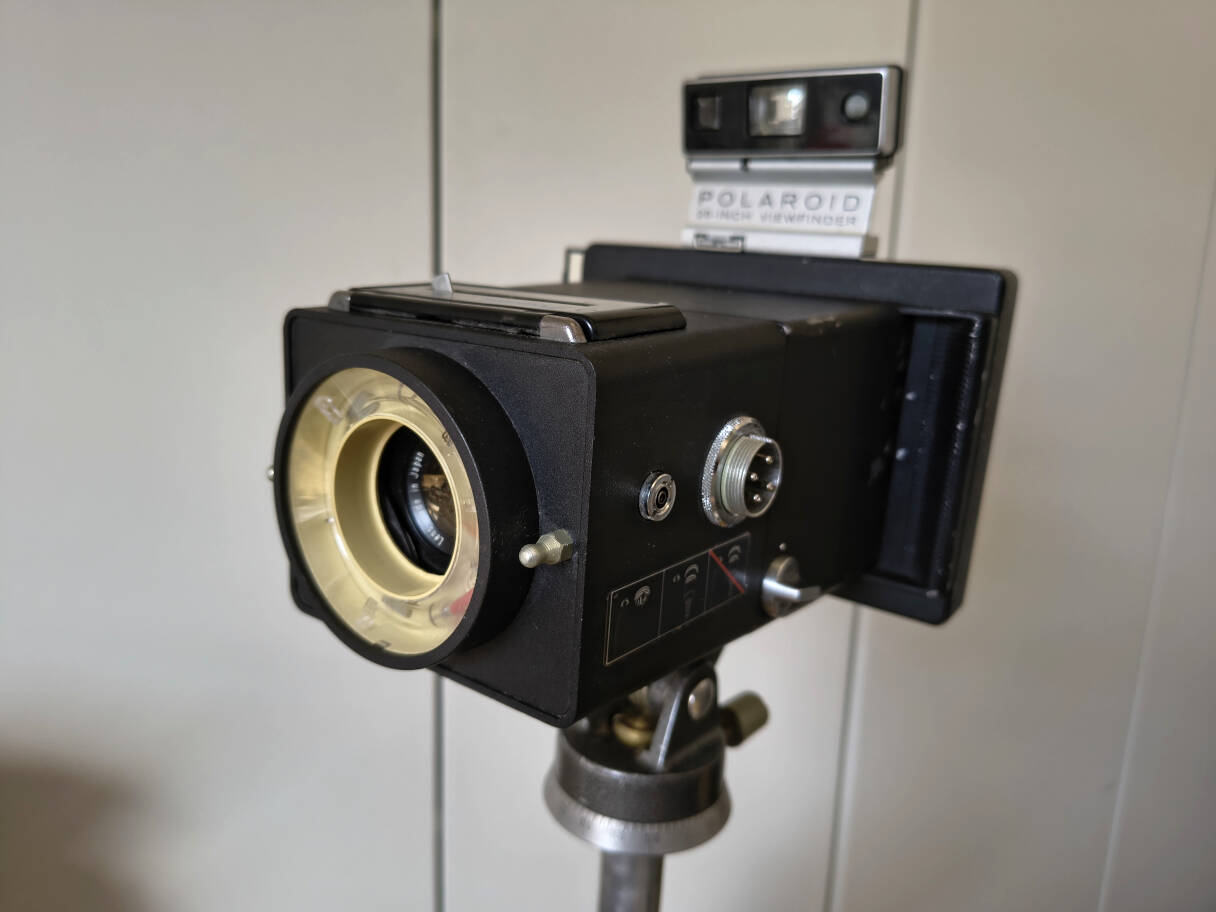

Seen from the front.

../jpgpola/polaroid_cu5_IMG_20250716_113333363.jpg

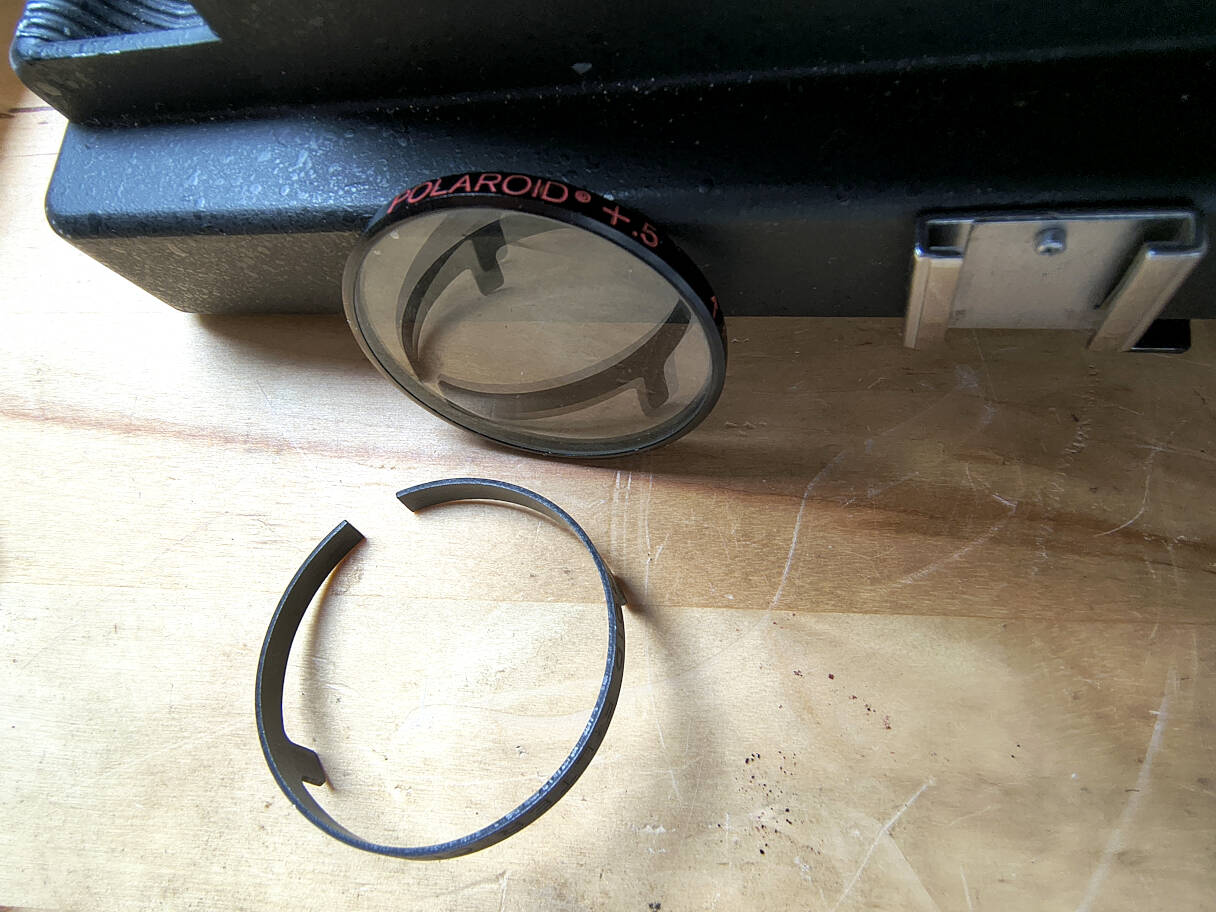

There is a +0.5 lens for a 2:1 ratio and its clip. An arrow indicates the orientation of the lens. There were filters of the same size.

../jpgpola/polaroid_cu5_IMG_20250717_093337942.jpg

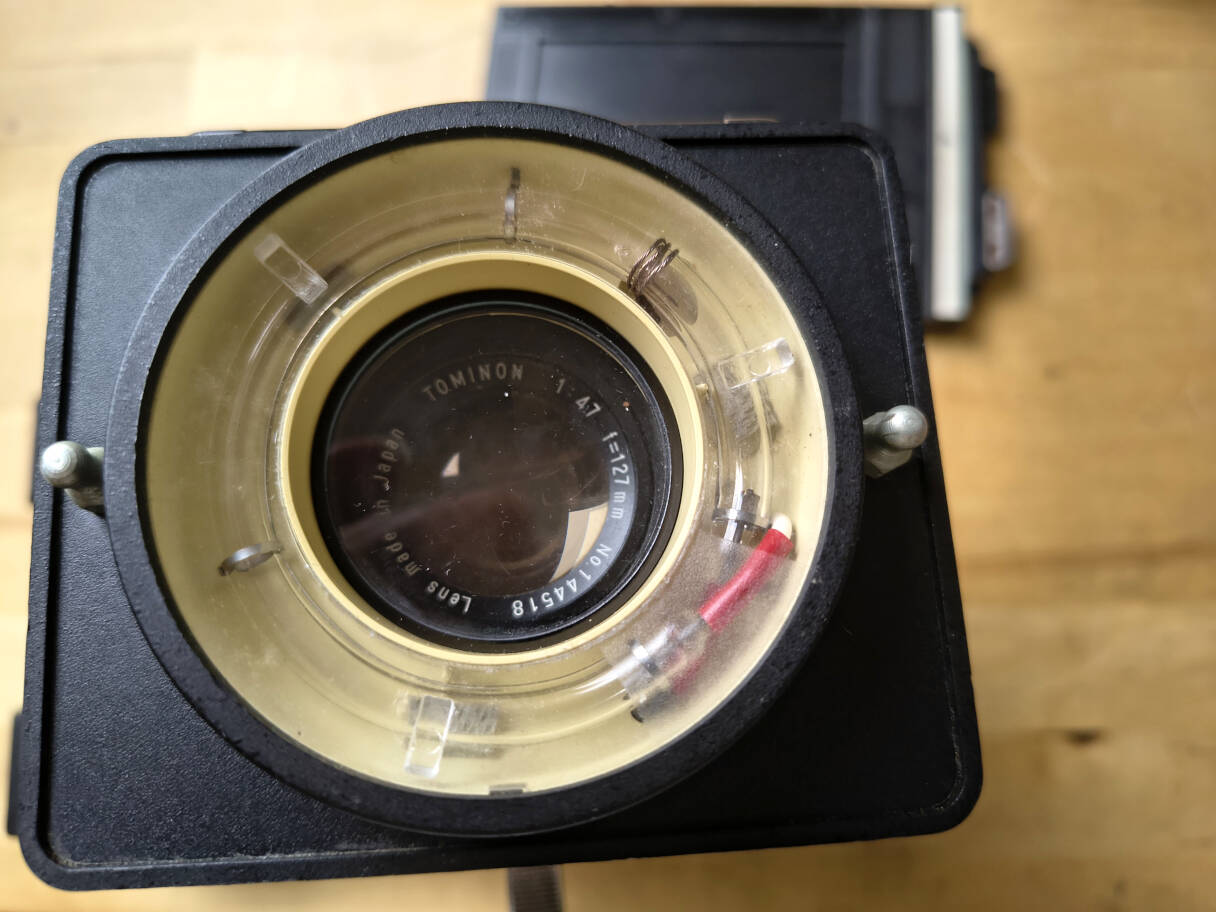

Drop the lens into the housing...

../jpgpola/polaroid_cu5_IMG_20250717_093358770.jpg

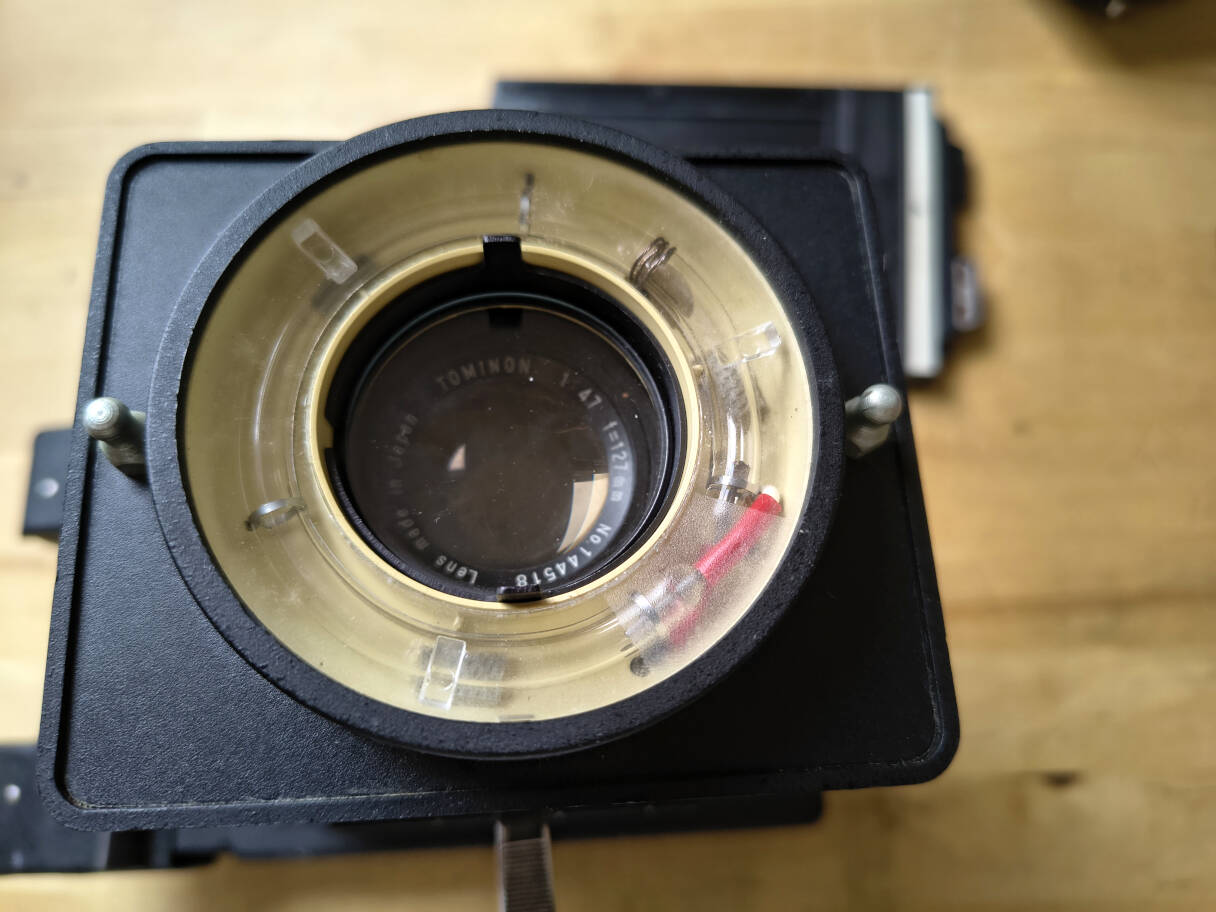

...and secure it with the clip. There is a 2:1 copy stand. I own one but I have not found it yet.

../jpgpola/polaroid_cu5_IMG_20250716_114202032.jpg

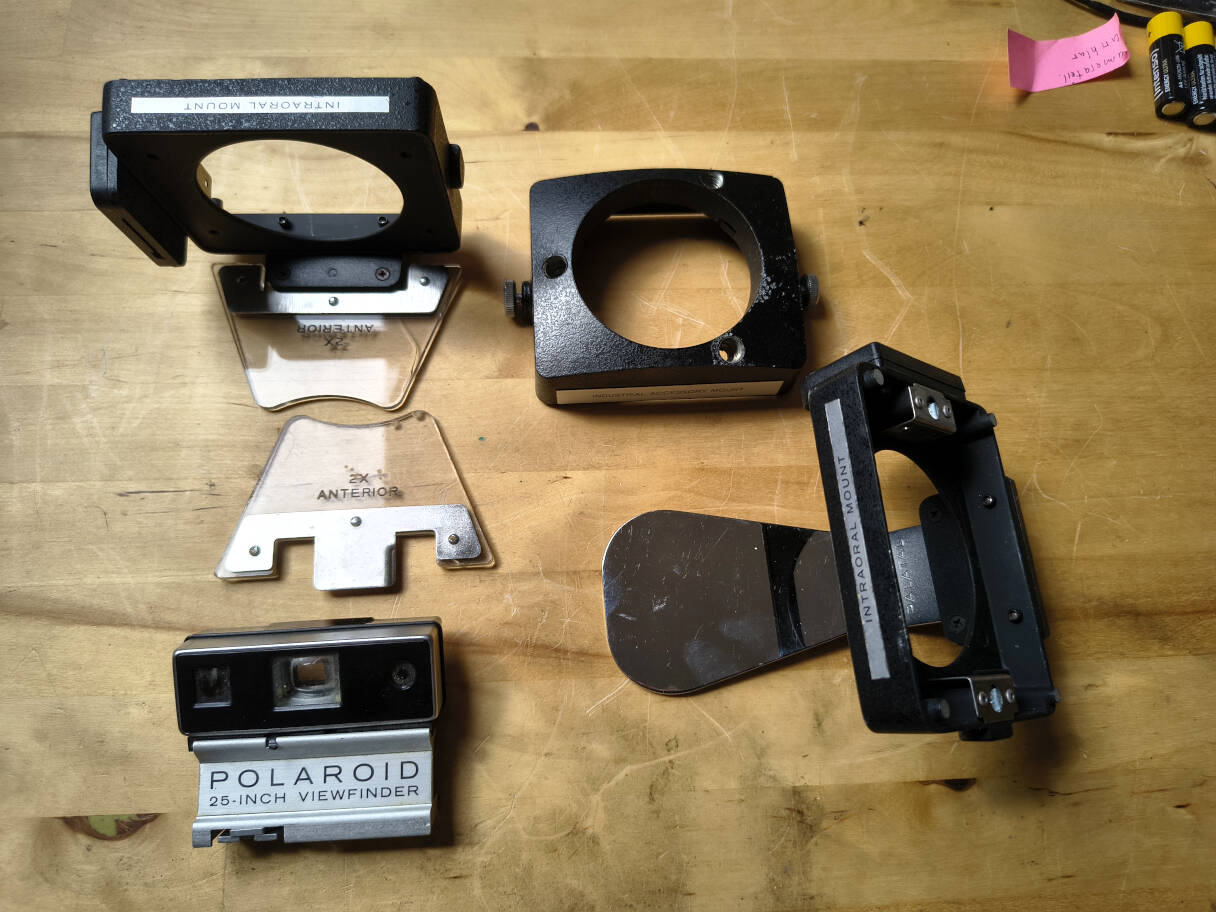

Up left 2 dental attachments for the lower jaw. You put the curved side against the gums and focus is fine with a 2x unit. The polished attachment serves as mirror to make pictures from the upper jaw. The attachment up right is the mount for the copy stand. Down left is the 25 inch finder.

In any case, this is a highly sophisticated system for multiple use. In my opinion it is widely underrated, like the MP4 system. And it's a wonderful source for tinkerers
