instantphoto.eu              Polaroid Daylab 300

This a rare special gear, the Polaroid Daylab 300. It allows to make copies of diapositives on 8x10 inch film. From the 50s to the 70s diapositives were sharper and had more details than colour negative film, so they were very popular. Nearly every shop for film and gear had a small daylab to provide paper copies of diapositives to their clients. Most Daylabs are focus free, but let you adjust colours. There were versions with fine focus, versions with several bases like one for integral film, and versions for bigger formats like 4x5 and this 8x10.

The Daylab 300 also allows to make copies from negative film to photo paper without a darkroom. The base is a waterproof tank. There are special bottles for the liquids with nozzles that fit the filler neck. So you can pour a liquid into the base, tilt the base towards the tray, wait the appropriate amount of time and pour it back into the bottle. Changing bottles provides you all the necessary steps to process a photo.

The Daylab 300 was delivered in a box with sleeves so that you can load the base either with polaroid material or photo paper in daylight. In the case of Polaroid 8x10 film, you have to transfer the exposed material back into a holder for the Polaroid 8x10 Processor. I don't have the box any more, but a big changing bag will do.

Most Daylabs were delivered with a converter 12 volt to 120 volt, so if you live in Europe, pay attention to not plug it into 230 volt without another converter. But any 12 volt to 230 volt converter of 1 A would do. The 12 volt plug is standard and easy to find. There were Daylab versions with batteries, but I would not recommend them.

Some pictures:

../jpgpola/pola_daylab_300_IMG_2526.JPG
The Daylab 300.

../jpgpola/pola_daylab_300_IMG_2529.JPG

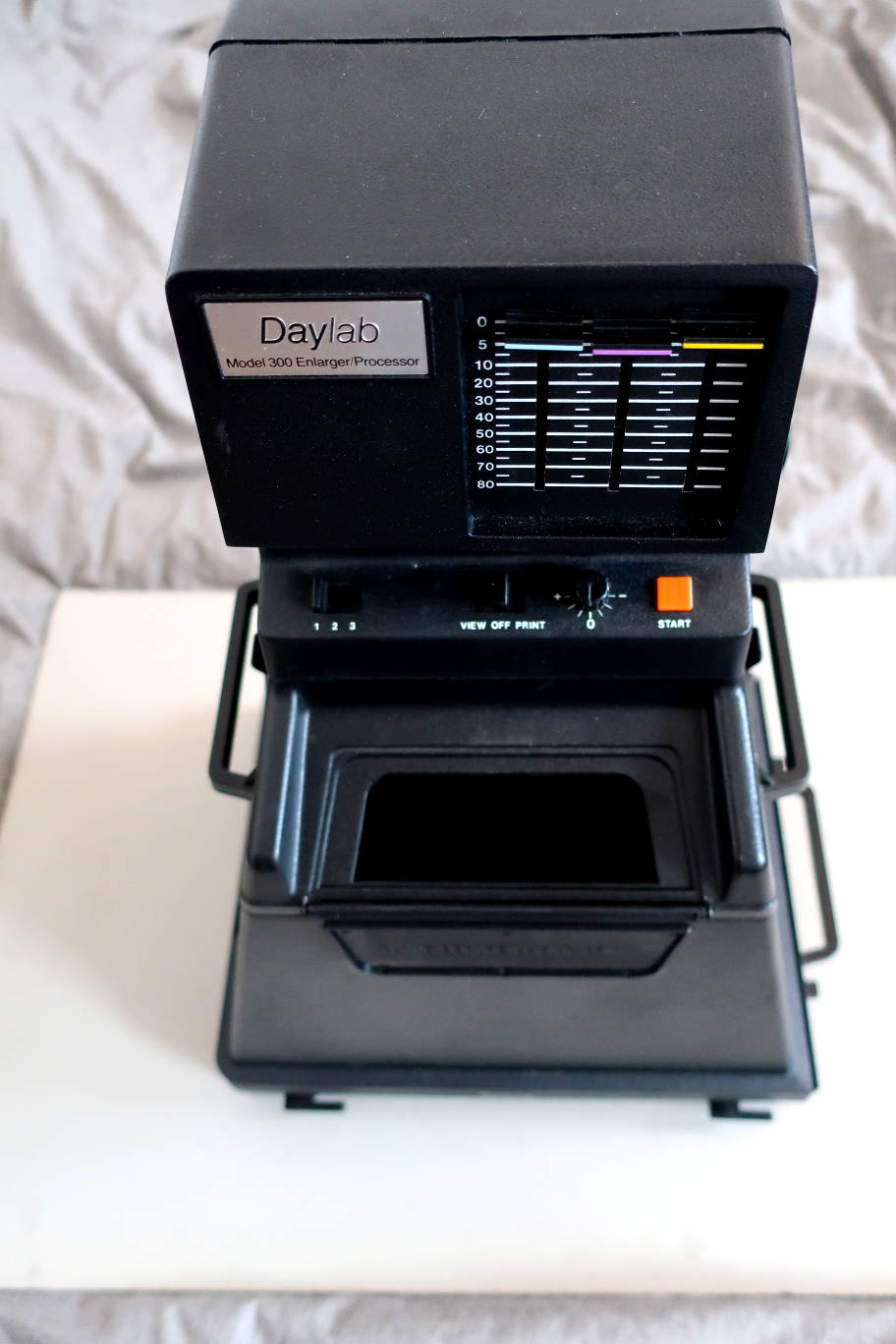

Panel. 3 sliders for colour correction. Film type switch, sets ISO: 1 =  b&w film, 75 ISO, 2 = 80 ISO, 3 = 100 ISO. View/Off/Print switch. Lighten/Darken setting. Start button and "flash ready" lamp.
Image preview door open.

../jpgpola/pola_daylab_300_IMG_2530.JPG
Image preview door open. The image is projected on the white dark slide for framing. Then close the door, switch to "off" before retracting the dark slide, after unlocking and pulling the dark slide move the switch to "print". Wait until the flash is charged. Push the start button, a flash will print the slide on film. Re-insert the dark slide and lock. That's it.

../jpgpola/pola_daylab_300_IMG_2532.JPG

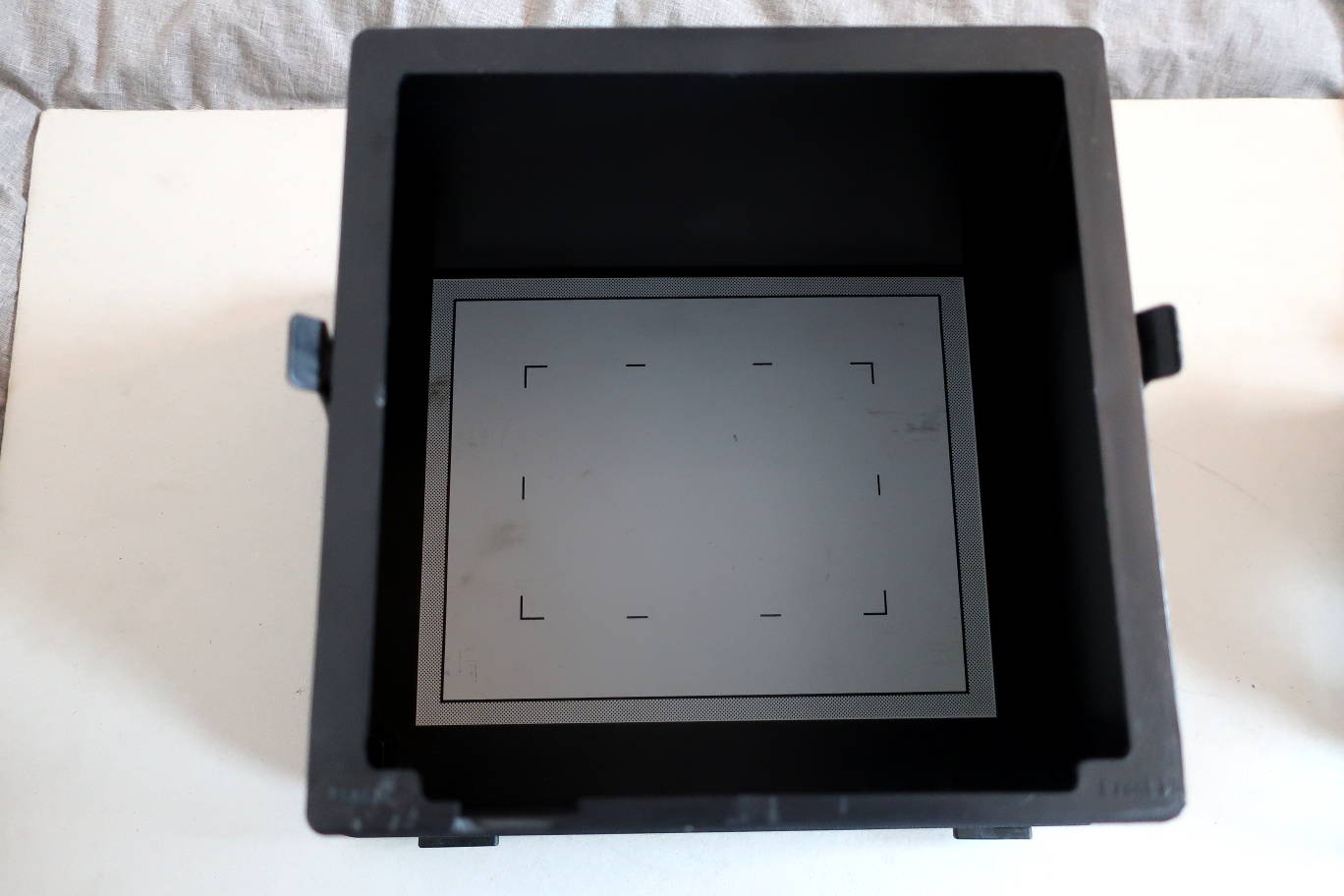

View of the base with framelines.

../jpgpola/pola_daylab_300_IMG_2528.JPG
Dark slide pulled, it has a stop.

../jpgpola/pola_daylab_300_IMG_2517.JPG

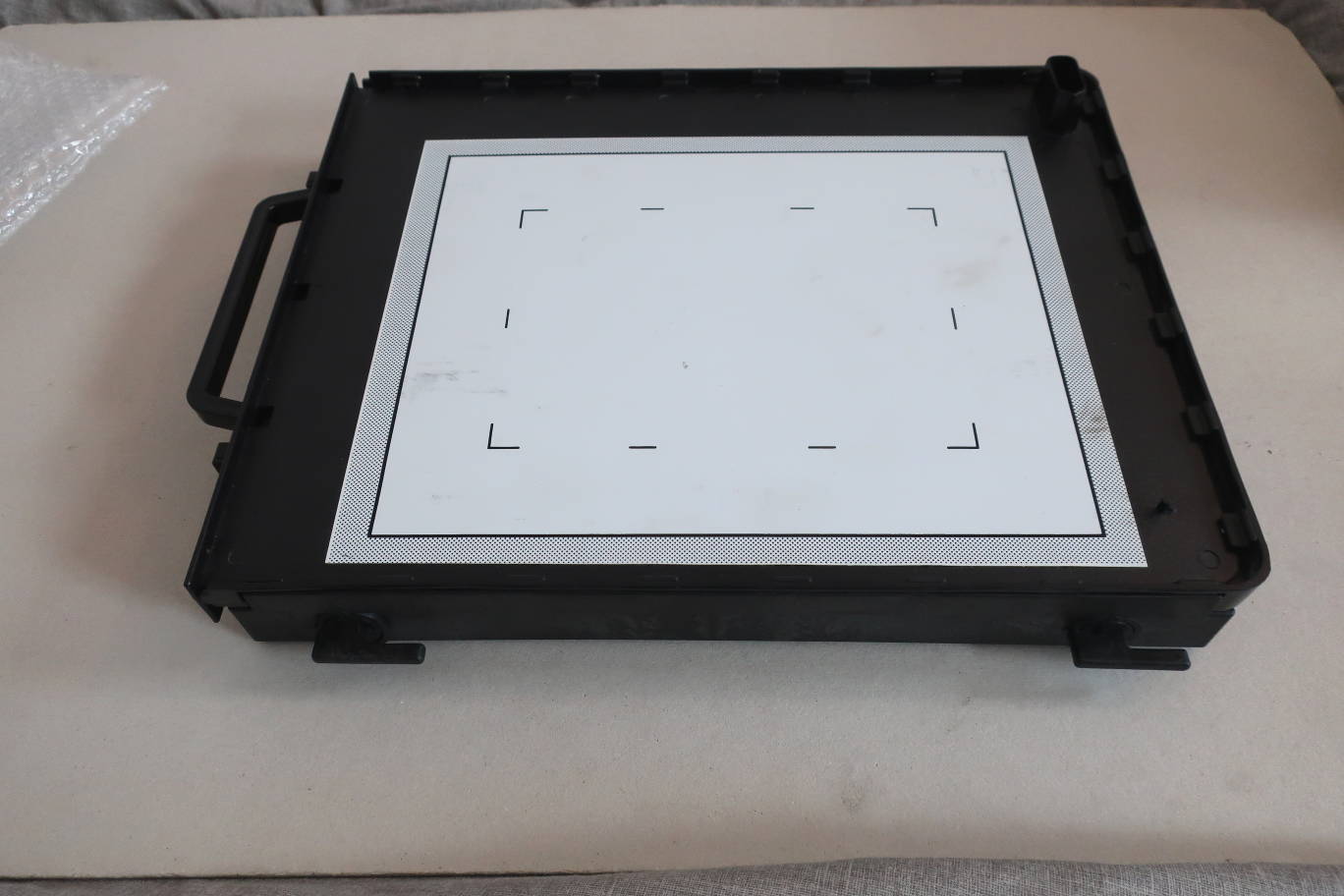

Base, all 4 locks closed.

../jpgpola/pola_daylab_300_IMG_2519.JPG
Base, locks open. The slide has rubber sealings to keep the base waterproof.

../jpgpola/pola_daylab_300_IMG_2520.JPG
Slide taken off.

../jpgpola/pola_daylab_300_IMG_2521.JPG

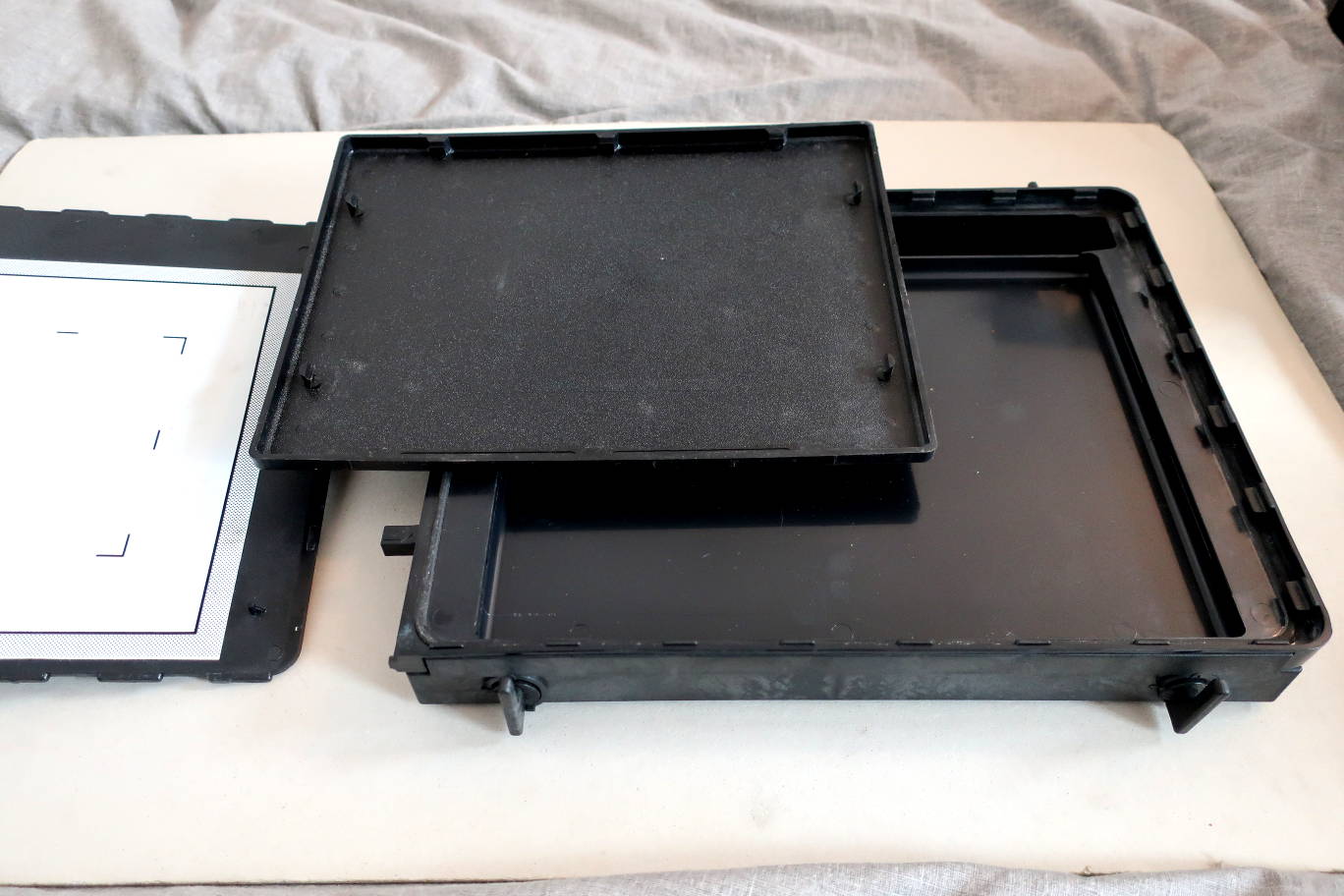

Tray taken out. This is a 8x10 tray, it keeps an 8x10 sheet in place.

../jpgpola/pola_daylab_300_IMG_2523.JPG
Base with bottle connected.

../jpgpola/pola_daylab_300_IMG_2541.JPG

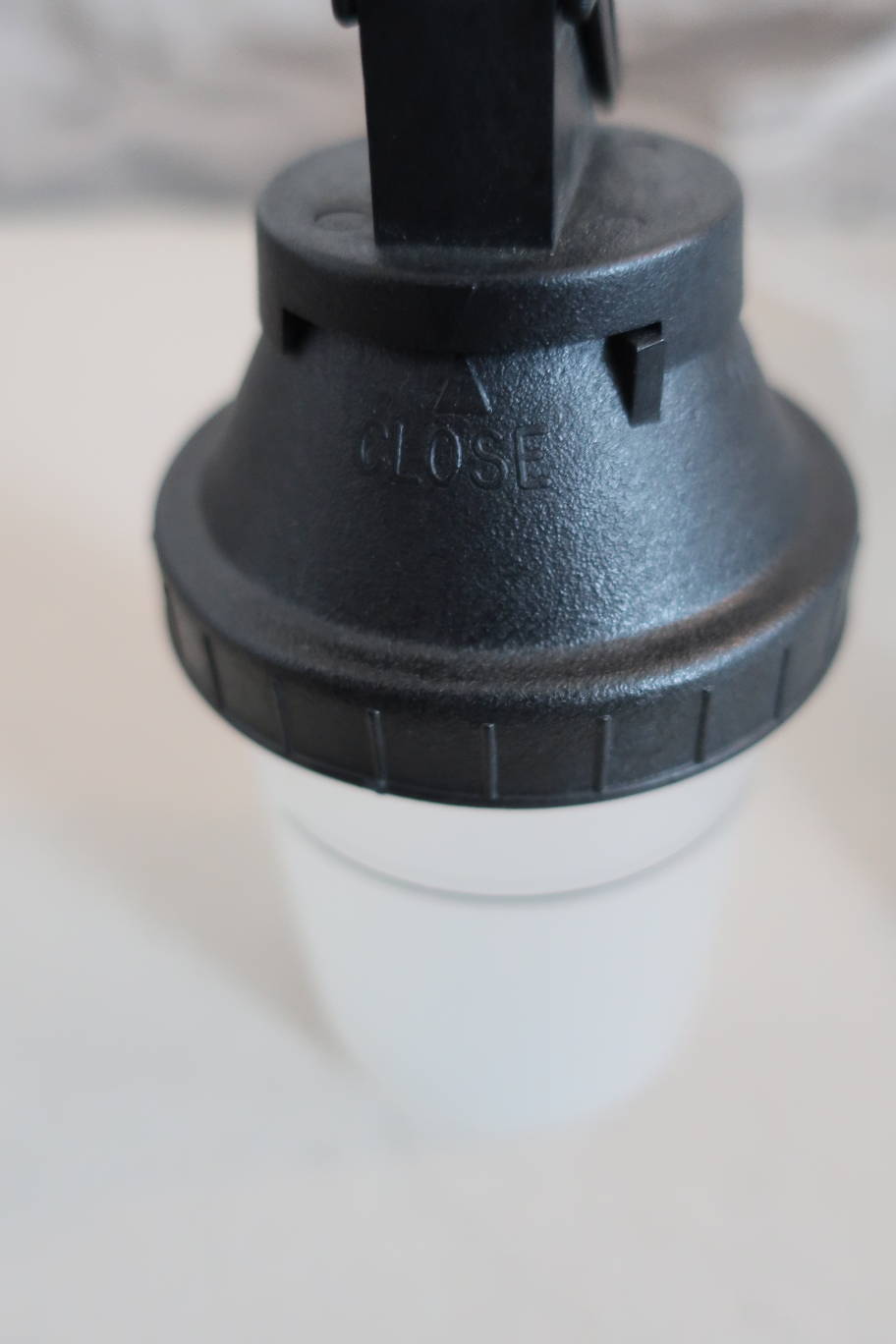

Bottle open.

../jpgpola/pola_daylab_300_IMG_2542.JPG
Bottle closed, just a quarter turn and it's done

../jpgpola/pola_daylab_300_IMG_2524.JPG

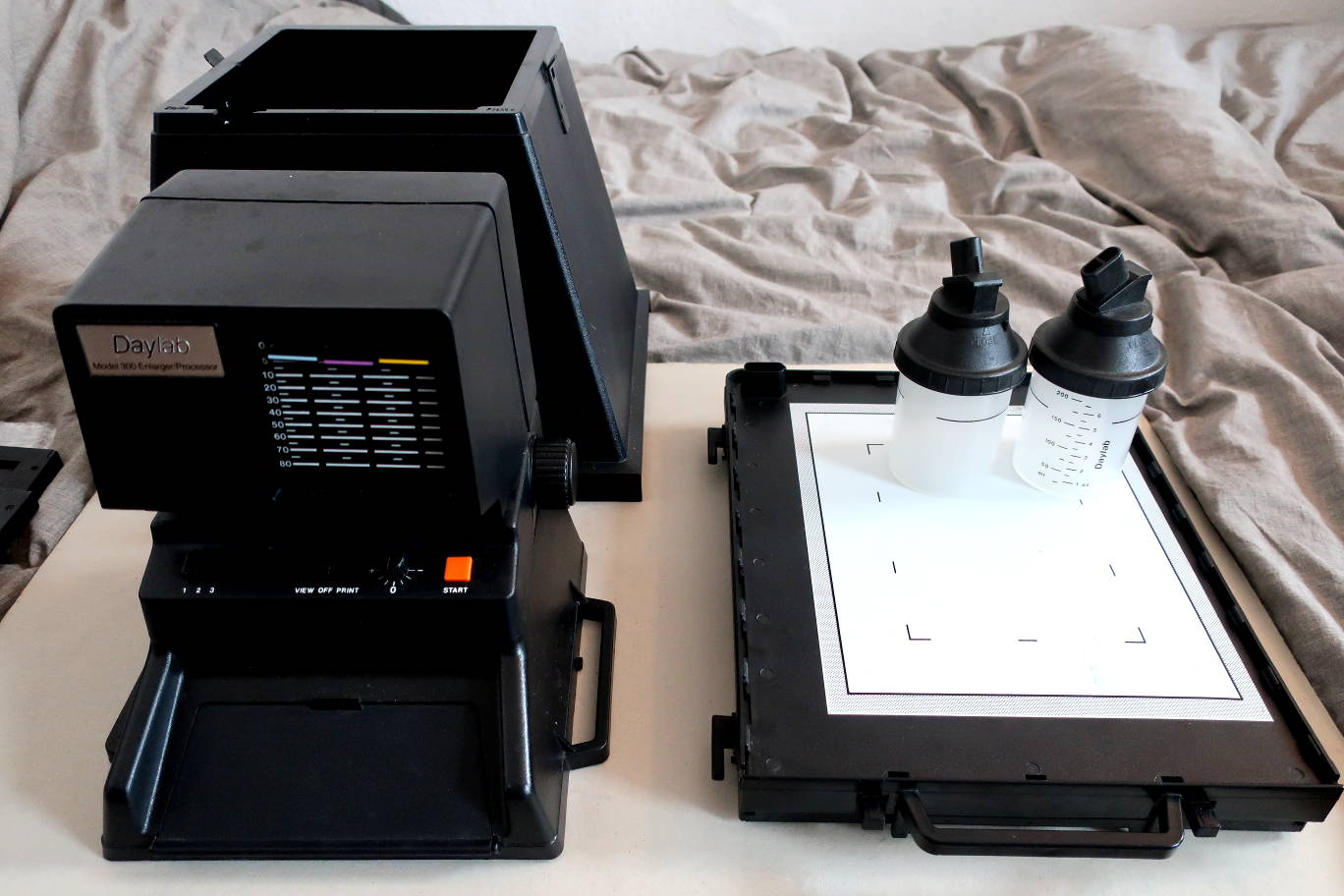

The Lab taken apart.

../jpgpola/pola_daylab_300_IMG_2539.JPG

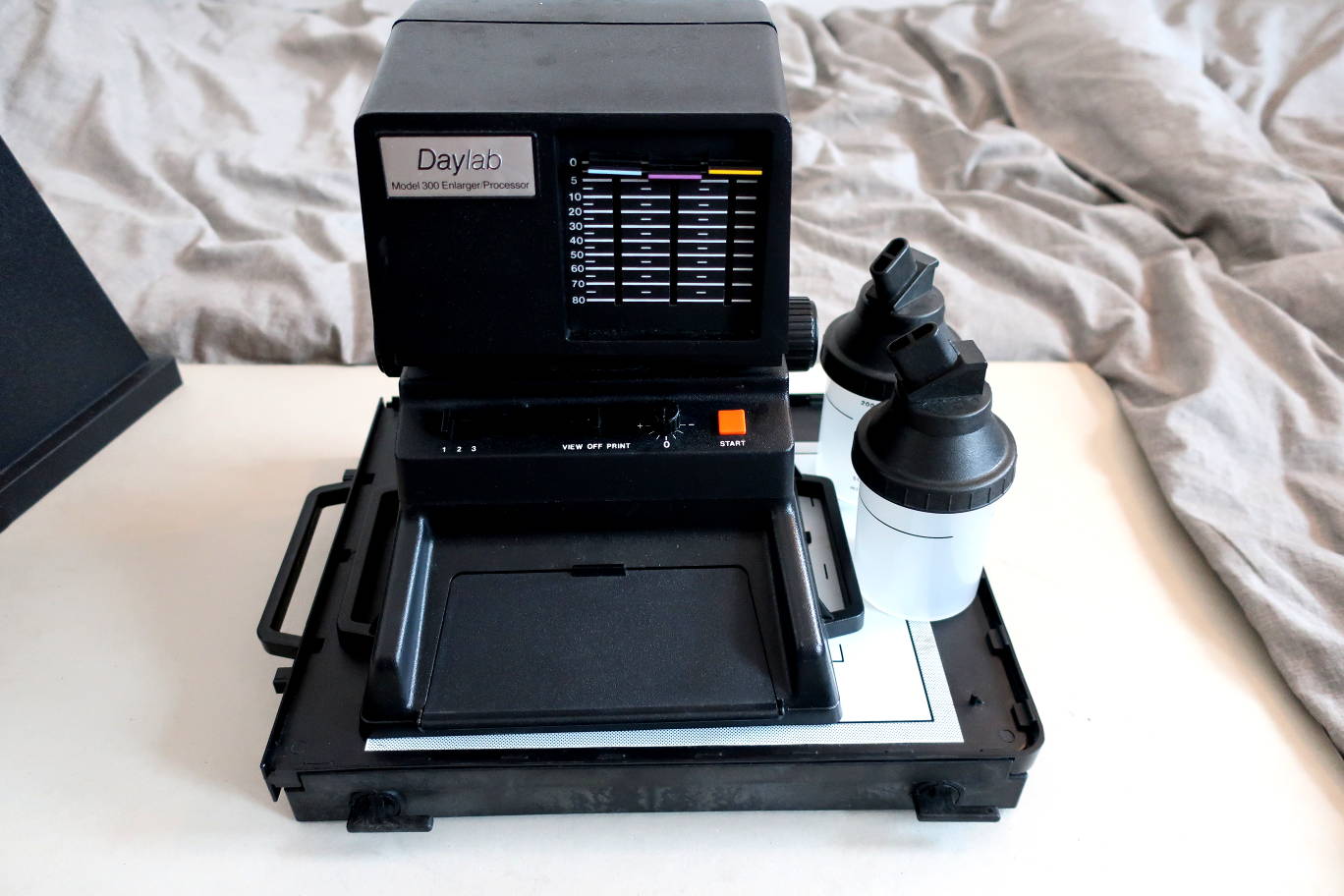

It all fits together....

../jpgpola/pola_daylab_300_IMG_2540.JPG

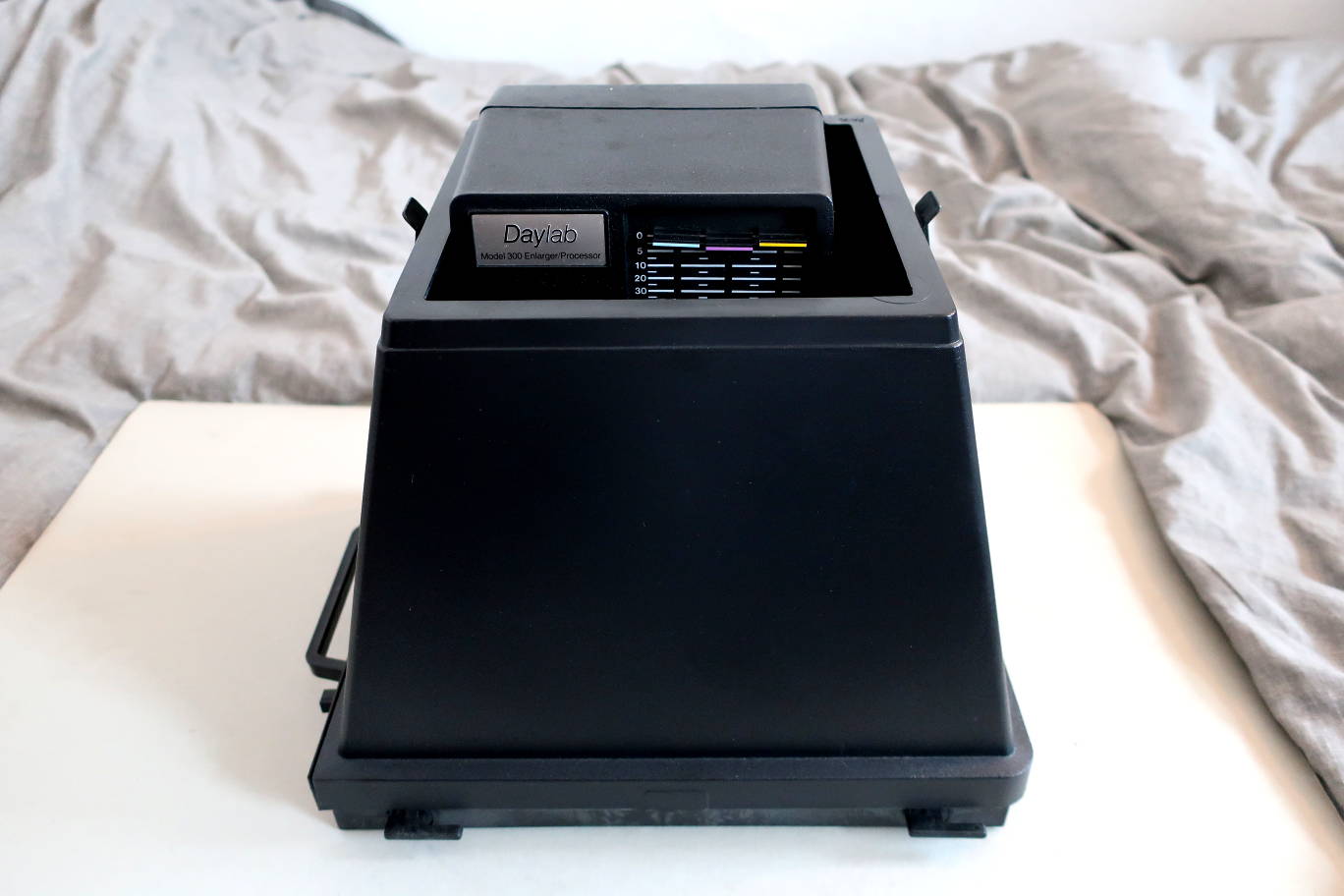

...into a mall space.
