instantphoto.eu              Studio Polaroid digital 360 Instant Camera System (SPd 360)


This is very special gear, the Studio Polaroid digital 360 Instant Camera System (SPd 360). There is little information about it, but it fits into the 2000s strategy of the Polaroid company to integrate computers into their systems. There was the Palette system which could capture pictures from computers, early digital cameras and even digital videos to Polaroid film. This SPd system can also be connected to other computers. The name is an unfortunate choice, as there was already a 360 camera with an electroic flash.

It is a professional studio system that allows any kind of lighting as daylight, spotlight, studio light system, flash on the camera and studio flash system. Lighting can be fine tuned. The camera with a 1:6 zoom and an extremely lumious lens leaves nothing to desire. An external VGA or SVGA monutor can be connected to the system for better image control.

Some technical information from the manual:

Camera sensor: 1.4 Megapixel progressive scan CCD sensor

Camera lens:
Focal length: 5.7mm to 34.2mm
Zoom: 6:1 ratio
Aperture: f/1 to f/16
Focus: 1.3m to infinity

Camera preview screen:
PAL format composite video
4” TFT 480 x 234 dots
160 x 3 x 234 pixels

No printer specification available.


Some pictures:

../jpgpola/polaroid_spd_360_IMG_20250721_105807738.jpg

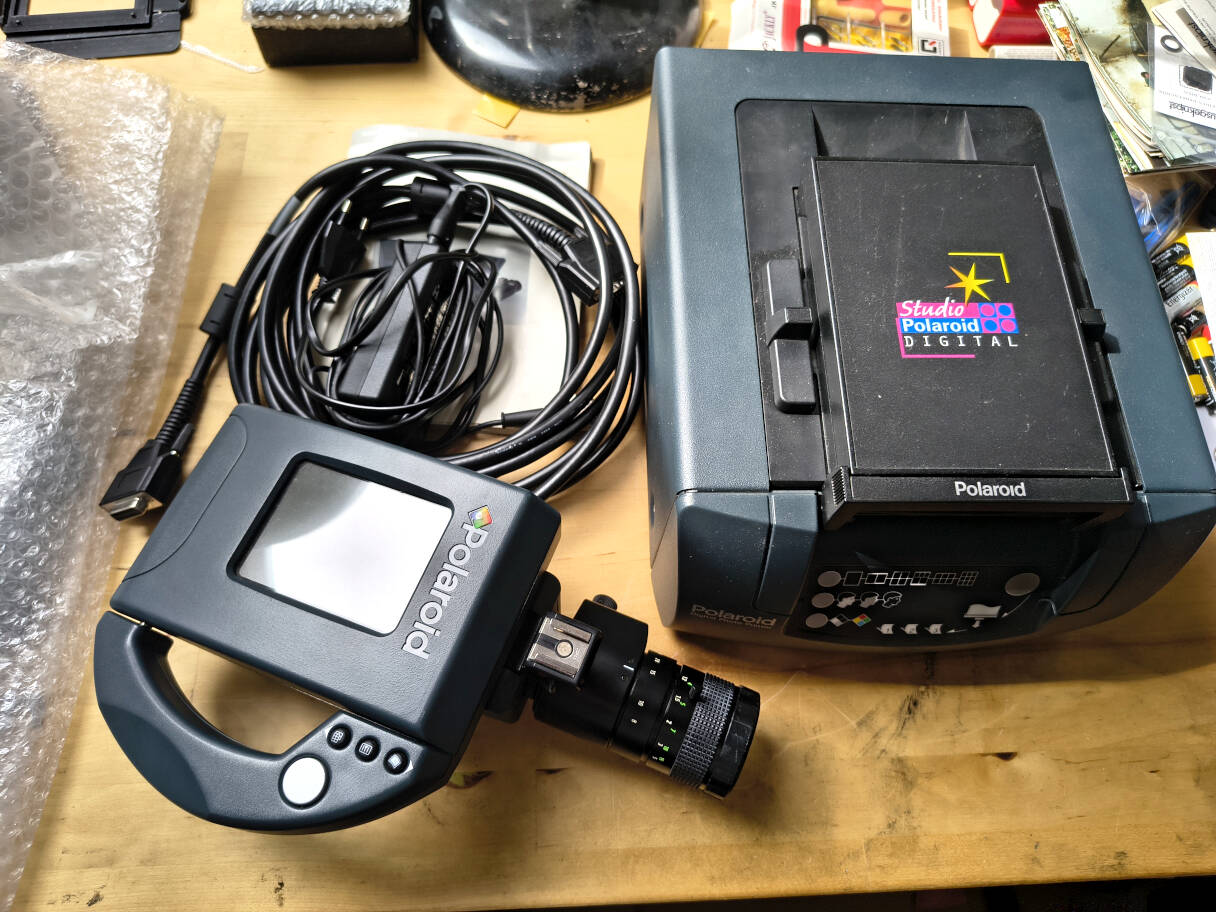

The system consists of a printer unit, a camera unit, 9v supply and a long cable between camera and printer.

../jpgpola/polaroid_spd_360_IMG_20250721_105932931.jpg

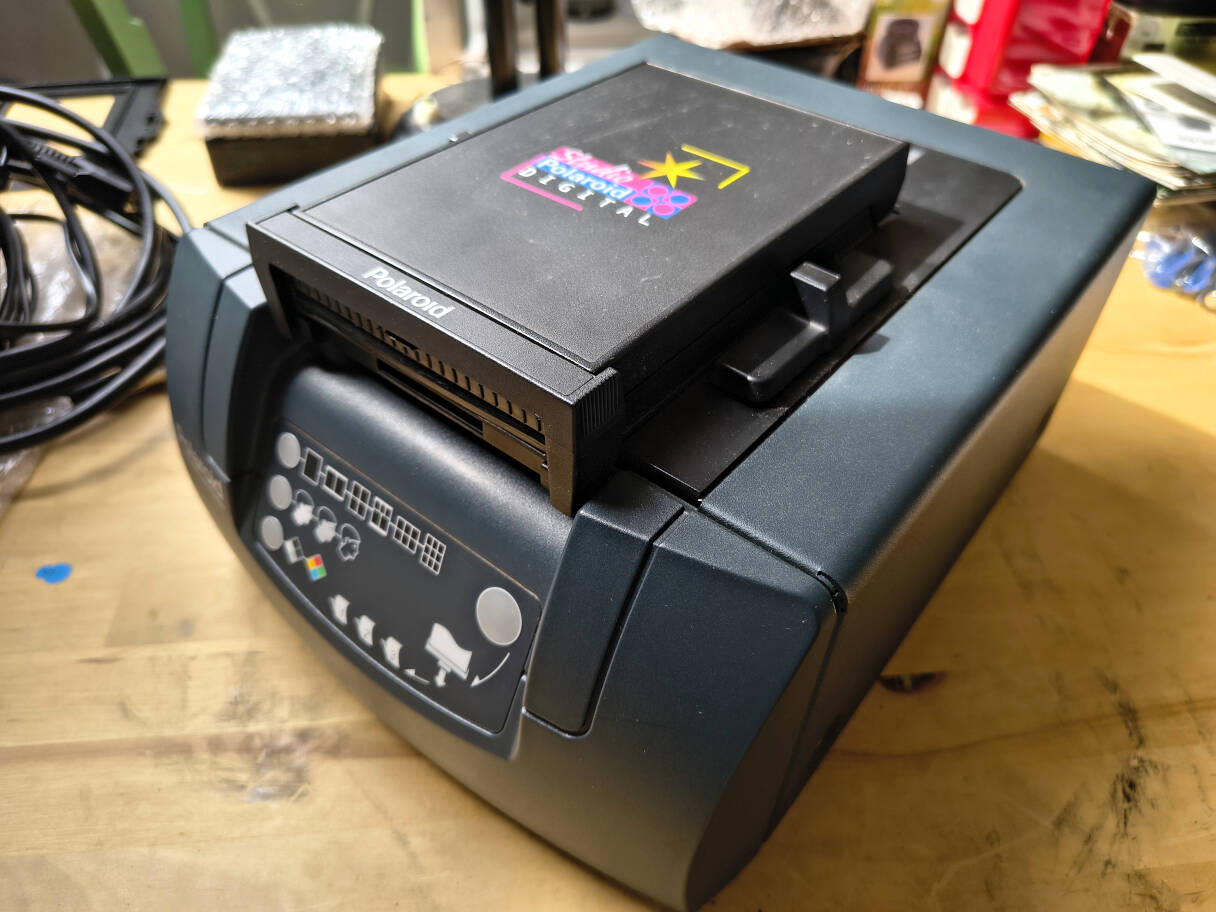

The printer unit with its pack 100 holder in its top.

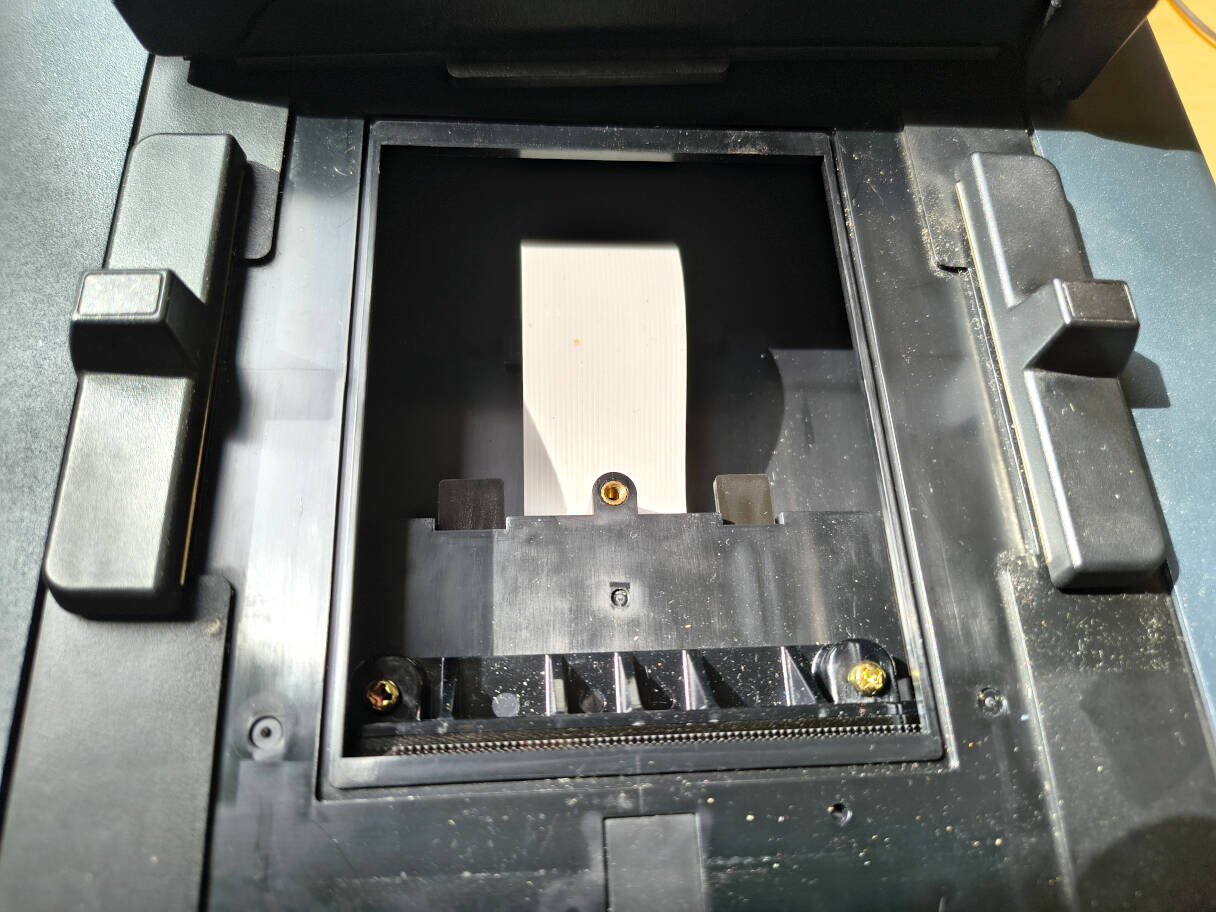

../jpgpola/polaroid_spd_360_IMG_20250721_110122048.jpg
Holder deposed. A unit similar to a scanner will move along the negative and expose it via LEDs.

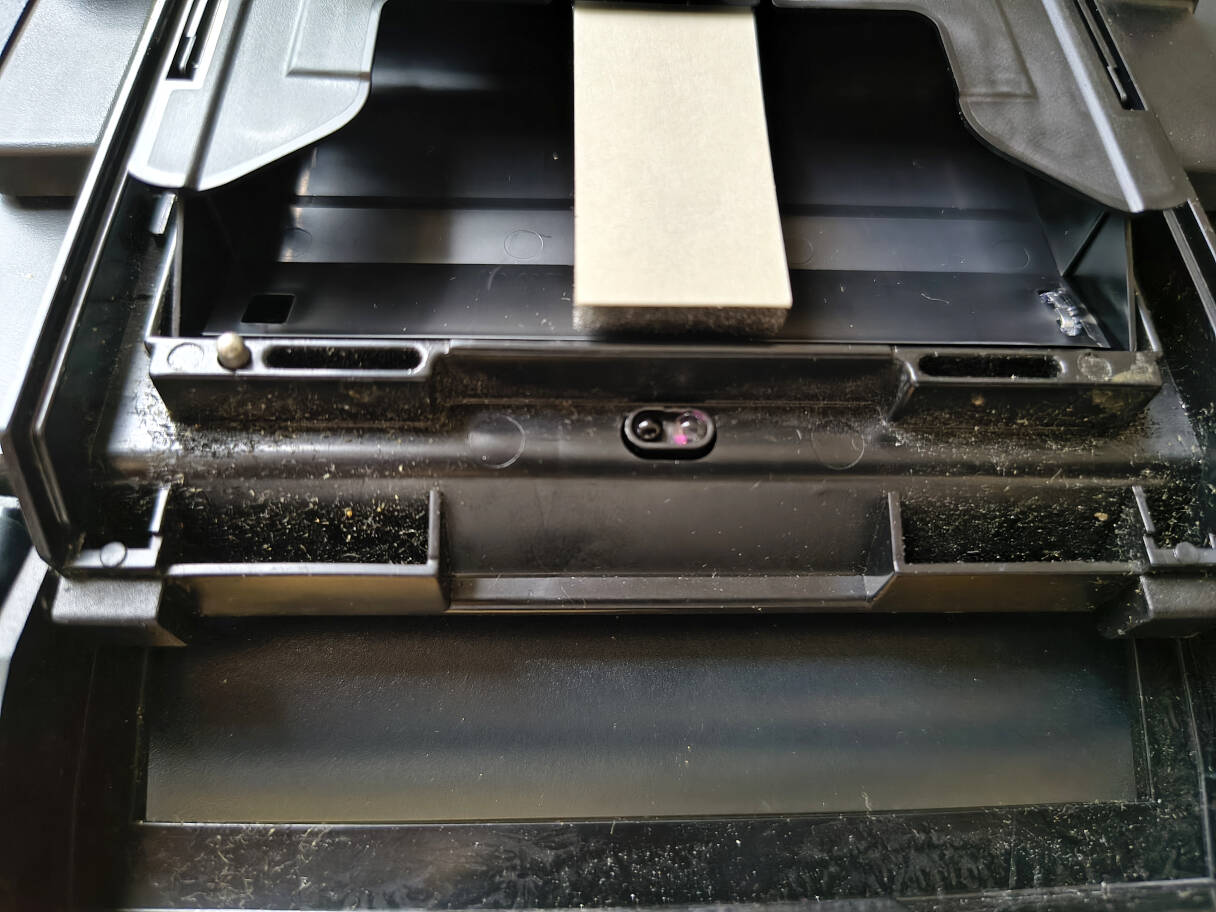

../jpgpola/polaroid_spd_360_IMG_20250721_150926810.jpg
The system has 2 error controls. towards the left a pin is depressed as long as there is film in the cartridge. In the middle a device detects the presence of the white tab before printing and it starts counting the development time when the tab drawn.

../jpgpola/polaroid_spd_360_IMG_20250721_110831754.jpg

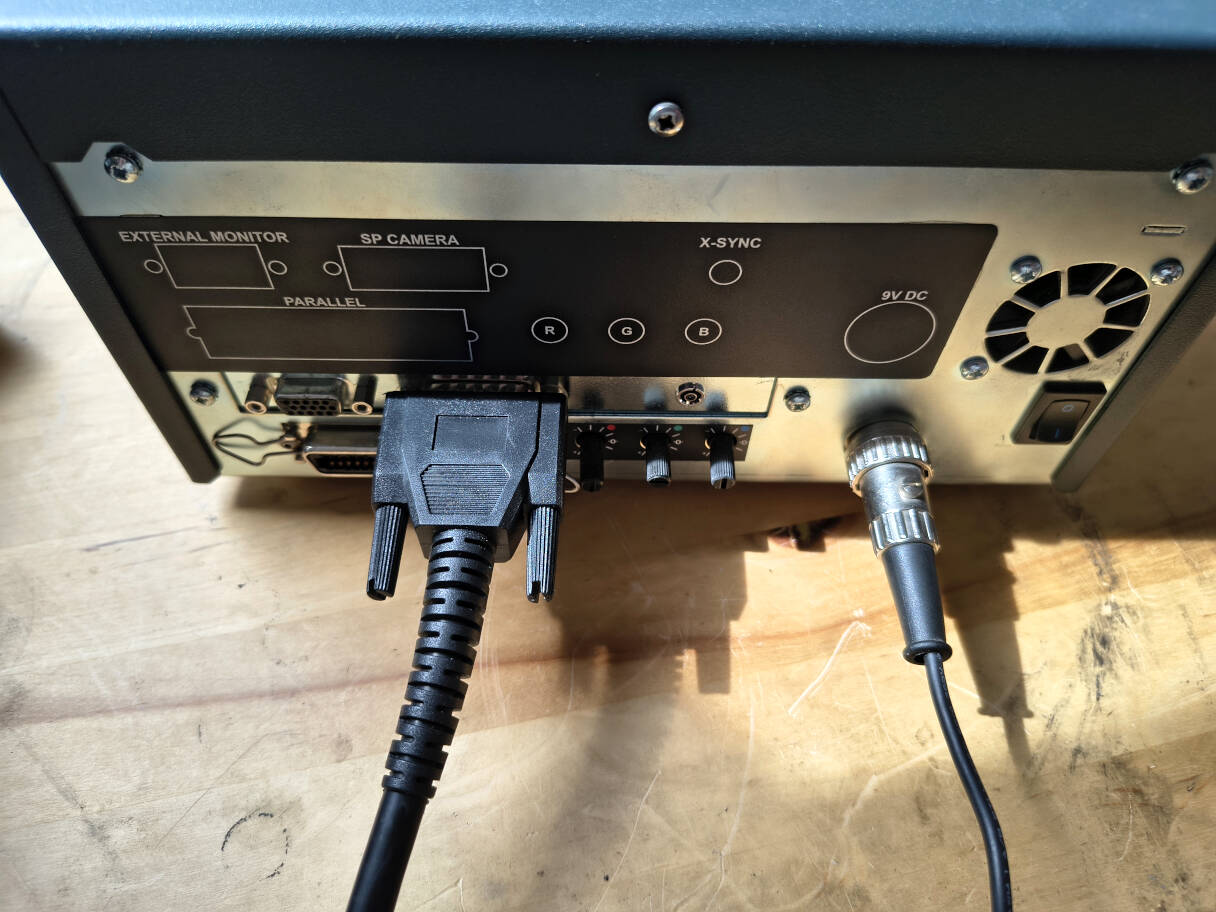

Seen from the back and connected. There is even a PC flash socket to connect a studio flash system.

../jpgpola/polaroid_spd_360_IMG_20250721_112518924.jpg

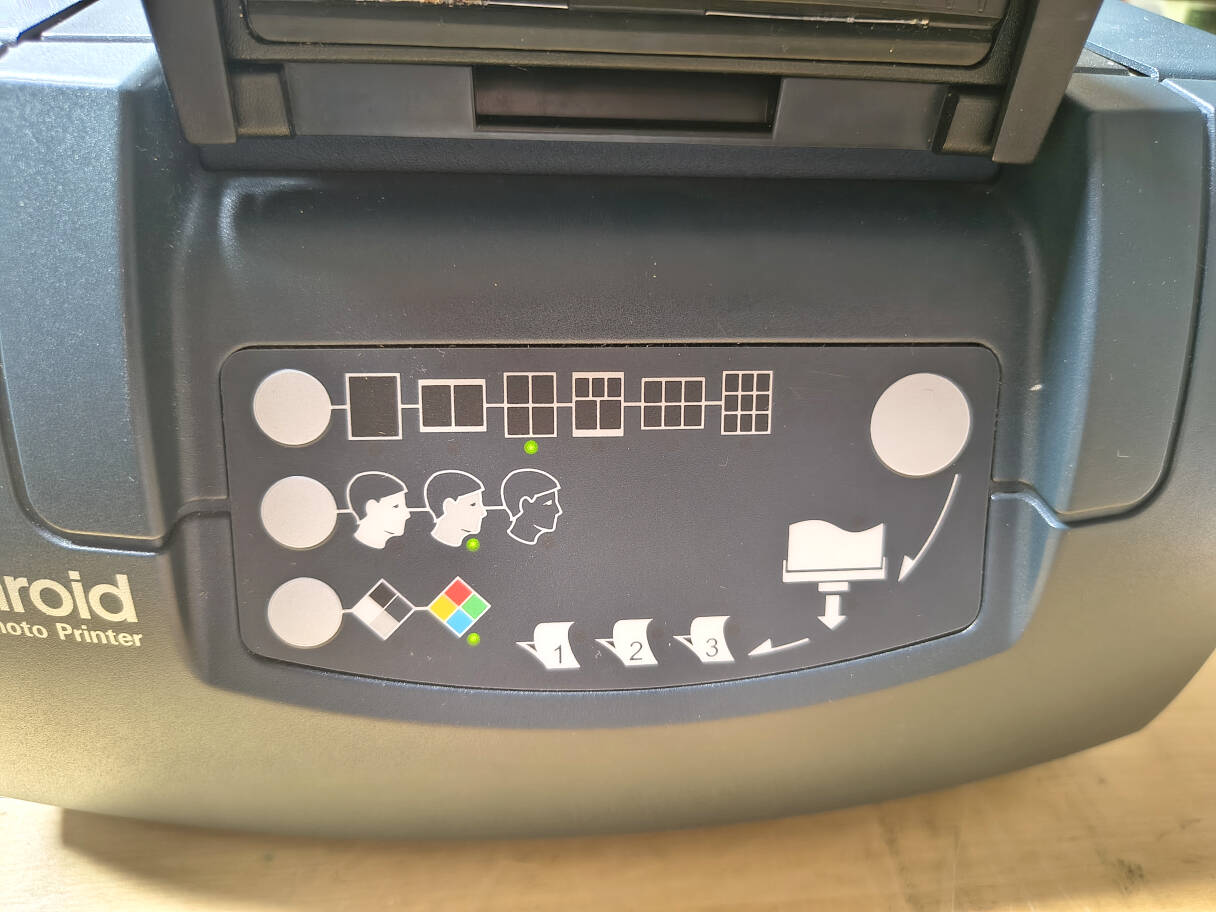

Printer setting panel. Left: 3 selectors: Format (1 to 9 pictures on a print), Skin tone (dark, medium, white), Film type (b&w, colour). Right: Print button.

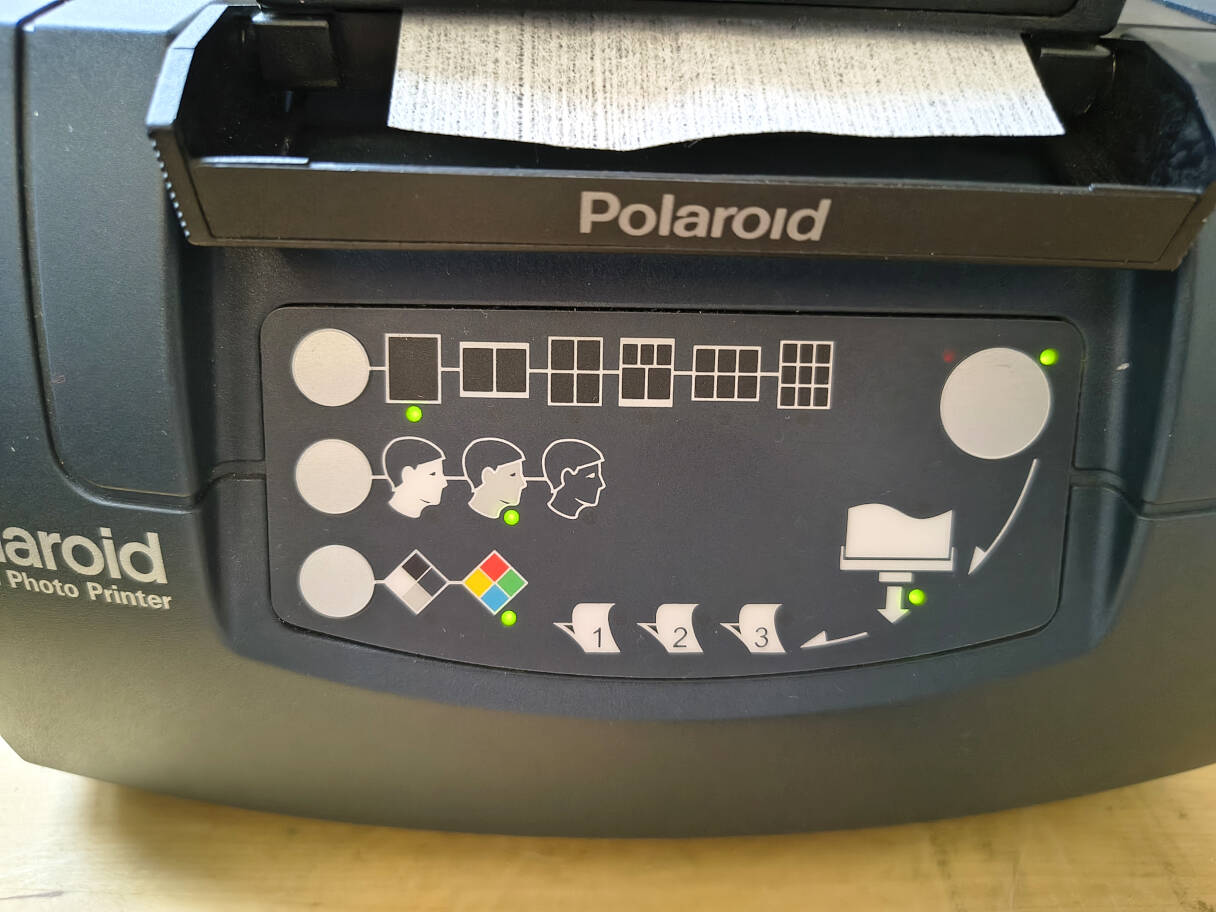

../jpgpola/polaroid_spd_360_IMG_20250721_150849135.jpg
You can only print when there is a picture frozen on the camaera screen. Here printing has ended and the systems waits that you pull the white tab. If you do so, it starts counting the development time and no.1 will light up. At the end no.1 will blink and beep. If you print pictures in a row, the system could manage up to 3 development cycles (no. 2 and 3). Note that I had to put a white paper in front of the cartridge sensor simulating a white tab to show this. Otherwise printig would not start.

../jpgpola/polaroid_spd_360_IMG_20250721_110313056.jpg

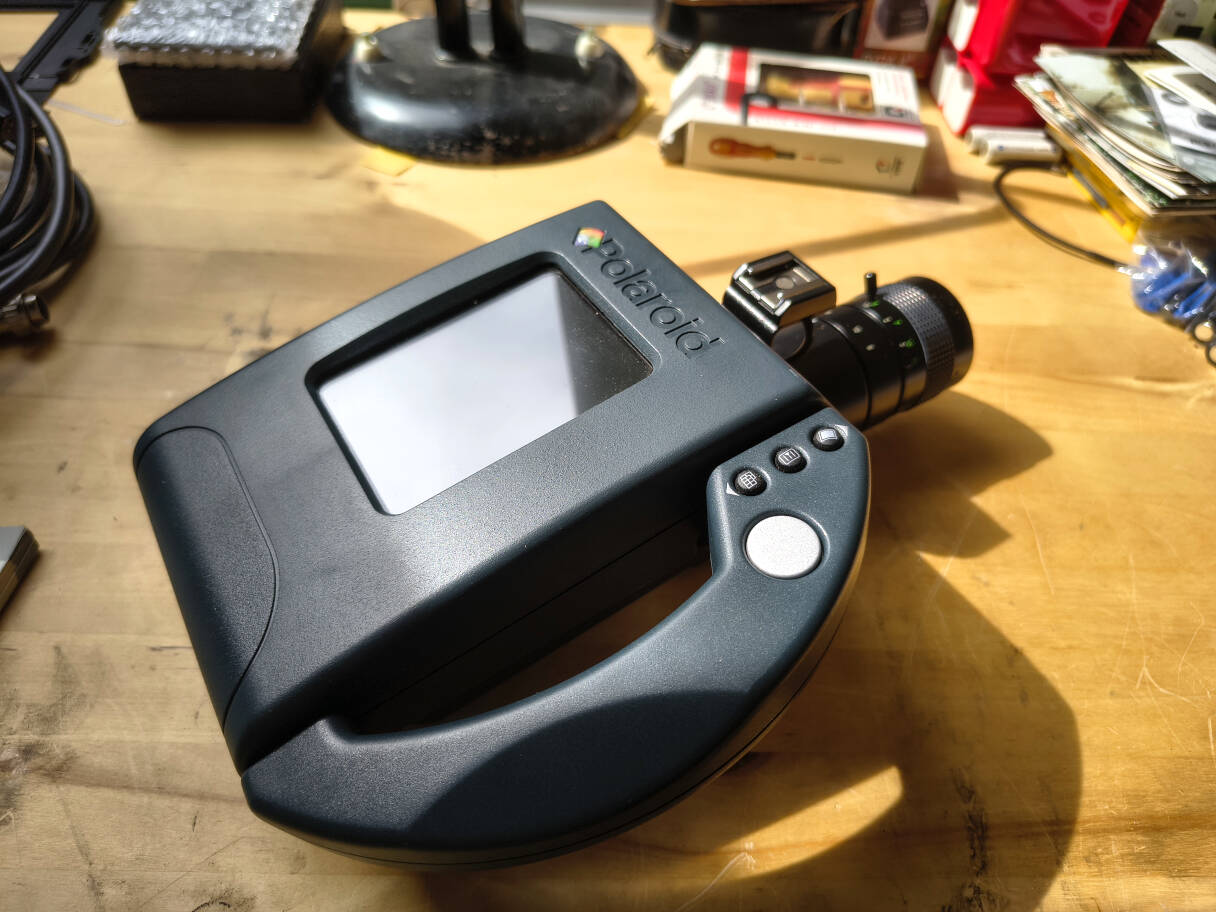

The camera. On the handle 3 menu buttons and freeze/unfreeze button.

../jpgpola/polaroid_spd_360_IMG_20250721_110337019.jpg

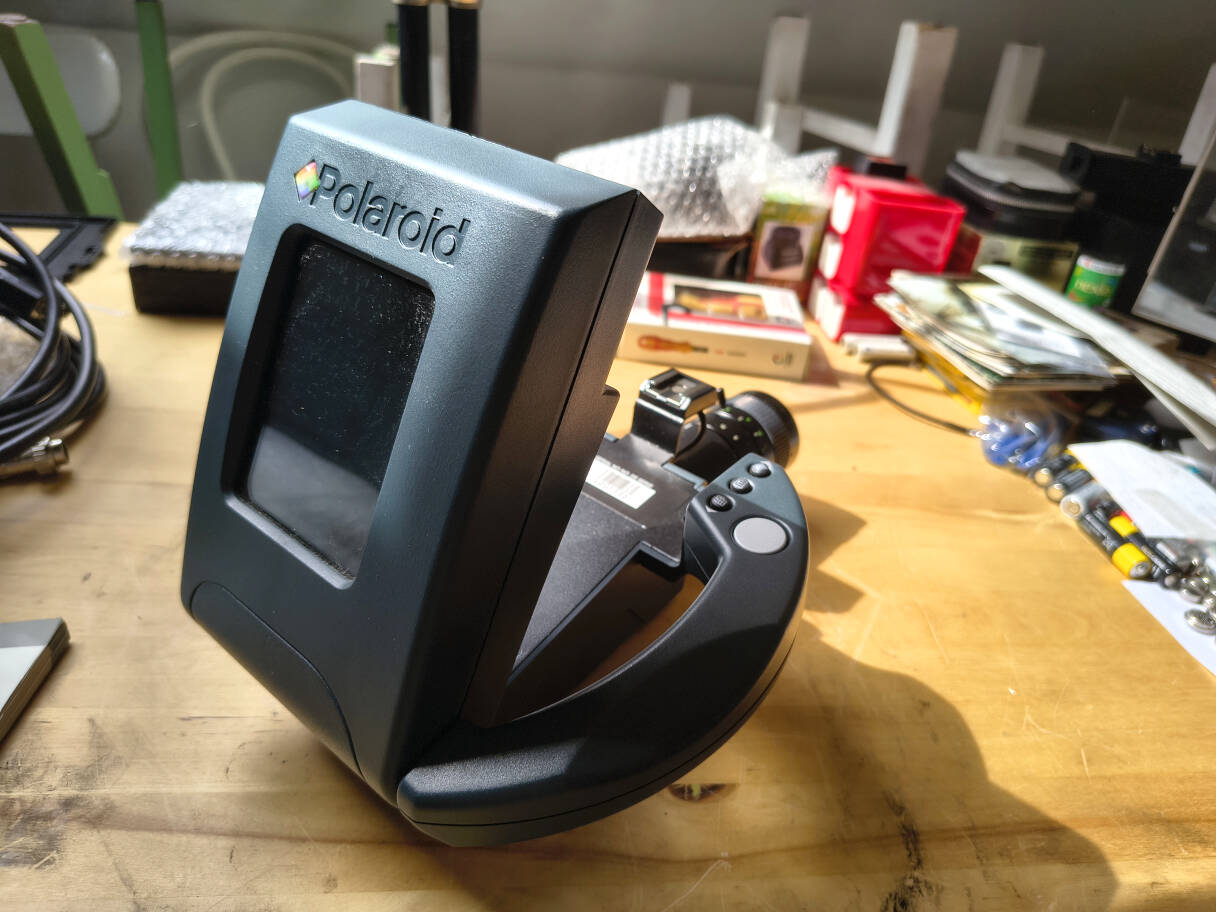

The screen can be lifted for better visibility.

../jpgpola/polaroid_spd_360_IMG_20250721_110455472.jpg

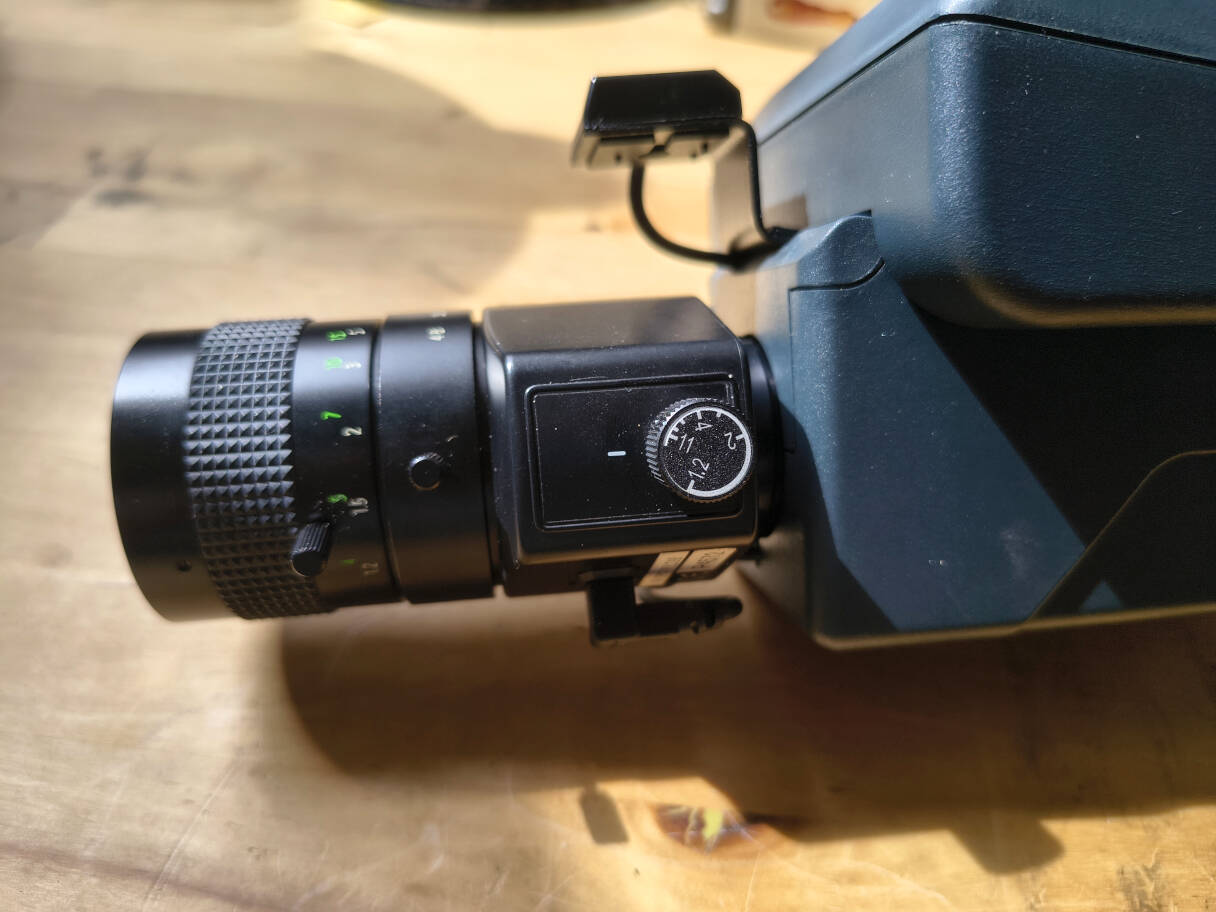

F stop selector on the lens.

../jpgpola/polaroid_spd_360_IMG_20250721_110502840_.jpg

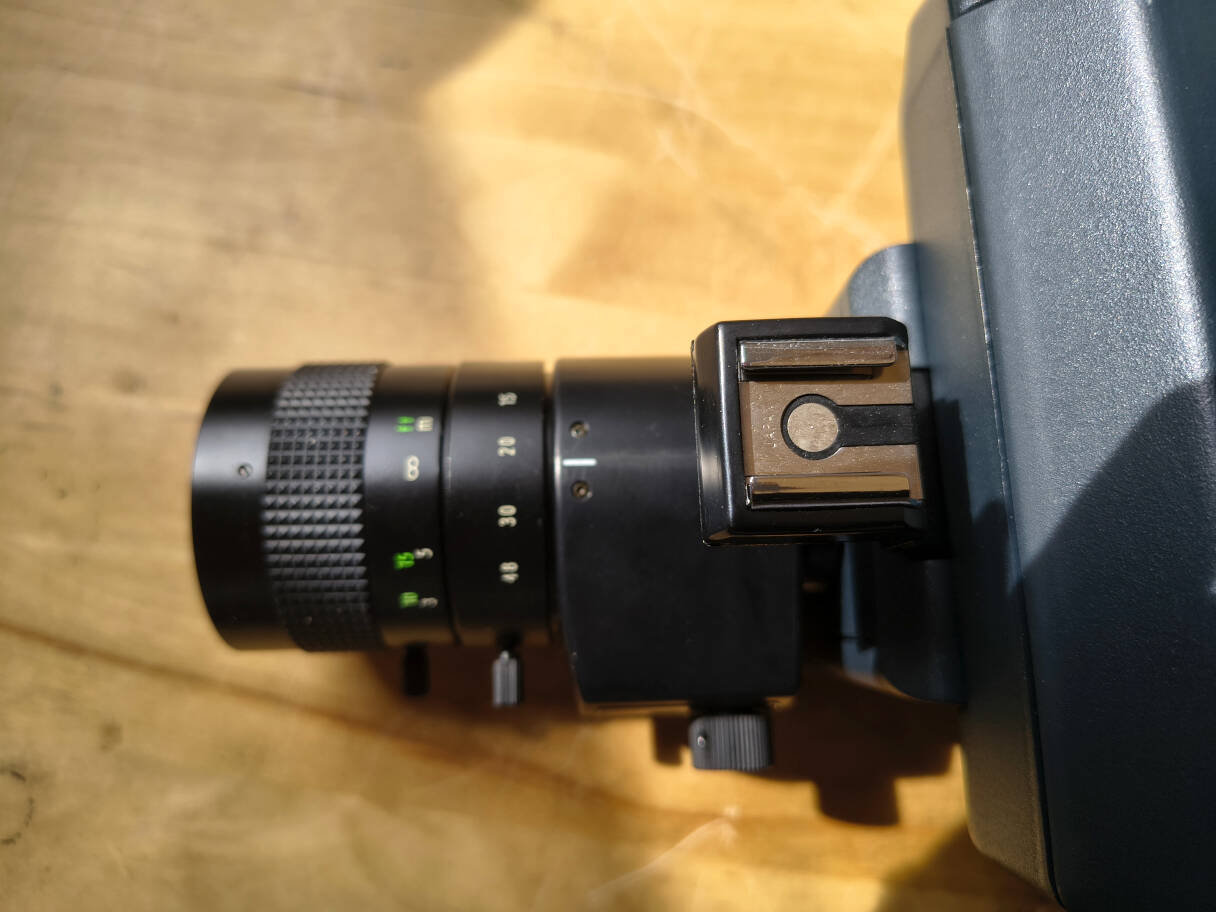

Zoom and distance.

../jpgpola/polaroid_spd_360_IMG_20250721_110532241.jpg

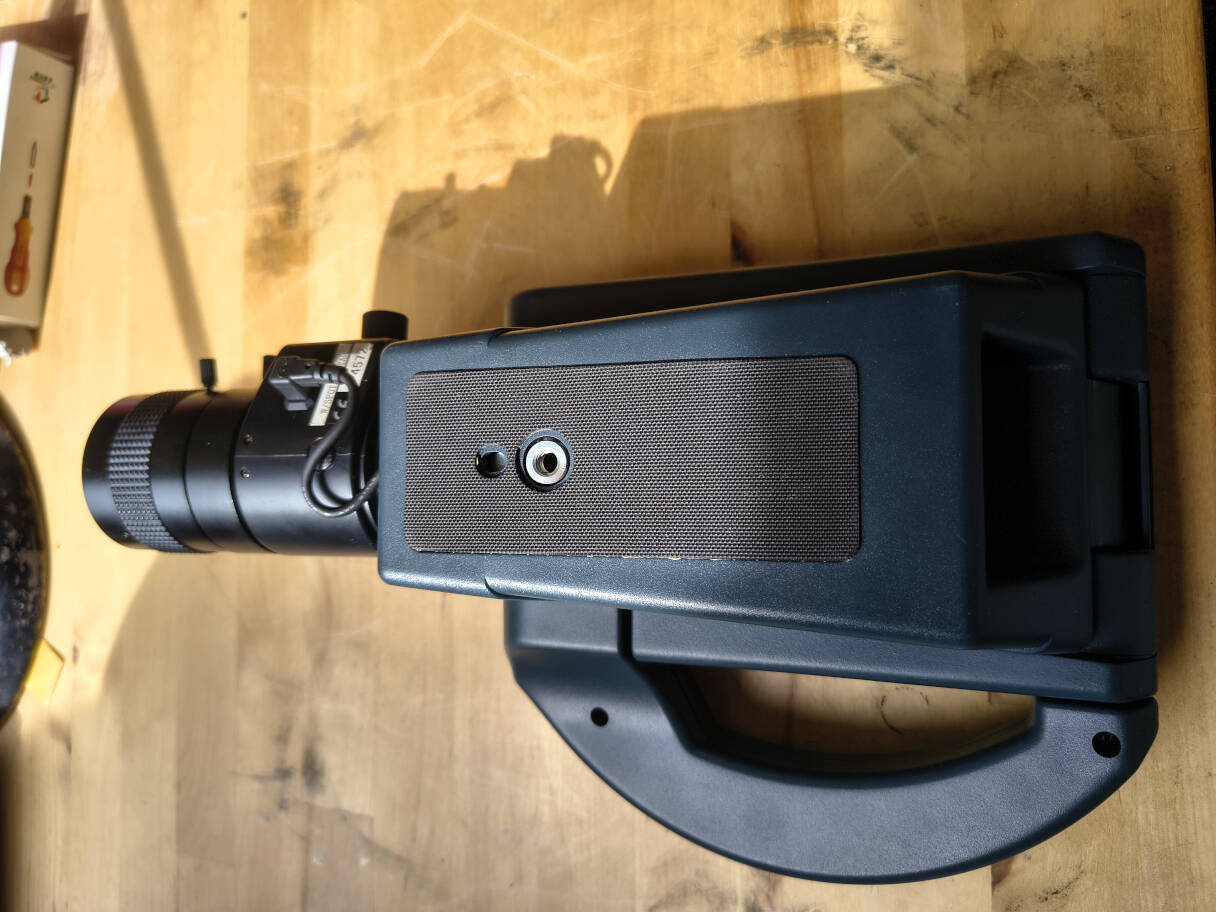

There is a tripod socket at the bottom.

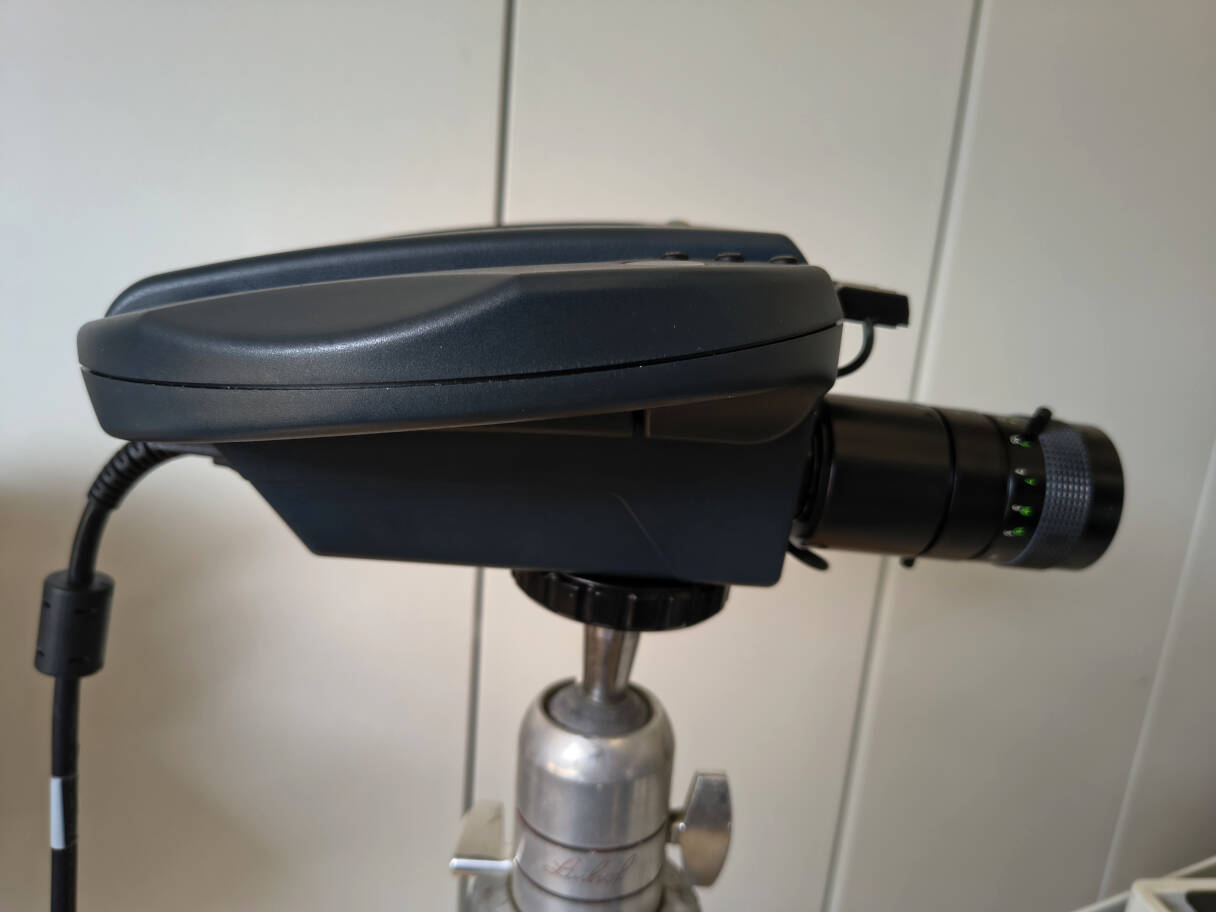

../jpgpola/polaroid_spd_360_IMG_20250721_114749388.jpg
Mounted on a tripod.  Left side.

../jpgpola/polaroid_spd_360_IMG_20250721_114707845.jpg

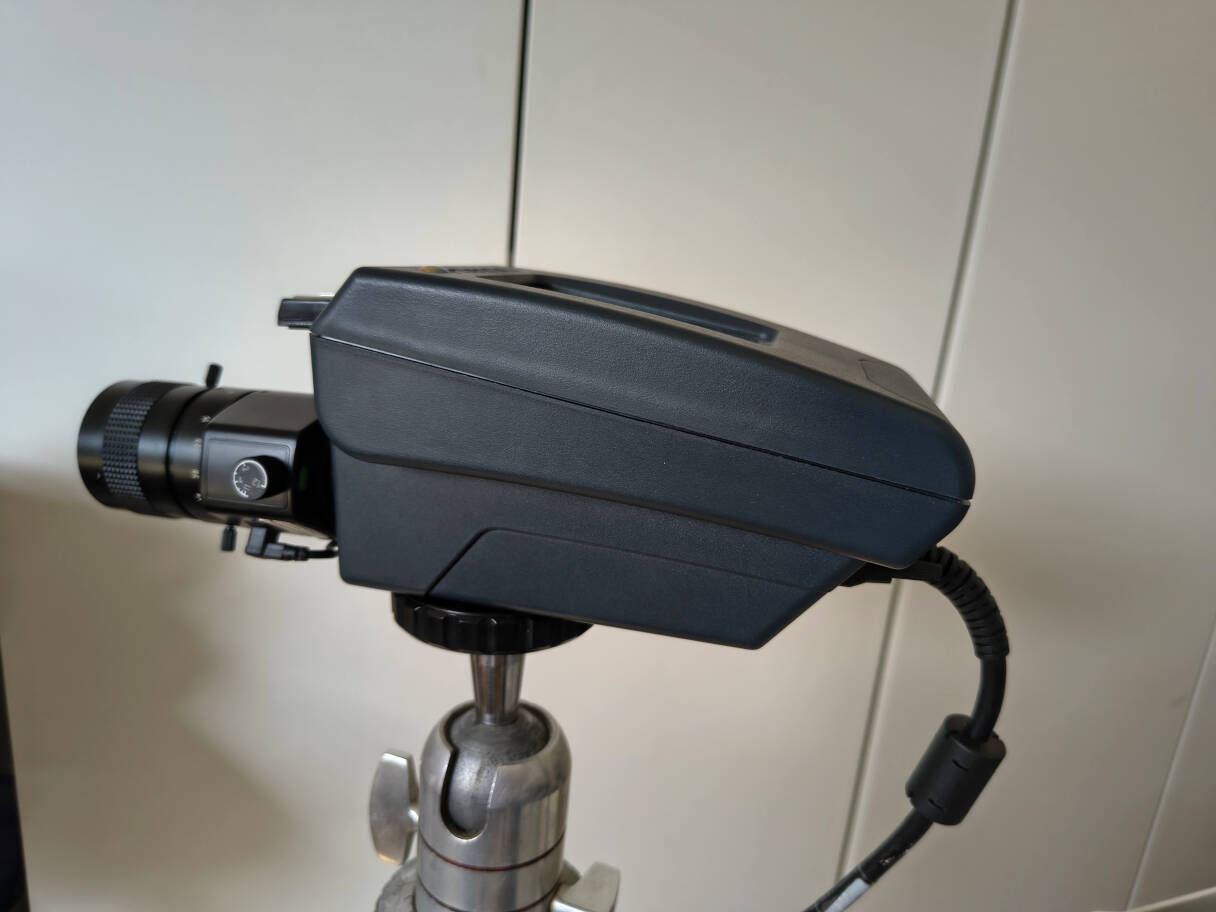

Right side.

../jpgpola/polaroid_spd_360_IMG_20250721_114701866.jpg

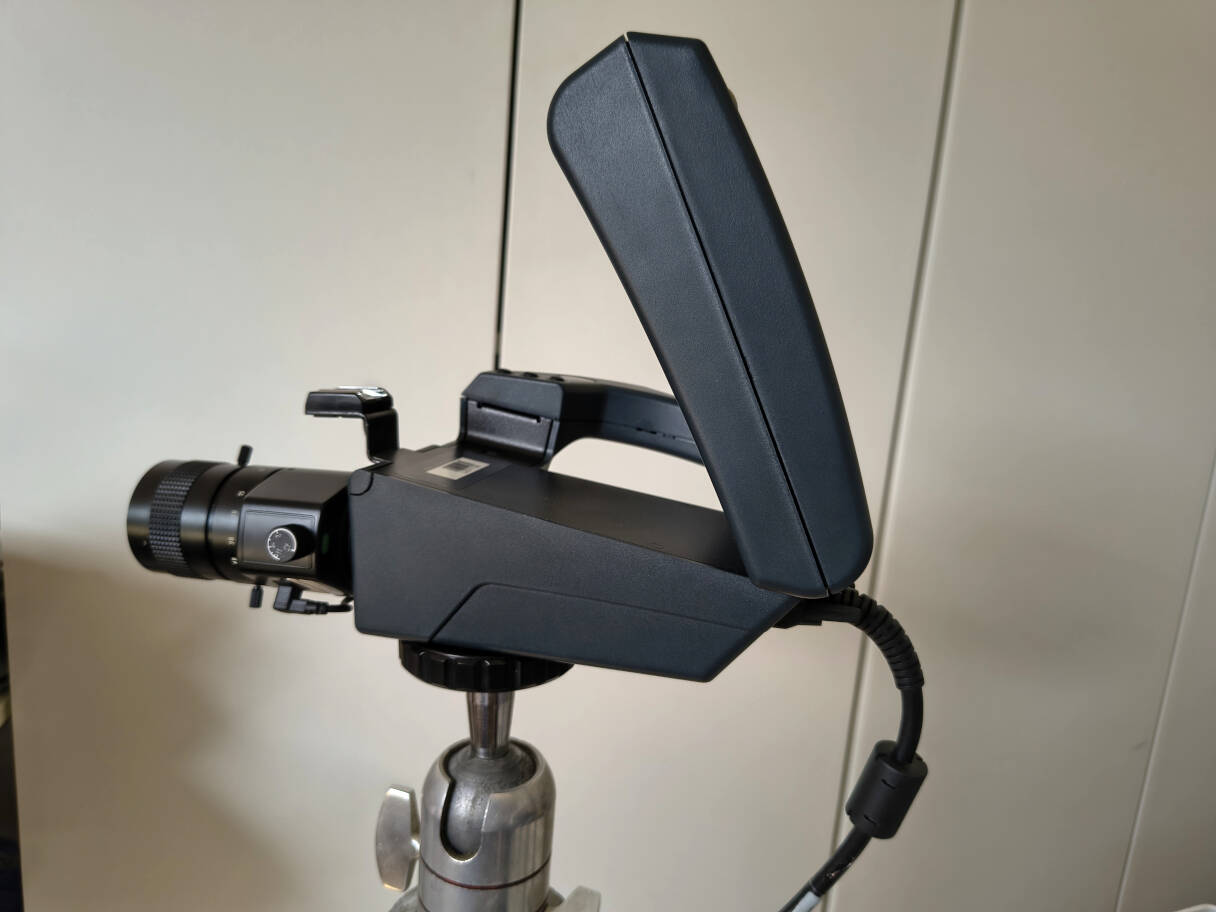

Screen lifted. Note the hot shoe

../jpgpola/polaroid_spd_360_IMG_20250721_114733444.jpg

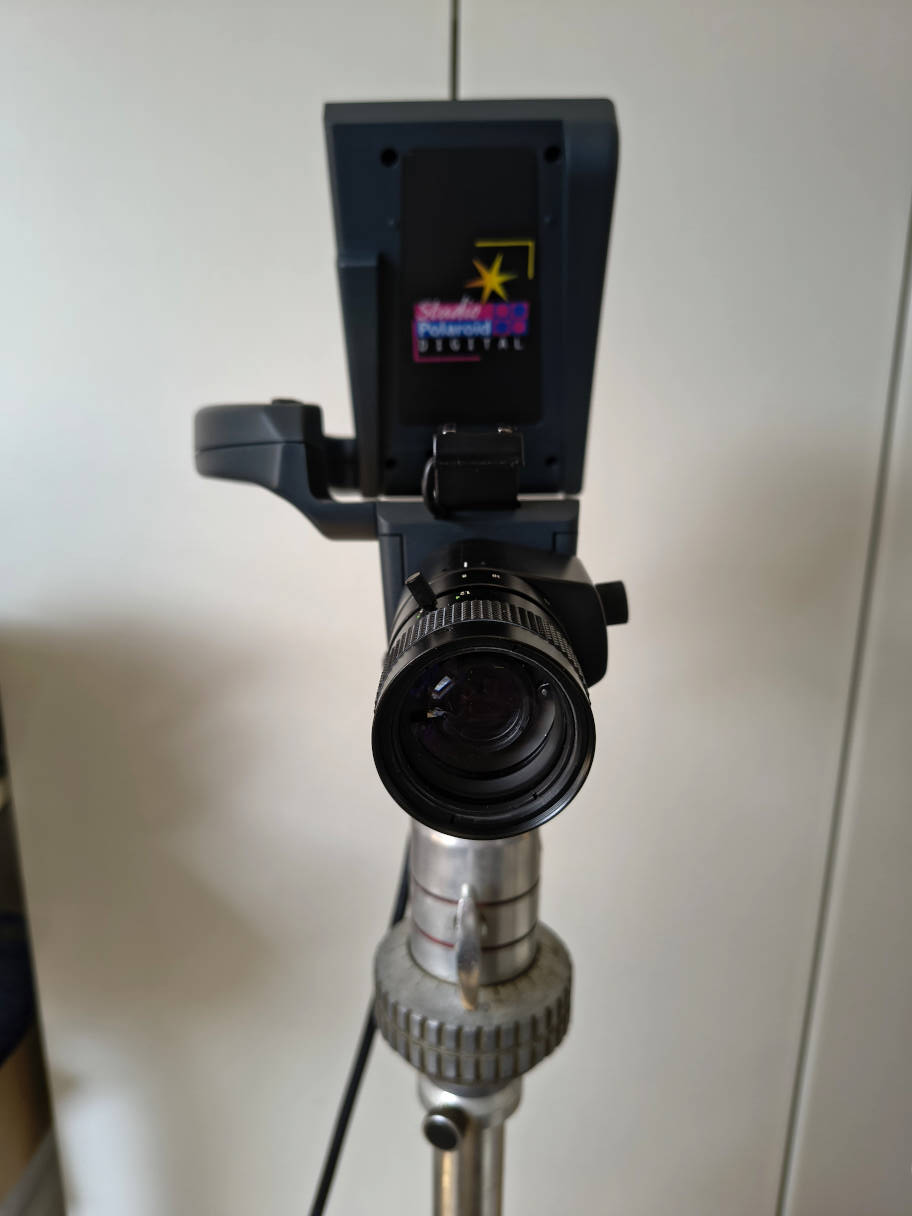

Seen from the front.

../jpgpola/polaroid_spd_360_IMG_20250721_114505191.jpg

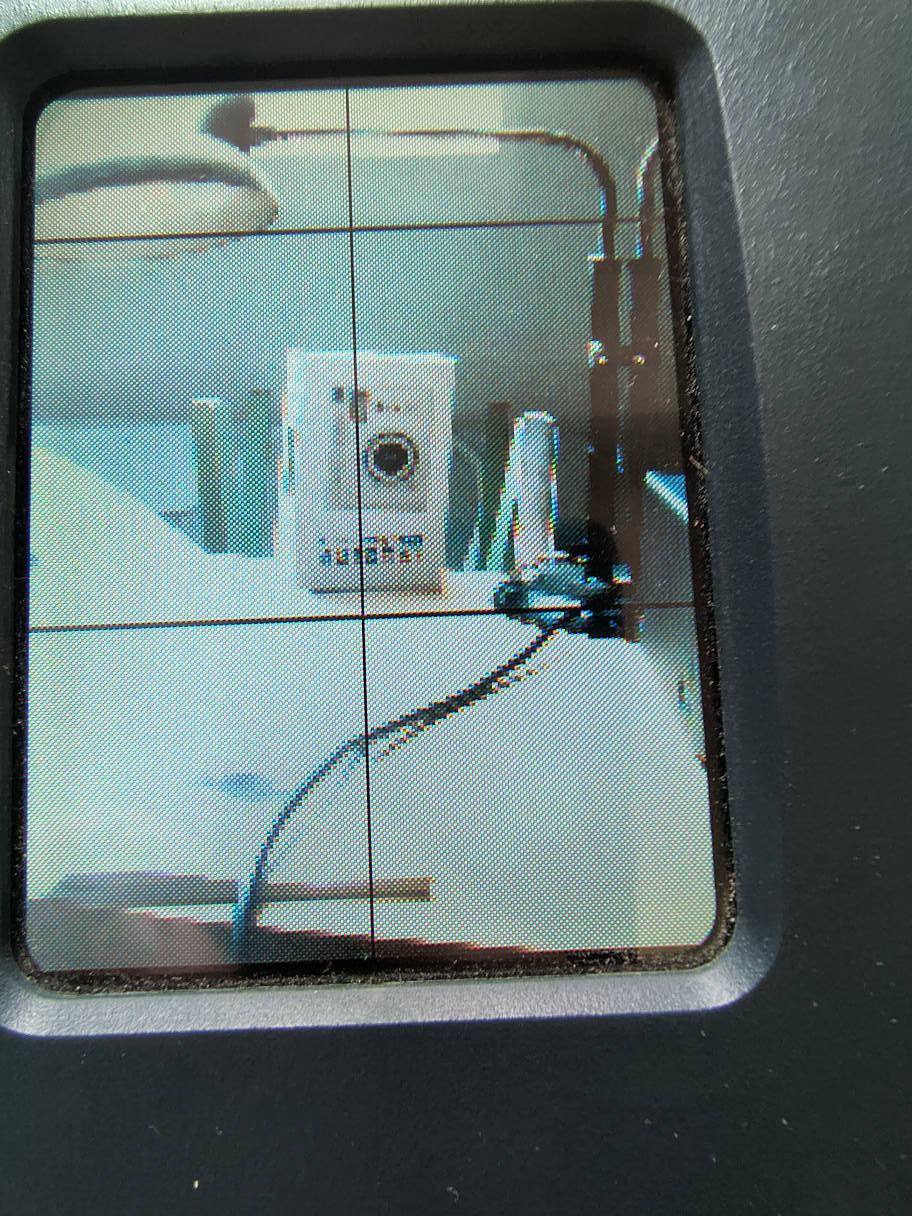

Minimum distance is about 1.5m.

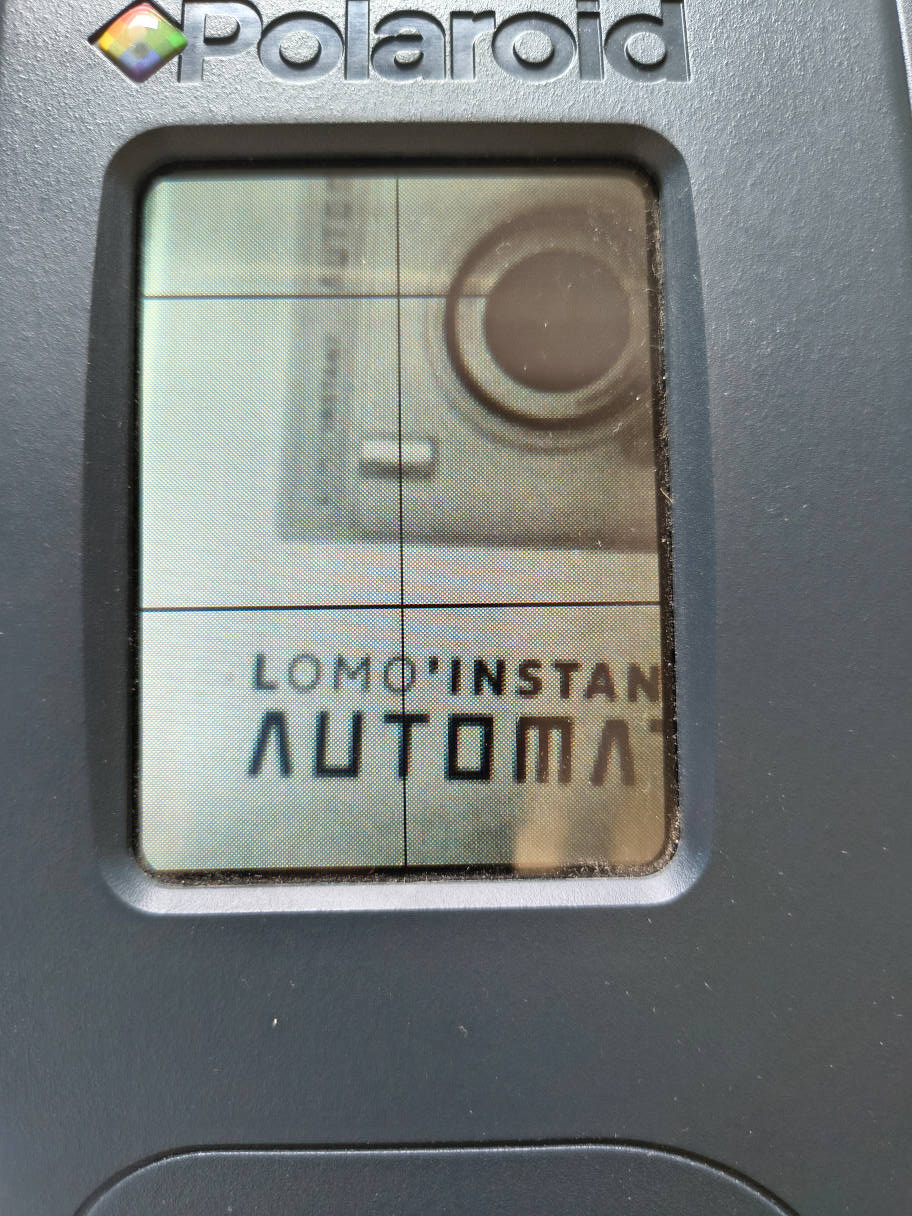

../jpgpola/polaroid_spd_360_IMG_20250721_114435690.jpg
The zoom is powerful.

../jpgpola/polaroid_spd_360_IMG_20250721_150031594.jpg

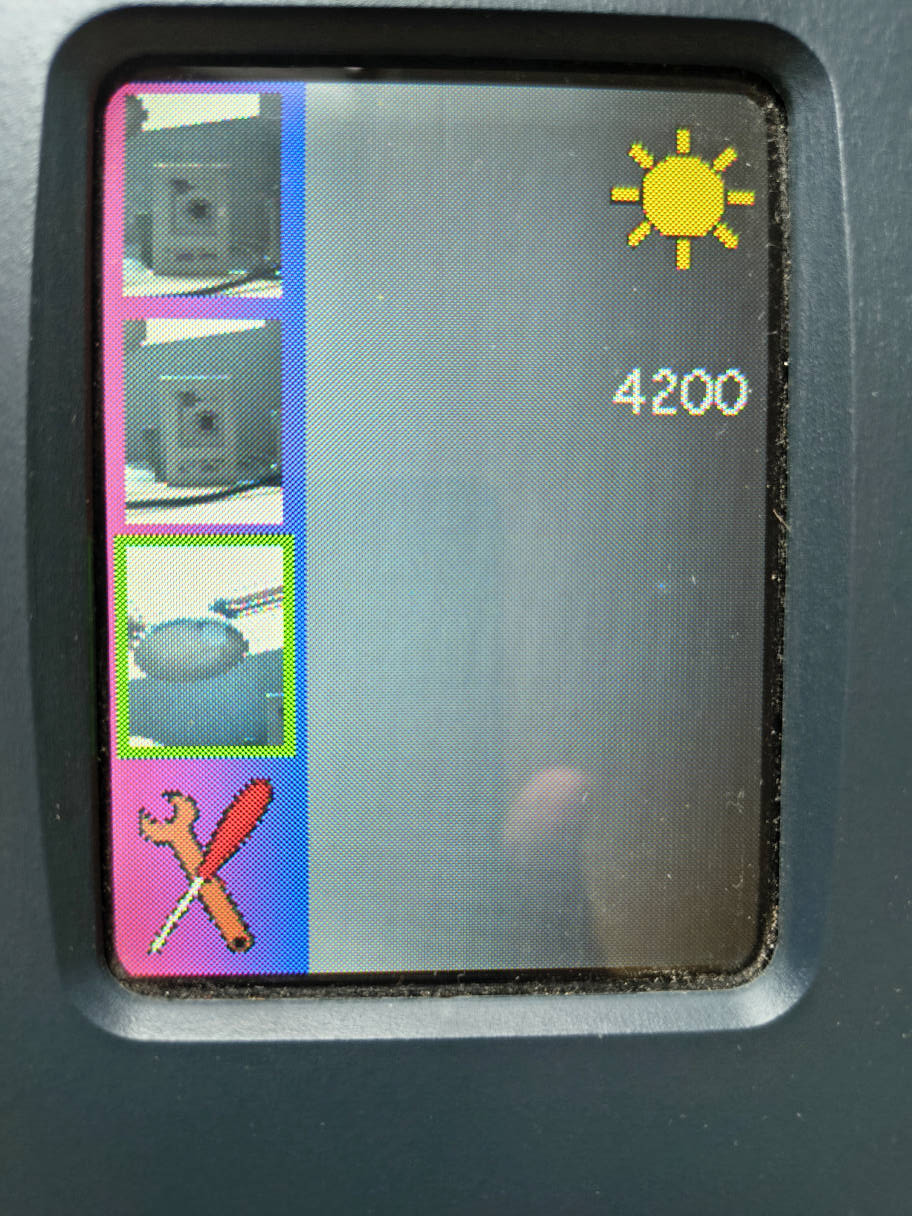

First push on the menu button. You can store up to 3 pictures to retrieve them later as long as the system is under power. Scroll down to access the settings.

../jpgpola/polaroid_spd_360_IMG_20250721_111515134.jpg

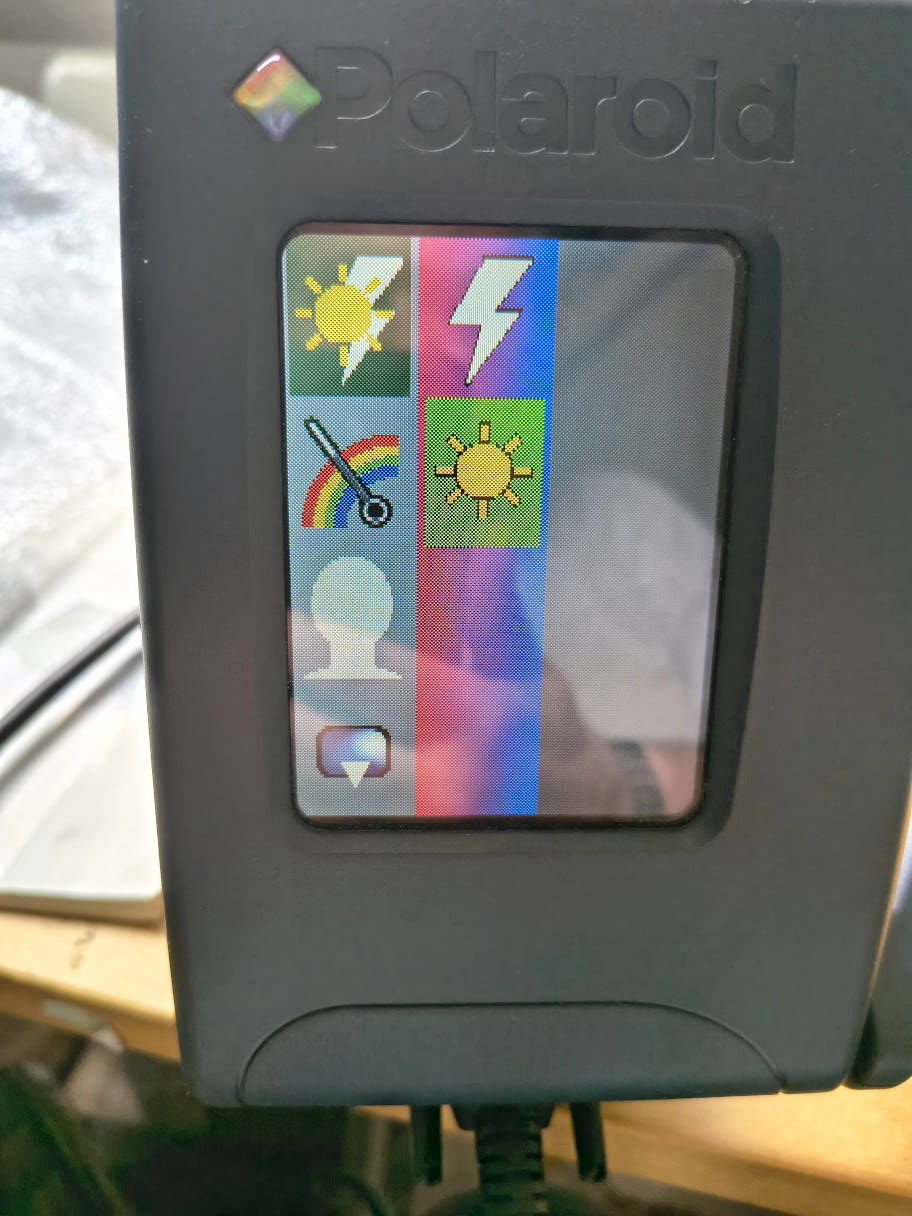

Via the settings you can acces things like choice of light source...

../jpgpola/polaroid_spd_360_IMG_20250721_150124467.jpg

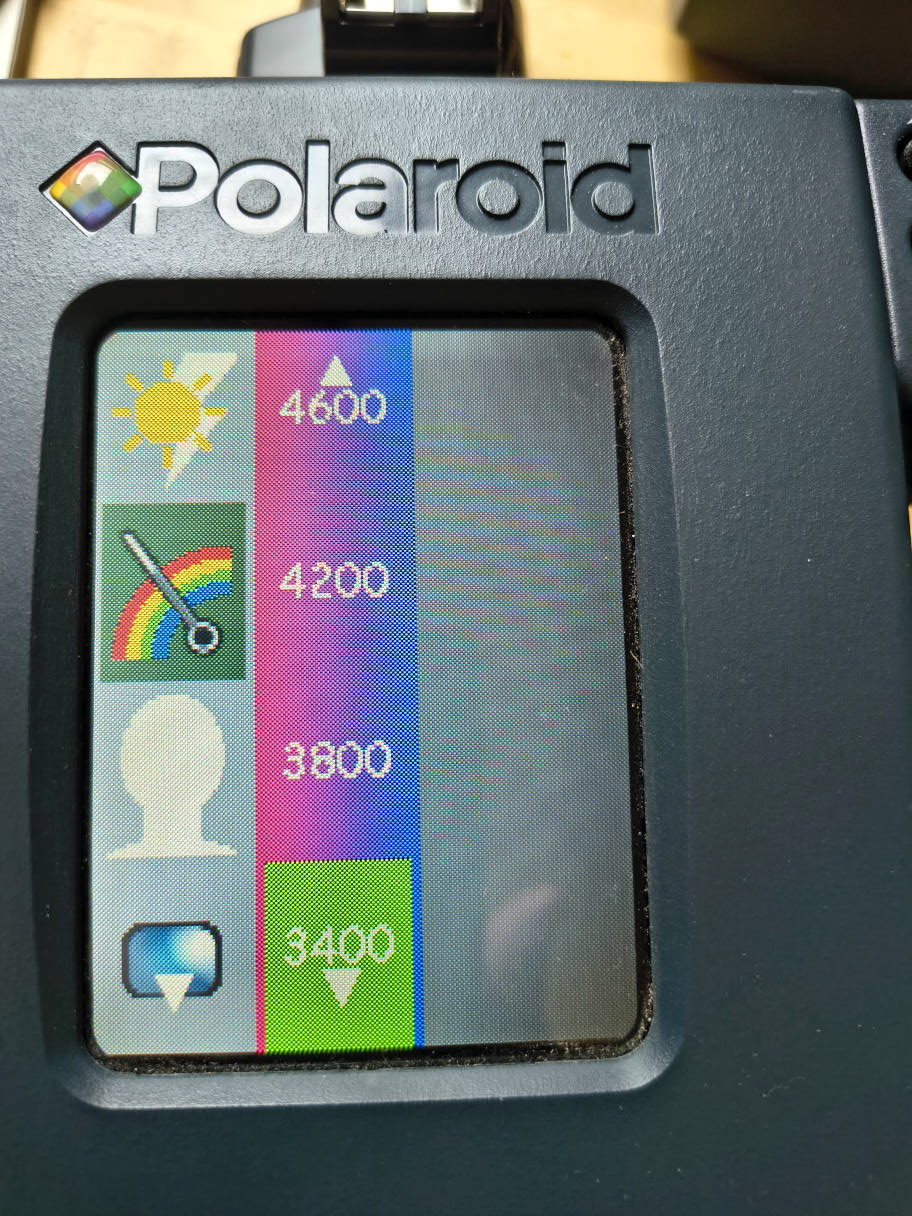

...or light temperature.

In any case, this is a highly sophisticated system for a studio photographer. Unfortunately pack 100 film is no longer available. A tinkerer could adapt it to Instax Wide film, but the Fuji printers are cheap, so this would only be a demonstration of your skills and it would save a system from the bin that was very advanced for its time.
