Finally I found it, the famous Polaroid #169 Adapter that goes into a flashcube socket and connects to an electronic flash. I knew it existed, but for several years it was untraceable. I found it on an ad site in the Netherlands. The task is not as easy as it seems at first sight. If you just connect the contacts from a bulb flash or a flashcube socket to an electronic flash, you will see...nothing. (And you may ruin your flash in the case of a flashcube, as the socket provides an electrical impulse.) Here is why (with some help from Wikipedia):

X-sync for electronic flash is the simplest to explain and implement: the flash is fired at the instant the shutter is fully open. Electronic flash equipment produces a very short flash. Cameras designed for use with flash bulbs generally have M (medium) sync, designed for use with M bulb types. This sync mode closes the contacts a few milliseconds before the shutter is open, to give the flashbulb time to reach peak brightness before exposing the film. Class M bulbs reach their peak illumination 20 milliseconds after ignition, a leaf shutter-type camera would open its shutter 19 milliseconds after electrical current was applied to the bulb. Flashcubes contain M type bulbs.

So if you take the contacts designed for flash bulbs for an electronic flash, the light from the flash would be over when the shutter opens. The resulting picture is black, I tried it. The Polaroid #169 adapter provides the necessary delay.

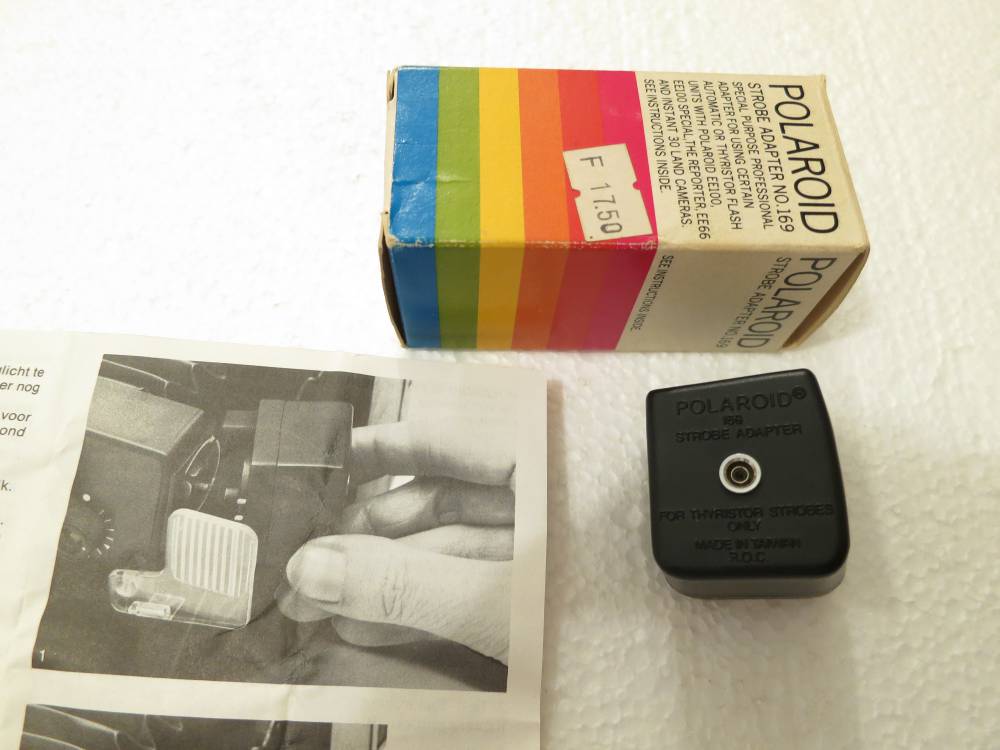

And here it is, the little wonder:

../jpgpolaacc/pola_adapt_169_01.JPG
With its original box...

../jpgpolaacc/pola_adapt_169_02.JPG
...and its instructions. The price was in Dutch Guilders, not French Francs.

../jpgpolaacc/pola_adapt_169_03.JPG
It clipses easily into the flashcube socket.

../jpgpolaacc/pola_adapt_169_04.JPG

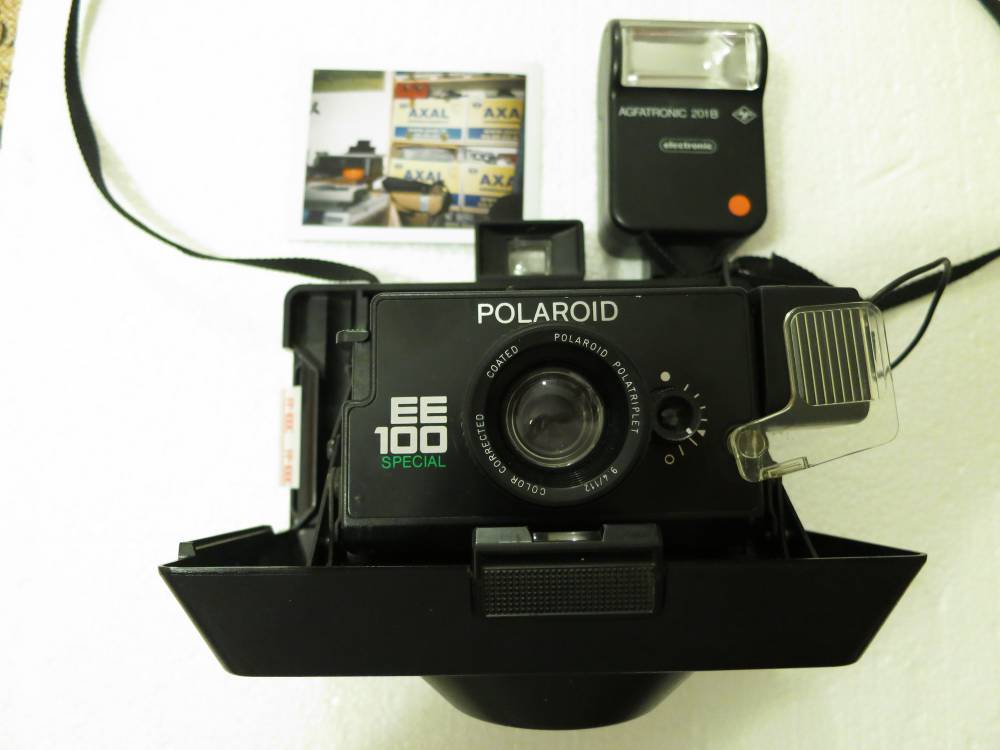

Clipsed, seen from above..

../jpgpolaacc/pola_adapt_169_05.JPG
A quick test with a flash that was too weak and only hand-held. But it's evident that it's geting its job right.

../jpgpolaacc/pola_adapt_169_manen_p.jpg

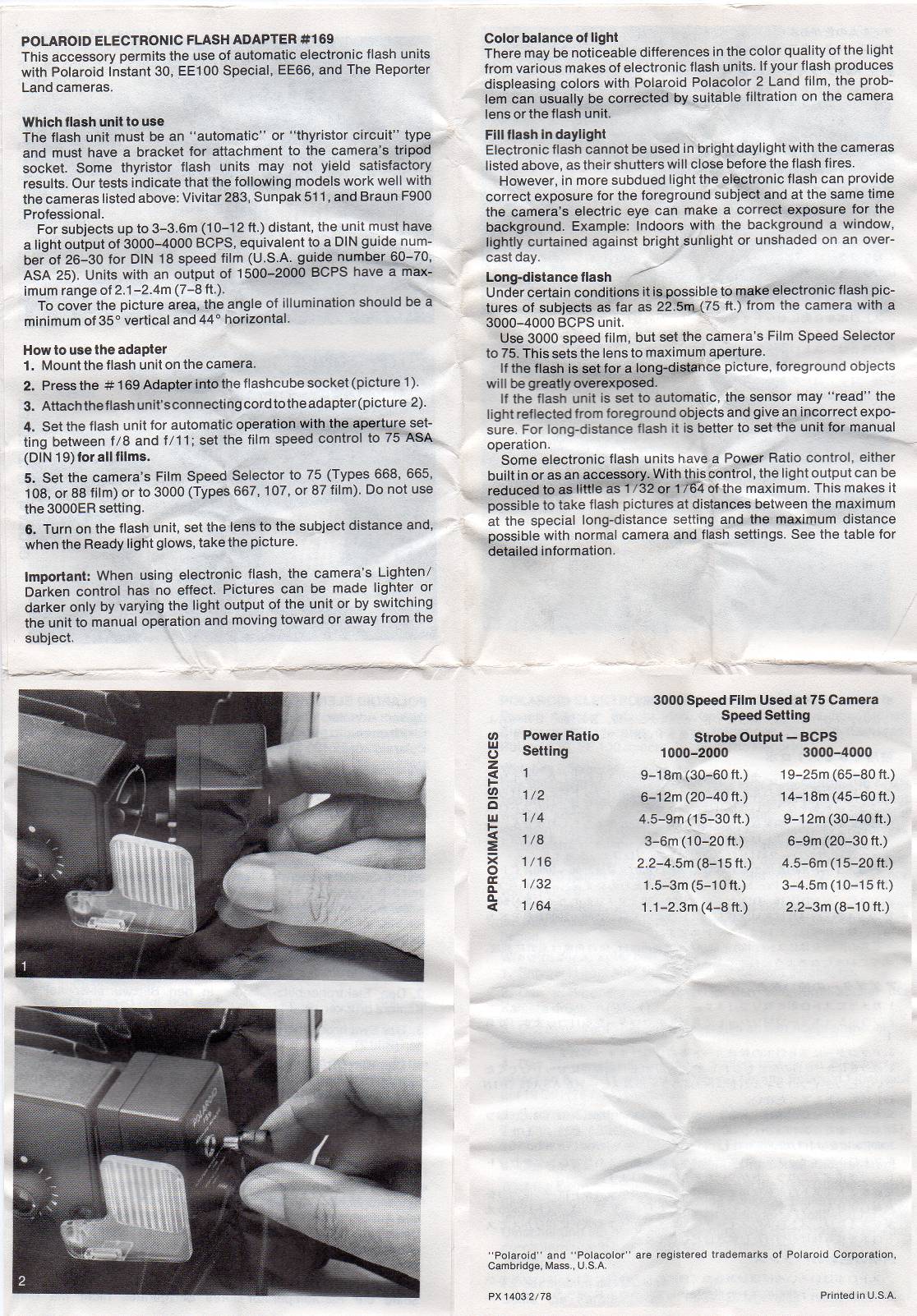

Finally, the notice
